Ferrari 400i (1983 Mechanical) Engine Ignition Parts Diagram

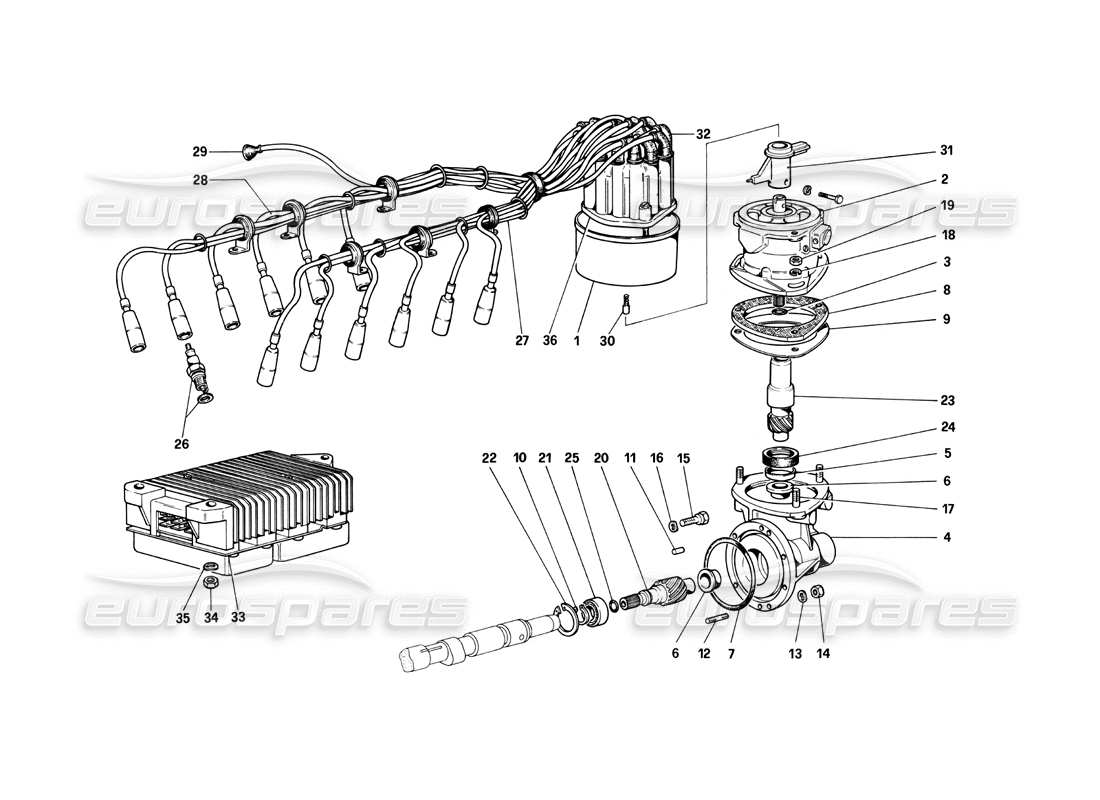

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                    #
                                                                    Part number
                                                                    Description
                                                                    Price
                                                                    # 001
                                                                    MPN: 114902
                                                                    Fascia antidisturbo radio
                                                                    from £169.59
                                                                    from £169.59
                                                                    # 002
                                                                    MPN: 113917
                                                                    DISTRIBUTORE D'ACCENSIONE MARELLI S158C
                                                                    # 003
                                                                    MPN: 100015
                                                                    SEALING RING
                                                                    from £1.21
                                                                    from £1.21
                                                                    # 004
                                                                    MPN: 113986
                                                                    SUPPORT
                                                                    from £260.79
                                                                    from £260.79
                                                                    # 005
                                                                    MPN: 105726
                                                                    BOCCOTA
                                                                    from £45.13
                                                                    from £45.13
                                                                    # 006
                                                                    MPN: 100269
                                                                    BUSH
                                                                    from £52.58
                                                                    from £52.58
                                                                    This part replaces part number 28968
                                                                    # 007
                                                                    MPN: 101029
                                                                    SEALING RING
                                                                    from £3.14
                                                                    from £3.14
                                                                    This part replaces part number 760/69,85 / 3,53/N 80 - 163
                                                                    # 008
                                                                    MPN: 100270
                                                                    SPACER
                                                                    from £97.52
                                                                    from £97.52
                                                                    This part replaces part number 16410
                                                                    # 009
                                                                    MPN: 100271
                                                                    GASKET
                                                                    Di eventuale montaggio
                                                                    from £10.41
                                                                    from £10.41
                                                                    This part replaces part number 30456
                                                                    # 010
                                                                    MPN: 11066376
                                                                    SEEGER RING
                                                                    from £0.53
                                                                    from £0.53
                                                                    This part replaces part number 11066366 - and 1 more. Click to view details
                                                                    # 011
                                                                    MPN: 100272
                                                                    DOWEL
                                                                    from £2.66
                                                                    from £2.66
                                                                    This part replaces part number 94043
                                                                    # 012
                                                                    MPN: 11500321
                                                                    THREADED STUD
                                                                    Supersession
                                                                    Supersession
                                                                    # 013
                                                                    MPN: 11197773
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 014
                                                                    MPN: 100273
                                                                    NUT
                                                                    from £16.35
                                                                    from £16.35
                                                                    This part replaces part number 94864
                                                                    # 015
                                                                    MPN: 100274
                                                                    SCREW
                                                                    from £21.22
                                                                    from £21.22
                                                                    This part replaces part number 94834
                                                                    # 016
                                                                    MPN: 11197773
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    # 017
                                                                    MPN: 13517021
                                                                    THREADED STUD
                                                                    from £2.80
                                                                    from £2.80
                                                                    # 018
                                                                    MPN: 11198074
                                                                    WASHER
                                                                    from £0.54
                                                                    from £0.54
                                                                    This part replaces part number 11198071 which we have in stock - and 4 more. Click to view details
                                                                    # 019
                                                                    MPN: 16100821
                                                                    NUT
                                                                    from £0.71
                                                                    from £0.71
                                                                    This part replaces part number 16100825 which we have in stock
                                                                    # 020
                                                                    MPN: 100599
                                                                    GENERATOR CONTROL GEAR
                                                                    from £401.72
                                                                    from £401.72
                                                                    This part replaces part number 29287
                                                                    # 021
                                                                    MPN: 121145
                                                                    BEARING
                                                                    from £8.01
                                                                    from £8.01
                                                                    This part replaces part number 101617 - and 1 more. Click to view details
                                                                    # 022
                                                                    MPN: 11059476
                                                                    RING
                                                                    from £8.94
                                                                    from £8.94
                                                                    This part replaces part number 11059475
                                                                    # 023
                                                                    MPN: 115189
                                                                    INGRANAGGIO CONDOTTO COMANDO SPINTEROGENO
                                                                    from £278.25
                                                                    from £278.25
                                                                    # 024
                                                                    MPN: 104613
                                                                    SEALING RING
                                                                    from £10.41
                                                                    from £10.41
                                                                    # 025
                                                                    MPN: 101030
                                                                    ANELTE DI TENUTA
                                                                    from £1.31
                                                                    from £1.31
                                                                    # 026
                                                                    MPN: 100604
                                                                    Spark Plugs
                                                                    Supersession
                                                                    Supersession
                                                                    # 026
                                                                    MPN: 119492/A
                                                                    SPARK PLUG
                                                                    from £9.40
                                                                    from £9.40

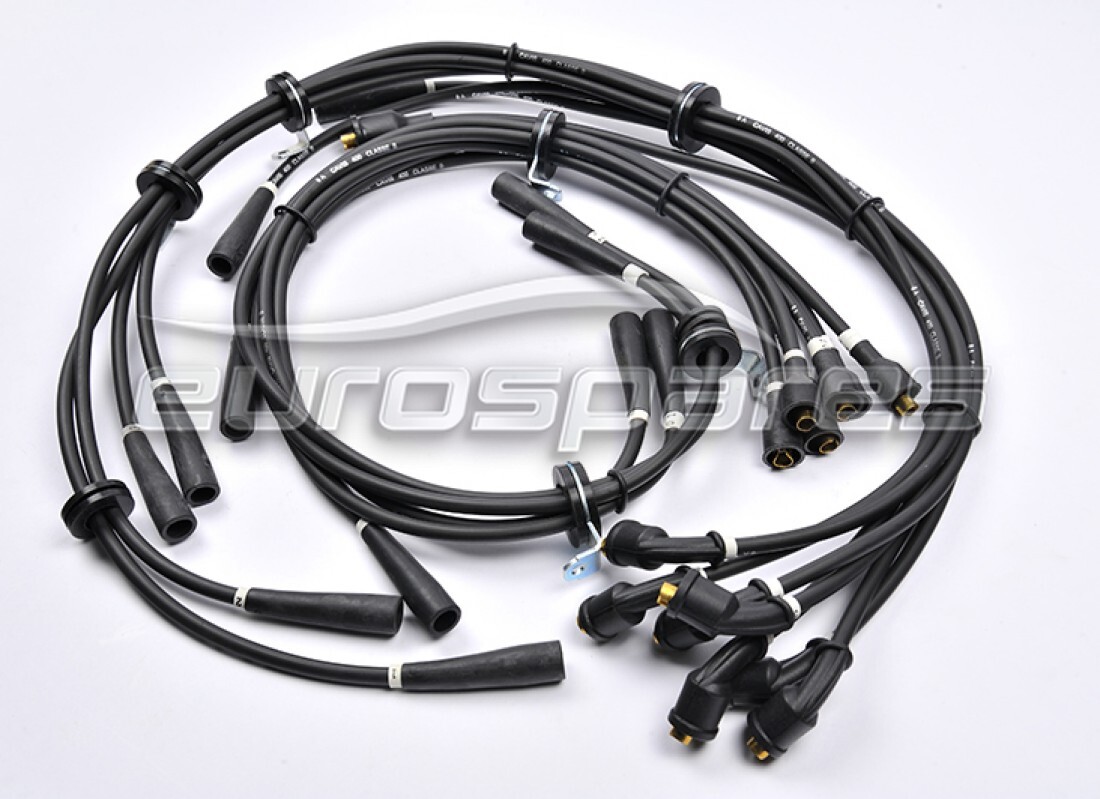

                                                                    # 027
                                                                    MPN: 114463
                                                                    CABLE ASSEMBLY FROM DISTRIBUTOR TO LEFT SIDE SPARK PLUG
                                                                    from £350.00
                                                                    from £350.00
                                                                    This part replaces part number 29302
                                                                    # 028
                                                                    MPN: 114464
                                                                    CABLE ASSEMBLY FROM DISTRIBUTOR TO RIGHT SIDE SPARK PLUG
                                                                    from £350.00
                                                                    from £350.00
                                                                    # 029
                                                                    MPN: 12056986
                                                                    CAPPUCCIO DI PROTEZIONE
                                                                    from £0.94
                                                                    from £0.94
                                                                    This part replaces part number 12056286 - and 2 more. Click to view details
                                                                    # 030
                                                                    MPN: 101074
                                                                    CARBON BRUSH
                                                                    from £19.35
                                                                    from £19.35
                                                                    This part replaces part number 740543 - and 1 more. Click to view details
                                                                    # 032
                                                                    MPN: 12056986
                                                                    CAPPUCCIO
                                                                    from £0.94
                                                                    from £0.94
                                                                    This part replaces part number 12056286 - and 2 more. Click to view details
                                                                    # 033
                                                                    MPN: 118112/X
                                                                    ELECTRONIC IGNITION CONTROL UNIT
                                                                    from £3,209.24
                                                                    from £3,209.24
                                                                    This part replaces part number 118112
                                                                    # 034
                                                                    MPN: 15896211
                                                                    NUT
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 15896210 which we have in stock
                                                                    # 035
                                                                    MPN: 12601271
                                                                    WASHER
                                                                    Supersession
                                                                    Supersession
                                                                    This part replaces part number 103372 - and 1 more. Click to view details
                                                                    # 036
                                                                    MPN: 95300043
                                                                    DISTRIBUTOR CAP
                                                                    (12 Cylinder - Single Distributor - Single Coil)
                                                                    from £325.00
                                                                    from £325.00
                                                                    This part replaces part number 95300047 - and 1 more. Click to view details
