054 - air conditioning system

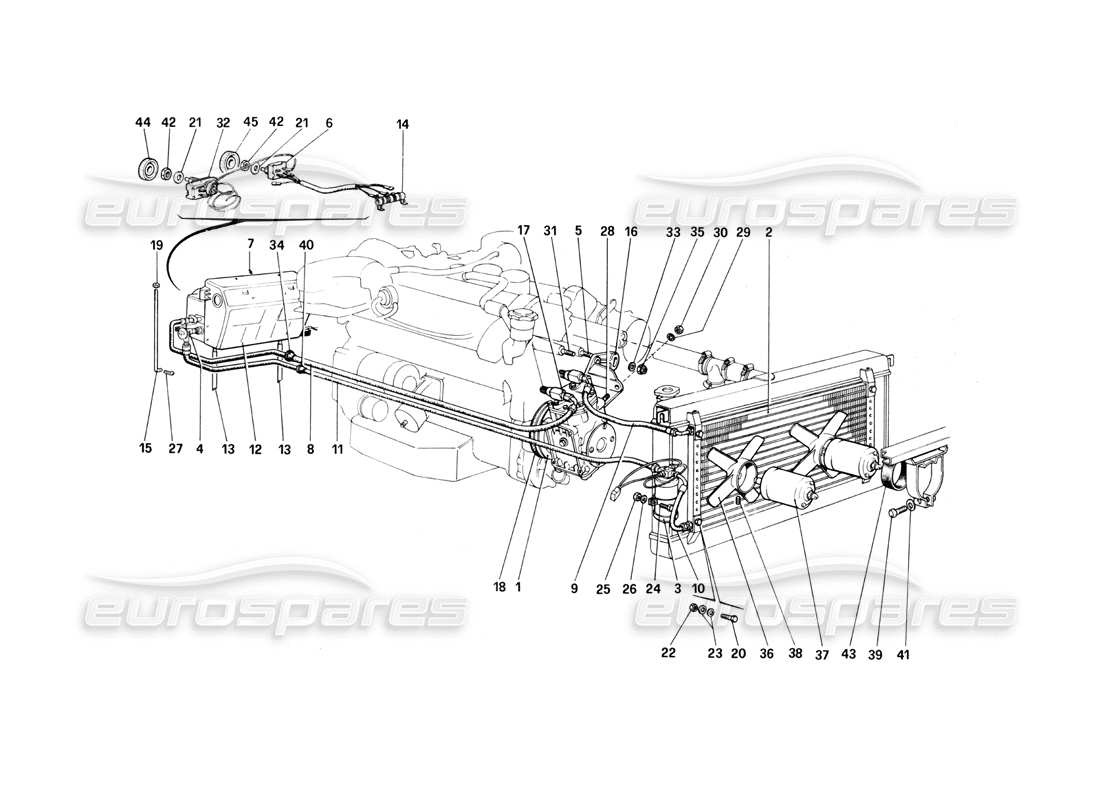

Ferrari 400i (1983 Mechanical) Air Conditioning System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 100473
JOINT WITH ANTI-CLOCKWISE ROTATION
from £793.49
from £793.49
This part replaces part number 320368
# 002
MPN: 101988
CONDENSOR
from £700.97
from £700.97
This part replaces part number 105156 - and 1 more. Click to view details
# 003
MPN: 129101
DRYER FILTER
from £104.52
from £104.52
This part replaces part number 114730 - and 5 more. Click to view details
# 003
MPN: 129101/A
DRYER FILTER
from £96.71
from £96.71
This part replaces part number 129101 which we have in stock - and 7 more. Click to view details
# 004
MPN: 107216
SEALING RING
from £3.76
from £3.76
This part replaces part number 109255
# 004
MPN: 60929600
VALVOLA ESPANSIONE
from £240.29
from £240.29
This part replaces part number 106644 - and 1 more. Click to view details
# 005
MPN: 13450121
THREADED STUD
Supersession
Supersession
This part replaces part number 13450120
# 006
MPN: 101990
COMMUTATORE
from £118.75
from £118.75
This part replaces part number 105913 - and 5 more. Click to view details
# 007
MPN: 101983
FAN UNIT
from £1,880.87
from £1,880.87
This part replaces part number 320443
# 008

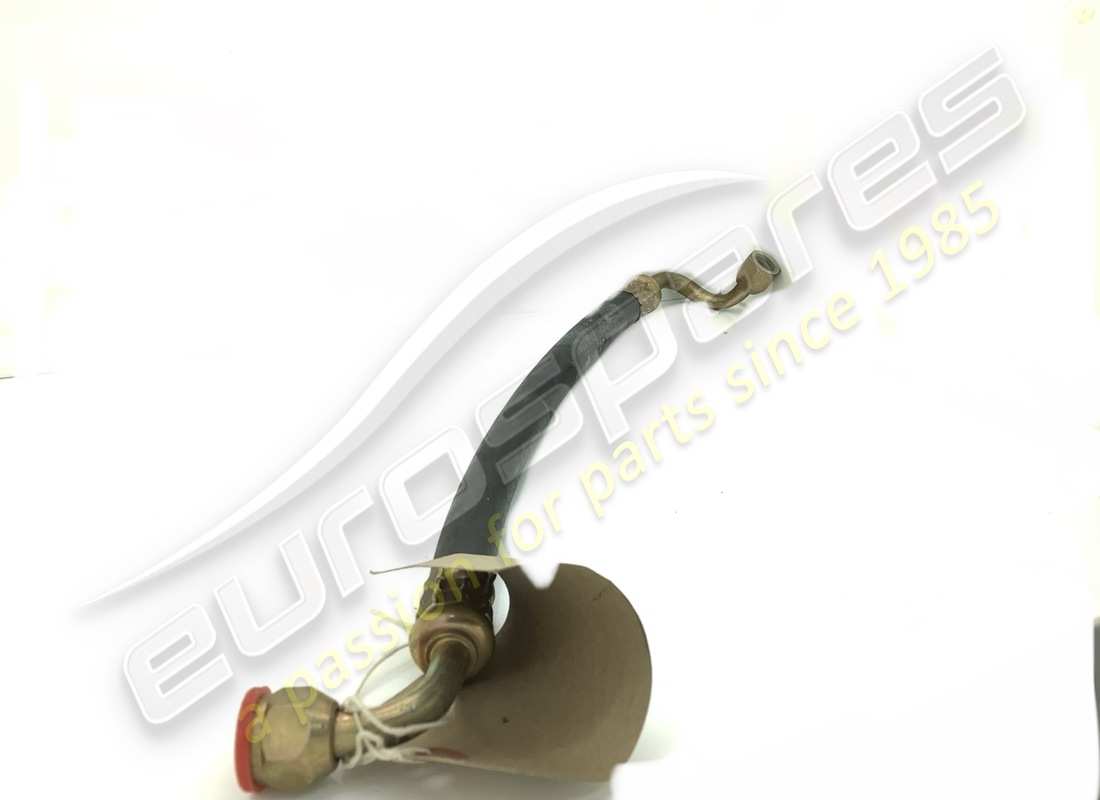

MPN: 107136
TUBO PER FREON Ø 5 / 8 PER GS
from £244.50
from £244.50
# 008
MPN: 111336
TUBO PER FREON Ø 5 / 8 PER GD
from £176.39
from £176.39
# 009
MPN: 107137
TUBO PER FREON Ø 1 / 2
# 010
MPN: 107134
TUBO PER FREON Ø 3 /8
from £97.97
from £97.97
# 011
MPN: 114729
TUBO PER FREON Ø 3 / 8 PER GS
from £203.88
from £203.88
# 011
MPN: 114750
TUBO PER FREON Ø 3 / 8 PER GD
from £150.49
from £150.49
# 012
MPN: 119573
GRUPPO CONDIZIONATORE COMPLETO
from £1,337.55
from £1,337.55
This part replaces part number 110009 - and 1 more. Click to view details
# 012
MPN: 120345
CONDIZIONATORE
Col complessivo n. 119573
Supersession
Supersession
# 013
MPN: 101996
TUBO SCARICO CONDENSA
from £12.53
from £12.53
This part replaces part number 320370
# 014
MPN: 107142
RESISTENZA PER COMMUTATORE
from £274.07
from £274.07
This part replaces part number 320391
# 015
MPN: 101568
TIE ROD
from £7.92
from £7.92
# 016
MPN: 100459
SUPPORT
from £156.95
from £156.95
This part replaces part number 32341 - and 1 more. Click to view details
# 017
MPN: 111222
COMPRESSOR WITH PULLEY
from £995.00
from £995.00
This part replaces part number 080.2112.000 - 209. U - and 5 more. Click to view details
# 018

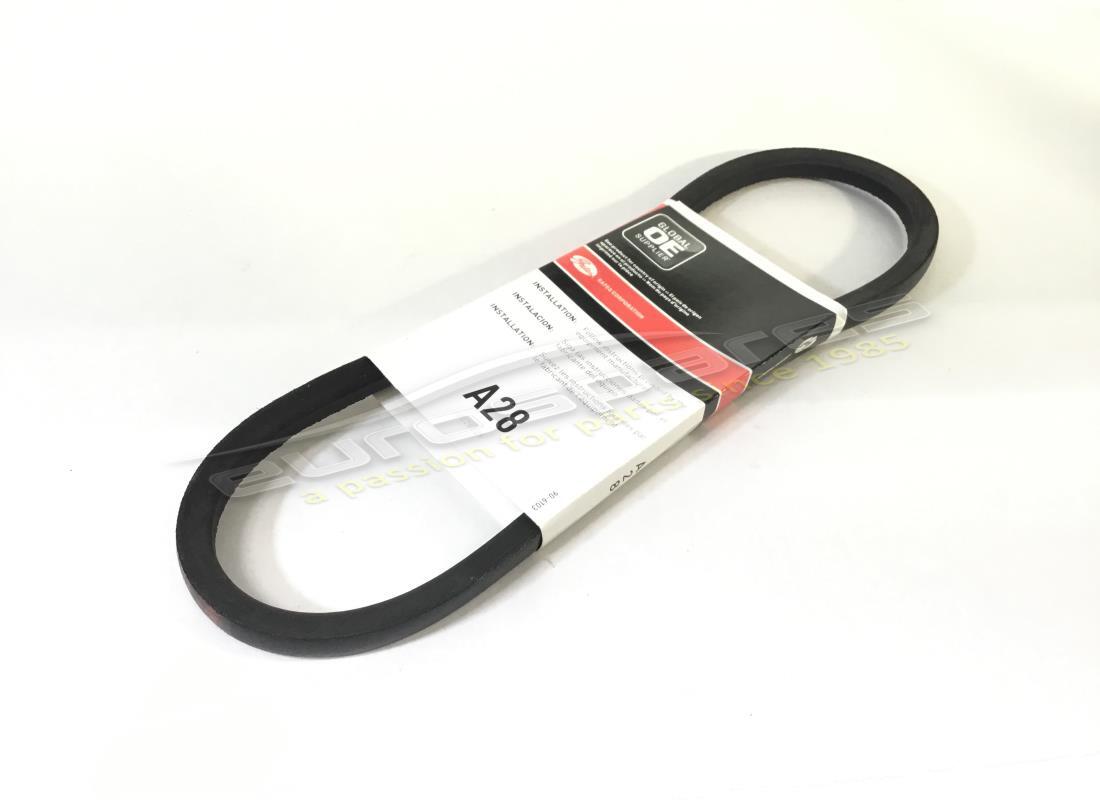

MPN: 100475
COMPRESSOR BELT
13 x 710 LI
from £25.71
from £25.71
This part replaces part number Sez.A28
# 019
MPN: 12574211
NUT
from £0.71
from £0.71
# 020
MPN: 10903021
BOLT
Supersession
Supersession
# 021
MPN: 107144
WASHER
from £13.37
from £13.37
# 022
MPN: 12574211
NUT
from £0.71
from £0.71
# 023
MPN: 12643701
WASHER
Supersession
Supersession
This part replaces part number 12643704 - and 1 more. Click to view details
# 024
MPN: 10902621
BOLT
Supersession
Supersession
This part replaces part number 10902611 which we have in stock
# 025
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210 which we have in stock
# 026
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 027
MPN: 10795701
SPLIT PIN
from £0.47
from £0.47
# 028
MPN: 100472
THREADED STUD
from £11.79
from £11.79
This part replaces part number 95504
# 029
MPN: 12638601
WASHER
from £0.53
from £0.53
This part replaces part number 20232104
# 030
MPN: 12574521
NUT
from £0.55
from £0.55
This part replaces part number 104114 which we have in stock - and 1 more. Click to view details
# 031
MPN: 13450021
STUD
from £0.47
from £0.47
This part replaces part number 13450020 which we have in stock
# 032
MPN: 109819
TERMOSTATO TARATO
Supersession
Supersession
# 033
MPN: 13550421
WASHER
from £0.47
from £0.47
# 034
MPN: 102250
CAP ON THE FIREGUARD FOR EVAPORATOR PIPE - COMPRESSOR
from £7.12
from £7.12
# 035
MPN: 12574521
SELF LOCKING NUT
from £0.55
from £0.55
This part replaces part number 104114 which we have in stock - and 1 more. Click to view details
# 036
MPN: 119448
VENTOLA A 4 PALE
from £126.31
from £126.31
# 037
MPN: 119447
Fan Motor & Blade
from £212.12
from £212.12
This part replaces part number 107175 which we have in stock - and 2 more. Click to view details
# 038
MPN: 13804521
DOWEL
# 039
MPN: 10902621
BOLT
Supersession
Supersession
This part replaces part number 10902611 which we have in stock
# 040
MPN: 102251
CAP ON THE FIREPROOF FOR PURIFICATION PIPE - EVAPORATOR
from £9.66
from £9.66
# 041
MPN: 106850
WASHER
Supersession
Supersession
This part replaces part number 10516473 - and 1 more. Click to view details
# 042
MPN: 105911
NUT
from £3.31
from £3.31
This part replaces part number 320418
# 043
MPN: 111872
RING
from £6.72
from £6.72
# 044
MPN: 119575
POMELLO PER TERMOSTATO
from £6.28
from £6.28
# 045
MPN: 61112400
SWITCH KNOB
from £52.54
from £52.54
