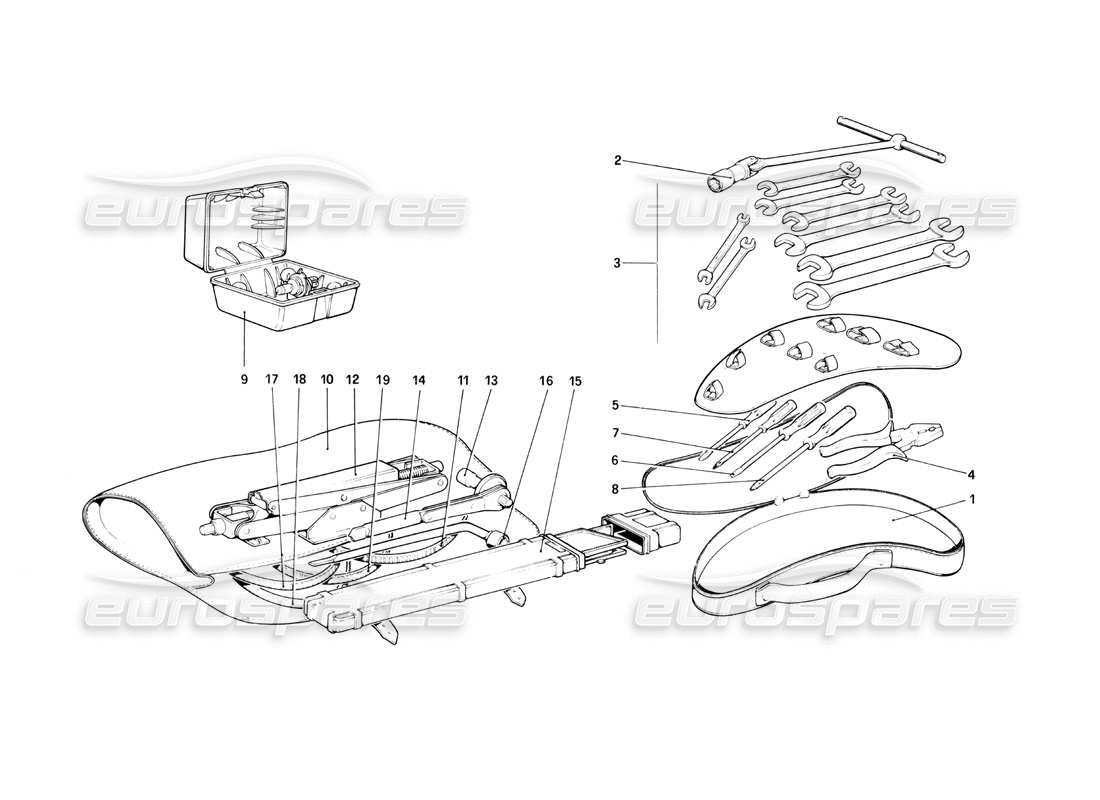

Ferrari 400i (1983 Mechanical) Tool-Kit Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                      #
                                      Part number
                                      Description
                                      Price
                                      # 000
                                      MPN: 95990045

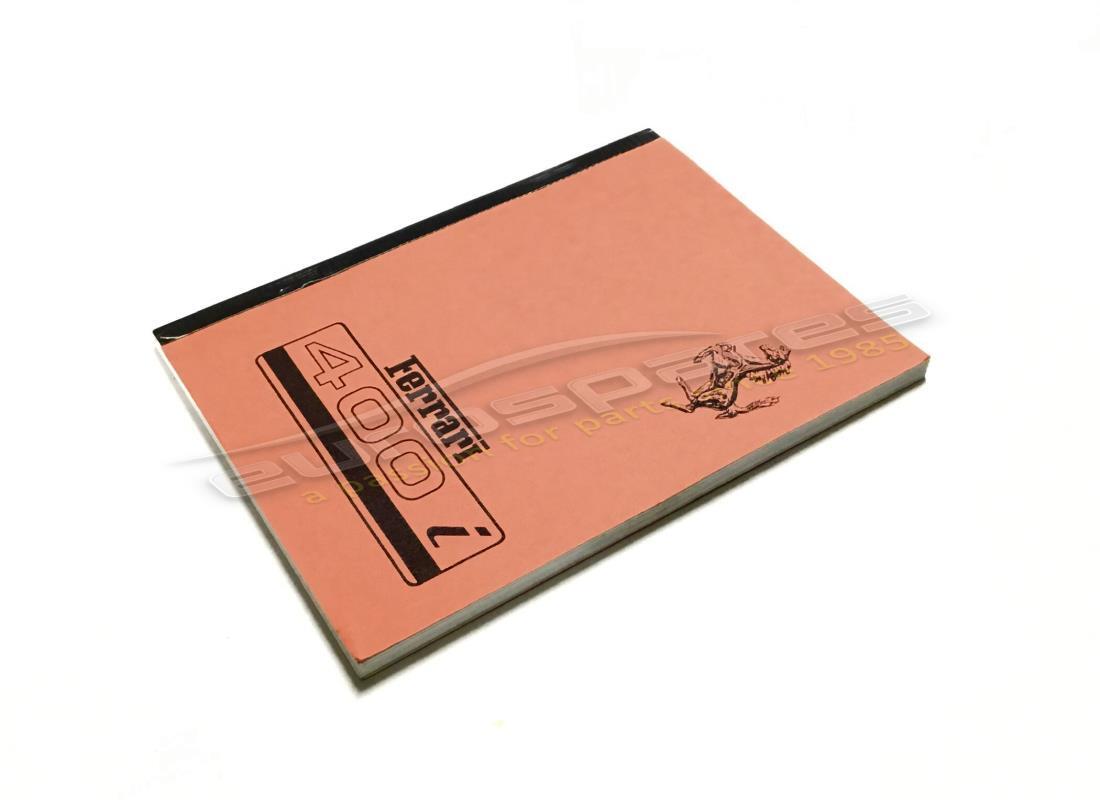

                                      Hand Book
                                      Series 2 Manual
                                      from £34.13
                                      from £34.13
                                      # 000
                                      MPN: 95991900/A
                                      INDOOR CAR COVER
                                      red
                                      from £341.25
                                      from £341.25
                                      # 000
                                      MPN: FWMAN004
                                      WORKSHOP MANUAL
                                      Engine & Chassis
                                      # 001
                                      MPN: 121135
                                      BORSA PORTA ATTREZZI CONTENENTE:
                                      This part replaces part number 120964
                                      # 002
                                      MPN: 100519
                                      CHIAVE PER CANDELE
                                      This part replaces part number 38126
                                      # 003
                                      MPN: 101514
                                      CHIAVI PIATTE DA 6 A 22 MM.
                                      # 004
                                      MPN: 101515
                                      PINZA UNIVERSAL MM. 180
                                      from £42.90
                                      from £42.90
                                      # 005
                                      MPN: 101516
                                      SCREWDRIVER FOR SLOTTED SCREWS MM. 120
                                      # 006
                                      MPN: 101517
                                      SCREWDRIVER FOR SLOTTED SCREWS MM. 150
                                      # 007
                                      MPN: 101518
                                      PHILIPS TYPE SCREWDRIVER FOR SCREWS UP TO MM. 4
                                      # 008
                                      MPN: 101519
                                      CACCIAVITE TIPO PHILIPS PER VITI DA Ø 5 A Ø 9 MM.
                                      # 009
                                      MPN: 101522
                                      LAMP 12V - 21W
                                      Supersession
                                      Supersession
                                      This part replaces part number 20083200
                                      # 009
                                      MPN: 101525
                                      BULB
                                      from £2.11
                                      from £2.11
                                      This part replaces part number 101528
                                      # 009
                                      MPN: 101525
                                      BULB
                                      from £2.11
                                      from £2.11
                                      This part replaces part number 101528
                                      # 009
                                      MPN: 10858090
                                      FUSE 8 AMP CERAMIC
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 95403001
                                      # 009
                                      MPN: 11048990
                                      FUSE 16 AMP CERAMIC
                                      from £0.47
                                      from £0.47
                                      This part replaces part number 95403002
                                      # 009
                                      MPN: 110733
                                      ARTIFICIAL LEATHER CASE CONTAINING EMERGENCY TOOLS COMPOSED OF:.
                                      # 009
                                      MPN: 120965
                                      BORSA PRONTO SOCCORSO CONTENENTE:
                                      # 009
                                      MPN: 20083002
                                      BULB 12V-5W
                                      Supersession
                                      Supersession
                                      This part replaces part number 101524 - and 1 more. Click to view details
                                      # 009
                                      MPN: 20177903
                                      LAMP 12V - 5 / 21 W
                                      Supersession
                                      Supersession
                                      This part replaces part number 101523 - and 2 more. Click to view details
                                      # 009
                                      MPN: 60121704
                                      LAMP
                                      Supersession
                                      Supersession
                                      # 010
                                      MPN: 105970
                                      CONTENITORE
                                      # 011
                                      MPN: 108981
                                      LOWER GENERATOR CONTROL BELT
                                      from £47.39
                                      from £47.39
                                      # 012
                                      MPN: 171489
                                      JACK TYPE 232 F
                                      from £643.50
                                      from £643.50
                                      # 013
                                      MPN: 106531
                                      KEY FOR HAND STARTING THE CAR LIFTING JACK
                                      from £25.44
                                      from £25.44
                                      # 014
                                      MPN: 106532
                                      RATCHET WRENCH
                                      from £206.03
                                      from £206.03
                                      # 015
                                      MPN: 95993146
                                      TRIANGOLO DI SEGNALAZIONE
                                      from £61.43
                                      from £61.43
                                      This part replaces part number 105974
                                      # 016
                                      MPN: 70000903
                                      CHIAVE PER RUOTE
                                      from £107.01
                                      from £107.01
                                      This part replaces part number 106877
                                      # 017
                                      MPN: 100475

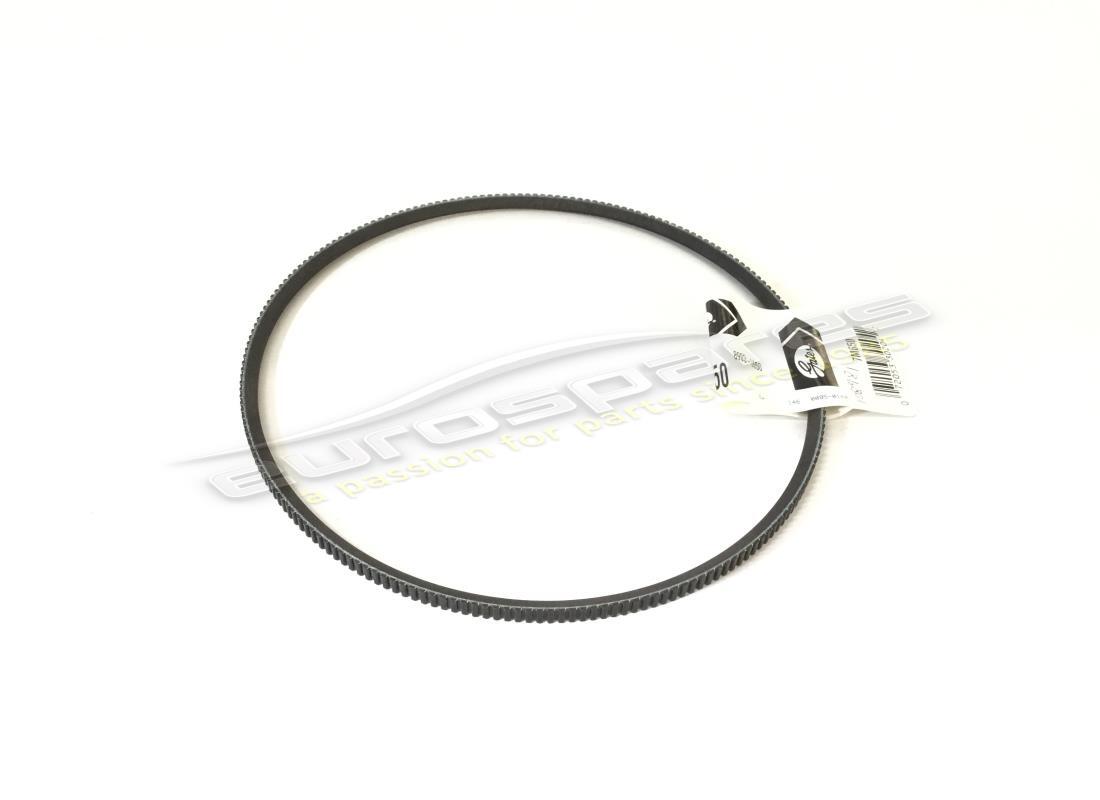

                                      COMPRESSOR BELT
                                      13 x 710 LI
                                      from £25.71
                                      from £25.71
                                      This part replaces part number Sez.A28
                                      # 018
                                      MPN: 111285
                                      UPPER GENERATOR CONTROL BELT
                                      from £51.52
                                      from £51.52
                                      This part replaces part number 350332
                                      # 019
                                      MPN: 100516
                                      HYDRAULIC GUIDE PUMP CONTROL BELT
                                      from £24.89
                                      from £24.89
                                      This part replaces part number 220696
