ferrari 412 (coachwork) rear seats parts diagram

023 - REAR SEATS

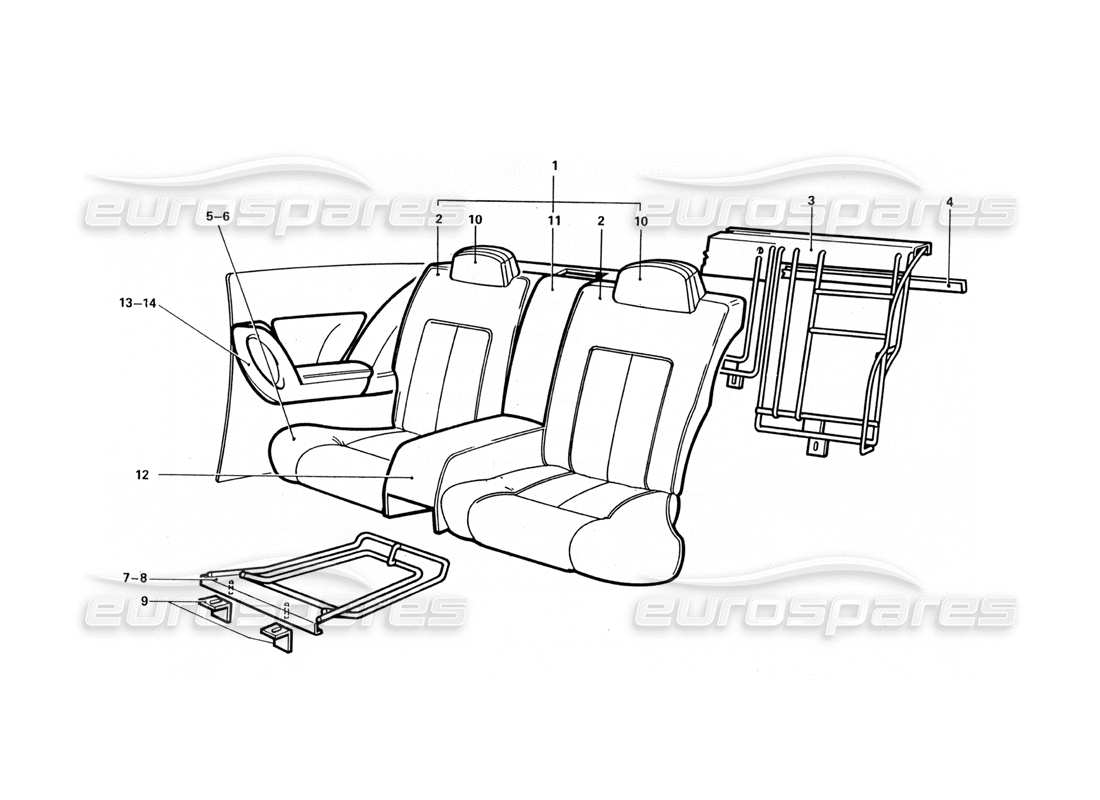

Ferrari 412 (Coachwork) Rear Seats Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
        #
        Part number
        Description
        Price
        # 001
        MPN: 257-66-058-00
        REAR HEADREST COVER.
        Specify DV Color No. 1811
        # 001
        MPN: 257-66-500-40
        SCHIENALE SEDILE POSTERIORE COMPL. FINITE
        Specificare il colore Compr. voci: 2-10-11
        # 002
        MPN: 257-66-034-00
        REAR BACKREST COVERING
        Specify DV Color No. 1811
        # 002
        MPN: 257-66-510-40
        REAR SEAT BACKREST PACKED
        Specify the color
        # 003
        MPN: 257-66-074-00
        RIVESTIMENTO PARTE CENTRALE SCHIEN.
        Specify DV Color No. 1811
        # 003
        MPN: 257-66-512-17
        OSSATURA SCHIENALE SEDILE POSTERIORE COMPL.
        from £152.32
        from £152.32
        # 004
        MPN: 255-66-620-00
        GASKET OR SEAL
        from £1.00
        from £1.00
        # 004
        MPN: 257-66-032-00
        REAR CUSHION COVER D
        Specify DV Color No. 1811
        # 005
        MPN: 257-66-033-00
        REAR CUSHION COVER S
        Specify DV Color No. 1811
        # 005
        MPN: 257-66-650-30
        RIGHT REAR SEAT CUSHION PACKAGED
        Specify the color
        # 006
        MPN: 257-66-076-00
        RIVESTIMENTO APPOGGIABRACCIA CENTR. POSTERIORE
        Specify DV Color No. 1811
        # 006
        MPN: 257-66-651-30
        LEFT REAR SEAT CUSHION PACKAGED
        Specify the color
        # 007
        MPN: 257-66-660-07
        COMPLETE REAR RIGHT SEAT CUSHION FRAME..
        from £61.10
        from £61.10
        # 008
        MPN: 257-66-661-07
        REAR LEFT SEAT CUSHION FRAME COMPLETE
        from £61.10
        from £61.10
        # 009
        MPN: 255-66-696-01
        BRACKET / SUPPORT
        from £2.84
        from £2.84
        # 010
        MPN: 257-66-850-00
        REAR HEADREST PACKAGED
        Specify the color
        # 011
        MPN: 257-66-880-10
        CENTRAL PART BACKREST SEAT PACKED
        Specify the color
        # 012
        MPN: 257-66-900-00
        APPOGGIABRACCIA CENTRALE POSTERIORE CONFEZIONATO
        Specify the color
        # 013
        MPN: 257-66-950-00
        APPOGGIABRACCIA LATERALE POSTERIORE DESTRO CONFEZIONATO
        Specify the color
        from £410.81
        from £410.81
        # 014
        MPN: 257-66-951-00
        APPOGGIABRACCIA LATERALE POSTERIORE SINISTRO CONFEZIONATO
        Specify the color
        from £410.81
        from £410.81
