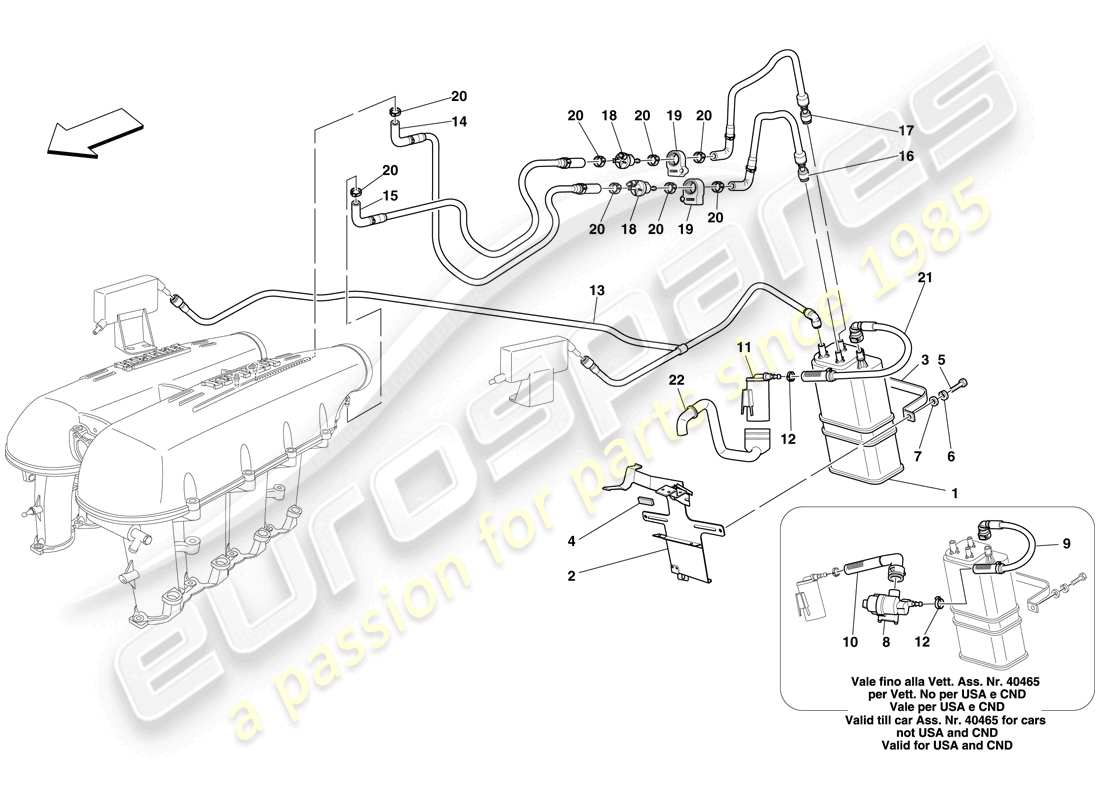

0012 - evaporative emissions control system
Ferrari F430 Spider (Europe) EVAPORATIVE EMISSIONS CONTROL SYSTEM Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 206762
FUEL VAPOUR FILTER
-Applicable until depletion-
Supersession
Supersession
This part replaces part number 193690
# 001
MPN: 219311
FUEL VAPOUR FILTER
-Applicable after depletion of 206762-
from £78.28
from £78.28
This part replaces part number 206762 - and 2 more. Click to view details
# 002
MPN: 209663
FILTER MOUNTING BRACKET
from £79.34
from £79.34
This part replaces part number 209664 which we have in stock - and 3 more. Click to view details
# 003
MPN: 180636
WRAPPER
from £2.19
from £2.19
# 004
MPN: 180638
RUBBER SHIM
from £6.18
from £6.18
# 005
MPN: 10902124
SCREW
-L. 14 mm-
from £0.53
from £0.53
This part replaces part number 10902111 - and 1 more. Click to view details
# 006
MPN: 12639724
WASHER
from £0.47
from £0.47
This part replaces part number 12639725 - and 1 more. Click to view details
# 007
MPN: 127494
WASHER
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 008
MPN: 202968
DIAGNOSTIC PUMP
-Not for USA, CDN- -Applicable up to Ass. No. 40465- -No longer supplied- -Replaced by 251288-
from £54.60
from £54.60
# 008
MPN: 202968
DIAGNOSTIC PUMP
-Applicable for USA, CDN- -No longer supplied- -Replaced by 251288-
from £54.60
from £54.60
# 008
MPN: 251288
DIAGNOSTIC PUMP
from £151.90
from £151.90
This part replaces part number 202968 which we have in stock
# 009
MPN: 210789
COMPLETE PIPE WITH UNION
-Not for USA, CDN- -Applicable up to Ass. No. 40465- -Applicable until depletion-
from £32.18
from £32.18
# 009
MPN: 210789
COMPLETE PIPE WITH UNION
-Not for USA, CDN- -Applicable from Ass. No. 73460- -Applicable until depletion-
from £32.18
from £32.18
# 009
MPN: 210789
COMPLETE PIPE WITH UNION
-Applicable for USA, CDN- -Applicable until depletion-
from £32.18
from £32.18
# 009
MPN: 243909
COMPLETE PIPE WITH UNION
-Not for USA, CDN- -Applicable up to Ass. No. 40465- -Applicable after depletion of 210789-
from £39.07
from £39.07
This part replaces part number 210789 which we have in stock - and 1 more. Click to view details
# 009
MPN: 243909
COMPLETE PIPE WITH UNION
-Not for USA, CDN- -Applicable from Ass. No. 73460- -Applicable after depletion of 210789-
from £39.07
from £39.07
This part replaces part number 210789 which we have in stock - and 1 more. Click to view details
# 009
MPN: 243909
COMPLETE PIPE WITH UNION
-Applicable for USA, CDN- -Applicable after depletion of 210789-
from £39.07
from £39.07
This part replaces part number 210789 which we have in stock - and 1 more. Click to view details
# 010
MPN: 195288
COMPLETE PIPE WITH UNION
-Not for USA, CDN- -Applicable up to Ass. No. 40465-
from £12.34
from £12.34
# 010
MPN: 195288
COMPLETE PIPE WITH UNION
-Applicable for USA, CDN-
from £12.34
from £12.34
# 011
MPN: 183221
OBD PUMP FILTER
from £6.19
from £6.19
# 012
MPN: 13000390
SCREW COLLAR
from £0.47
from £0.47
This part replaces part number 12179590 - and 1 more. Click to view details
# 013
MPN: 193852
PIPE FROM RH SEPARATOR TO LH SEPARATOR
-Applicable up to Ass. No. 78239-
from £62.80
from £62.80
# 013
MPN: 243916
PIPE FROM RH SEPARATOR TO LH SEPARATOR
-Applicable from Ass. No. 78240- -No longer supplied- -Replaced by 252170-
Supersession
Supersession
# 013
MPN: 252170
PIPE FROM RH SEPARATOR TO LH SEPARATOR
-Applicable from Ass. No. 78240-
from £79.52
from £79.52
This part replaces part number 243916
# 014
MPN: 197689
RH PIPE COMPLETE WITH CONNECTORS
from £41.70
from £41.70
# 015
MPN: 197688
LH TUBE COMPLETE WITH CONNECTORS
from £25.25
from £25.25
# 016
MPN: 192883
PIPE FROM FILTER TO RH FLUSH VALVE
-Applicable until depletion-
from £13.79
from £13.79
# 016
MPN: 243911
PIPE FROM FILTER TO RH FLUSH VALVE
-Applicable after depletion of 192883-
from £30.43
from £30.43
This part replaces part number 192883 which we have in stock
# 017
MPN: 192882
PIPE FROM FILTER TO LH FLUSH VALVE
-Applicable until depletion-
from £16.95
from £16.95
# 017
MPN: 243912
PIPE FROM FILTER TO LH FLUSH VALVE
-Applicable after depletion of 192882-
from £37.40
from £37.40
This part replaces part number 192882 which we have in stock
# 018
MPN: 162412
FLUSH VALVE
from £39.73
from £39.73
# 019
MPN: 174623
MOUNTING BUSHING
from £3.75
from £3.75
# 020
MPN: 13432070
COLLAR FOR HOSE UNION
from £0.48
from £0.48
This part replaces part number 13125570
# 021
MPN: 217919
COMPLETE PIPE
-Not for USA, CDN- -Applicable from Ass. No. 40466 up to Ass. No. 73459-
from £33.87
from £33.87
# 022
MPN: 220981
AIR INTAKE PIPE
from £14.99
from £14.99
