0051 - ALTERNATOR - STARTER MOTOR

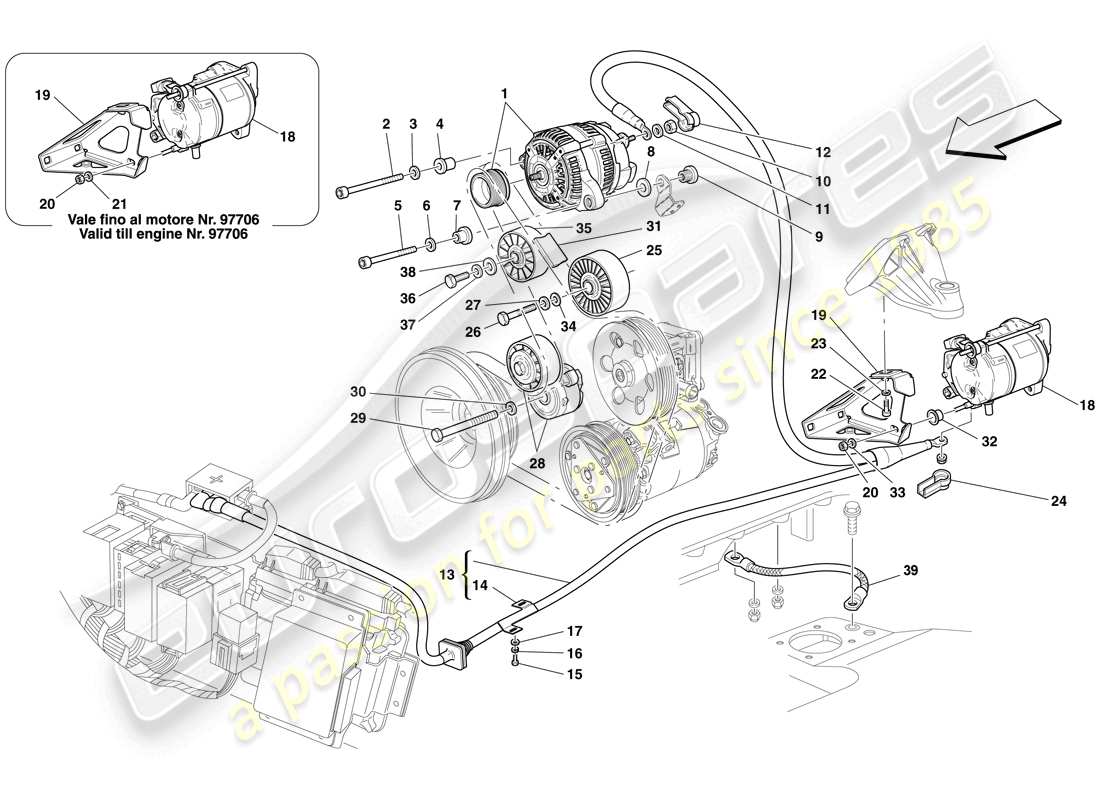

Ferrari F430 Spider (USA) ALTERNATOR - STARTER MOTOR Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 20-54-03
150 A ALTERNATOR
-Applicable until depletion-
Supersession
Supersession
# 001
MPN: 250367
150 A ALTERNATOR
-Applicable after depletion of 205403-
from £279.03
from £279.03
This part replaces part number 20-54-03 - and 2 more. Click to view details
# 002
MPN: 14308724
SCREW
from £1.91
from £1.91
# 003
MPN: 10569474
WASHER
from £0.47
from £0.47
# 004
MPN: 209278
BUSHING
from £6.44
from £6.44
# 005
MPN: 14308224
SCREW
from £0.59
from £0.59
# 006
MPN: 10569474
WASHER
from £0.47
from £0.47
# 007
MPN: 164467
BUSHING
from £16.12
from £16.12
# 008
MPN: 207423
WASHER
from £2.71
from £2.71
# 009
MPN: 187143
THREADED BUSHING
from £5.46
from £5.46
# 010
MPN: 16102314
NUT
from £0.47
from £0.47
This part replaces part number 16102311 - and 1 more. Click to view details
# 011
MPN: 12601374
WASHER
from £0.47
from £0.47
This part replaces part number 10615474 - and 6 more. Click to view details
# 012
MPN: 154803
PROTECTIVE CAP
from £2.58
from £2.58
# 013
MPN: 192534
COMPLETE ENGINE SERVICES CONNECTOR CABLES
from £165.26
from £165.26
This part replaces part number 233376
# 014
MPN: 178356
BRACKET
from £94.99
from £94.99
# 015
MPN: 10902324
SCREW
-M6 X 18-
from £0.47
from £0.47
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 016
MPN: 127494
WASHER
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 017
MPN: 12644424
WASHER
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 018
MPN: 180169
STARTER MOTOR
from £160.17
from £160.17
# 019
MPN: 203104
STARTER MOTOR MOUNTING BRACKET
-Applicable up to engine No. 97706-
from £27.81
from £27.81
# 019
MPN: 222003
STARTER MOTOR MOUNTING BRACKET
-Applicable from engine No. 97707-
from £17.31
from £17.31
# 020
MPN: 160472
NUT
from £1.23
from £1.23
# 021
MPN: 61148700
WASHER
-Applicable up to engine No. 97706-
from £0.47
from £0.47
# 022
MPN: 14302824
SCREW
from £0.47
from £0.47
# 023
MPN: 11193874
WASHER
from £0.47
from £0.47
This part replaces part number 11193879 which we have in stock
# 024
MPN: 124683
PROTECTIVE CAP
from £0.47
from £0.47
This part replaces part number 139937
# 025
MPN: 172537
BELT TENSIONER PULLEY
-Applicable up to engine No. 117478-
from £73.36
from £73.36
# 025
MPN: 227894
BELT TENSIONER PULLEY
-Applicable from engine No. 117479-
from £42.15
from £42.15
# 026
MPN: 11234721
SCREW
-Applicable up to engine No. 117478-
from £0.53
from £0.53
# 026
MPN: 11343821
SCREW
-Applicable from engine No. 117479-
from £0.57
from £0.57
# 027
MPN: 11190574
WASHER
-Applicable up to engine No. 117478-
from £0.47
from £0.47
This part replaces part number 14499504
# 027
MPN: 13550421
WASHER
-Applicable from engine No. 117479-
from £0.47
from £0.47
# 028
MPN: 175436
belt tensioner
-Applicable up to engine No. 117478-
Supersession
Supersession
# 028
MPN: 233644
belt tensioner
-Applicable from engine No. 117479-
from £62.69
from £62.69
This part replaces part number 175436
# 029
MPN: 16044431
SCREW
from £0.47
from £0.47
# 030
MPN: 11193874
WASHER
from £0.47
from £0.47
This part replaces part number 11193879 which we have in stock
# 031
MPN: 201448
BELT
-No longer supplied- -Replaced by 235315-
Supersession
Supersession
# 031
MPN: 235315
BELT
from £15.44
from £15.44
This part replaces part number 201448
# 032
MPN: 215645
SPACER BUSHING
-Applicable from engine No. 97707-
from £1.86
from £1.86
# 033
MPN: 127493
WASHER
from £0.53
from £0.53
This part replaces part number 106849 - and 1 more. Click to view details
# 034
MPN: 10569474
WASHER
-Applicable from engine No. 117479-
from £0.47
from £0.47
# 035
MPN: 226205
PULLEY
-Applicable from engine No. 117479-
from £22.77
from £22.77
# 036
MPN: 16043324
SCREW
-M8 X 18- -Applicable from engine No. 117479-
from £0.47
from £0.47
This part replaces part number 16043321
# 037
MPN: 11193974
WASHER
-Applicable from engine No. 117479-
from £0.26
from £0.26
# 038
MPN: 12647024
WASHER
-Applicable from engine No. 117479-
Supersession
Supersession
# 039
MPN: 196069
ENGINE GROUND
- CHASSIS GROUND CONNECTOR BRAID
from £20.82
from £20.82
