ferrari f430 spider (usa) flat undertray and wheelhouses parts diagram

0106 - FLAT UNDERTRAY AND WHEELHOUSES

Ferrari F430 Spider (USA) FLAT UNDERTRAY AND WHEELHOUSES Parts Diagram

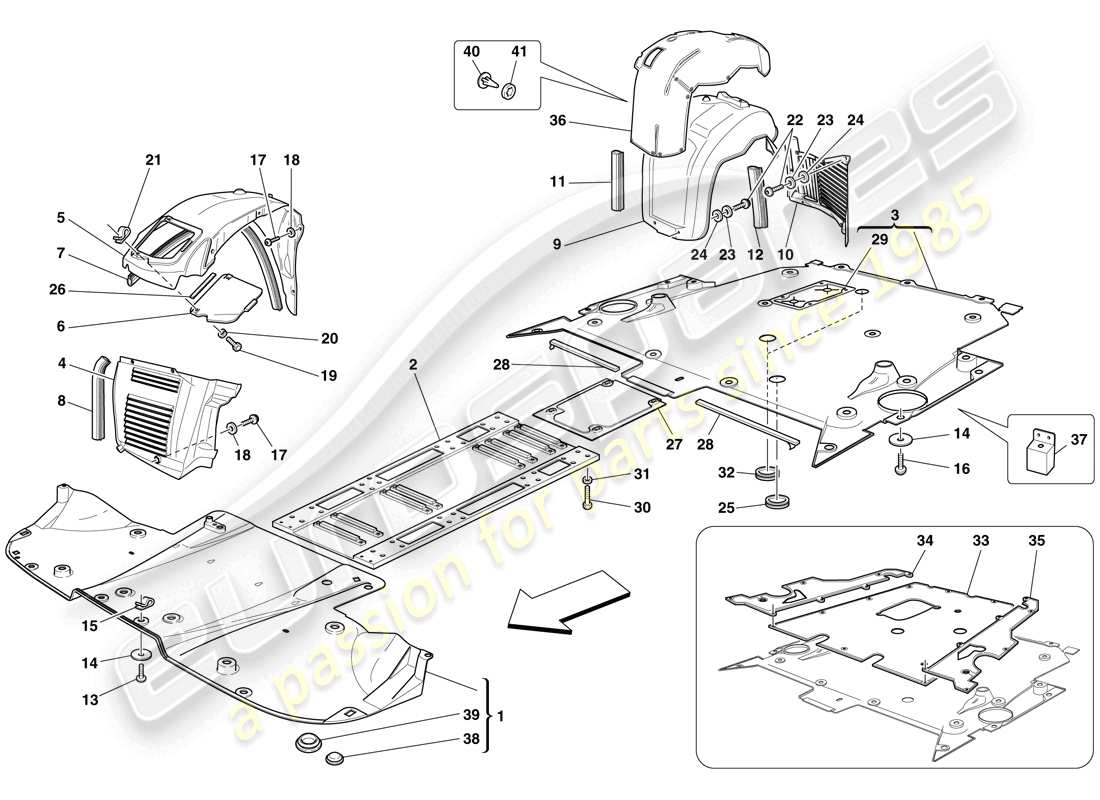

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                            #
                                                            Part number
                                                            Description
                                                            Key
                                                            Price
                                                            # 001
                                                            MPN: 67670000
                                                            FRONT UNDERBODY GUARD
                                                            -No longer supplied- -Replaced by 80494600-
                                                            Supersession
                                                            Supersession
                                                            Genuine Ferrari Part (no longer available to order)
                                                            # 001
                                                            MPN: 80494600
                                                            FRONT UNDERBODY GUARD
                                                            from £258.71
                                                            from £258.71
                                                            This part replaces part number 67670000
                                                            FRONT UNDER THE BODYSHELL S Genuine Ferrari Part - New In stock
                                                            # 002
                                                            MPN: 198642
                                                            CENTRE CONSOLE REINFORCEMENT
                                                            from £423.22
                                                            from £423.22
                                                            TUNNEL REINFORCEMENT Genuine Ferrari Part - New In stock
                                                            TUNNEL REINFORCEMENT Genuine Ferrari Part - Used In stock
                                                            # 003
                                                            MPN: 68373000
                                                            REAR UNDERBODY GUARD
                                                            from £696.85
                                                            from £696.85
                                                            REAR UNDER THE BODYSHELL SH Genuine Ferrari Part - New In stock
                                                            # 004
                                                            MPN: 67256400
                                                            RH WHEEL FRONT GRAVEL GUARD
                                                            -Applicable until depletion-
                                                            Supersession
                                                            Supersession
                                                            Genuine Ferrari Part (no longer available to order)
                                                            # 004
                                                            MPN: 67256500
                                                            LH WHEEL FRONT GRAVEL GUARD
                                                            -Applicable until depletion-
                                                            Supersession
                                                            Supersession
                                                            Genuine Ferrari Part (no longer available to order)
                                                            # 004
                                                            MPN: 80255800
                                                            RH WHEEL FRONT GRAVEL GUARD
                                                            -Applicable after depletion of 67256400-
                                                            from £64.88
                                                            from £64.88
                                                            This part replaces part number 67256400
                                                            FRONT GRAVEL GUARD FOR RH F Genuine Ferrari Part - New In stock
                                                            # 004
                                                            MPN: 80255900
                                                            LH WHEEL FRONT GRAVEL GUARD
                                                            -Applicable after depletion of 67256500-
                                                            from £64.88
                                                            from £64.88
                                                            This part replaces part number 67256500
                                                            FRONT GRAVEL GUARD FOR LH F Genuine Ferrari Part - New (to order)
                                                            # 005
                                                            MPN: 67957400
                                                            RH FRONT WHEELHOUSE EXTERNAL FAIRING
                                                            from £253.81
                                                            from £253.81
                                                            RH FRONT WHEELHOUSE OUTER C Genuine Ferrari Part - New (to order)
                                                            # 005
                                                            MPN: 67964900
                                                            LH FRONT WHEELHOUSE EXTERNAL FAIRING
                                                            from £244.43
                                                            from £244.43
                                                            LH FRONT WHEELHOUSE OUTER C Genuine Ferrari Part - New (to order)
                                                            # 006
                                                            MPN: 65522300
                                                            RH WHEELHOUSE COVER PLATE
                                                            from £46.91
                                                            from £46.91
                                                            RH COVER Genuine Ferrari Part - New In stock
                                                            # 006
                                                            MPN: 65522400
                                                            LH WHEELHOUSE COVER PLATE
                                                            from £46.91
                                                            from £46.91
                                                            LH COVER Genuine Ferrari Part - New In stock
                                                            # 007
                                                            MPN: 68036400
                                                            GASKET
                                                            from £7.51
                                                            from £7.51
                                                            GASKET Genuine Ferrari Part - New (to order)
                                                            # 008
                                                            MPN: 64994500
                                                            GASKET
                                                            -No longer supplied-
                                                            from £39.92
                                                            from £39.92
                                                            This part replaces part number 64994700
                                                            GASKET Genuine Ferrari Part - New In stock
                                                            # 009
                                                            MPN: 67957200
                                                            LH REAR WHEELHOUSE
                                                            -Front part-
                                                            from £200.10
                                                            from £200.10
                                                            LH REAR WHEELHOUSE-FRONT SI Genuine Ferrari Part - New (to order)
                                                            LH REAR WHEELHOUSE-FRONT SI Genuine Ferrari Part - Used In stock
                                                            # 009
                                                            MPN: 67957300
                                                            RH REAR WHEELHOUSE
                                                            -Front part-
                                                            from £266.26
                                                            from £266.26
                                                            RH REAR WHEELHOUSE-FRONT SI Genuine Ferrari Part - New (to order)
                                                            # 010
                                                            MPN: 67964400
                                                            RH REAR WHEEL GRAVEL GUARD
                                                            -Applicable until depletion-
                                                            Supersession
                                                            Supersession
                                                            Genuine Ferrari Part (no longer available to order)
                                                            # 010
                                                            MPN: 67964500
                                                            LH REAR WHEEL GRAVEL GUARD
                                                            -Applicable until depletion-
                                                            from £60.75
                                                            from £60.75
                                                            Genuine Ferrari Part (no longer available to order)
                                                            LH REAR WHEEL ARCH PANEL Genuine Ferrari Part - Used In stock
                                                            # 010
                                                            MPN: 80256000
                                                            RH REAR WHEEL GRAVEL GUARD
                                                            -Applicable after depletion of 67964400-
                                                            from £64.88
                                                            from £64.88
                                                            This part replaces part number 67964400
                                                            RH GRAVEL GUARD FOR REAR WH Genuine Ferrari Part - New (to order)
                                                            # 010
                                                            MPN: 80256100
                                                            LH REAR WHEEL GRAVEL GUARD
                                                            -Applicable after depletion of 67964500-
                                                            from £52.49
                                                            from £52.49
                                                            This part replaces part number 67964500 which we have in stock
                                                            LH GRAVEL GUARD FOR REAR WH Genuine Ferrari Part - New In stock
                                                            # 011
                                                            MPN: 64865000
                                                            GASKET
                                                            -No longer supplied-
                                                            from £15.83
                                                            from £15.83
                                                            GASKET Genuine Ferrari Part - New (to order)
                                                            # 012
                                                            MPN: 68034900
                                                            RH GASKET
                                                            from £39.92
                                                            from £39.92
                                                            GASKET Genuine Ferrari Part - New (to order)
                                                            # 012
                                                            MPN: 80780000
                                                            LH GASKET
                                                            from £39.92
                                                            from £39.92
                                                            LH GASKET Genuine Ferrari Part - New (to order)
                                                            # 013
                                                            MPN: 10902424
                                                            SCREW
                                                            from £0.48
                                                            from £0.48
                                                            This part replaces part number 10902324 - and 3 more. Click to view details
                                                            SCREW Genuine Ferrari Part - New In stock
                                                            SCREW (10902424) Genuine Maserati Part - New In stock
                                                            # 014
                                                            MPN: 66121400
                                                            WASHER
                                                            from £5.78
                                                            from £5.78
                                                            This part replaces part number 12624977 - and 1 more. Click to view details
                                                            WASHER Genuine Ferrari Part - New In stock
                                                            # 015
                                                            MPN: 14189071
                                                            BRACKET
                                                            from £0.47
                                                            from £0.47
                                                            BRACKET Genuine Ferrari Part - New In stock
                                                            BRACKET (14189071) Genuine Maserati Part - New In stock
                                                            # 016
                                                            MPN: 10902424
                                                            SCREW
                                                            from £0.49
                                                            from £0.49
                                                            This part replaces part number 10902324 - and 3 more. Click to view details
                                                            SCREW Genuine Ferrari Part - New In stock
                                                            SCREW (10902424) Genuine Maserati Part - New In stock
                                                            # 017
                                                            MPN: 13276477
                                                            SCREW
                                                            from £0.47
                                                            from £0.47
                                                            SCREW Genuine Ferrari Part - New In stock
                                                            # 018
                                                            MPN: 11197777
                                                            WASHER
                                                            from £0.47
                                                            from £0.47
                                                            WASHER Genuine Ferrari Part - New In stock
                                                            TAPERED RUBBER WASHER 6.4-1 (11197777) Genuine Maserati Part - New (to order)
                                                            # 019
                                                            MPN: 10977887
                                                            SCREW
                                                            from £0.47
                                                            from £0.47
                                                            SCREW Genuine Ferrari Part - New In stock
                                                            # 020
                                                            MPN: 12638177
                                                            WASHER
                                                            -No longer supplied- -Replaced by 12638178-
                                                            from £1.08
                                                            from £1.08
                                                            This part replaces part number 12638108 - and 1 more. Click to view details
                                                            Genuine Ferrari Part (no longer available to order)
                                                            ROSETTA TRANC. D. 5,45-14X (12638177) Genuine Maserati Part - New In stock
                                                            # 020
                                                            MPN: 12638178
                                                            WASHER
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 10519578 - and 3 more. Click to view details
                                                            WASHER Genuine Ferrari Part - New In stock
                                                            WASHER (12638178) Genuine Maserati Part - New In stock
                                                            # 021
                                                            MPN: 66927700
                                                            BRACKET
                                                            from £0.75
                                                            from £0.75
                                                            BRACKET. Genuine Ferrari Part - New In stock
                                                            # 022
                                                            MPN: 13276477
                                                            SCREW
                                                            from £0.48
                                                            from £0.48
                                                            SCREW Genuine Ferrari Part - New In stock
                                                            # 023
                                                            MPN: 11197777
                                                            WASHER
                                                            from £0.47
                                                            from £0.47
                                                            WASHER Genuine Ferrari Part - New In stock
                                                            TAPERED RUBBER WASHER 6.4-1 (11197777) Genuine Maserati Part - New (to order)
                                                            # 024
                                                            MPN: 12643724
                                                            WASHER
                                                            from £0.47
                                                            from £0.47
                                                            This part replaces part number 109684 - and 4 more. Click to view details
                                                            WASHER Genuine Ferrari Part - New In stock
                                                            WASHER (12643724) Genuine Maserati Part - New In stock
                                                            # 025
                                                            MPN: 64783600
                                                            PROTECTIVE CAP
                                                            from £3.00
                                                            from £3.00
                                                            RUBBER PLUG Genuine Ferrari Part - New (to order)
                                                            # 026
                                                            MPN: 66092500
                                                            ANTI-VIBRATION GASKET
                                                            -No longer supplied-
                                                            from £1.92
                                                            from £1.92
                                                            ANTI-VIBRATION GASKET Genuine Ferrari Part - New (to order)
                                                            # 027
                                                            MPN: 68023300
                                                            CENTRAL UNDERBODY GUARD
                                                            from £45.24
                                                            from £45.24
                                                            CENTRAL UNDER THE BODY SHELL Genuine Ferrari Part - New (to order)
                                                            CENTRAL UNDER THE BODY SHELL Genuine Ferrari Part - Used In stock
                                                            # 028
                                                            MPN: 68035000
                                                            GASKET
                                                            from £0.80
                                                            from £0.80
                                                            GASKET Genuine Ferrari Part - New (to order)
                                                            # 029
                                                            MPN: 68372600
                                                            OIL FILTER ACCESS HATCH
                                                            from £20.27
                                                            from £20.27
                                                            OIL FILTER ISPECTION DOOR Genuine Ferrari Part - New (to order)
                                                            # 030
                                                            MPN: 205370
                                                            SCREW
                                                            -M6 X 25-
                                                            from £0.47
                                                            from £0.47
                                                            SCREW Genuine Ferrari Part - New (to order)
                                                            # 030
                                                            MPN: 210246
                                                            SCREW
                                                            -M8 X 25-
                                                            from £0.69
                                                            from £0.69
                                                            SCREW Genuine Ferrari Part - New In stock
                                                            # 031
                                                            MPN: 12639727
                                                            WASHER
                                                            -6.45 X 11 X 1-
                                                            Supersession
                                                            Supersession
                                                            Genuine Ferrari Part (no longer available to order)
                                                            # 031
                                                            MPN: 12646727
                                                            WASHER
                                                            -8.45 X 20 X 2-
                                                            from £0.47
                                                            from £0.47
                                                            WASHER Genuine Ferrari Part - New (to order)
                                                            WASHER (12646727) Genuine Maserati Part - New (to order)
                                                            # 032
                                                            MPN: 63965800
                                                            CAP
                                                            from £3.87
                                                            from £3.87
                                                            PLUG Genuine Ferrari Part - New In stock
                                                            # 033
                                                            MPN: 69403900
                                                            CENTRAL SOUNDPROOFING
                                                            from £96.21
                                                            from £96.21
                                                            CENTRAL INSULATION Genuine Ferrari Part - New (to order)
                                                            # 034
                                                            MPN: 69403800
                                                            RH SOUNDPROOFING
                                                            from £75.17
                                                            from £75.17
                                                            RH SOUNDPROOFING Genuine Ferrari Part - New (to order)
                                                            # 035
                                                            MPN: 69404000
                                                            LH SOUNDPROOFING
                                                            from £75.17
                                                            from £75.17
                                                            LH INSULATION Genuine Ferrari Part - New In stock
                                                            # 036
                                                            MPN: 69403400
                                                            SOUNDPROOFING FOR RH WHEELHOUSE
                                                            -Applicable until depletion-
                                                            Supersession
                                                            Supersession
                                                            Genuine Ferrari Part (no longer available to order)
                                                            # 036
                                                            MPN: 69403500
                                                            SOUNDPROOFING FOR LH WHEELHOUSE
                                                            -Applicable until depletion-
                                                            Supersession
                                                            Supersession
                                                            Genuine Ferrari Part (no longer available to order)
                                                            # 036
                                                            MPN: 80071200
                                                            SOUNDPROOFING FOR RH WHEELHOUSE
                                                            -Applicable after depletion of 69403400-
                                                            from £355.23
                                                            from £355.23
                                                            This part replaces part number 69403400
                                                            RH WHEELHOUSE INSULATION. Genuine Ferrari Part - New (to order)
                                                            # 036
                                                            MPN: 80071600
                                                            SOUNDPROOFING FOR LH WHEELHOUSE
                                                            -Applicable after depletion of 69403500-
                                                            from £406.55
                                                            from £406.55
                                                            This part replaces part number 69403500
                                                            LH WHEELHOUSE INSULATION. Genuine Ferrari Part - New (to order)
                                                            # 037
                                                            MPN: 68502300
                                                            BRACKET
                                                            -Standard-
                                                            from £64.71
                                                            from £64.71
                                                            BRACKET Genuine Ferrari Part - New (to order)
                                                            # 037
                                                            MPN: 80964000
                                                            BRACKET
                                                            -Applicable for vehicles with tyre pressure monitoring system-
                                                            from £64.71
                                                            from £64.71
                                                            BRACKET Genuine Ferrari Part - New In stock
                                                            # 038
                                                            MPN: 14623187
                                                            CAP
                                                            from £0.47
                                                            from £0.47
                                                            CAP Genuine Ferrari Part - New In stock
                                                            # 039
                                                            MPN: 14507787
                                                            CAP
                                                            from £0.47
                                                            from £0.47
                                                            PLUG Genuine Ferrari Part - New In stock
                                                            PLUG (14507787) Genuine Maserati Part - New (to order)
                                                            # 040
                                                            MPN: 68484300
                                                            button
                                                            from £2.31
                                                            from £2.31
                                                            button Genuine Ferrari Part - New In stock
                                                            # 041
                                                            MPN: 68484400
                                                            CLIP
                                                            from £2.27
                                                            from £2.27
                                                            FIXING CLIP Genuine Ferrari Part - New In stock
