ferrari f430 spider (usa) roof trim and tub parts diagram

0112 - ROOF TRIM AND TUB

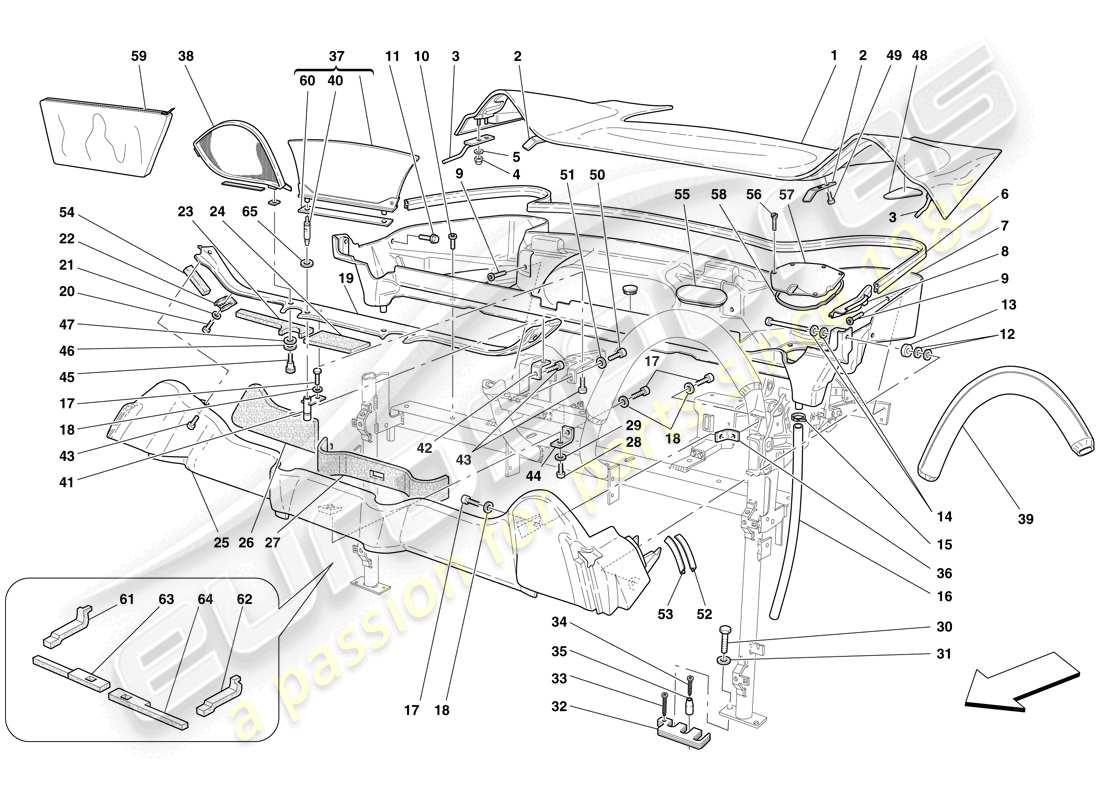

Ferrari F430 Spider (USA) ROOF TRIM AND TUB Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                        #
                                                                                                                        Part number
                                                                                                                        Description
                                                                                                                        Key
                                                                                                                        Price
                                                                                                                        # 001
                                                                                                                        MPN: 66461700
                                                                                                                        PASSENGER COMPARTMENT REAR PART COVER
                                                                                                                        from £1,366.19
                                                                                                                        from £1,366.19
                                                                                                                        ROOF COVER Genuine Ferrari Part - New In stock
                                                                                                                        ROOF COVER Genuine Ferrari Part - Used In stock
                                                                                                                        ROOF COVER Genuine Ferrari Part - Used In stock
                                                                                                                        ROOF COVER Genuine Ferrari Part - New (other) In stock
                                                                                                                        # 002
                                                                                                                        MPN: 66691600
                                                                                                                        BRACKET
                                                                                                                        from £43.49
                                                                                                                        from £43.49
                                                                                                                        BRACKET. Genuine Ferrari Part - New (to order)
                                                                                                                        # 003
                                                                                                                        MPN: 66691500
                                                                                                                        BRACKET
                                                                                                                        from £75.44
                                                                                                                        from £75.44
                                                                                                                        BRACKET. Genuine Ferrari Part - New In stock
                                                                                                                        # 004
                                                                                                                        MPN: 66691300
                                                                                                                        NUT
                                                                                                                        from £2.55
                                                                                                                        from £2.55
                                                                                                                        NUT. Genuine Ferrari Part - New In stock
                                                                                                                        # 005
                                                                                                                        MPN: 66691400
                                                                                                                        WASHER
                                                                                                                        from £1.40
                                                                                                                        from £1.40
                                                                                                                        WASHER. Genuine Ferrari Part - New In stock
                                                                                                                        # 006
                                                                                                                        MPN: 66460800
                                                                                                                        SOFT-TOP PROFILE
                                                                                                                        from £91.11
                                                                                                                        from £91.11
                                                                                                                        SOFT-TOP PROFILE. Genuine Ferrari Part - New (to order)
                                                                                                                        SOFT-TOP PROFILE. Genuine Ferrari Part - Used In stock
                                                                                                                        # 007
                                                                                                                        MPN: 66394500
                                                                                                                        ROOF SUPPORT TUB
                                                                                                                        from £127.68
                                                                                                                        from £127.68
                                                                                                                        ROOF HOUSING Genuine Ferrari Part - New In stock
                                                                                                                        ROOF HOUSING Genuine Ferrari Part - Used In stock
                                                                                                                        # 008
                                                                                                                        MPN: 66460900
                                                                                                                        LH SOFT-TOP MOULDED EDGE
                                                                                                                        from £163.40
                                                                                                                        from £163.40
                                                                                                                        LH FINISHER Genuine Ferrari Part - New (to order)
                                                                                                                        # 008
                                                                                                                        MPN: 66461000
                                                                                                                        RH MOULDED EDGE FOR SOFT-TOP
                                                                                                                        from £163.40
                                                                                                                        from £163.40
                                                                                                                        RH FINISHER Genuine Ferrari Part - New (to order)
                                                                                                                        # 009
                                                                                                                        MPN: 66691200
                                                                                                                        SCREW
                                                                                                                        from £2.32
                                                                                                                        from £2.32
                                                                                                                        SCREW. Genuine Ferrari Part - New In stock
                                                                                                                        # 010
                                                                                                                        MPN: 66680600
                                                                                                                        SCREW
                                                                                                                        from £2.36
                                                                                                                        from £2.36
                                                                                                                        SCREW. Genuine Ferrari Part - New (to order)
                                                                                                                        # 011
                                                                                                                        MPN: 66685300
                                                                                                                        SCREW
                                                                                                                        from £1.40
                                                                                                                        from £1.40
                                                                                                                        SCREW. Genuine Ferrari Part - New In stock
                                                                                                                        # 012
                                                                                                                        MPN: 66683500
                                                                                                                        WASHER
                                                                                                                        from £2.15
                                                                                                                        from £2.15
                                                                                                                        WASHER. Genuine Ferrari Part - New (to order)
                                                                                                                        # 013
                                                                                                                        MPN: 66691800
                                                                                                                        WASHER
                                                                                                                        from £2.49
                                                                                                                        from £2.49
                                                                                                                        WASHER. Genuine Ferrari Part - New In stock
                                                                                                                        # 014
                                                                                                                        MPN: 66684000
                                                                                                                        WASHER
                                                                                                                        from £2.08
                                                                                                                        from £2.08
                                                                                                                        WASHER. Genuine Ferrari Part - New In stock
                                                                                                                        # 015
                                                                                                                        MPN: 66692000
                                                                                                                        CLAMP
                                                                                                                        from £8.13
                                                                                                                        from £8.13
                                                                                                                        CLAMP. Genuine Ferrari Part - New In stock
                                                                                                                        # 016
                                                                                                                        MPN: 66692100
                                                                                                                        WATER DRAIN PIPE
                                                                                                                        from £16.07
                                                                                                                        from £16.07
                                                                                                                        This part replaces part number 183916
                                                                                                                        WATER EXAUST TUBE. Genuine Ferrari Part - New (to order)
                                                                                                                        # 017
                                                                                                                        MPN: 66691700
                                                                                                                        SCREW
                                                                                                                        from £2.36
                                                                                                                        from £2.36
                                                                                                                        SCREW. Genuine Ferrari Part - New (to order)
                                                                                                                        # 018
                                                                                                                        MPN: 66684000
                                                                                                                        WASHER
                                                                                                                        from £2.08
                                                                                                                        from £2.08
                                                                                                                        WASHER. Genuine Ferrari Part - New In stock
                                                                                                                        # 019
                                                                                                                        MPN: 66461900
                                                                                                                        REAR ROLLBAR COVER
                                                                                                                        from £262.50
                                                                                                                        from £262.50
                                                                                                                        REAR ROLL-BAR COVER. Genuine Ferrari Part - New In stock
                                                                                                                        REAR ROLL-BAR COVER. Genuine Ferrari Part - Used In stock
                                                                                                                        # 020
                                                                                                                        MPN: 66689400
                                                                                                                        SCREW
                                                                                                                        from £2.02
                                                                                                                        from £2.02
                                                                                                                        SCREW. Genuine Ferrari Part - New In stock
                                                                                                                        # 021
                                                                                                                        MPN: 66681000
                                                                                                                        WASHER
                                                                                                                        from £2.06
                                                                                                                        from £2.06
                                                                                                                        This part replaces part number 66681400 - and 2 more. Click to view details
                                                                                                                        WASHER. Genuine Ferrari Part - New In stock
                                                                                                                        # 022
                                                                                                                        MPN: 66692200
                                                                                                                        SHIM
                                                                                                                        from £6.38
                                                                                                                        from £6.38
                                                                                                                        THICKNESS. Genuine Ferrari Part - New (to order)
                                                                                                                        # 023
                                                                                                                        MPN: 66692400
                                                                                                                        REAR COVER LH SHIM
                                                                                                                        from £32.14
                                                                                                                        from £32.14
                                                                                                                        LH THICKNESS FOR REAR COVER Genuine Ferrari Part - New (to order)
                                                                                                                        # 023
                                                                                                                        MPN: 66692500
                                                                                                                        RH SHIM FOR REAR COVER
                                                                                                                        from £32.14
                                                                                                                        from £32.14
                                                                                                                        RH THICKNESS FOR REAR COVER Genuine Ferrari Part - New (to order)
                                                                                                                        # 024
                                                                                                                        MPN: 66692300
                                                                                                                        REAR COVER CENTRAL SHIM
                                                                                                                        from £31.87
                                                                                                                        from £31.87
                                                                                                                        CENTRAL THICKNESS FOR REAR C Genuine Ferrari Part - New (to order)
                                                                                                                        # 025
                                                                                                                        MPN: 66461800
                                                                                                                        ROLLBAR FRONT COVER
                                                                                                                        from £607.95
                                                                                                                        from £607.95
                                                                                                                        FRONT ROLL-BAR COVER. Genuine Ferrari Part - New (to order)
                                                                                                                        FRONT ROLL-BAR COVER. Genuine Ferrari Part - Used In stock
                                                                                                                        FRONT ROLL-BAR COVER. Genuine Ferrari Part - New (other) In stock
                                                                                                                        PAINTED BLACK
                                                                                                                        # 026
                                                                                                                        MPN: 66692600
                                                                                                                        LH SHIM FOR FRONT COVER
                                                                                                                        from £56.64
                                                                                                                        from £56.64
                                                                                                                        LH INSULATION Genuine Ferrari Part - New (to order)
                                                                                                                        # 026
                                                                                                                        MPN: 66692700
                                                                                                                        RH SHIM FOR FRONT COVER
                                                                                                                        from £56.64
                                                                                                                        from £56.64
                                                                                                                        RH INSULATION Genuine Ferrari Part - New (to order)
                                                                                                                        # 027
                                                                                                                        MPN: 66692800
                                                                                                                        CENTRAL SHIM FOR FRONT COVER
                                                                                                                        from £34.68
                                                                                                                        from £34.68
                                                                                                                        CENTRAL THICKNESS FOR FRONT Genuine Ferrari Part - New (to order)
                                                                                                                        # 028
                                                                                                                        MPN: 66689400
                                                                                                                        SCREW
                                                                                                                        from £2.02
                                                                                                                        from £2.02
                                                                                                                        SCREW. Genuine Ferrari Part - New In stock
                                                                                                                        # 029
                                                                                                                        MPN: 66687300
                                                                                                                        WASHER
                                                                                                                        from £1.33
                                                                                                                        from £1.33
                                                                                                                        WASHER. Genuine Ferrari Part - New (to order)
                                                                                                                        # 030
                                                                                                                        MPN: 11307021
                                                                                                                        SCREW
                                                                                                                        from £3.29
                                                                                                                        from £3.29
                                                                                                                        SCREW Genuine Ferrari Part - New In stock
                                                                                                                        # 031
                                                                                                                        MPN: 11190679
                                                                                                                        WASHER
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        WASHER. Genuine Ferrari Part - New (to order)
                                                                                                                        # 032
                                                                                                                        MPN: 182478
                                                                                                                        SHIM
                                                                                                                        -Th. 3 mm-
                                                                                                                        from £11.09
                                                                                                                        from £11.09
                                                                                                                        THICKNESS. Genuine Ferrari Part - New (to order)
                                                                                                                        # 032
                                                                                                                        MPN: 183155
                                                                                                                        SHIM
                                                                                                                        -Th. 1 mm-
                                                                                                                        from £5.60
                                                                                                                        from £5.60
                                                                                                                        THICKNESS. Genuine Ferrari Part - New (to order)
                                                                                                                        # 032
                                                                                                                        MPN: 183156
                                                                                                                        SHIM
                                                                                                                        -Th. 1.5 mm-
                                                                                                                        from £1.13
                                                                                                                        from £1.13
                                                                                                                        THICKNESS. Genuine Ferrari Part - New In stock
                                                                                                                        # 033
                                                                                                                        MPN: 15904070
                                                                                                                        SCREW
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        This part replaces part number 15904001
                                                                                                                        SCREW Genuine Ferrari Part - New In stock
                                                                                                                        # 034
                                                                                                                        MPN: 15687470
                                                                                                                        SCREW
                                                                                                                        from £0.54
                                                                                                                        from £0.54
                                                                                                                        This part replaces part number 15687401 which we have in stock
                                                                                                                        SCREW Genuine Ferrari Part - New In stock
                                                                                                                        # 035
                                                                                                                        MPN: 184628
                                                                                                                        ALIGNMENT PIN
                                                                                                                        from £2.98
                                                                                                                        from £2.98
                                                                                                                        CENTERING PIN. Genuine Ferrari Part - New (to order)
                                                                                                                        # 036
                                                                                                                        MPN: 66691900
                                                                                                                        BRACKET
                                                                                                                        from £31.69
                                                                                                                        from £31.69
                                                                                                                        BRACKET. Genuine Ferrari Part - New (to order)
                                                                                                                        # 037
                                                                                                                        MPN: 68986500
                                                                                                                        CENTRAL WINDSTOP
                                                                                                                        -Titanium Grey-
                                                                                                                        from £909.91
                                                                                                                        from £909.91
                                                                                                                        CENTRAL WINDSTOP -TITANIUM G Genuine Ferrari Part - New (to order)
                                                                                                                        # 037
                                                                                                                        MPN: 69236000
                                                                                                                        CENTRAL WINDSTOP
                                                                                                                        -Black- -Applicable for vehicles in titanium Grey and Silverstone Grey colours-
                                                                                                                        from £442.66
                                                                                                                        from £442.66
                                                                                                                        CENTRAL WINDSTOP -BLACK- -VA Genuine Ferrari Part - New (to order)
                                                                                                                        # 038
                                                                                                                        MPN: 66755000
                                                                                                                        LH LATERAL WINDSTOP
                                                                                                                        -Black- -Applicable for vehicles in titanium Grey and Silverstone Grey colours-
                                                                                                                        from £204.03
                                                                                                                        from £204.03
                                                                                                                        This part replaces part number 66290500
                                                                                                                        LH LATERAL WINDSTOP Genuine Ferrari Part - New In stock
                                                                                                                        # 038
                                                                                                                        MPN: 66755100
                                                                                                                        RH LATERAL WINDSTOP
                                                                                                                        -Black- -Applicable for vehicles in titanium Grey and Silverstone Grey colours-
                                                                                                                        from £177.16
                                                                                                                        from £177.16
                                                                                                                        This part replaces part number 66290400
                                                                                                                        RH LATERAL WINDSTOP Genuine Ferrari Part - New In stock
                                                                                                                        # 038
                                                                                                                        MPN: 69103100
                                                                                                                        RH LATERAL WINDSTOP
                                                                                                                        -Titanium Grey-
                                                                                                                        from £341.99
                                                                                                                        from £341.99
                                                                                                                        RH LATERAL WINDSTOP -TITA Genuine Ferrari Part - New (to order)
                                                                                                                        # 038
                                                                                                                        MPN: 69103200
                                                                                                                        LH LATERAL WINDSTOP
                                                                                                                        -Titanium Grey-
                                                                                                                        from £205.26
                                                                                                                        from £205.26
                                                                                                                        LH LATERAL WINDSTOP -TITA Genuine Ferrari Part - New (to order)
                                                                                                                        # 039
                                                                                                                        MPN: 85679300
                                                                                                                        ROLLBAR COVER
                                                                                                                        -Carbon/Technical fabric- -No longer supplied-
                                                                                                                        from £653.03
                                                                                                                        from £653.03
                                                                                                                        ROLL BAR COVER Genuine Ferrari Part - New (to order)
                                                                                                                        # 039
                                                                                                                        MPN: 856794..
                                                                                                                        ROLLBAR COVER
                                                                                                                        -Carbon/Alcantara-
                                                                                                                        ROLLBAR COVER Genuine Ferrari Part - New (to order)
                                                                                                                        # 039
                                                                                                                        MPN: 856795..
                                                                                                                        ROLLBAR COVER
                                                                                                                        -Carbon/Leather-
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        # 040
                                                                                                                        MPN: 66457200
                                                                                                                        PIN FOR WINDSTOP
                                                                                                                        -No longer supplied- -Replaced by 69206300-
                                                                                                                        from £40.07
                                                                                                                        from £40.07
                                                                                                                        CENTRAL WINDSTOP PIN. Genuine Ferrari Part - New (to order)
                                                                                                                        # 040
                                                                                                                        MPN: 69206300
                                                                                                                        PIN FOR WINDSTOP
                                                                                                                        -Supplied with centre windstop ref. 37- -No longer supplied-
                                                                                                                        from £46.16
                                                                                                                        from £46.16
                                                                                                                        PIN FOR WINDSTOP PANEL Genuine Ferrari Part - New (to order)
                                                                                                                        # 041
                                                                                                                        MPN: 67047800
                                                                                                                        PIN BLOCK
                                                                                                                        -No longer supplied- -Replaced by 69921200-
                                                                                                                        Supersession
                                                                                                                        Supersession
                                                                                                                        Genuine Ferrari Part (no longer available to order)
                                                                                                                        # 041
                                                                                                                        MPN: 69921200
                                                                                                                        PIN BLOCK
                                                                                                                        from £44.42
                                                                                                                        from £44.42
                                                                                                                        This part replaces part number 67047800
                                                                                                                        PIN BLOCK Genuine Ferrari Part - New (to order)
                                                                                                                        # 042
                                                                                                                        MPN: 67047600
                                                                                                                        BRACKET
                                                                                                                        from £26.35
                                                                                                                        from £26.35
                                                                                                                        BRACKET. Genuine Ferrari Part - New (to order)
                                                                                                                        # 043
                                                                                                                        MPN: 67047700
                                                                                                                        SCREW
                                                                                                                        from £1.37
                                                                                                                        from £1.37
                                                                                                                        SCREW. Genuine Ferrari Part - New (to order)
                                                                                                                        # 044
                                                                                                                        MPN: 67048400
                                                                                                                        BRACKET
                                                                                                                        from £9.20
                                                                                                                        from £9.20
                                                                                                                        BRACKET. Genuine Ferrari Part - New (to order)
                                                                                                                        # 045
                                                                                                                        MPN: 66457400
                                                                                                                        SCREW
                                                                                                                        from £3.33
                                                                                                                        from £3.33
                                                                                                                        SCREW. Genuine Ferrari Part - New (to order)
                                                                                                                        # 046
                                                                                                                        MPN: 14446670
                                                                                                                        WASHER
                                                                                                                        from £0.47
                                                                                                                        from £0.47
                                                                                                                        WASHER. Genuine Ferrari Part - New (to order)
                                                                                                                        # 047
                                                                                                                        MPN: 66713900
                                                                                                                        WASHER
                                                                                                                        from £1.28
                                                                                                                        from £1.28
                                                                                                                        WASHER. Genuine Ferrari Part - New In stock
                                                                                                                        # 048
                                                                                                                        MPN: 67048200
                                                                                                                        GUARD
                                                                                                                        from £4.74
                                                                                                                        from £4.74
                                                                                                                        PROTECTION. Genuine Ferrari Part - New (to order)
                                                                                                                        # 049
                                                                                                                        MPN: 67048100
                                                                                                                        SCREW
                                                                                                                        from £1.60
                                                                                                                        from £1.60
                                                                                                                        SCREW. Genuine Ferrari Part - New In stock
                                                                                                                        # 050
                                                                                                                        MPN: 66691700
                                                                                                                        SCREW
                                                                                                                        from £2.36
                                                                                                                        from £2.36
                                                                                                                        SCREW. Genuine Ferrari Part - New (to order)
                                                                                                                        # 051
                                                                                                                        MPN: 66684000
                                                                                                                        WASHER
                                                                                                                        from £2.08
                                                                                                                        from £2.08
                                                                                                                        WASHER. Genuine Ferrari Part - New In stock
                                                                                                                        # 052
                                                                                                                        MPN: 67047900
                                                                                                                        LH MOULDING
                                                                                                                        from £81.23
                                                                                                                        from £81.23
                                                                                                                        gasket. Genuine Ferrari Part - New (to order)
                                                                                                                        # 052
                                                                                                                        MPN: 67500500
                                                                                                                        RH MOULDING
                                                                                                                        from £81.23
                                                                                                                        from £81.23
                                                                                                                        GASKET Genuine Ferrari Part - New (to order)
                                                                                                                        # 053
                                                                                                                        MPN: 67048000
                                                                                                                        GASKET
                                                                                                                        from £43.73
                                                                                                                        from £43.73
                                                                                                                        gasket. Genuine Ferrari Part - New (to order)
                                                                                                                        # 054
                                                                                                                        MPN: 67056700
                                                                                                                        SHIM FOR REAR COVER
                                                                                                                        SPACER Genuine Ferrari Part - New (to order)
                                                                                                                        # 055
                                                                                                                        MPN: 67386500
                                                                                                                        REAR FRAME FASTENING ACCESS TAP
                                                                                                                        from £23.95
                                                                                                                        from £23.95
                                                                                                                        COVER ACCESS SPACE FRAME Genuine Ferrari Part - New In stock
                                                                                                                        COVER ACCESS SPACE FRAME Genuine Ferrari Part - Used In stock
                                                                                                                        # 056
                                                                                                                        MPN: 67580700
                                                                                                                        SCREW
                                                                                                                        from £1.82
                                                                                                                        from £1.82
                                                                                                                        SCREW. Genuine Ferrari Part - New In stock
                                                                                                                        # 057
                                                                                                                        MPN: 67580800
                                                                                                                        FUEL PUMP ACCESS LH COVER
                                                                                                                        from £77.26
                                                                                                                        from £77.26
                                                                                                                        LH COVER ACCESS FUEL PUMP. Genuine Ferrari Part - New In stock
                                                                                                                        LH COVER ACCESS FUEL PUMP. Genuine Ferrari Part - Used In stock
                                                                                                                        # 057
                                                                                                                        MPN: 67580900
                                                                                                                        RH COVER FOR FUEL PUMP ACCESS
                                                                                                                        from £77.26
                                                                                                                        from £77.26
                                                                                                                        RH COVER ACCESS FUEL PUMP. Genuine Ferrari Part - New In stock
                                                                                                                        RH COVER ACCESS FUEL PUMP. Genuine Ferrari Part - Used In stock
                                                                                                                        # 058
                                                                                                                        MPN: 67584400
                                                                                                                        GASKET
                                                                                                                        from £33.48
                                                                                                                        from £33.48
                                                                                                                        GASKET Genuine Ferrari Part - New (to order)
                                                                                                                        # 059
                                                                                                                        MPN: 69059400
                                                                                                                        CENTRAL WINDSTOP WALLET
                                                                                                                        from £69.31
                                                                                                                        from £69.31
                                                                                                                        BAG CENTRAL WIND STOP. Genuine Ferrari Part - New (to order)
                                                                                                                        # 060
                                                                                                                        MPN: 68938000
                                                                                                                        GASKET
                                                                                                                        from £93.87
                                                                                                                        from £93.87
                                                                                                                        GASKET Genuine Ferrari Part - New (to order)
                                                                                                                        # 061
                                                                                                                        MPN: 66231300
                                                                                                                        RH LATERAL GASKET
                                                                                                                        from £6.00
                                                                                                                        from £6.00
                                                                                                                        RH LATERAL GASKET Genuine Ferrari Part - New (to order)
                                                                                                                        # 062
                                                                                                                        MPN: 66231400
                                                                                                                        LH LATERAL GASKET
                                                                                                                        from £7.33
                                                                                                                        from £7.33
                                                                                                                        LH LATERAL GASKET Genuine Ferrari Part - New (to order)
                                                                                                                        # 063
                                                                                                                        MPN: 69910500
                                                                                                                        RH GASKET
                                                                                                                        from £23.45
                                                                                                                        from £23.45
                                                                                                                        RH GASKET Genuine Ferrari Part - New (to order)
                                                                                                                        # 064
                                                                                                                        MPN: 69910600
                                                                                                                        LH GASKET
                                                                                                                        from £23.45
                                                                                                                        from £23.45
                                                                                                                        LH GASKET Genuine Ferrari Part - New (to order)
                                                                                                                        # 065
                                                                                                                        MPN: 136936
                                                                                                                        GASKET
                                                                                                                        from £0.50
                                                                                                                        from £0.50
                                                                                                                        RING Genuine Ferrari Part - New (to order)
                                                                                                                        Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
