0136 - DASHBOARD

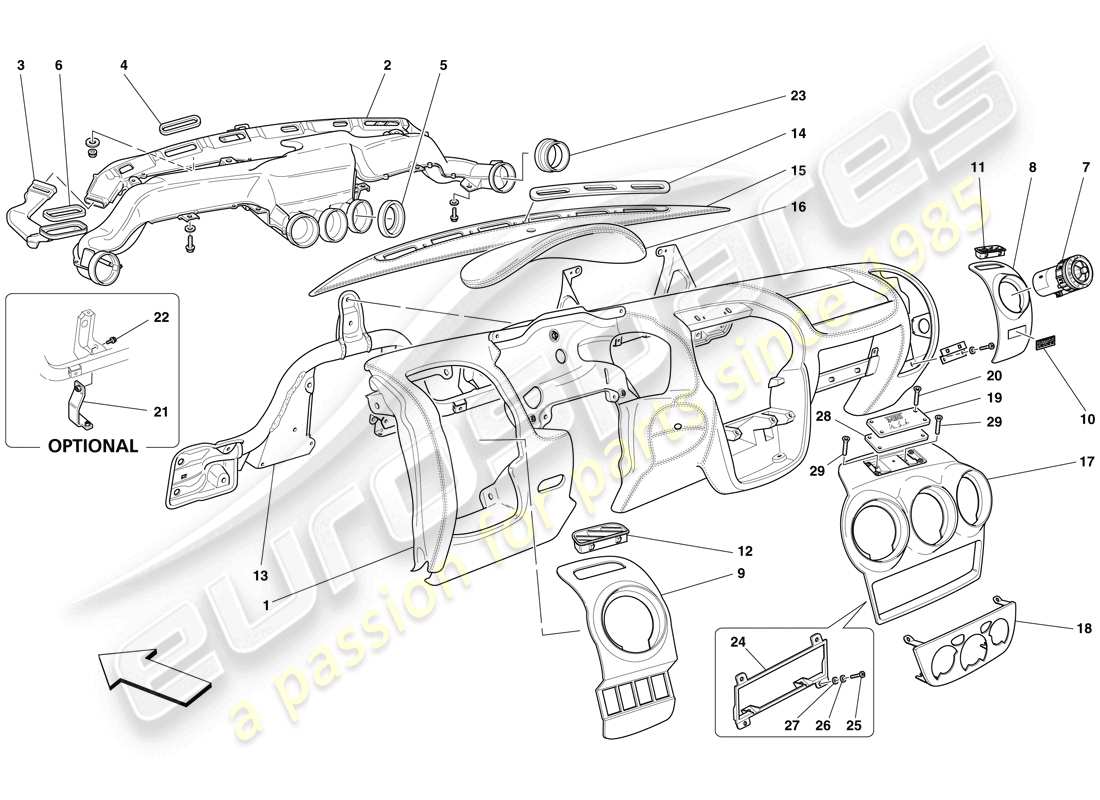

Ferrari F430 Spider (USA) DASHBOARD Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                  #
                                  Part number
                                  Description
                                  Key
                                  Price
                                  # 001
                                  MPN: 676850..
                                  DASHBOARD
                                  -Airbag disable system- -Not for UK- -No longer supplied-
                                  from £2,619.75
                                  from £2,619.75
                                  Genuine Ferrari Part (no longer available to order)
                                  DASHBOARD Genuine Ferrari Part - Used In stock
                                  DASHBOARD Genuine Ferrari Part - New (other) In stock
                                  # 001
                                  MPN: 683583..
                                  DASHBOARD
                                  -Airbag disable system- -Applicable for UK- -No longer supplied-
                                  Supersession
                                  Supersession
                                  Genuine Ferrari Part (no longer available to order)
                                  # 001
                                  MPN: 684429..
                                  COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, LHD
                                  -With airbag disable system- -Not for GD-
                                  Supersession
                                  Supersession
                                  Genuine Ferrari Part (no longer available to order)
                                  # 001
                                  MPN: 687158..
                                  COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, RHD
                                  -With airbag disable system- -Applicable for GD-
                                  COMPLETE TRIMMED DASHBOARD SUBSTRUCTURE, RHD Genuine Ferrari Part - New (to order)
                                  # 001
                                  MPN: 691414..
                                  COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, LHD
                                  -Without airbag disable system- -Not for GD-
                                  Supersession
                                  Supersession
                                  Genuine Ferrari Part (no longer available to order)
                                  # 001
                                  MPN: 691417..
                                  COMPL. TRIMMED DASHBOARD SUBSTRUCTURE, RHD
                                  -Without airbag disable system- -Applicable for GD-
                                  Supersession
                                  Supersession
                                  Genuine Ferrari Part (no longer available to order)
                                  # 001
                                  MPN: 691418..
                                  DASHBOARD
                                  -Standard- -Applicable for J- -No longer supplied-
                                  Supersession
                                  Supersession
                                  Genuine Ferrari Part (no longer available to order)
                                  # 001
                                  MPN: 691419..
                                  DASHBOARD
                                  -Standard- -Applicable for AUS- -No longer supplied-
                                  DASHBOARD Genuine Ferrari Part - New (to order)
                                  # 001
                                  MPN: 692372..
                                  DASHBOARD
                                  -Standard- -Applicable for USA- -No longer supplied-
                                  Supersession
                                  Supersession
                                  Genuine Ferrari Part (no longer available to order)
                                  # 001
                                  MPN: 693051..
                                  DASHBOARD
                                  -Standard- -Applicable for CDN- -No longer supplied-
                                  DASHBOARD Genuine Ferrari Part - New (to order)
                                  # 001
                                  MPN: 802694..
                                  DASHBOARD
                                  -Standard- -Not for USA, CDN, J, GD- -No longer supplied-
                                  Supersession
                                  Supersession
                                  Genuine Ferrari Part (no longer available to order)
                                  # 001
                                  MPN: 802697..
                                  DASHBOARD
                                  -Standard- -Applicable for UK- -No longer supplied-
                                  Supersession
                                  Supersession
                                  Genuine Ferrari Part (no longer available to order)
                                  # 002
                                  MPN: 63352900
                                  AIR DUCT
                                  -Not for GD-
                                  from £90.86
                                  from £90.86
                                  UNDER-DASHBOARD AIR DUCTING Genuine Ferrari Part - New (to order)
                                  UNDER-DASHBOARD AIR DUCTING Genuine Ferrari Part - Used In stock
                                  # 002
                                  MPN: 65536200
                                  AIR DUCT
                                  -Applicable for GD-
                                  from £92.68
                                  from £92.68
                                  AIR DUCTING Genuine Ferrari Part - New (to order)
                                  AIR DUCTING Genuine Ferrari Part - Used In stock
                                  # 003
                                  MPN: 65132300
                                  RH LATERAL DUCT
                                  from £7.43
                                  from £7.43
                                  RH UNDER-DASHBOARD AIRDUCTI Genuine Ferrari Part - New (to order)
                                  # 003
                                  MPN: 65132400
                                  LH LATERAL DUCT
                                  from £11.61
                                  from £11.61
                                  LH AIR DUCT Genuine Ferrari Part - New (to order)
                                  # 004
                                  MPN: 66050600
                                  GASKET
                                  from £3.80
                                  from £3.80
                                  This part replaces part number 63352700
                                  GASKET Genuine Ferrari Part - New (to order)
                                  # 005
                                  MPN: 63353300
                                  CENTRAL AIR VENT GASKET
                                  from £0.51
                                  from £0.51
                                  This part replaces part number 68603400 - and 1 more. Click to view details
                                  GASKET Genuine Ferrari Part - New In stock
                                  GASKET Genuine Ferrari Part - Used In stock
                                  # 006
                                  MPN: 65132500
                                  GASKET
                                  from £0.71
                                  from £0.71
                                  GASKET Genuine Ferrari Part - New (to order)
                                  # 007
                                  MPN: 68811300
                                  AIR VENT
                                  from £68.47
                                  from £68.47
                                  AIR DIFFUSOR OPENING Genuine Ferrari Part - New In stock
                                  AIR DIFFUSOR OPENING Genuine Ferrari Part - Used In stock
                                  # 008
                                  MPN: 67796810
                                  RH LATERAL VENT PANEL
                                  -PPG 236411 matte sm. met. gr. 682 W- -Standard-
                                  from £850.08
                                  from £850.08
                                  This part replaces part number 67796800
                                  RH AIR OUTLET PLATE Genuine Ferrari Part - New (to order)
                                  # 008
                                  MPN: 68648100
                                  RH LATERAL VENT PANEL
                                  -Carbon version- -Optional- -Applicable until depletion-
                                  Supersession
                                  Supersession
                                  Genuine Ferrari Part (no longer available to order)
                                  # 008
                                  MPN: 81200800
                                  RH LATERAL VENT PANEL
                                  -Carbon version- -Optional- -Applicable after depletion of 68648100-
                                  from £284.76
                                  from £284.76
                                  This part replaces part number 68648100 - and 3 more. Click to view details
                                  RH AIR OUTLET PLATE Genuine Ferrari Part - New In stock
                                  RH AIR OUTLET PLATE Genuine Ferrari Part - Used In stock
                                  RH AIR OUTLET PLATE Genuine Ferrari Part - Used In stock
                                  # 009
                                  MPN: 67916310
                                  LH LATERAL VENT PANEL
                                  -PPG 236411 matte sm. met. gr. 682 W- -Standard-
                                  from £850.08
                                  from £850.08
                                  This part replaces part number 67916300
                                  LH AIR OUTLET PLATE Genuine Ferrari Part - New (to order)
                                  # 009
                                  MPN: 68648200
                                  LH LATERAL VENT PANEL
                                  -Carbon version- -Optional- -Applicable until depletion-
                                  Supersession
                                  Supersession
                                  Genuine Ferrari Part (no longer available to order)
                                  # 009
                                  MPN: 81200900
                                  LH LATERAL VENT PANEL
                                  -Carbon version- -Optional- -Applicable after depletion of 68648200-
                                  from £368.56
                                  from £368.56
                                  This part replaces part number 68648200 - and 2 more. Click to view details
                                  LH AIR OUTLET PLATE Genuine Ferrari Part - New In stock
                                  LH AIR OUTLET PLATE Genuine Ferrari Part - Used In stock
                                  # 010
                                  MPN: 69065010
                                  CAMPIONI DEL MONDO 2004 LABEL
                                  -No longer supplied- -Replaced by 69833810-
                                  from £93.82
                                  from £93.82
                                  CAMPIONI DEL MONDO 2004 PLAT Genuine Ferrari Part - New (to order)
                                  # 010
                                  MPN: 69833810
                                  CAMPIONI DEL MONDO PLAQUE
                                  from £173.03
                                  from £173.03
                                  CAMPIONI DEL MONDO MOTIF Genuine Ferrari Part - New (to order)
                                  # 010
                                  MPN: 80462510
                                  60 YEARS LABEL
                                  from £108.58
                                  from £108.58
                                  This part replaces part number 80462500
                                  60-YEAR PLATE. Genuine Ferrari Part - New (to order)
                                  # 010
                                  MPN: 81190900
                                  CAMPIONI DEL MONDO 2007 LABEL
                                  Supersession
                                  Supersession
                                  Genuine Ferrari Part (no longer available to order)
                                  # 010
                                  MPN: 82262900
                                  CAMPIONI DEL MONDO 2008 LABEL
                                  from £100.65
                                  from £100.65
                                  This part replaces part number 82253500 - and 1 more. Click to view details
                                  CAMPIONI DEL MONDO 2008 LABE Genuine Ferrari Part - New (to order)
                                  # 011
                                  MPN: 67919000
                                  RH SEAT BELT SLOT SURROUND
                                  from £57.61
                                  from £57.61
                                  RH PLATE Genuine Ferrari Part - New (to order)
                                  RH PLATE Genuine Ferrari Part - Used In stock
                                  # 012
                                  MPN: 67919100
                                  LH SEAT BELT SLOT SURROUND
                                  from £104.74
                                  from £104.74
                                  LH PLATE Genuine Ferrari Part - New (to order)
                                  # 013
                                  MPN: 67790600
                                  DASHBOARD SUBFRAME ASSEMBLY
                                  -Not for GD-
                                  from £195.82
                                  from £195.82
                                  DASHBOARD FRAME ASSEMBLY Genuine Ferrari Part - New (to order)
                                  DASHBOARD FRAME ASSEMBLY Genuine Ferrari Part - Used In stock
                                  RHD DASHBOARD BAR
                                  # 013
                                  MPN: 68356100
                                  DASHBOARD SUBFRAME ASSEMBLY
                                  -Applicable for GD-
                                  from £212.30
                                  from £212.30
                                  DASHBOARD FRAME COMPLETE Genuine Ferrari Part - New (to order)
                                  DASHBOARD FRAME COMPLETE Genuine Ferrari Part - Used In stock
                                  # 014
                                  MPN: 65018200
                                  RH AIR VENT SURROUND
                                  -Not for GD-
                                  from £49.44
                                  from £49.44
                                  RH COVER PLATE Genuine Ferrari Part - New In stock
                                  # 014
                                  MPN: 65018300
                                  LH AIR VENT SURROUND
                                  -Not for GD-
                                  from £49.44
                                  from £49.44
                                  LH COVER PLATE Genuine Ferrari Part - New In stock
                                  # 014
                                  MPN: 65891000
                                  LH AIR VENT SURROUND
                                  -Applicable for GD-
                                  from £32.11
                                  from £32.11
                                  LH INNER GUIDES SUPPORT CO Genuine Ferrari Part - New (to order)
                                  # 014
                                  MPN: 65891100
                                  RH AIR VENT SURROUND
                                  -Applicable for GD-
                                  from £17.66
                                  from £17.66
                                  RH AIR VENT SURROUND Genuine Ferrari Part - New (to order)
                                  RH AIR VENT SURROUND Genuine Ferrari Part - Used In stock
                                  # 015
                                  MPN: 696595..
                                  WINDSCREEN AIR VENT TRIM PANEL
                                  -Not for GD-
                                  Supersession
                                  Supersession
                                  Genuine Ferrari Part (no longer available to order)
                                  # 015
                                  MPN: 696596..
                                  WINDSCREEN AIR VENT TRIM PANEL
                                  -Applicable for GD-
                                  Supersession
                                  Supersession
                                  Genuine Ferrari Part (no longer available to order)
                                  # 016
                                  MPN: 684217..
                                  BINNACLE
                                  Supersession
                                  Supersession
                                  Genuine Ferrari Part (no longer available to order)
                                  # 017
                                  MPN: 67796610
                                  UPPER CENTRAL VENT PANEL
                                  -PPG 236411 matte sm. met. gr. 682 W- -Standard-
                                  from £357.78
                                  from £357.78
                                  This part replaces part number 67796600 - and 3 more. Click to view details
                                  UPPER CENTRALPLATE Genuine Ferrari Part - New In stock
                                  UPPER CENTRALPLATE Genuine Ferrari Part - Used In stock
                                  # 017
                                  MPN: 68648300
                                  UPPER CENTRAL VENT PANEL
                                  -Carbon version- -Optional- -Applicable until depletion-
                                  Supersession
                                  Supersession
                                  Genuine Ferrari Part (no longer available to order)
                                  # 017
                                  MPN: 81201800
                                  UPPER CENTRAL VENT PANEL
                                  -Carbon version- -Optional- -Applicable after depletion of 68648300-
                                  from £1,035.80
                                  from £1,035.80
                                  This part replaces part number 68648300 - and 2 more. Click to view details
                                  UPPER CENTRAL PLATE Genuine Ferrari Part - New In stock
                                  UPPER CENTRAL PLATE Genuine Ferrari Part - Used In stock
                                  scratched
                                  UPPER CENTRAL PLATE Genuine Ferrari Part - Used In stock
                                  # 018
                                  MPN: 67797010
                                  LOWER CENTRAL VENT PANEL
                                  -PPG 236411 matte sm. met. gr. 682 W- -Standard-
                                  from £105.75
                                  from £105.75
                                  This part replaces part number 67797000 - and 1 more. Click to view details
                                  LOWER CENTRALPLATE Genuine Ferrari Part - New In stock
                                  # 018
                                  MPN: 68648400
                                  LOWER CENTRAL VENT PANEL
                                  -Carbon version- -Optional- -Applicable until depletion-
                                  Supersession
                                  Supersession
                                  Genuine Ferrari Part (no longer available to order)
                                  # 018
                                  MPN: 68971600
                                  LOWER CENTRAL VENT PANEL
                                  -Carbon version- -Optional- -Applicable after depletion of 68648400- -Applicable until depletion-
                                  Supersession
                                  Supersession
                                  This part replaces part number 68648400
                                  Genuine Ferrari Part (no longer available to order)
                                  # 018
                                  MPN: 81200300
                                  LOWER CENTRAL VENT PANEL
                                  -Carbon version- -Optional- -Applicable after depletion of 68971600-
                                  from £214.65
                                  from £214.65
                                  This part replaces part number 68971600 - and 5 more. Click to view details
                                  LOWER CENTRAL PLATE Genuine Ferrari Part - New In stock
                                  LOWER CENTRAL PLATE Genuine Ferrari Part - Used In stock
                                  # 019
                                  MPN: 68719900
                                  MODEL PLATE
                                  -Standard-
                                  from £72.50
                                  from £72.50
                                  ALLUMINIUM PLATE Genuine Ferrari Part - New (to order)
                                  # 019
                                  MPN: 68872700
                                  MODEL PLATE
                                  -Carbon- -Optional-
                                  from £108.92
                                  from £108.92
                                  CARBON PLATE Genuine Ferrari Part - New (to order)
                                  CARBON PLATE Genuine Ferrari Part - Used In stock
                                  # 019
                                  MPN: 69119900
                                  DEDICATION PLAQUE
                                  -Optional- -Applicable until depletion-
                                  Supersession
                                  Supersession
                                  This part replaces part number 68148500
                                  Genuine Ferrari Part (no longer available to order)
                                  # 019
                                  MPN: 80728900
                                  DEDICATION PLAQUE
                                  -Optional- -Applicable after depletion of 69119900-
                                  from £339.84
                                  from £339.84
                                  This part replaces part number 69119900
                                  CAR MODEL PLATE Genuine Ferrari Part - New (to order)
                                  # 020
                                  MPN: 64214100
                                  SCREW
                                  -Self-locking-
                                  from £0.47
                                  from £0.47
                                  SCREW Genuine Ferrari Part - New In stock
                                  # 020
                                  MPN: 68927600
                                  SCREW
                                  -Black-
                                  from £0.47
                                  from £0.47
                                  SCREW Genuine Ferrari Part - New In stock
                                  # 021
                                  MPN: 68615200
                                  AMPLIFIER BOX FASTENER BRACKET
                                  -Not for GD-
                                  from £28.64
                                  from £28.64
                                  BOX AMPLIFIER FIXING BRACKET Genuine Ferrari Part - New (to order)
                                  # 021
                                  MPN: 69074200
                                  AMPLIFIER BOX FASTENER BRACKET
                                  -Applicable for GD-
                                  from £34.18
                                  from £34.18
                                  AMPLIFIER BOX FIXING BRACKET Genuine Ferrari Part - New (to order)
                                  # 022
                                  MPN: 16285127
                                  SCREW
                                  from £0.47
                                  from £0.47
                                  SCREW Genuine Ferrari Part - New In stock
                                  # 023
                                  MPN: 68134900
                                  RH LATERAL AIR VENT GASKET
                                  from £4.66
                                  from £4.66
                                  RH SIDE AIR OPENING GASKET Genuine Ferrari Part - New (to order)
                                  RH SIDE AIR OPENING GASKET Genuine Ferrari Part - Used In stock
                                  # 023
                                  MPN: 68135000
                                  LH LATERAL AIR VENT GASKET
                                  from £4.66
                                  from £4.66
                                  LH SIDE AIR OPENING GASKET Genuine Ferrari Part - New (to order)
                                  LH SIDE AIR OPENING GASKET Genuine Ferrari Part - Used In stock
                                  # 024
                                  MPN: 68662200
                                  RADIO FRAME
                                  from £12.78
                                  from £12.78
                                  Frame Genuine Ferrari Part - New (to order)
                                  # 025
                                  MPN: 14304024
                                  SCREW
                                  from £0.53
                                  from £0.53
                                  Genuine Ferrari Part (no longer available to order)
                                  SCREW FOR BRACKET ON REAR (14304024) Genuine Maserati Part - New (to order)
                                  # 026
                                  MPN: 12637801
                                  WASHER
                                  from £0.47
                                  from £0.47
                                  Genuine Ferrari Part (no longer available to order)
                                  SPLIT WASHER D.2 5.15 -11X 1 (12637801) Genuine Maserati Part - New In stock
                                  # 027
                                  MPN: 12620374
                                  WASHER
                                  from £0.47
                                  from £0.47
                                  WASHER Genuine Ferrari Part - New In stock
                                  WASHER FOR EXTERIOR COWL (12620374) Genuine Maserati Part - New (to order)
                                  # 028
                                  MPN: 69140100
                                  DEDICATION PLAQUE MOUNTING
                                  from £32.08
                                  from £32.08
                                  SUPPORT PLATE Genuine Ferrari Part - New (to order)
                                  # 029
                                  MPN: 13270216
                                  SCREW
                                  Supersession
                                  Supersession
                                  Genuine Ferrari Part (no longer available to order)
                                  Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
