ferrari 456 m gt/m gta crankcase - covers parts diagram

002 - crankcase - covers

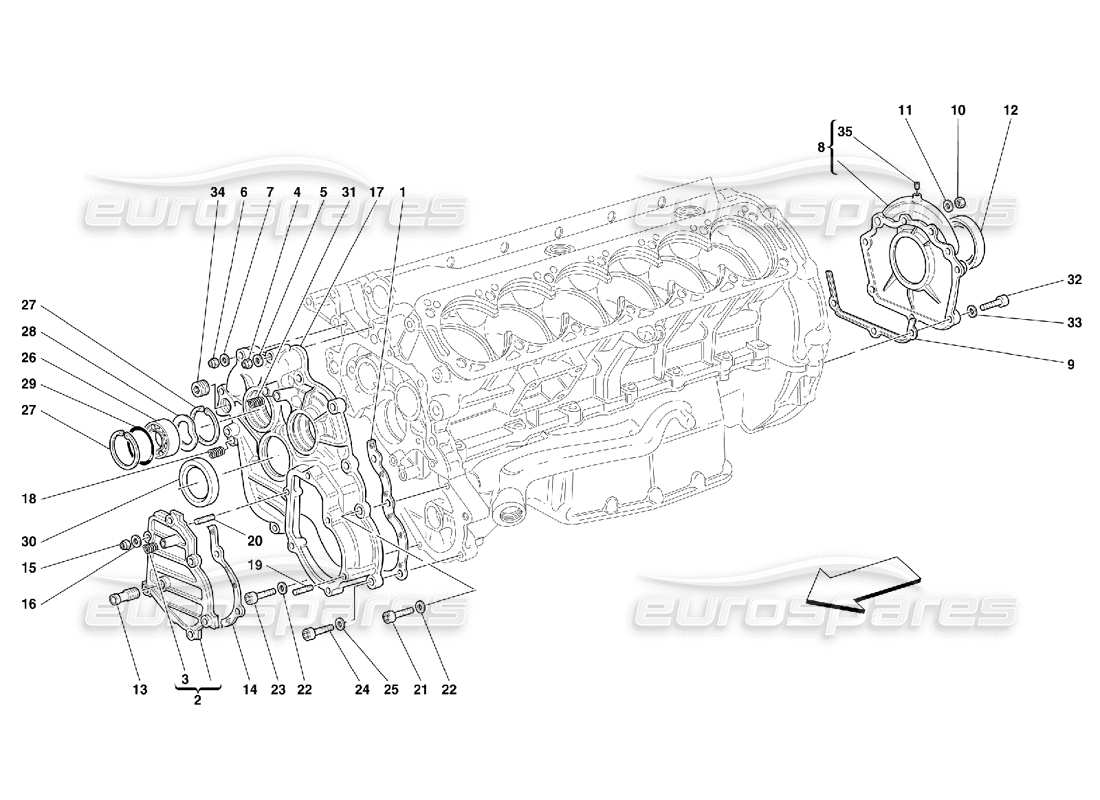

Ferrari 456 M GT/M GTA Crankcase - Covers Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                      #
                                                                      Part number
                                                                      Description
                                                                      Price
                                                                      # 001
                                                                      MPN: 154527
                                                                      GASKET
                                                                      from £28.55
                                                                      from £28.55
                                                                      # 002
                                                                      MPN: 157120
                                                                      SMALL FRONT COVER
                                                                      from £55.22
                                                                      from £55.22
                                                                      This part replaces part number 153212 - and 2 more. Click to view details
                                                                      # 003
                                                                      MPN: 13525570
                                                                      THREADED INSERT
                                                                      from £3.26
                                                                      from £3.26
                                                                      This part replaces part number 109668
                                                                      # 004
                                                                      MPN: 101139
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 16104425
                                                                      # 005
                                                                      MPN: 12601374
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                                                      # 006
                                                                      MPN: 102741
                                                                      NUT
                                                                      from £0.52
                                                                      from £0.52
                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                      # 007
                                                                      MPN: 12601274
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                      # 008
                                                                      MPN: 141343
                                                                      REAR COVER
                                                                      from £162.29
                                                                      from £162.29
                                                                      # 009
                                                                      MPN: 141291
                                                                      GASKET
                                                                      from £20.99
                                                                      from £20.99
                                                                      # 010
                                                                      MPN: 15896214
                                                                      NUT
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 15896211
                                                                      # 011
                                                                      MPN: 12620474
                                                                      WASHER
                                                                      from £0.47
                                                                      from £0.47
                                                                      This part replaces part number 12620479 - and 1 more. Click to view details
                                                                      # 012
                                                                      MPN: 200323
                                                                      REAR MAIN OIL SEAL
                                                                      from £24.95
                                                                      from £24.95
                                                                      This part replaces part number 163989 - and 1 more. Click to view details
                                                                      # 013
                                                                      MPN: 154525
                                                                      UNION
                                                                      from £24.94
                                                                      from £24.94
                                                                      # 014
                                                                      MPN: 157121
                                                                      GASKET
                                                                      from £5.28
                                                                      from £5.28
                                                                      # 015
                                                                      MPN: 102741
                                                                      NUT
                                                                      from £0.50
                                                                      from £0.50
                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                      # 016
                                                                      MPN: 12601274
                                                                      WASHER
                                                                      from £0.52
                                                                      from £0.52
                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                      # 017
                                                                      MPN: 159346
                                                                      FRONT COVER
                                                                      - Not as spare part - With the complete cover 178601
                                                                      Supersession
                                                                      Supersession
                                                                      # 017
                                                                      MPN: 178601
                                                                      COMPLETO FRONT COVER
                                                                      from £864.27
                                                                      from £864.27
                                                                      This part replaces part number 159346
                                                                      # 018
                                                                      MPN: 13525470
                                                                      THREADED INSERT
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 107333
                                                                      # 019
                                                                      MPN: 13541024
                                                                      STUD
                                                                      from £27.69
                                                                      from £27.69
                                                                      This part replaces part number 13541021
                                                                      # 020
                                                                      MPN: 13540824
                                                                      STUD
                                                                      from £14.21
                                                                      from £14.21
                                                                      This part replaces part number 13540821
                                                                      # 021
                                                                      MPN: 14305424
                                                                      SCREW
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 14305421 - and 2 more. Click to view details
                                                                      # 022
                                                                      MPN: 11197774
                                                                      WASHER
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                      # 023
                                                                      MPN: 14306024
                                                                      SCREW
                                                                      from £1.31
                                                                      from £1.31
                                                                      # 024
                                                                      MPN: 14306524
                                                                      SCREW
                                                                      from £0.53
                                                                      from £0.53
                                                                      This part replaces part number 14306521
                                                                      # 025
                                                                      MPN: 11193874
                                                                      WASHER
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 11193879 which we have in stock
                                                                      # 026
                                                                      MPN: 170787
                                                                      BEARING
                                                                      from £61.70
                                                                      from £61.70
                                                                      This part replaces part number 144690
                                                                      # 027
                                                                      MPN: 11060576
                                                                      FLEXIBLE RING
                                                                      from £1.01
                                                                      from £1.01
                                                                      This part replaces part number 11060575
                                                                      # 028
                                                                      MPN: 133377
                                                                      WASHER
                                                                      from £9.25
                                                                      from £9.25
                                                                      # 029
                                                                      MPN: 136140
                                                                      O.R. GASKET
                                                                      from £0.71
                                                                      from £0.71
                                                                      # 030
                                                                      MPN: 134714
                                                                      OIL SEAL
                                                                      from £10.35
                                                                      from £10.35
                                                                      This part replaces part number 110314
                                                                      # 031
                                                                      MPN: 13525570
                                                                      THREADED INSERT
                                                                      from £3.26
                                                                      from £3.26
                                                                      This part replaces part number 109668
                                                                      # 032
                                                                      MPN: 14305424
                                                                      SCREW
                                                                      from £0.52
                                                                      from £0.52
                                                                      This part replaces part number 14305421 - and 2 more. Click to view details
                                                                      # 033
                                                                      MPN: 11197774
                                                                      V
                                                                      from £0.54
                                                                      from £0.54
                                                                      This part replaces part number 11197770 - and 3 more. Click to view details
                                                                      # 034
                                                                      MPN: 163528
                                                                      THREADED PLUG
                                                                      from £2.45
                                                                      from £2.45
                                                                      This part replaces part number 10268450 - and 1 more. Click to view details
                                                                      # 035
                                                                      MPN: 10275550
                                                                      THREADED PLUG
                                                                      from £0.78
                                                                      from £0.78
