005 - LH cylinder head

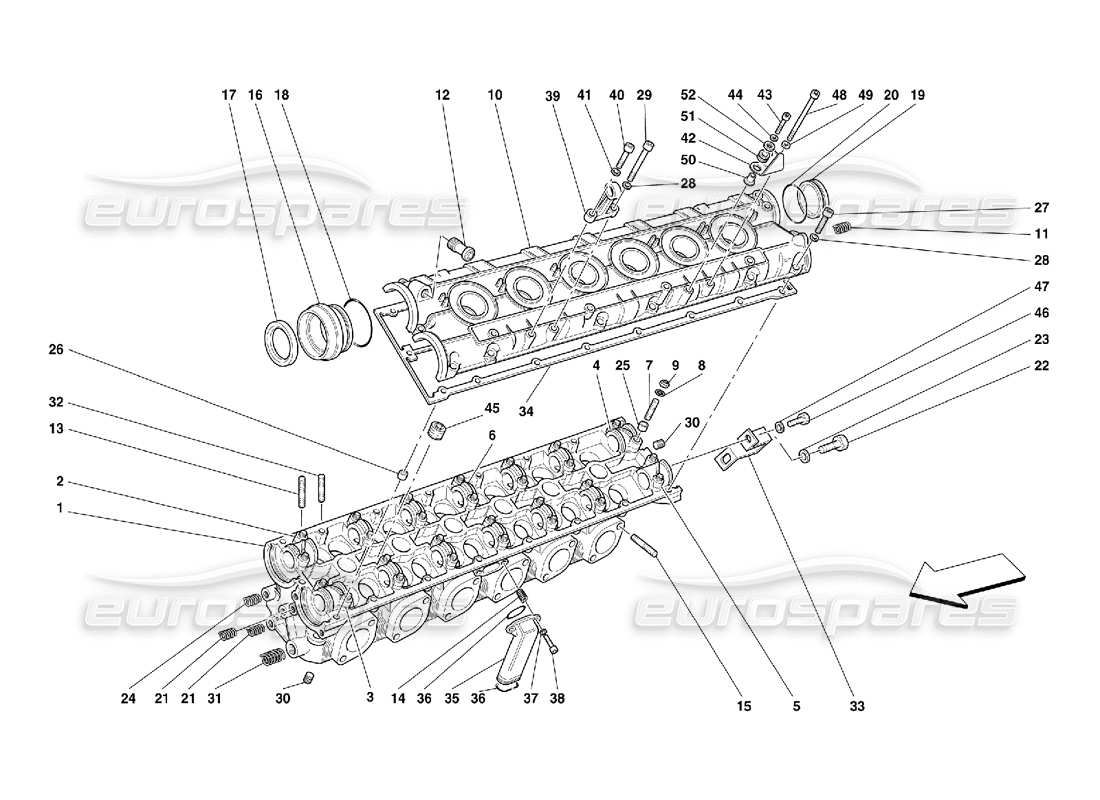

Ferrari 456 M GT/M GTA L.H. Cylinder Head Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 178849
COMPLETE LH CYLINDERS HEAD
Supersession
Supersession
This part replaces part number 178794
# 001
MPN: 178794
LH HEAD
- Not as spare part - With complete cylinders head
Supersession
Supersession
# 002
MPN: 149864
RIGHT FRONT CAP
- Not as spare part - With complete cylinders head
# 003
MPN: 149862
LEFT FRONT CAP
- Not as spare part - With complete cylinders head
# 004
MPN: 149829
RIGHT REAR CAP
- Not as spare part - With complete cylinders head
# 005
MPN: 149844
LEFT REAR CAP
- Not as spare part - With complete cylinders head
# 006
MPN: 152505
INTERMEDIATE CAP
- Not as spare part - With complete cylinders head
# 007
MPN: 13541424
STUD
from £0.47
from £0.47
This part replaces part number 13541421
# 008
MPN: 11197774
WASHER
from £0.50
from £0.50
This part replaces part number 11197770 - and 3 more. Click to view details
# 009
MPN: 15896214
NUT
from £0.50
from £0.50
This part replaces part number 15896211
# 010
MPN: 151676
LH CYLINDERS HEAD COVER
- Not as spare part - With complete cylinders head
from £495.00
from £495.00
# 011
MPN: 13525470
THREADED INSERT
from £0.53
from £0.53
This part replaces part number 107333
# 012
MPN: 154525
UNION
from £24.94
from £24.94
# 013
MPN: 13541124
STUD
from £11.62
from £11.62
This part replaces part number 13541121
# 014
MPN: 13525170
THREADED INSERT
from £0.51
from £0.51
# 015
MPN: 13516824
STUD
from £0.48
from £0.48
This part replaces part number 13516821
# 016
MPN: 148022
FRONT COVER
from £24.78
from £24.78
# 017
MPN: 163987
SEALING RING
from £9.95
from £9.95
This part replaces part number 136526
# 018
MPN: 117275
O.R. GASKET
from £2.93
from £2.93
# 019
MPN: 148023
REAR SMALL COVER
from £6.82
from £6.82
# 020
MPN: 117275
O.R. GASKET
from £2.93
from £2.93
# 021
MPN: 13525770
THREADED INSERT
from £1.54
from £1.54
This part replaces part number 103830
# 022
MPN: 16043124
SCREW
from £0.30
from £0.30
This part replaces part number 16043121 which we have in stock - and 1 more. Click to view details
# 023
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 024
MPN: 13525870
THREADED INSERT
from £1.90
from £1.90
This part replaces part number 105510
# 025
MPN: 102725
DOWEL
from £0.59
from £0.59
# 026
MPN: 102725
DOWEL
from £0.64
from £0.64
# 027
MPN: 156834
SCREW
from £1.54
from £1.54
# 028
MPN: 12601274
WASHER
from £0.48
from £0.48
This part replaces part number 12601221 - and 5 more. Click to view details
# 029
MPN: 156835
SCREW
from £0.47
from £0.47
# 030
MPN: 14326150
PLUG
from £0.51
from £0.51
This part replaces part number 12326150
# 031
MPN: 13524670
THREADED INSERT
from £0.71
from £0.71
# 032
MPN: 11500224
STUD
from £0.48
from £0.48
This part replaces part number 11500221 - and 1 more. Click to view details
# 033
MPN: 157910
BRACKET
from £19.39
from £19.39
# 034
MPN: 140753
COVER GASKET
from £26.66
from £26.66
# 034
MPN: FCCG016
CAM COVER GASKET SET
(140753 x2 - 140787 x2)
from £75.00
from £75.00
# 035
MPN: 154647
OIL EXHAUST DUCTING
from £27.93
from £27.93
# 036
MPN: 142599
O.R. GASKET
from £0.66
from £0.66
# 037
MPN: 12601179
WASHER
Supersession
Supersession
This part replaces part number 12601171 which we have in stock - and 1 more. Click to view details
# 038
MPN: 14304224
SCREW
from £0.53
from £0.53
# 039
MPN: 151687
FRONT SUPPORT FOR ACCELERATOR CABLE
from £38.71
from £38.71
# 040
MPN: 14305224
SCREW
from £0.53
from £0.53
# 041
MPN: 12604274
WASHER
from £0.54
from £0.54
This part replaces part number 12604271 - and 1 more. Click to view details
# 042
MPN: 177396
REAR SUPPORT FOR ACCELERATOR CABLE
from £66.50
from £66.50
# 043
MPN: 14304324
SCREW
from £0.79
from £0.79
# 044
MPN: 12604174
WASHER
from £0.47
from £0.47
This part replaces part number 12604179 - and 1 more. Click to view details
# 045
MPN: 127635
THREADED PLUG
from £1.47
from £1.47
This part replaces part number 183447
# 046
MPN: 10977524
SCREW
from £0.53
from £0.53
# 047
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.54
from £0.54
This part replaces part number 10516470 - and 4 more. Click to view details
# 048
MPN: 177579
SCREW
from £1.15
from £1.15
# 049
MPN: 12601274
WASHER
from £0.54
from £0.54
This part replaces part number 12601221 - and 5 more. Click to view details
# 050
MPN: 149707
SPACER
from £0.78
from £0.78
# 051
MPN: 177576
CABLE GROMMET
from £1.48
from £1.48
# 052
MPN: 12643724
WASHER
from £0.53
from £0.53
This part replaces part number 109684 - and 3 more. Click to view details
