012 - Fuel Tank -Not for USA M.Y. 2000 and CDN M.Y. 2000

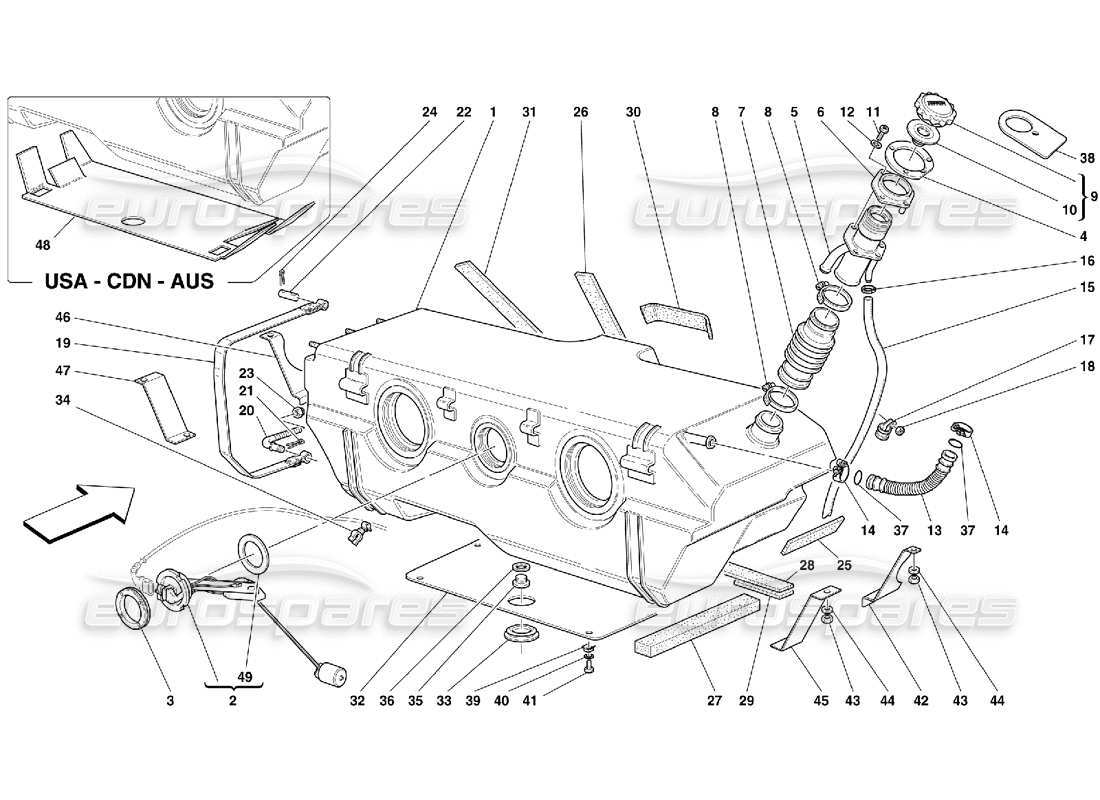

Ferrari 456 M GT/M GTA Fuel Tank -Not for USA M.Y. 2000 and CDN M.Y. 2000 Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 160562
FUEL TANK
from £1,260.00
from £1,260.00
This part replaces part number 155818 - and 5 more. Click to view details
# 002
MPN: 154556
FUEL LEVEL INDICATOR CONTROL
from £400.00
from £400.00
# 003
MPN: 121435
RING NUT
from £43.64
from £43.64
This part replaces part number 116012 - and 6 more. Click to view details
# 004
MPN: 160777
COUNTER FLANGE
from £11.29
from £11.29
This part replaces part number 160776 - and 2 more. Click to view details
# 005
MPN: 160774
UNION
- Valid for catalyzed cars
from £93.45
from £93.45
# 005
MPN: 161021
UNION
- Valid for not catalyzed cars
from £112.32
from £112.32
# 006
MPN: 160778
GASKET
from £12.49
from £12.49
# 007
MPN: 156196
UNION-TANK CONNECTING PIPE
- Not as spare part now - Replaced by 178061
Supersession
Supersession
# 007
MPN: 178061
UNION-TANK CONNECTING PIPE
from £156.34
from £156.34
This part replaces part number 156196 - and 1 more. Click to view details
# 008
MPN: 13000790
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 12173190 - and 1 more. Click to view details
# 009
MPN: 180320
FUEL CAP
- Not as spare part now - Replaced by 180320
from £225.00
from £225.00
# 009
MPN: 180320
FUEL CAP
from £225.00
from £225.00
# 010
MPN: 175709
GASKET
- For plug 175708
from £20.69
from £20.69
This part replaces part number 142792
# 010
MPN: 180319
GASKET
- For plug 180320
from £170.03
from £170.03
# 011
MPN: 13276470
SCREW
from £0.53
from £0.53
# 012
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 013
MPN: 147247
VENT PIPE FROM TANK TO UNION
Supersession
Supersession
# 014
MPN: 164015
SCREW COLLAR
Supersession
Supersession
This part replaces part number 12181290
# 015
MPN: 174472
VENT PIPE
from £54.84
from £54.84
# 016
MPN: 161490
SCREW COLLAR
from £1.12
from £1.12
# 017
MPN: 10441690
BRACKET
from £1.13
from £1.13
This part replaces part number 1044690
# 018
MPN: 102948
NUT
from £0.54
from £0.54
This part replaces part number 12574211 - and 3 more. Click to view details
# 019
MPN: 156253
FUEL TANK FASTENER
Supersession
Supersession
# 020
MPN: 127529
TIE ROD
from £119.91
from £119.91
This part replaces part number 12311271 - and 15 more. Click to view details
# 021
MPN: 10796440
SPLIT PIN
from £0.71
from £0.71
This part replaces part number 10796401 - and 1 more. Click to view details
# 022
MPN: 103447
PIN
from £12.86
from £12.86
# 023
MPN: 104030
NUT
from £0.53
from £0.53
This part replaces part number 16104125
# 024
MPN: 10796440
SPLIT PIN
from £0.71
from £0.71
This part replaces part number 10796401 - and 1 more. Click to view details
# 025
MPN: 156679
RUBBER THICKNESS
from £0.71
from £0.71
# 026
MPN: 156680
RUBBER THICKNESS
from £1.89
from £1.89
# 027
MPN: 159146
RUBBER THICKNESS
from £2.24
from £2.24
# 028
MPN: 156682
RUBBER THICKNESS
from £12.62
from £12.62
# 029
MPN: 159147
RUBBER THICKNESS
from £0.53
from £0.53
# 030
MPN: 157411
RUBBER THICKNESS
from £1.05
from £1.05
# 031
MPN: 157412
RUBBER THICKNESS
from £1.95
from £1.95
# 032
MPN: 63939100
LOWER SHIELD
from £69.78
from £69.78
# 033
MPN: 63965800
PLUG
from £3.78
from £3.78
# 034
MPN: 155887
FIXING CLIP
from £0.48
from £0.48
# 035
MPN: 148045
OUTLET PLUG
from £9.01
from £9.01
# 036
MPN: 123622
GASKET
from £0.86
from £0.86
# 037
MPN: 142106
GASKET
from £4.48
from £4.48
# 038
MPN: 62943200
RUBBER PROTECTION
from £28.36
from £28.36
This part replaces part number 60134202
# 039
MPN: 65774200
NUT WITH CAGE
from £0.53
from £0.53
# 040
MPN: 14488670
WASHER
(minimum order quantity = 20)
from £0.71
from £0.71
# 041
MPN: 10902124
SCREW
from £0.50
from £0.50
This part replaces part number 10902111 - and 1 more. Click to view details
# 042
MPN: 64337500
RH FRONT HEAT SHIELD
from £34.03
from £34.03
# 043
MPN: 169180
NUT
from £0.51
from £0.51
This part replaces part number 12574121
# 044
MPN: 12638124
WASHER
from £0.53
from £0.53
This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
# 045
MPN: 64337700
RH REAR HEAT SHIELD
from £18.90
from £18.90
# 046
MPN: 64337600
LH FRONT HEAT SHIELD
from £34.03
from £34.03
# 047
MPN: 64337800
LH REAR HEAT SHIELD
from £19.74
from £19.74
# 048
MPN: 65460500
SHIELD FOR TANK PROTECTION
- Valid for USA, CDN and AUS
from £125.88
from £125.88
# 049
MPN: 154802
GASKET
from £16.69
from £16.69
This part replaces part number 116792 - and 2 more. Click to view details
