017 - Injection Device

Ferrari 456 M GT/M GTA Injection Device Parts Diagram

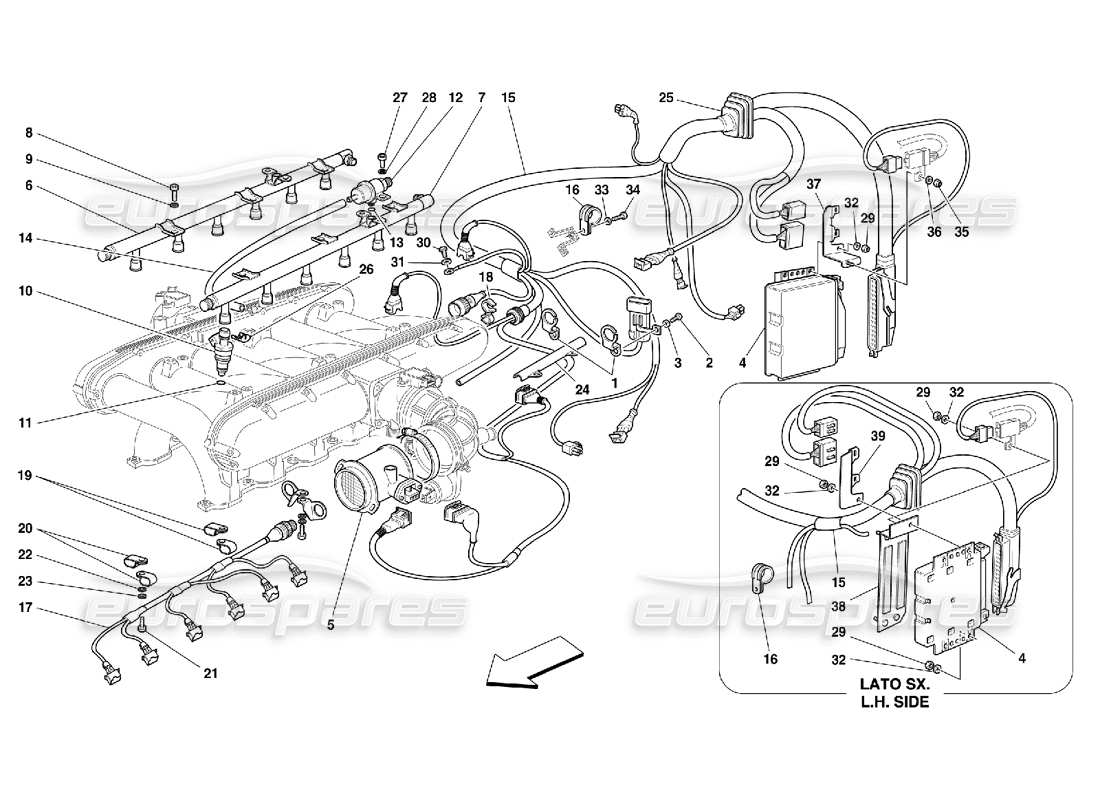

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 001
MPN: 155327
BRACKET
from £4.15
from £4.15
# 002
MPN: 16043124
SCREW
from £0.30
from £0.30
This part replaces part number 16043121 which we have in stock - and 1 more. Click to view details
SCREW Genuine Ferrari Part - Used In stock
Removed from 458 engine 178999
# 003
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 004
MPN: 175788
PROGRAMMED ELECTRONIC CONTROL STATION
- Not for 456M GTA - Not for USA, CDN, AUS, BRUNEI - and not for non-catalyzed cars
from £2,407.05
from £2,407.05
# 004
MPN: 175789
PROGRAMMED ELECTRONIC CONTROL STATION
- Not for 456M GTA - Valid for not catalyzed cars
from £2,413.73
from £2,413.73
# 004
MPN: 175792
PROGRAMMED ELECTRONIC CONTROL STATION
- Valid for 456M GTA - Not for USA, CDN, AUS, BRUNEI - and not for non-catalyzed cars
from £2,407.05
from £2,407.05
# 004
MPN: 175793
PROGRAMMED ELECTRONIC CONTROL STATION
- Valid for 456M GTA - Valid for not catalyzed cars
from £2,413.73
from £2,413.73
# 004
MPN: 175795
PROGRAMMED ELECTRONIC CONTROL STATION
- Not for 456M GTA - Valid for USA, CDN and AUS - Not for USA M.Y. 2000 and CDN M.Y. 2000
from £2,413.73
from £2,413.73
# 004
MPN: 175797
PROGRAMMED ELECTRONIC CONTROL STATION
- Valid for 456M GTA - Valid for USA, CDN and AUS - Not for USA M.Y. 2000 and CDN M.Y. 2000
from £2,407.05
from £2,407.05
# 004
MPN: 175805
PROGRAMMED ELECTRONIC CONTROL STATION
- Not for 456M GTA - Valid for BRUNEI
from £2,413.73
from £2,413.73
# 004
MPN: 175807
PROGRAMMED ELECTRONIC CONTROL STATION
- Valid for 456M GTA - Valid for BRUNEI
from £2,413.73
from £2,413.73
# 004
MPN: 181679
PROGRAMMED ELECTRONIC CONTROL STATION
- Not for 456M GTA - Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £2,399.89
from £2,399.89
# 004
MPN: 181680
PROGRAMMED ELECTRONIC CONTROL STATION
- Valid for 456M GTA - Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £2,399.89
from £2,399.89
# 005
MPN: 162530
AIR INDICATOR
from £376.63
from £376.63
# 006
MPN: 173751
RH INJECTORS COMPLETE TUBE
from £279.92
from £279.92
This part replaces part number 171841
# 007
MPN: 173745
LH INJECTORS COMPLETE TUBE
from £1,097.35
from £1,097.35
This part replaces part number 171842
# 008
MPN: 14305724
SCREW
from £0.52
from £0.52
This part replaces part number 11567624 - and 2 more. Click to view details
# 009
MPN: 12601274
WASHER
from £0.52
from £0.52
This part replaces part number 12601221 - and 5 more. Click to view details
# 010
MPN: 162613
ELECTRO-INJECTOR
from £395.80
from £395.80
# 011
MPN: 133902
O.R. GASKET PRESSURE REGULATOR
from £3.05
from £3.05
# 012
MPN: 148254
PRESSURE REGULATOR
Supersession
Supersession
# 013
MPN: 152211
SEAL RING
from £2.59
from £2.59
# 014
MPN: 118502
RUBBER HOSE
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £18.06
from £18.06
This part replaces part number 115148 - and 3 more. Click to view details
# 014
MPN: 118901
RUBBER HOSE
- Not for USA M.Y. 2000 and CDN M.Y. 2000
from £3.36
from £3.36
# 015
MPN: 174495
CABLES FOR RH MAIN BEARINGS CONNECTION
- Not for GD - Not for USA M.Y. 2000 and CDN M.Y. 2000 - Valid till car Ass. Nr. 32532
from £2,303.83
from £2,303.83
# 015
MPN: 174496
CABLES FOR LH MAIN BEARINGS CONNECTION
- Not for GD - Not for USA M.Y. 2000 and CDN M.Y. 2000 - Valid till car Ass. Nr. 32532
from £1,044.75
from £1,044.75
# 015
MPN: 177183
CABLES FOR RH MAIN BEARINGS CONNECTION
- Valid for GD - Valid till car Ass. Nr. 32851
from £630.58
from £630.58
# 015
MPN: 177184
CABLES FOR LH MAIN BEARINGS CONNECTION
- Valid for GD - Valid till car Ass. Nr. 32851
from £1,442.21
from £1,442.21
# 015
MPN: 179857
CABLES FOR RH MAIN BEARINGS CONNECTION
- Not for GD - Not for USA M.Y. 2000 and CDN M.Y. 2000 - Valid from car Ass. Nr. 32533
from £488.16
from £488.16
# 015
MPN: 179858
CABLES FOR LH MAIN BEARINGS CONNECTION
- Not for GD - Not for USA M.Y. 2000 and CDN M.Y. 2000 - Valid from car Ass. Nr. 32533
from £483.41
from £483.41
# 015
MPN: 179862
CABLES FOR RH MAIN BEARINGS CONNECTION
- Valid for GD - Valid from car Ass. Nr. 32852
from £656.92
from £656.92
# 015
MPN: 179863
CABLES FOR LH MAIN BEARINGS CONNECTION
- Valid for GD - Valid from car Ass. Nr. 32852
from £1,376.03
from £1,376.03
# 015
MPN: 180506
CABLES FOR RH MAIN BEARINGS CONNECTION
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £477.74
from £477.74
# 015
MPN: 180507
CABLES FOR LH MAIN BEARINGS CONNECTION
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £507.26
from £507.26
# 016
MPN: 10442090
BRACKET
from £0.47
from £0.47
# 017
MPN: 168529
INJECTORS CONNECTION CABLES
from £307.04
from £307.04
This part replaces part number 154787 which we have in stock - and 2 more. Click to view details
# 018
MPN: 145545
SPRINGS
from £0.71
from £0.71
# 019
MPN: 10418401
FIXING BRACKET
from £1.55
from £1.55
# 020
MPN: 10418601
FIXING BRACKET
from £0.59
from £0.59
# 021
MPN: 10977524
SCREW
from £0.53
from £0.53
# 022
MPN: 12639724
WASHER
from £0.54
from £0.54
This part replaces part number 12639725 - and 1 more. Click to view details
# 023
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 024
MPN: 154772
BRACKET FOR CABLES FIXING
from £23.24
from £23.24
# 025
MPN: 139465
RUBBER BOOT
from £127.25
from £127.25
# 026
MPN: 144763
INJECTORS RETAINING CLIP
from £1.84
from £1.84
# 027
MPN: 172763
SCREW
# 028
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 029
MPN: 102741
NUT
from £0.51
from £0.51
This part replaces part number 12575411 - and 1 more. Click to view details
# 030
MPN: 10977524
SCREW
from £0.53
from £0.53
# 031
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 032
MPN: 10519424
WASHER
from £0.53
from £0.53
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 033
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.54
from £0.54
This part replaces part number 10516470 - and 4 more. Click to view details
# 034
MPN: 10977524
SCREW
from £0.53
from £0.53
# 035
MPN: 113647
NUT
from £0.53
from £0.53
# 036
MPN: 12637824
WASHER
from £0.47
from £0.47
This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
# 037
MPN: 178750
RH BRACKET
- Not for GD
from £18.81
from £18.81
# 037
MPN: 178751
RH BRACKET
- Valid for GD
from £18.81
from £18.81
# 038
MPN: 175683
ABS CONTROL UNIT FIXING BRACKET
from £29.19
from £29.19
# 039
MPN: 175674
LH BRACKET
- Valid for GD
from £14.71
from £14.71
# 039
MPN: 175675
LH BRACKET
- Not for GD
from £8.49
from £8.49
