ferrari 456 m gt/m gta lubrication - oil pumps parts diagram

025 - Lubrication - Oil Pumps

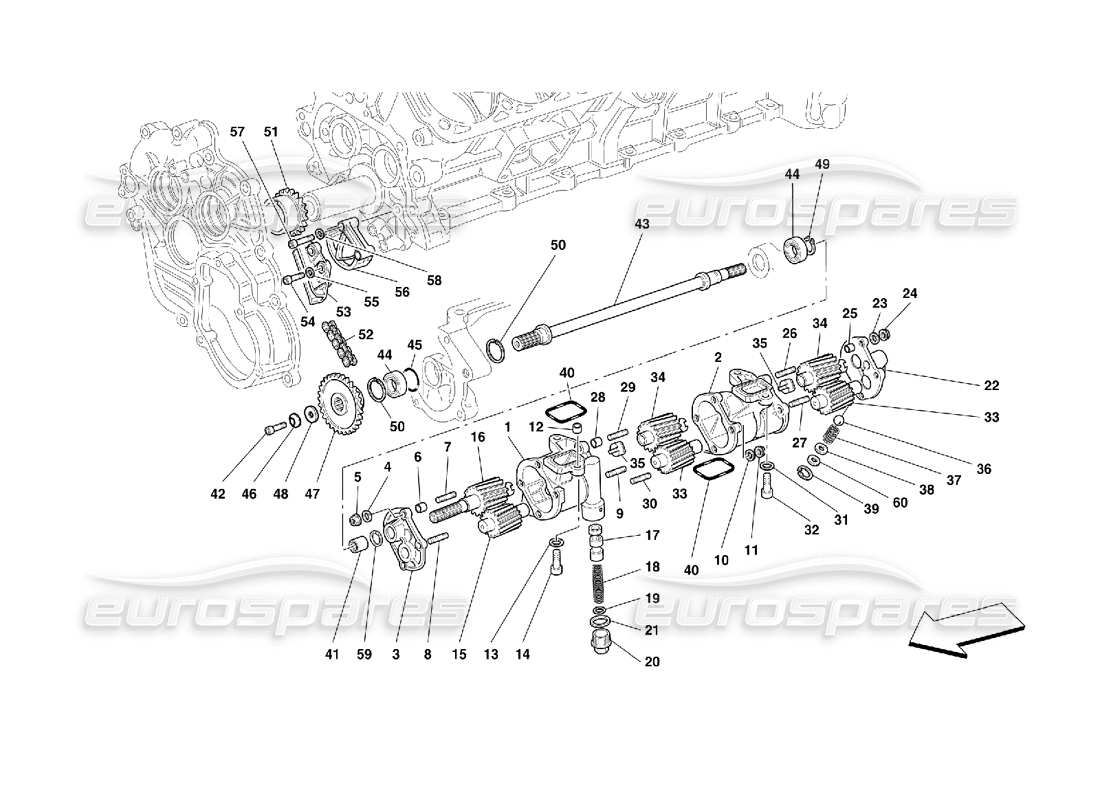

Ferrari 456 M GT/M GTA Lubrication - Oil Pumps Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                            #
                                                                                                            Part number
                                                                                                            Description
                                                                                                            Price
                                                                                                            # 000
                                                                                                            MPN: 153197
                                                                                                            COMPLETE DELIVERY PUMP BODY
                                                                                                            from £965.27
                                                                                                            from £965.27
                                                                                                            This part replaces part number 154575
                                                                                                            # 000
                                                                                                            MPN: 153198
                                                                                                            COMPLETE RECOVERY PUMP BODY
                                                                                                            from £1,063.72
                                                                                                            from £1,063.72
                                                                                                            This part replaces part number 154567
                                                                                                            # 001
                                                                                                            MPN: 154575
                                                                                                            DELIVERY PUMP BODY
                                                                                                            - Not as spare part - With complete delivery pump body
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 002
                                                                                                            MPN: 154567
                                                                                                            RECOVERY PUMP BODY
                                                                                                            - Not as spare part - With complete delivery pump body
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 003
                                                                                                            MPN: 141837
                                                                                                            COVER OF DELIVERY PUMP
                                                                                                            from £147.17
                                                                                                            from £147.17
                                                                                                            # 004
                                                                                                            MPN: 11197774
                                                                                                            WASHER
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                            # 005
                                                                                                            MPN: 134041
                                                                                                            NUT
                                                                                                            from £0.57
                                                                                                            from £0.57
                                                                                                            This part replaces part number 15896221
                                                                                                            # 006
                                                                                                            MPN: 102725
                                                                                                            DOWEL
                                                                                                            from £0.65
                                                                                                            from £0.65
                                                                                                            # 007
                                                                                                            MPN: 13541124
                                                                                                            STUD
                                                                                                            from £12.40
                                                                                                            from £12.40
                                                                                                            This part replaces part number 13541121
                                                                                                            # 008
                                                                                                            MPN: 13540824
                                                                                                            STUD
                                                                                                            from £14.21
                                                                                                            from £14.21
                                                                                                            This part replaces part number 13540821
                                                                                                            # 009
                                                                                                            MPN: 158169
                                                                                                            STUD
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 010
                                                                                                            MPN: 153366
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 011
                                                                                                            MPN: 132877
                                                                                                            NUT
                                                                                                            from £1.54
                                                                                                            from £1.54
                                                                                                            This part replaces part number 67190100
                                                                                                            # 012
                                                                                                            MPN: 102704
                                                                                                            CENTERING DOWEL
                                                                                                            from £1.59
                                                                                                            from £1.59
                                                                                                            This part replaces part number 500805
                                                                                                            # 013
                                                                                                            MPN: 11193874
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 11193879 which we have in stock
                                                                                                            # 014
                                                                                                            MPN: 14306524
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 14306521
                                                                                                            # 015
                                                                                                            MPN: 154518
                                                                                                            DRIVEN GEAR
                                                                                                            from £118.07
                                                                                                            from £118.07
                                                                                                            # 016
                                                                                                            MPN: 154519
                                                                                                            DRIVING GEAR
                                                                                                            from £137.17
                                                                                                            from £137.17
                                                                                                            # 017
                                                                                                            MPN: 156950
                                                                                                            PISTON
                                                                                                            from £74.38
                                                                                                            from £74.38
                                                                                                            This part replaces part number 150071
                                                                                                            # 018
                                                                                                            MPN: 137614
                                                                                                            SPRING
                                                                                                            from £30.56
                                                                                                            from £30.56
                                                                                                            # 019
                                                                                                            MPN: 10519424
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 10519401 - and 3 more. Click to view details
                                                                                                            # 020
                                                                                                            MPN: 156143
                                                                                                            PLUG
                                                                                                            from £8.40
                                                                                                            from £8.40
                                                                                                            This part replaces part number 150072
                                                                                                            # 021
                                                                                                            MPN: 10257460
                                                                                                            GASKET
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 94702
                                                                                                            # 022
                                                                                                            MPN: 141838
                                                                                                            RECOVERY PUMP COVER
                                                                                                            from £64.52
                                                                                                            from £64.52
                                                                                                            # 023
                                                                                                            MPN: 11197774
                                                                                                            WASHER
                                                                                                            from £0.53
                                                                                                            from £0.53
                                                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                            # 024
                                                                                                            MPN: 134041
                                                                                                            NUT
                                                                                                            from £0.57
                                                                                                            from £0.57
                                                                                                            This part replaces part number 15896221
                                                                                                            # 025
                                                                                                            MPN: 102725
                                                                                                            DOWEL
                                                                                                            from £0.65
                                                                                                            from £0.65
                                                                                                            # 026
                                                                                                            MPN: 13541124
                                                                                                            STUD
                                                                                                            from £12.40
                                                                                                            from £12.40
                                                                                                            This part replaces part number 13541121
                                                                                                            # 027
                                                                                                            MPN: 13540824
                                                                                                            STUD
                                                                                                            from £14.21
                                                                                                            from £14.21
                                                                                                            This part replaces part number 13540821
                                                                                                            # 028
                                                                                                            MPN: 102725
                                                                                                            DOWEL
                                                                                                            from £0.65
                                                                                                            from £0.65
                                                                                                            # 029
                                                                                                            MPN: 13541224
                                                                                                            STUD
                                                                                                            from £34.92
                                                                                                            from £34.92
                                                                                                            This part replaces part number 13541221
                                                                                                            # 030
                                                                                                            MPN: 13540924
                                                                                                            STUD
                                                                                                            from £0.70
                                                                                                            from £0.70
                                                                                                            This part replaces part number 13540921
                                                                                                            # 031
                                                                                                            MPN: 11193874
                                                                                                            WASHER
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 11193879 which we have in stock
                                                                                                            # 032
                                                                                                            MPN: 14306424
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 14306324 - and 2 more. Click to view details
                                                                                                            # 033
                                                                                                            MPN: 154516
                                                                                                            DRIVEN GEAR
                                                                                                            from £118.07
                                                                                                            from £118.07
                                                                                                            # 034
                                                                                                            MPN: 154517
                                                                                                            DRIVING GEAR
                                                                                                            from £118.07
                                                                                                            from £118.07
                                                                                                            # 035
                                                                                                            MPN: 109309
                                                                                                            COUPLING
                                                                                                            from £8.99
                                                                                                            from £8.99
                                                                                                            # 036
                                                                                                            MPN: 121306
                                                                                                            BALL
                                                                                                            from £1.83
                                                                                                            from £1.83
                                                                                                            # 037
                                                                                                            MPN: 109980
                                                                                                            SPRING FOR BALL
                                                                                                            from £9.35
                                                                                                            from £9.35
                                                                                                            # 038
                                                                                                            MPN: 132772
                                                                                                            SPACER
                                                                                                            Supersession
                                                                                                            Supersession
                                                                                                            # 039
                                                                                                            MPN: 11057876
                                                                                                            SEEGER RING
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 11057875
                                                                                                            # 040
                                                                                                            MPN: 154588
                                                                                                            O.R. GASKET
                                                                                                            from £2.87
                                                                                                            from £2.87
                                                                                                            # 042
                                                                                                            MPN: 14305224
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 043
                                                                                                            MPN: 157042
                                                                                                            SHAFT
                                                                                                            from £61.61
                                                                                                            from £61.61
                                                                                                            This part replaces part number 141386 - and 2 more. Click to view details
                                                                                                            # 044
                                                                                                            MPN: 140915
                                                                                                            BEARING
                                                                                                            from £13.60
                                                                                                            from £13.60
                                                                                                            # 045
                                                                                                            MPN: 140071
                                                                                                            GASKET
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 046
                                                                                                            MPN: 11197774
                                                                                                            WASHER
                                                                                                            from £0.54
                                                                                                            from £0.54
                                                                                                            This part replaces part number 11197770 - and 3 more. Click to view details
                                                                                                            # 047
                                                                                                            MPN: 157041
                                                                                                            DRIVEN GEAR
                                                                                                            - Not for 456M GTA
                                                                                                            from £62.32
                                                                                                            from £62.32
                                                                                                            # 047
                                                                                                            MPN: 163750
                                                                                                            DRIVEN GEAR
                                                                                                            - Valid for 456M GTA
                                                                                                            from £31.37
                                                                                                            from £31.37
                                                                                                            # 048
                                                                                                            MPN: 106744
                                                                                                            WASHER
                                                                                                            from £5.52
                                                                                                            from £5.52
                                                                                                            # 049
                                                                                                            MPN: 11066576
                                                                                                            SEEGER RING
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 050
                                                                                                            MPN: 11058876
                                                                                                            SEEGER RING
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 051
                                                                                                            MPN: 141459
                                                                                                            DRIVING GEAR
                                                                                                            - Valid for 456M GTA
                                                                                                            from £49.55
                                                                                                            from £49.55
                                                                                                            # 051
                                                                                                            MPN: 154513
                                                                                                            DRIVING GEAR
                                                                                                            - Not for 456M GTA
                                                                                                            from £76.70
                                                                                                            from £76.70
                                                                                                            # 052
                                                                                                            MPN: 154515
                                                                                                            OIL PUMP CONTROL CHAIN
                                                                                                            - Not for 456M GTA
                                                                                                            from £77.34
                                                                                                            from £77.34
                                                                                                            # 052
                                                                                                            MPN: 163753
                                                                                                            OIL PUMP CONTROL CHAIN
                                                                                                            - Valid for 456M GTA
                                                                                                            from £25.44
                                                                                                            from £25.44
                                                                                                            # 053
                                                                                                            MPN: 141525
                                                                                                            CHAIN TENSIONER
                                                                                                            - Valid for 456M GTA
                                                                                                            from £62.54
                                                                                                            from £62.54
                                                                                                            # 053
                                                                                                            MPN: 154484
                                                                                                            CHAIN TENSIONER
                                                                                                            - Not for 456M GTA
                                                                                                            from £86.13
                                                                                                            from £86.13
                                                                                                            # 054
                                                                                                            MPN: 14306424
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            This part replaces part number 14306324 - and 2 more. Click to view details
                                                                                                            # 056
                                                                                                            MPN: 152536
                                                                                                            FIXED TENSIONER
                                                                                                            - Valid for 456M GTA
                                                                                                            from £61.14
                                                                                                            from £61.14
                                                                                                            # 056
                                                                                                            MPN: 154483
                                                                                                            FIXED TENSIONER
                                                                                                            - Not for 456M GTA
                                                                                                            from £93.47
                                                                                                            from £93.47
                                                                                                            # 057
                                                                                                            MPN: 14305521
                                                                                                            SCREW
                                                                                                            from £0.47
                                                                                                            from £0.47
                                                                                                            # 059
                                                                                                            MPN: 11066376
                                                                                                            SEEGER RING
                                                                                                            from £0.51
                                                                                                            from £0.51
                                                                                                            This part replaces part number 11066366 - and 1 more. Click to view details
                                                                                                            # 060
                                                                                                            MPN: 168180
                                                                                                            WASHER
                                                                                                            - Valid for 456M GTA
                                                                                                            from £2.09
                                                                                                            from £2.09
