027 - Cooling System - Radiator and Nourice

Ferrari 456 M GT/M GTA Cooling System - Radiator and Nourice Parts Diagram

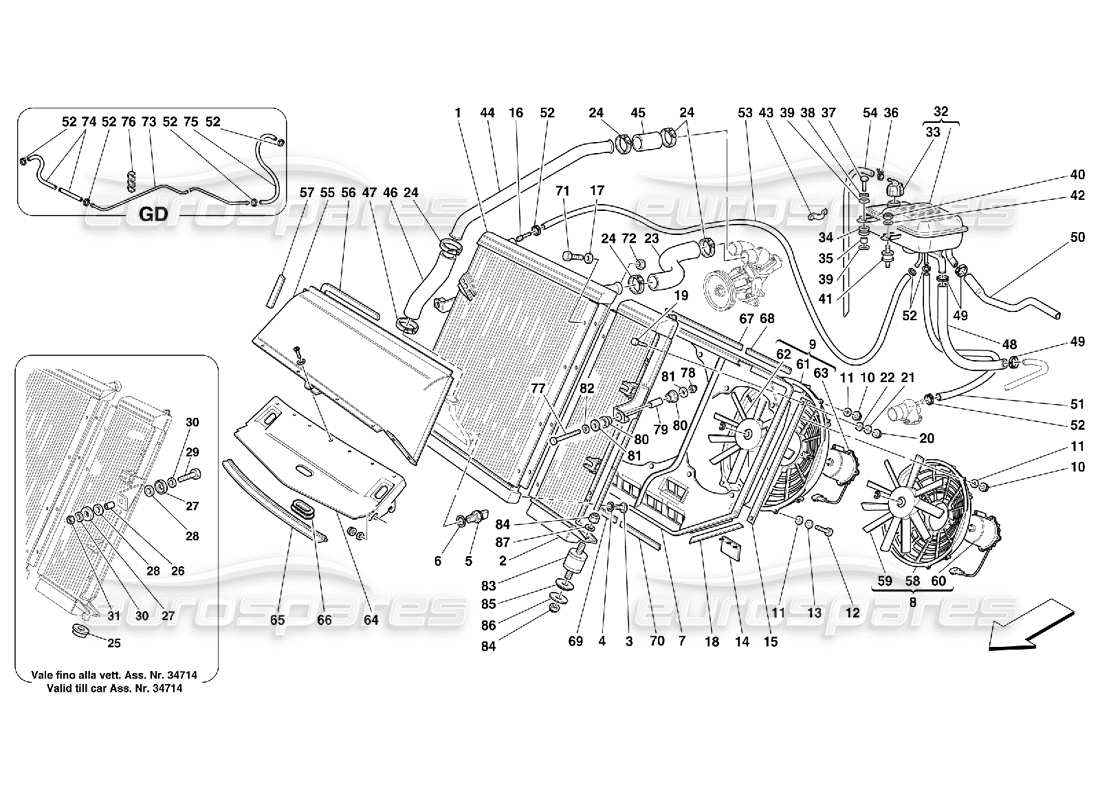

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                  #
                                                                                                                  Part number
                                                                                                                  Description
                                                                                                                  Price
                                                                                                                  # 001
                                                                                                                  MPN: 165599

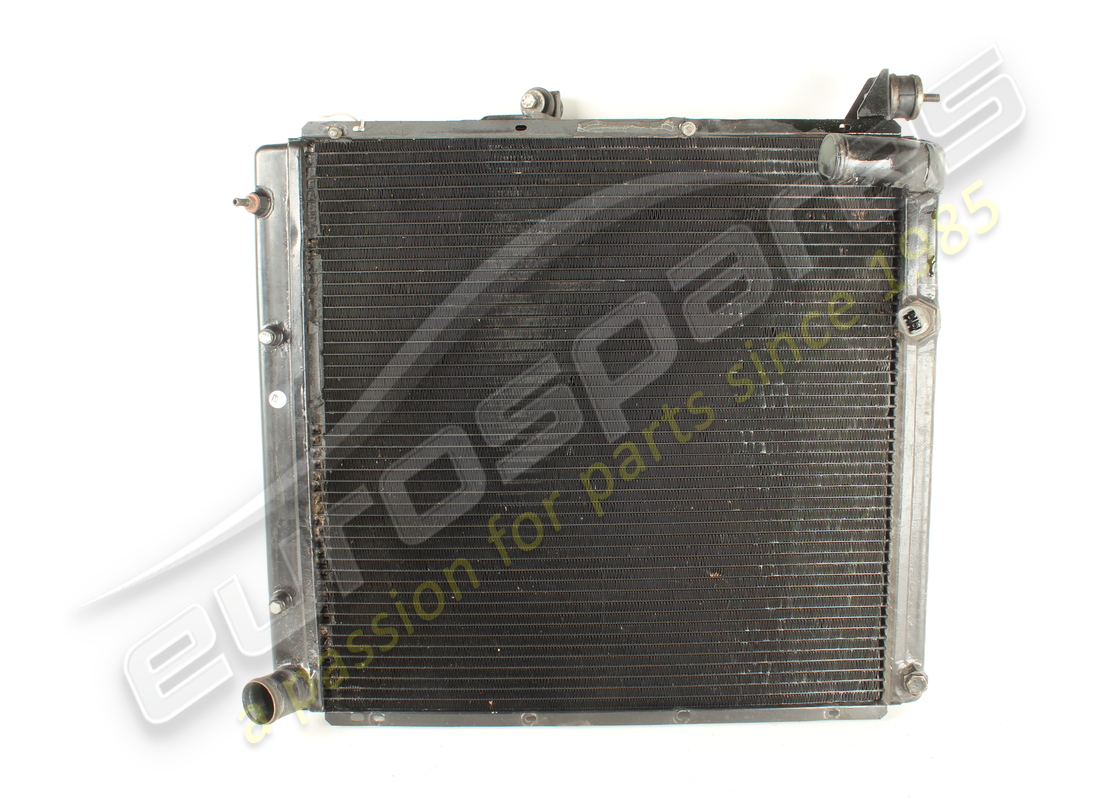

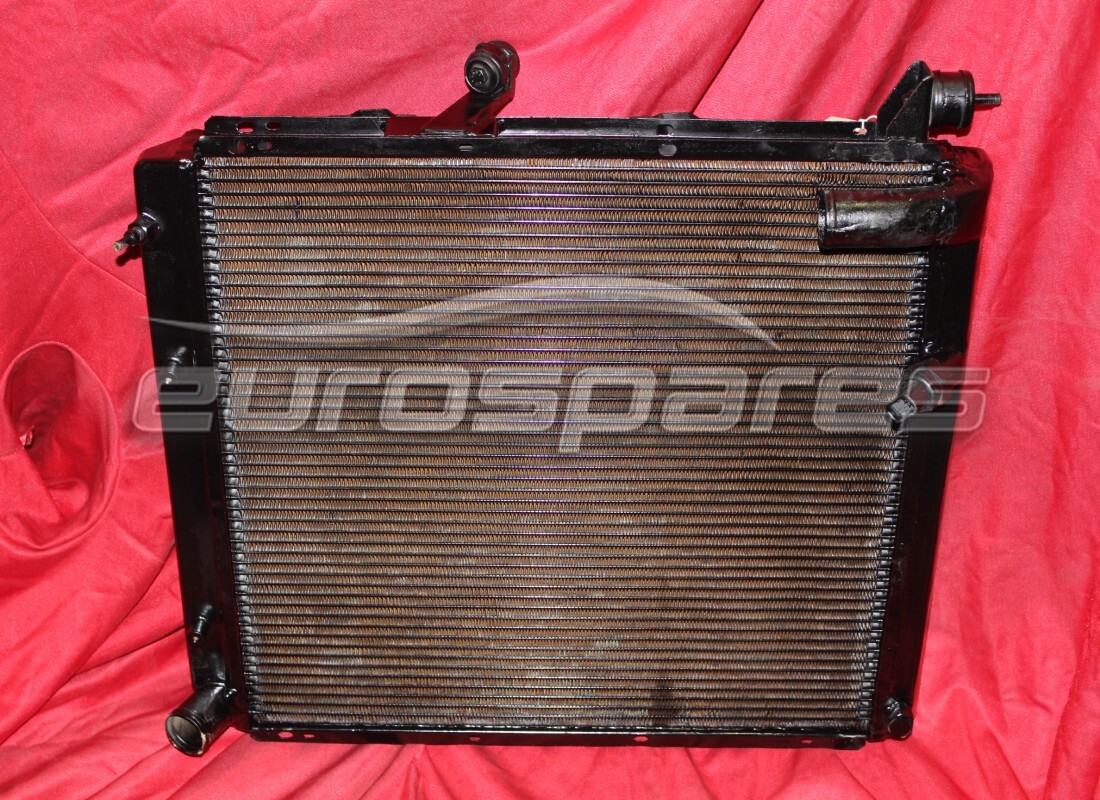

                                                                                                                  WATER RADIATOR
                                                                                                                  - Valid till car Ass. Nr. 34714
                                                                                                                  from £4,590.08
                                                                                                                  from £4,590.08
                                                                                                                  # 001
                                                                                                                  MPN: 180895
                                                                                                                  WATER RADIATOR
                                                                                                                  - Valid from car Ass. Nr. 34715
                                                                                                                  from £3,266.07
                                                                                                                  from £3,266.07
                                                                                                                  # 002
                                                                                                                  MPN: 164616

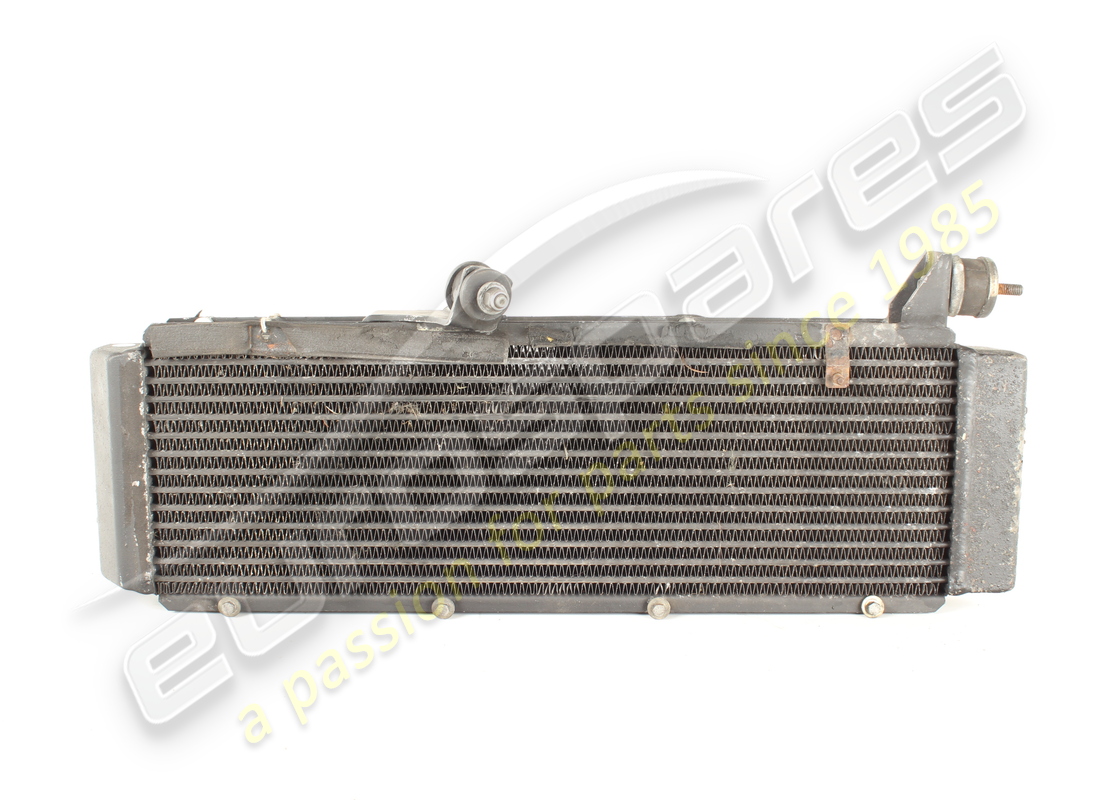

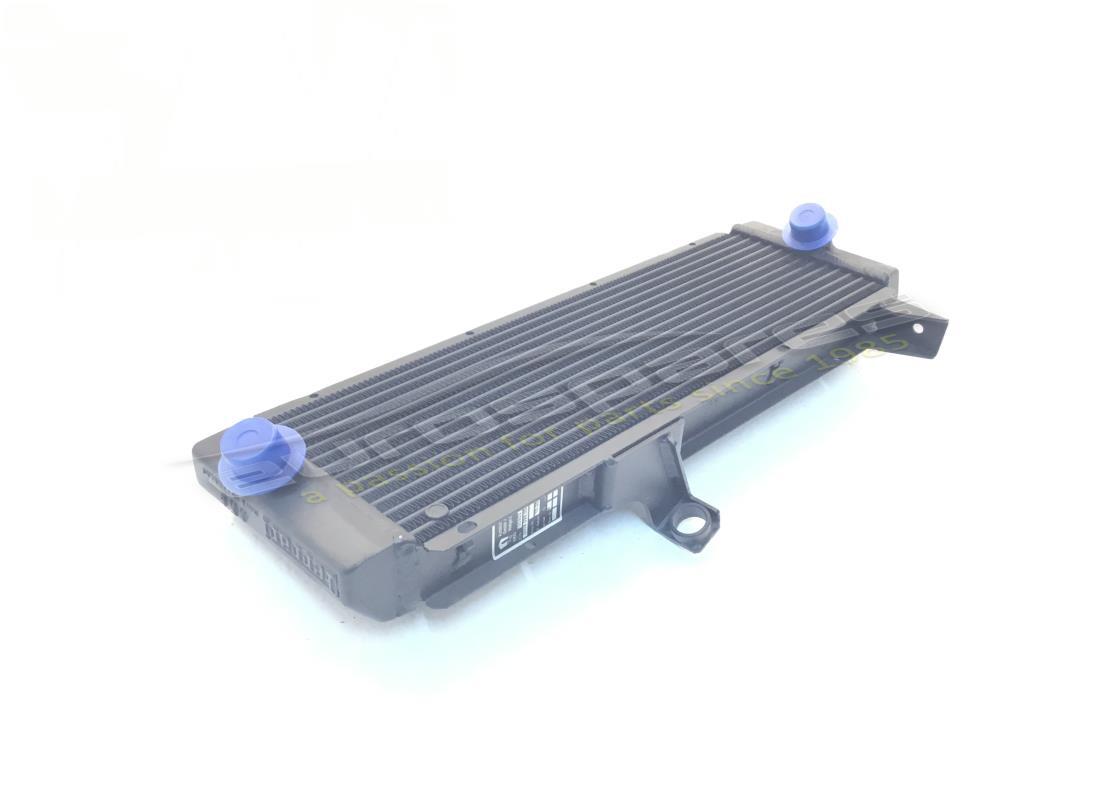

                                                                                                                  OIL RADIATOR
                                                                                                                  - Valid till car Ass. Nr. 34714
                                                                                                                  from £593.61
                                                                                                                  from £593.61
                                                                                                                  This part replaces part number 165390 - and 1 more. Click to view details
                                                                                                                  # 002
                                                                                                                  MPN: 180923
                                                                                                                  OIL RADIATOR
                                                                                                                  - Valid from car Ass. Nr. 34715
                                                                                                                  from £876.94
                                                                                                                  from £876.94
                                                                                                                  # 003
                                                                                                                  MPN: 170828
                                                                                                                  THREADED PLUG
                                                                                                                  from £29.69
                                                                                                                  from £29.69
                                                                                                                  # 004
                                                                                                                  MPN: 100317
                                                                                                                  O.R. GASKET
                                                                                                                  (minimum order quantity = 10)
                                                                                                                  from £0.61
                                                                                                                  from £0.61
                                                                                                                  # 005
                                                                                                                  MPN: 140314
                                                                                                                  TEMPERATURE SWITCH
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 006
                                                                                                                  MPN: 101508
                                                                                                                  GASKET
                                                                                                                  from £0.69
                                                                                                                  from £0.69
                                                                                                                  This part replaces part number 94706
                                                                                                                  # 007
                                                                                                                  MPN: 154533
                                                                                                                  HOOD FOR ELECTROFANS
                                                                                                                  from £122.59
                                                                                                                  from £122.59
                                                                                                                  # 008
                                                                                                                  MPN: 155063
                                                                                                                  LH COMPLETE ELECTROFAN
                                                                                                                  from £110.36
                                                                                                                  from £110.36
                                                                                                                  This part replaces part number 152922 - and 3 more. Click to view details
                                                                                                                  # 009
                                                                                                                  MPN: 155064
                                                                                                                  RH COMPLETE ELECTROFAN
                                                                                                                  from £70.23
                                                                                                                  from £70.23
                                                                                                                  # 010
                                                                                                                  MPN: 14058311
                                                                                                                  NUT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 011
                                                                                                                  MPN: 12637824
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 12637801 which we have in stock - and 1 more. Click to view details
                                                                                                                  # 012
                                                                                                                  MPN: 10977824
                                                                                                                  SCREW
                                                                                                                  from £1.03
                                                                                                                  from £1.03
                                                                                                                  This part replaces part number 10977814 - and 1 more. Click to view details
                                                                                                                  # 013
                                                                                                                  MPN: 10571470
                                                                                                                  WASHER
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  # 014
                                                                                                                  MPN: 155441
                                                                                                                  STRAP
                                                                                                                  from £1.16
                                                                                                                  from £1.16
                                                                                                                  # 015
                                                                                                                  MPN: 155487
                                                                                                                  LH VERTICAL GASKET
                                                                                                                  from £1.17
                                                                                                                  from £1.17
                                                                                                                  # 015
                                                                                                                  MPN: 155488
                                                                                                                  RH VERTICAL GASKET
                                                                                                                  from £1.39
                                                                                                                  from £1.39
                                                                                                                  # 016
                                                                                                                  MPN: 157160
                                                                                                                  UNION
                                                                                                                  from £6.57
                                                                                                                  from £6.57
                                                                                                                  # 017
                                                                                                                  MPN: 13577701
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 018
                                                                                                                  MPN: 155491
                                                                                                                  LH GASKET
                                                                                                                  from £1.04
                                                                                                                  from £1.04
                                                                                                                  # 018
                                                                                                                  MPN: 165482
                                                                                                                  RH GASKET
                                                                                                                  from £0.54
                                                                                                                  from £0.54
                                                                                                                  # 019
                                                                                                                  MPN: 155239
                                                                                                                  SCREW
                                                                                                                  from £5.68
                                                                                                                  from £5.68
                                                                                                                  # 020
                                                                                                                  MPN: 15896214
                                                                                                                  NUT
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  This part replaces part number 15896211
                                                                                                                  # 021
                                                                                                                  MPN: 127494
                                                                                                                  WASHER
                                                                                                                  (minimum order quantity = 20)
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                  # 022
                                                                                                                  MPN: 14496424
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  This part replaces part number 14496401 - and 3 more. Click to view details
                                                                                                                  # 023
                                                                                                                  MPN: 179037
                                                                                                                  DELIVERY WATER RUBBER PIPE
                                                                                                                  from £68.51
                                                                                                                  from £68.51
                                                                                                                  This part replaces part number 155604 - and 5 more. Click to view details
                                                                                                                  # 024
                                                                                                                  MPN: 13000690
                                                                                                                  SCREW COLLAR
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 12174090 - and 2 more. Click to view details
                                                                                                                  # 025
                                                                                                                  MPN: 138926
                                                                                                                  RUBBER FOR PIN
                                                                                                                  - Valid till car Ass. Nr. 34714
                                                                                                                  from £2.32
                                                                                                                  from £2.32
                                                                                                                  # 026
                                                                                                                  MPN: 155395
                                                                                                                  SPACER
                                                                                                                  - Valid till car Ass. Nr. 34714
                                                                                                                  from £0.64
                                                                                                                  from £0.64
                                                                                                                  # 027
                                                                                                                  MPN: 107979
                                                                                                                  CUP
                                                                                                                  from £1.07
                                                                                                                  from £1.07
                                                                                                                  # 028
                                                                                                                  MPN: 107978
                                                                                                                  PAD
                                                                                                                  from £1.07
                                                                                                                  from £1.07
                                                                                                                  # 029
                                                                                                                  MPN: 16044034
                                                                                                                  SCREW
                                                                                                                  - Valid till car Ass. Nr. 34714
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 030
                                                                                                                  MPN: 116413
                                                                                                                  WASHER
                                                                                                                  - Valid till car Ass. Nr. 34714
                                                                                                                  from £0.54
                                                                                                                  from £0.54
                                                                                                                  # 031
                                                                                                                  MPN: 14058511
                                                                                                                  NUT
                                                                                                                  - Valid till car Ass. Nr. 34714
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 032
                                                                                                                  MPN: 171327
                                                                                                                  COMPLETE WATER CANISTER
                                                                                                                  - Valid for GD
                                                                                                                  from £324.80
                                                                                                                  from £324.80
                                                                                                                  # 032
                                                                                                                  MPN: 171974
                                                                                                                  COMPLETE WATER CANISTER
                                                                                                                  - Not for GD
                                                                                                                  from £377.30
                                                                                                                  from £377.30
                                                                                                                  # 034
                                                                                                                  MPN: 103549
                                                                                                                  RUBBER BUSH
                                                                                                                  from £0.68
                                                                                                                  from £0.68
                                                                                                                  # 035
                                                                                                                  MPN: 149707
                                                                                                                  SPACER
                                                                                                                  from £0.65
                                                                                                                  from £0.65
                                                                                                                  # 036
                                                                                                                  MPN: 13423171
                                                                                                                  ELASTIC COLLAR
                                                                                                                  from £0.71
                                                                                                                  from £0.71
                                                                                                                  # 037
                                                                                                                  MPN: 10902624
                                                                                                                  SCREW
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 10902621
                                                                                                                  # 038
                                                                                                                  MPN: 127494
                                                                                                                  WASHER
                                                                                                                  (minimum order quantity = 20)
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                  # 039
                                                                                                                  MPN: 12643724
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                  # 040
                                                                                                                  MPN: 102948
                                                                                                                  NUT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                                                  # 041
                                                                                                                  MPN: 102947
                                                                                                                  PAD
                                                                                                                  from £6.17
                                                                                                                  from £6.17
                                                                                                                  This part replaces part number 102007 - and 14 more. Click to view details
                                                                                                                  # 042
                                                                                                                  MPN: 12643724
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                  # 043
                                                                                                                  MPN: 156083
                                                                                                                  FIXING CLIP
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 044
                                                                                                                  MPN: 155605
                                                                                                                  WATER RETURN PIPE
                                                                                                                  from £29.50
                                                                                                                  from £29.50
                                                                                                                  # 045
                                                                                                                  MPN: 178722
                                                                                                                  SLEEVE
                                                                                                                  from £34.66
                                                                                                                  from £34.66
                                                                                                                  This part replaces part number 155607
                                                                                                                  # 045
                                                                                                                  MPN: 178722
                                                                                                                  SLEEVE
                                                                                                                  - Valid after stock exhaustion of 155607
                                                                                                                  from £34.66
                                                                                                                  from £34.66
                                                                                                                  This part replaces part number 155607
                                                                                                                  # 046
                                                                                                                  MPN: 175643
                                                                                                                  WATER RETURN RUBBER PIPE
                                                                                                                  from £55.81
                                                                                                                  from £55.81
                                                                                                                  This part replaces part number 155606 - and 1 more. Click to view details
                                                                                                                  # 046
                                                                                                                  MPN: 175643
                                                                                                                  WATER RETURN RUBBER PIPE
                                                                                                                  - Valid after stock exhaustion of 155606
                                                                                                                  from £55.81
                                                                                                                  from £55.81
                                                                                                                  This part replaces part number 155606 - and 1 more. Click to view details
                                                                                                                  # 047
                                                                                                                  MPN: 13000690
                                                                                                                  SCREW COLLAR
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 12174090 - and 2 more. Click to view details
                                                                                                                  # 048
                                                                                                                  MPN: 155616
                                                                                                                  RUBBER PIPE FROM EXPANSION TANK TO ENGINE
                                                                                                                  from £70.35
                                                                                                                  from £70.35
                                                                                                                  # 049
                                                                                                                  MPN: 13000490
                                                                                                                  SCREW COLLAR
                                                                                                                  from £0.52
                                                                                                                  from £0.52
                                                                                                                  This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                                                  # 050
                                                                                                                  MPN: 65618300
                                                                                                                  RETURN TUBE FROM VALVE TO NOURICE
                                                                                                                  - Valid for GD
                                                                                                                  from £95.86
                                                                                                                  from £95.86
                                                                                                                  # 050
                                                                                                                  MPN: 65674500
                                                                                                                  RETURN TUBE FROM VALVE TO NOURICE
                                                                                                                  - Not for GD
                                                                                                                  from £55.37
                                                                                                                  from £55.37
                                                                                                                  # 051
                                                                                                                  MPN: 180741
                                                                                                                  VENT PIPE FROM HEADS TO EXPANSION TANK
                                                                                                                  - Valid for GD
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 051
                                                                                                                  MPN: 207763
                                                                                                                  VENT PIPE FROM HEADS TO EXPANSION TANK
                                                                                                                  - Not for GD
                                                                                                                  from £60.10
                                                                                                                  from £60.10
                                                                                                                  # 052
                                                                                                                  MPN: 13000190
                                                                                                                  SCREW COLLAR
                                                                                                                  - For GD q.ty 6
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  This part replaces part number 12178990 - and 1 more. Click to view details
                                                                                                                  # 053
                                                                                                                  MPN: 155619
                                                                                                                  VENT PIPE FROM RADIATOR TO EXPANSION TANK
                                                                                                                  - Not for GD
                                                                                                                  from £18.67
                                                                                                                  from £18.67
                                                                                                                  # 054
                                                                                                                  MPN: 156082
                                                                                                                  VENT PIPE
                                                                                                                  from £96.62
                                                                                                                  from £96.62
                                                                                                                  # 055
                                                                                                                  MPN: 63132400
                                                                                                                  AIR CONVEYOR
                                                                                                                  from £597.21
                                                                                                                  from £597.21
                                                                                                                  # 056
                                                                                                                  MPN: 65570400
                                                                                                                  GASKET
                                                                                                                  from £0.86
                                                                                                                  from £0.86
                                                                                                                  # 057
                                                                                                                  MPN: 62799900
                                                                                                                  GASKET
                                                                                                                  from £3.63
                                                                                                                  from £3.63
                                                                                                                  # 058
                                                                                                                  MPN: 152912
                                                                                                                  LH AIR INLET
                                                                                                                  from £29.15
                                                                                                                  from £29.15
                                                                                                                  # 059
                                                                                                                  MPN: 152922
                                                                                                                  BLOWER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 061
                                                                                                                  MPN: 152920
                                                                                                                  RH AIR INLET
                                                                                                                  from £29.15
                                                                                                                  from £29.15
                                                                                                                  This part replaces part number 164095
                                                                                                                  # 062
                                                                                                                  MPN: 153045
                                                                                                                  BLOWER
                                                                                                                  from £11.18
                                                                                                                  from £11.18
                                                                                                                  # 063
                                                                                                                  MPN: 153174
                                                                                                                  MOTOR
                                                                                                                  from £173.19
                                                                                                                  from £173.19
                                                                                                                  This part replaces part number 153173 - and 1 more. Click to view details

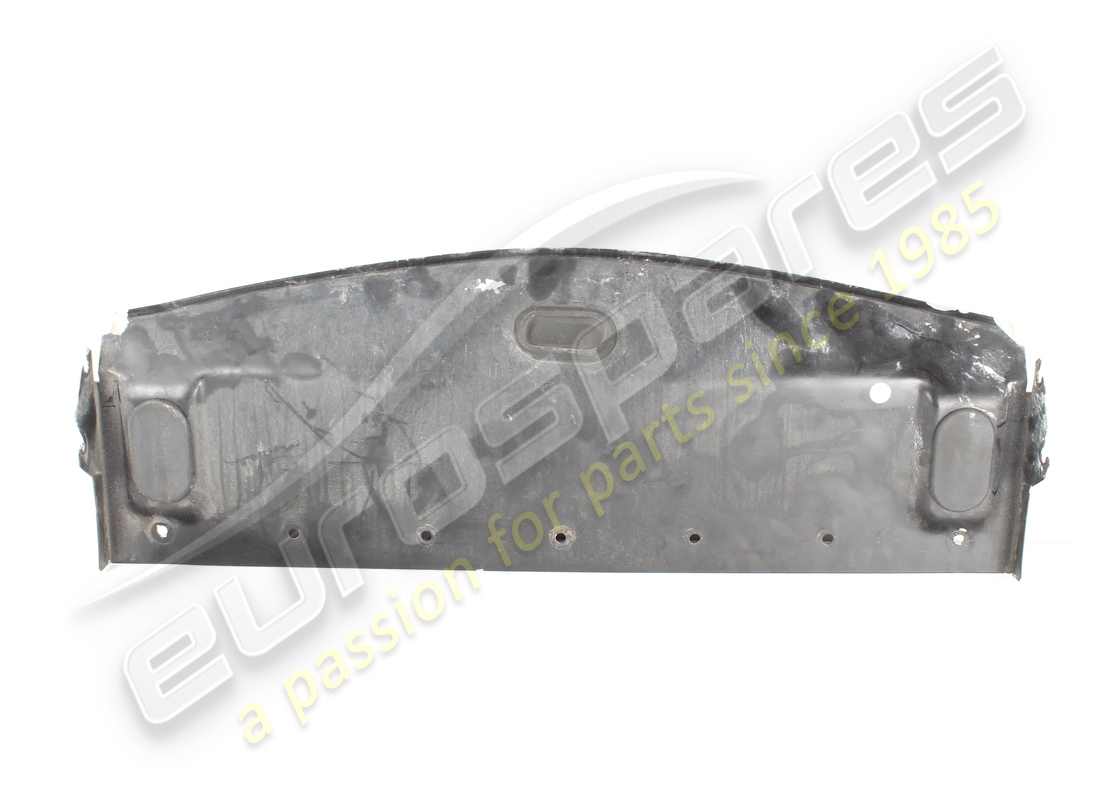

                                                                                                                  # 064
                                                                                                                  MPN: 65467300
                                                                                                                  CONVEYOR UPPER PANEL
                                                                                                                  from £240.60
                                                                                                                  from £240.60
                                                                                                                  # 065
                                                                                                                  MPN: 65248500
                                                                                                                  FRONT GASKET
                                                                                                                  from £17.12
                                                                                                                  from £17.12
                                                                                                                  # 066
                                                                                                                  MPN: 62797700
                                                                                                                  PLUG
                                                                                                                  from £1.88
                                                                                                                  from £1.88
                                                                                                                  # 067
                                                                                                                  MPN: 165480
                                                                                                                  RH UPPER GASKET
                                                                                                                  from £0.58
                                                                                                                  from £0.58
                                                                                                                  # 068
                                                                                                                  MPN: 165476
                                                                                                                  LH UPPER GASKET
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 069
                                                                                                                  MPN: 165481
                                                                                                                  RH LOWER GASKET
                                                                                                                  from £0.87
                                                                                                                  from £0.87
                                                                                                                  # 070
                                                                                                                  MPN: 165479
                                                                                                                  LH LOWER GASKET
                                                                                                                  from £0.71
                                                                                                                  from £0.71
                                                                                                                  # 071
                                                                                                                  MPN: 15201024
                                                                                                                  SCREW
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 072
                                                                                                                  MPN: 14058311
                                                                                                                  NUT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 073
                                                                                                                  MPN: 179225
                                                                                                                  RIGID PIPE FROM RADIATOR TO NOURICE
                                                                                                                  - Valid for GD
                                                                                                                  from £39.70
                                                                                                                  from £39.70
                                                                                                                  # 074
                                                                                                                  MPN: 155639
                                                                                                                  RUBBER HOSE
                                                                                                                  - Valid for GD
                                                                                                                  from £2.95
                                                                                                                  from £2.95
                                                                                                                  # 075
                                                                                                                  MPN: 176090
                                                                                                                  RUBBER HOSE
                                                                                                                  - Valid for GD
                                                                                                                  from £17.83
                                                                                                                  from £17.83
                                                                                                                  # 076
                                                                                                                  MPN: 141546
                                                                                                                  FLEXIBLE CLIP
                                                                                                                  - Valid for GD
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 077
                                                                                                                  MPN: 16044224
                                                                                                                  SCREW
                                                                                                                  - Valid from car Ass. Nr. 34715
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 16044221 which we have in stock
                                                                                                                  # 078
                                                                                                                  MPN: 104030
                                                                                                                  NUT
                                                                                                                  - Valid from car Ass. Nr. 34715
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 16104125
                                                                                                                  # 079
                                                                                                                  MPN: 9180853
                                                                                                                  SPACER
                                                                                                                  from £3.91
                                                                                                                  from £3.91
                                                                                                                  # 080
                                                                                                                  MPN: 180852
                                                                                                                  PAD
                                                                                                                  - Valid from car Ass. Nr. 34715
                                                                                                                  from £3.70
                                                                                                                  from £3.70
                                                                                                                  # 081
                                                                                                                  MPN: 116413
                                                                                                                  WASHER
                                                                                                                  - Valid from car Ass. Nr. 34715
                                                                                                                  from £0.54
                                                                                                                  from £0.54
                                                                                                                  # 082
                                                                                                                  MPN: 12646724
                                                                                                                  WASHER
                                                                                                                  - Valid from car Ass. Nr. 34715
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
                                                                                                                  # 083
                                                                                                                  MPN: 157650
                                                                                                                  PAD
                                                                                                                  - Valid from car Ass. Nr. 34715
                                                                                                                  from £4.38
                                                                                                                  from £4.38
                                                                                                                  # 084
                                                                                                                  MPN: 104030
                                                                                                                  NUT
                                                                                                                  - Valid from car Ass. Nr. 34715
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 16104125
                                                                                                                  # 085
                                                                                                                  MPN: 182734
                                                                                                                  WASHER
                                                                                                                  - Valid from car Ass. Nr. 34715
                                                                                                                  from £1.52
                                                                                                                  from £1.52
                                                                                                                  # 086
                                                                                                                  MPN: 180894
                                                                                                                  WASHER
                                                                                                                  - Valid from car Ass. Nr. 34715
                                                                                                                  from £0.93
                                                                                                                  from £0.93
                                                                                                                  # 087
                                                                                                                  MPN: 12646724
                                                                                                                  WASHER
                                                                                                                  - Valid from car Ass. Nr. 34715
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 12601571 which we have in stock - and 2 more. Click to view details
