028 - WATER PUMP

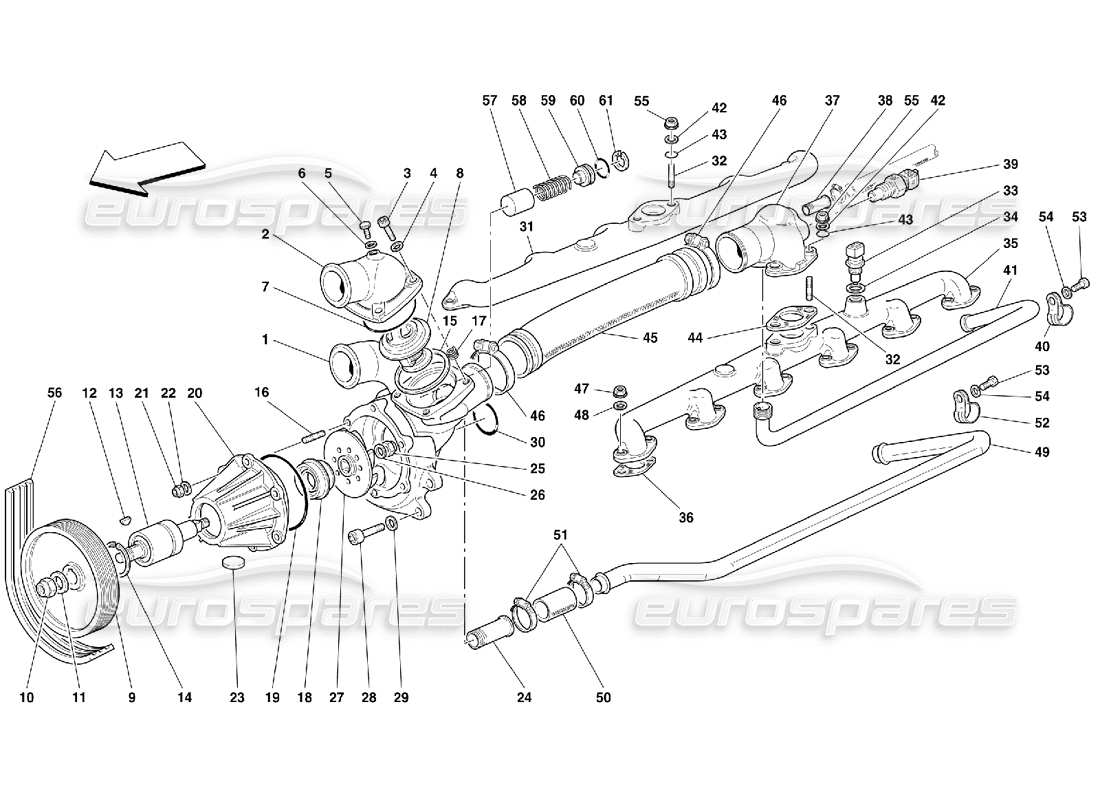

Ferrari 456 M GT/M GTA Water Pump Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 163875/A
WATER PUMP ASSY 456 M GTA (UP TO ENGINE N.54331)
Supersession
Supersession
# 000
MPN: 163875/A
WATER PUMP ASSY 456 M GT (UP TO ENGINE N.53762)
Supersession
Supersession
# 000
MPN: 181841/A
WATER PUMP ASSY 456 M GT (FROM ENGINE N.53763)
Supersession
Supersession
This part replaces part number 183760
# 000
MPN: 181841/A
WATER PUMP ASSY 456 M GTA (from engine n.54332)
Supersession
Supersession
This part replaces part number 183760
# 000
MPN: 183760
COMPLETE WATER PUMP
(thermostat housing included) - Not for 456M GTA
Supersession
Supersession
This part replaces part number 166497 - and 1 more. Click to view details
# 000
MPN: 184038
COMPLETE WATER PUMP
- Valid for 456M GTA - Valid till engine Nr. 54331
from £1,271.52
from £1,271.52
This part replaces part number 177925
# 001
MPN: 153199
WATER PUMP BODY COMPLETED WITH STUDS
- Valid till engine Nr. 53762 for GT and till engine Nr. 54331 for GTA
from £595.00
from £595.00
This part replaces part number 156081 - and 5 more. Click to view details
# 001
MPN: 156081
WATER PUMP BODY
- Not as spare part - With complete pump body - Valid till engine Nr. 53762 for GT and till engine Nr. 54331 for GTA
Supersession
Supersession
# 001
MPN: 174668
WATER PUMP BODY
- Not as spare part - With complete pump body - Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
Supersession
Supersession
# 001
MPN: 182693
WATER PUMP BODY COMPLETED WITH STUDS
- Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
# 002
MPN: 163952
THERMOSTATIC VALVE COVER
from £76.43
from £76.43
This part replaces part number 157565 which we have in stock
# 003
MPN: 14432224
SCREW
- Not for 456M GTA - Valid till engine Nr. 53762
from £0.51
from £0.51
This part replaces part number 14432221
# 003
MPN: 14432224
SCREW
- Valid for 456M GTA
from £0.51
from £0.51
This part replaces part number 14432221
# 003
MPN: 14433124
SCREW
- Not for 456M GTA - Valid from engine Nr. 53763
from £0.51
from £0.51
This part replaces part number 14433121
# 004
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 005
MPN: 130282
UNION
Supersession
Supersession
# 006
MPN: 10297760
GASKET
from £0.53
from £0.53
# 007
MPN: 149279
O.R. GASKET
from £2.49
from £2.49
# 008
MPN: 183758
THERMOSTAT
from £49.94
from £49.94
This part replaces part number 167473
# 008
MPN: 183758
THERMOSTAT
from £49.94
from £49.94
This part replaces part number 167473
# 009
MPN: 166454
PULLEY
- Not for 456M GTA
Supersession
Supersession
# 009
MPN: 169924
PULLEY 93 MM
- Valid for 456M GTA
from £135.50
from £135.50
# 010
MPN: 102742
NUT
from £0.54
from £0.54
This part replaces part number 12557621 - and 2 more. Click to view details
# 011
MPN: 12646824
WASHER
from £0.53
from £0.53
# 012
MPN: 10202320
DISC KEY
from £0.67
from £0.67
# 013
MPN: 143742
BEARING WITH SHAFT
from £141.30
from £141.30
# 014
MPN: 11059976
SEEGER RING
from £0.63
from £0.63
This part replaces part number 11059975 which we have in stock
# 015
MPN: 137873
GASKET
from £2.95
from £2.95
# 016
MPN: 13540924
STUD
from £0.69
from £0.69
This part replaces part number 13540921
# 017
MPN: 13525470
THREADED INSERT
from £0.48
from £0.48
This part replaces part number 107333
# 018
MPN: 183759
SEAL RING
from £22.77
from £22.77
This part replaces part number 130932 - and 1 more. Click to view details
# 019
MPN: 137868
O.R. GASKET
from £8.06
from £8.06
# 020
MPN: 176173
WATER PUMP COVER
use part number: 163875/A (till ass. 53762) or 176173/A (from ass. 53763) for complete pump (change pulley)
from £265.75
from £265.75
This part replaces part number 154546
# 021
MPN: 102741
NUT
from £0.50
from £0.50
This part replaces part number 12575411 - and 1 more. Click to view details
# 022
MPN: 12601274
WASHER PLUG
from £0.52
from £0.52
This part replaces part number 12601221 - and 5 more. Click to view details
# 023
MPN: 10158801
PLUG
from £0.81
from £0.81
This part replaces part number 10158800
# 024
MPN: 141068
UNION
from £121.62
from £121.62
# 025
MPN: 100436
CAP NUT
from £7.64
from £7.64
This part replaces part number 92896
# 026
MPN: 11194074
WASHER
from £0.47
from £0.47
This part replaces part number 11194071 - and 2 more. Click to view details
# 027
MPN: 154542
WATER PUMP IMPELLER
- Valid till engine Nr. 53762 for GT and till engine Nr. 54331 for GTA
from £68.84
from £68.84
# 027
MPN: 176045
WATER PUMP IMPELLER
- Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
from £82.36
from £82.36
# 028
MPN: 14306424
SCREW
from £0.51
from £0.51
This part replaces part number 14306324 - and 2 more. Click to view details
# 029
MPN: 11193874
WASHER
from £0.53
from £0.53
This part replaces part number 11193879 which we have in stock
# 030
MPN: 141250
O.R. GASKET
from £0.54
from £0.54
This part replaces part number 227203
# 031
MPN: 162609
RH HEAD WATER MANIFOLD
from £180.27
from £180.27
# 032
MPN: 13516724
STUD
from £1.62
from £1.62
# 033
MPN: 125769
WATER TEMPERATURE SENSOR
from £18.58
from £18.58
# 034
MPN: 10298460
GASKET
from £0.47
from £0.47
This part replaces part number 93353
# 035
MPN: 142088
LH HEAD WATER MANIFOLD
from £210.29
from £210.29
# 035
MPN: 143323
LH HEAD WATER MANIFOLD
- Not as spare part now - Replaced by 142088
from £194.11
from £194.11
# 036
MPN: 141332
GASKET WATER OUTLET MANIFOLD
(minimum order quantity = 8)
from £0.83
from £0.83
# 037
MPN: 154198
CONNECTION DUCT
from £185.34
from £185.34
# 038
MPN: 155093
UNION
from £7.46
from £7.46
# 039
MPN: 148677
WATER TEMPERATURE TRASMITTER
from £354.30
from £354.30
# 040
MPN: 145661
BRACKET
from £4.67
from £4.67
# 041
MPN: 160554
PIPE FROM DUCT
- Not for GD
from £42.12
from £42.12
This part replaces part number 154200
# 041
MPN: 160831
PIPE FROM DUCT
- Valid for GD
from £47.37
from £47.37
# 042
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 043
MPN: 103039
O.R. GASKET
(minimum order quantity = 10)
from £1.62
from £1.62
This part replaces part number 95860041
# 044
MPN: 142103
GASKET
from £1.97
from £1.97
# 045
MPN: 181599
CONNECTION SLEEVE BETWEEN MANIFOLD AND WATER PUMP
from £186.27
from £186.27
This part replaces part number 154480
# 045
MPN: 181599
CONNECTION SLEEVE BETWEEN MANIFOLD AND WATER PUMP
- Valid after stock exhaustion of 154480
from £186.27
from £186.27
This part replaces part number 154480
# 046
MPN: 134109
SCREW COLLAR
from £2.88
from £2.88
This part replaces part number 178203 - and 1 more. Click to view details
# 046
MPN: 178203
SCREW COLLAR
- Not as spare part now - Replaced by 134109
Supersession
Supersession
# 047
MPN: 132877
NUT
from £1.62
from £1.62
This part replaces part number 67190100
# 048
MPN: 12604274
WASHER
from £0.51
from £0.51
This part replaces part number 12604271 - and 1 more. Click to view details
# 049
MPN: 154716
PIPE CONNECTING WATER PUMP AND NUORICE
- Not for GD
from £263.33
from £263.33
# 049
MPN: 160833
PIPE CONNECTING WATER PUMP AND NUORICE
- Valid for GD
from £19.85
from £19.85
# 050
MPN: 175223
SLEEVE
from £4.93
from £4.93
This part replaces part number 122842
# 050
MPN: 175223
RUBBER PIPE
from £4.93
from £4.93
This part replaces part number 122842
# 051
MPN: 13000490
SCREW COLLAR
from £0.53
from £0.53
This part replaces part number 10169090 - and 3 more. Click to view details
# 052
MPN: 10450490
BRACKET WITH SHEATH - D. 16
from £0.54
from £0.54
# 052
MPN: 10450690
BRACKET WITH SHEATH - D. 20
from £0.53
from £0.53
# 053
MPN: 16043224
SCREW
from £0.53
from £0.53
# 054
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 055
MPN: 101139
NUT
from £0.53
from £0.53
This part replaces part number 16104425
# 056
MPN: 169926
WATER AND HYDR. STEERING PUMP BELT
- Valid for 456M GTA - Valid till car Ass. Nr. 31523
Supersession
Supersession
# 056
MPN: 171094
WATER AND HYDR. STEERING PUMP BELT
- Valid for 456M GTA - Valid from car Ass. Nr. 31524 - PASS - Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
Supersession
Supersession
This part replaces part number 169926
# 056
MPN: 199834
Water & Power Steering Belt
Use on Exhaustion of 171093
from £15.37
from £15.37
This part replaces part number 171093
# 056
MPN: 199834
WATER AND HYDR. STEERING PUMP BELT
- Not for 456M GTA - Valid till car Ass. Nr. 31662
from £15.37
from £15.37
This part replaces part number 171093
# 056
MPN: 199834
WATER AND HYDR. STEERING PUMP BELT
- Not for 456M GTA - Valid from car Ass. Nr. 31663
from £15.37
from £15.37
This part replaces part number 171093
# 056
MPN: 199836
Water & Power Steering Belt
Use on Exhaustion of 171094
from £15.48
from £15.48
This part replaces part number 171094
# 057
MPN: 176046
BUSHING FOR BY-PASS
- Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
from £16.85
from £16.85
# 058
MPN: 176047
SPRING FOR BY-PASS
- Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
from £12.03
from £12.03
# 059
MPN: 176048
PLUG FOR BY-PASS SPRING
- Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
from £8.63
from £8.63
# 060
MPN: 147278
O.R. GASKET
- Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
from £0.98
from £0.98
# 061
MPN: 11058376
SEEGER RING
- Valid from engine Nr. 53763 for GT and from engine Nr. 54332 for GTA
from £1.50
from £1.50
