029 - Clutch - Controls -Not for 456M GTA

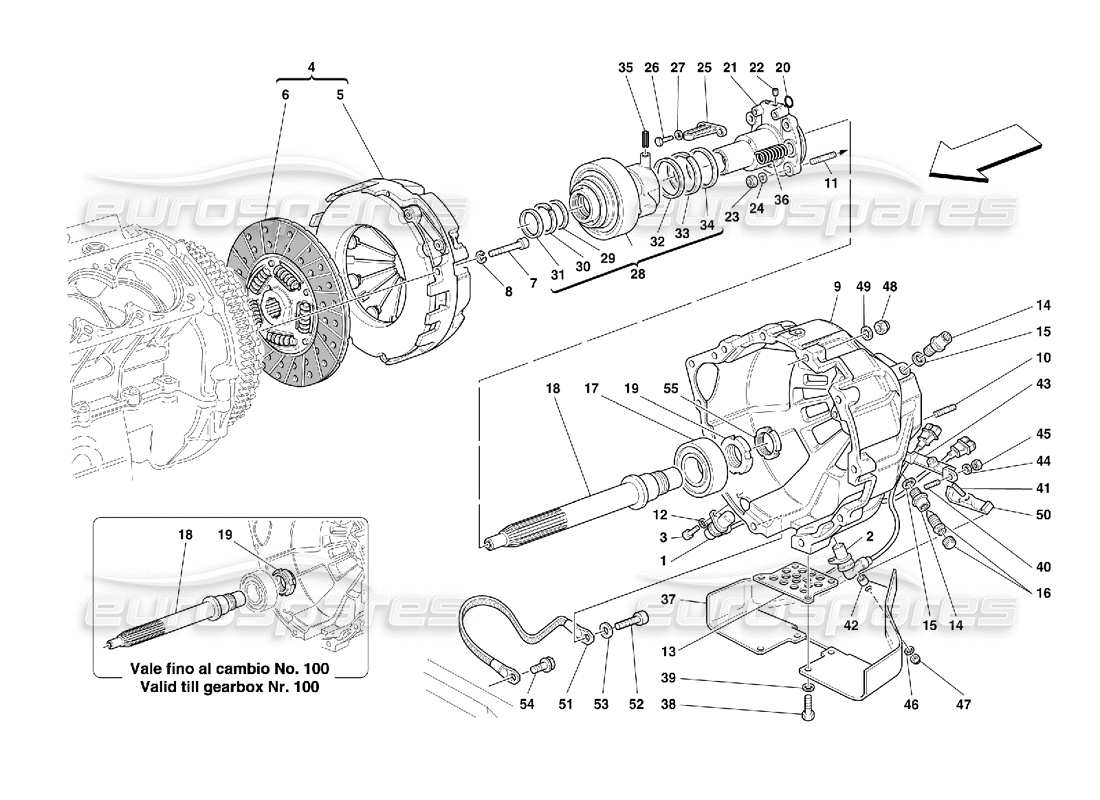

Ferrari 456 M GT/M GTA Clutch - Controls -Not for 456M GTA Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 153201
COMPLETE CLUTCH HOUSING
from £1,401.47
from £1,401.47
This part replaces part number 151317 - and 1 more. Click to view details
# 001

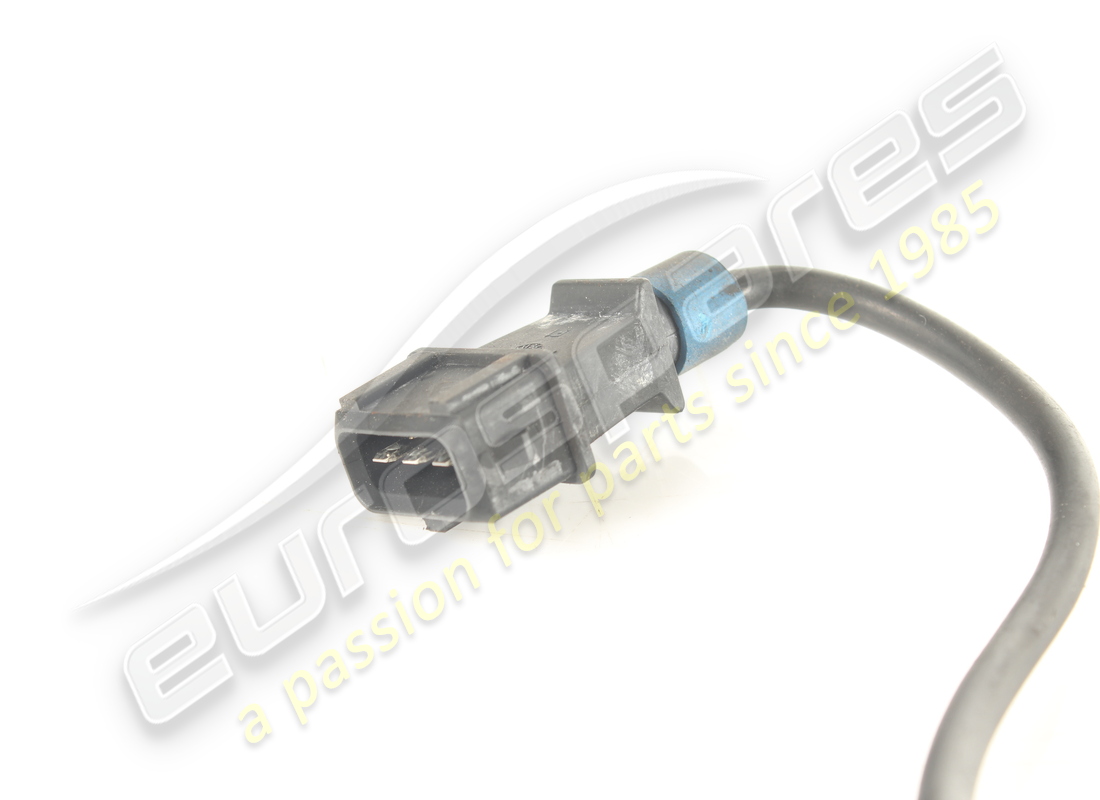

MPN: 164082
RH SIDE ANGOLAR SPEED SENSOR
from £109.43
from £109.43
This part replaces part number 152262
# 002

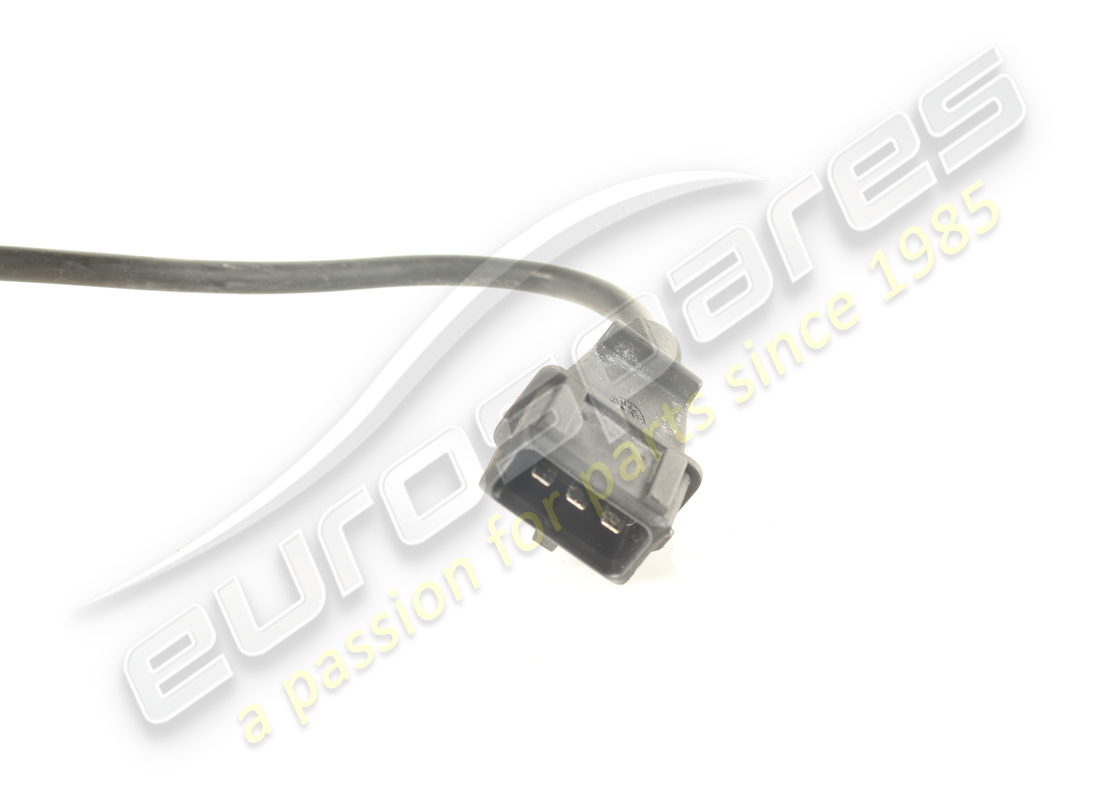

MPN: 164083
LH SIDE ANGOLAR SPEED SENSOR
from £152.19
from £152.19
This part replaces part number 158729
# 003
MPN: 14305124
SCREW
from £0.53
from £0.53
This part replaces part number 14305121
# 004
MPN: 194775
COMPLETE CLUTCH
from £1,567.58
from £1,567.58
This part replaces part number 153724 - and 1 more. Click to view details
# 005
MPN: 157030
PRESSURE PLATE
- Not as spare part - With complete clutch 194775
Supersession
Supersession
# 006
MPN: 138961
CLUTCH DISC
Supersession
Supersession
# 006
MPN: 194776
CLUTCH DISC
from £659.56
from £659.56
This part replaces part number 153721
# 007
MPN: 14305934
SCREW
from £0.78
from £0.78
This part replaces part number 14305931
# 008
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.51
from £0.51
This part replaces part number 10516470 - and 4 more. Click to view details
# 009
MPN: 151317
CLUTCH HOUSING
- Not as spare part - With complete clutch housing
Supersession
Supersession
# 010
MPN: 13546334
STUD
from £0.60
from £0.60
This part replaces part number 13546331
# 011
MPN: 13543124
STUD
from £3.66
from £3.66
This part replaces part number 13543121
# 012
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 013
MPN: 144441
CLUTCH HOUSING COVER
from £0.99
from £0.99
# 014
MPN: 126496
UNION
Supersession
Supersession
This part replaces part number 121700
# 015
MPN: 10257060
GASKET
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 016
MPN: 121699
BLEEDER SCREW
from £11.66
from £11.66
# 017
MPN: 145805
BEARING
- Valid till stock exhaustion
from £73.60
from £73.60
This part replaces part number 125934
# 017
MPN: 174470
BEARING
- Valid after stock exhaustion of 145805
from £29.78
from £29.78
This part replaces part number 174469
# 018
MPN: 154601
CLUTCH SHAFT
- Valid till gearbox Nr. 100
from £671.61
from £671.61
# 018
MPN: 177884
CLUTCH SHAFT
- Valid from gearbox Nr. 101
from £138.90
from £138.90
# 019

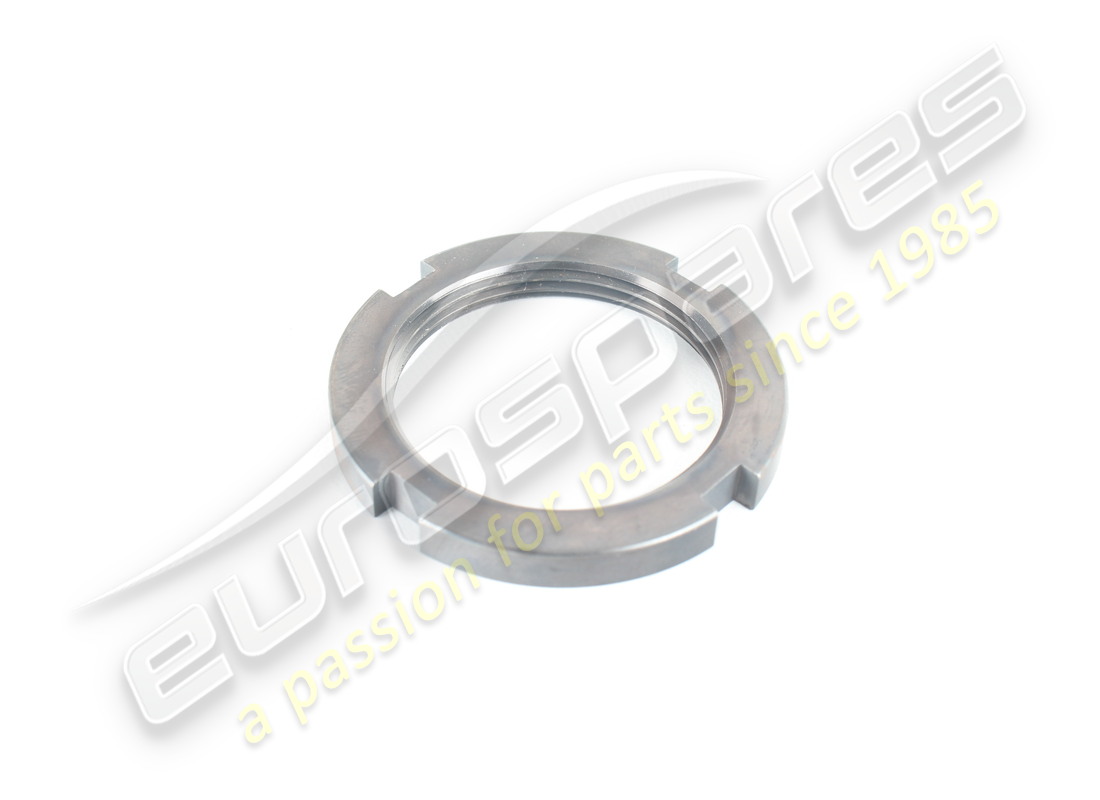

MPN: 153000
RING NUT
from £33.69
from £33.69
This part replaces part number 131775 - and 1 more. Click to view details
# 019

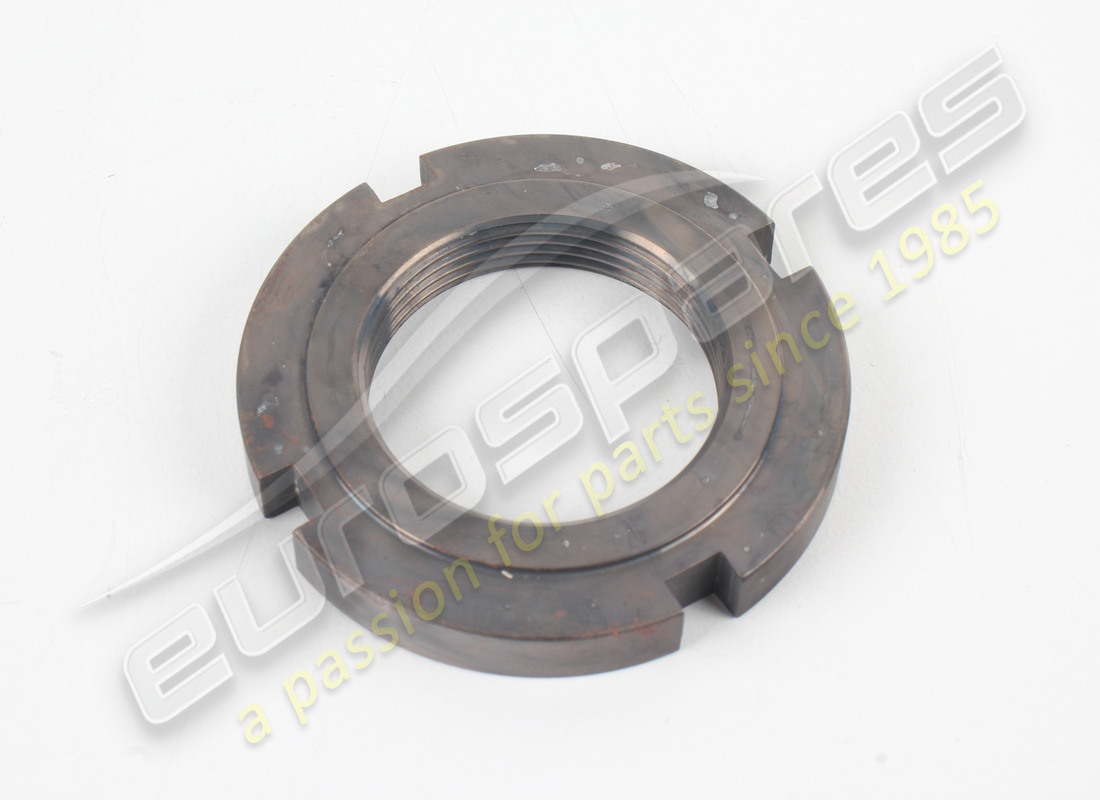

MPN: 177883
RING NUT
- Valid from gearbox Nr. 101
from £47.04
from £47.04
# 020
MPN: 166432
O.R. GASKET
from £0.53
from £0.53
# 021
MPN: 174938
FLANGE WITH SLEEVE
from £3,172.32
from £3,172.32
This part replaces part number 154557 which we have in stock
# 022
MPN: 65928500
THREADED PLUG
from £23.78
from £23.78
This part replaces part number 10267550
# 023
MPN: 133989
NUT
from £0.53
from £0.53
This part replaces part number 8 D 4-UNI 207
# 024
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 025
MPN: 151693
PLATE
from £65.93
from £65.93
# 026
MPN: 10977524
SCREW
from £0.53
from £0.53
# 027
MPN: 127493
WASHER
from £0.53
from £0.53
This part replaces part number 106849 - and 1 more. Click to view details
# 028
-
THRUST BEARING
(with seals)
# 028
MPN: 177201
THRUST BEARING
(without seals)
from £495.00
from £495.00
This part replaces part number 177202
# 029
MPN: 154505
SEAL RING
from £6.89
from £6.89
# 030
MPN: 154504
RING
from £3.63
from £3.63
# 031
MPN: 154550
SCRAPER RING
from £12.51
from £12.51
This part replaces part number 144550
# 032
MPN: 154508
SEAL RING
from £22.87
from £22.87
# 033
MPN: 154507
RING
from £2.01
from £2.01
This part replaces part number 170419 which we have in stock - and 1 more. Click to view details
# 034
MPN: 154551
SCRAPER RING
from £16.63
from £16.63
# 035
MPN: 13904970
FLEXIBLE PIN
from £0.80
from £0.80
# 036
MPN: 155207
PRELOAD SPRING
from £2.25
from £2.25
# 037
MPN: 154485
SHIELD FOR FASE SENSOR PROTECTION
from £55.96
from £55.96
# 038
MPN: 10977824
SCREW
from £1.08
from £1.08
This part replaces part number 10977814 - and 1 more. Click to view details
# 039
MPN: 12601174
WASHER
from £0.53
from £0.53
This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
# 040
MPN: 13540824
STUD
from £14.21
from £14.21
This part replaces part number 13540821
# 041
MPN: 155177
STUD
from £4.22
from £4.22
# 042
MPN: 155175
SPACER
from £1.18
from £1.18
# 043
MPN: 154464
SUPPORT
from £14.60
from £14.60
# 044
MPN: 12639724
WASHER
from £0.54
from £0.54
This part replaces part number 12639725 - and 1 more. Click to view details
# 045
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 046
MPN: 11199274
WASHER
from £0.54
from £0.54
# 047
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.77
from £0.77
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 048
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 049
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 050
MPN: 146654
SUPPORT
from £46.33
from £46.33
# 051
MPN: 155918
CABLE FOR ENGINE
from £7.27
from £7.27
# 052
MPN: 14306824
SCREW
from £0.51
from £0.51
This part replaces part number 14306874
# 053
MPN: 11193874
WASHER
from £0.53
from £0.53
This part replaces part number 11193879 which we have in stock
# 054
MPN: 16296421
SCREW
from £37.16
from £37.16
# 055
MPN: 177882
RING NUT
- Valid from gearbox Nr. 101
from £44.40
from £44.40
