030 - Clutch Housing -Valid for 456M GTA

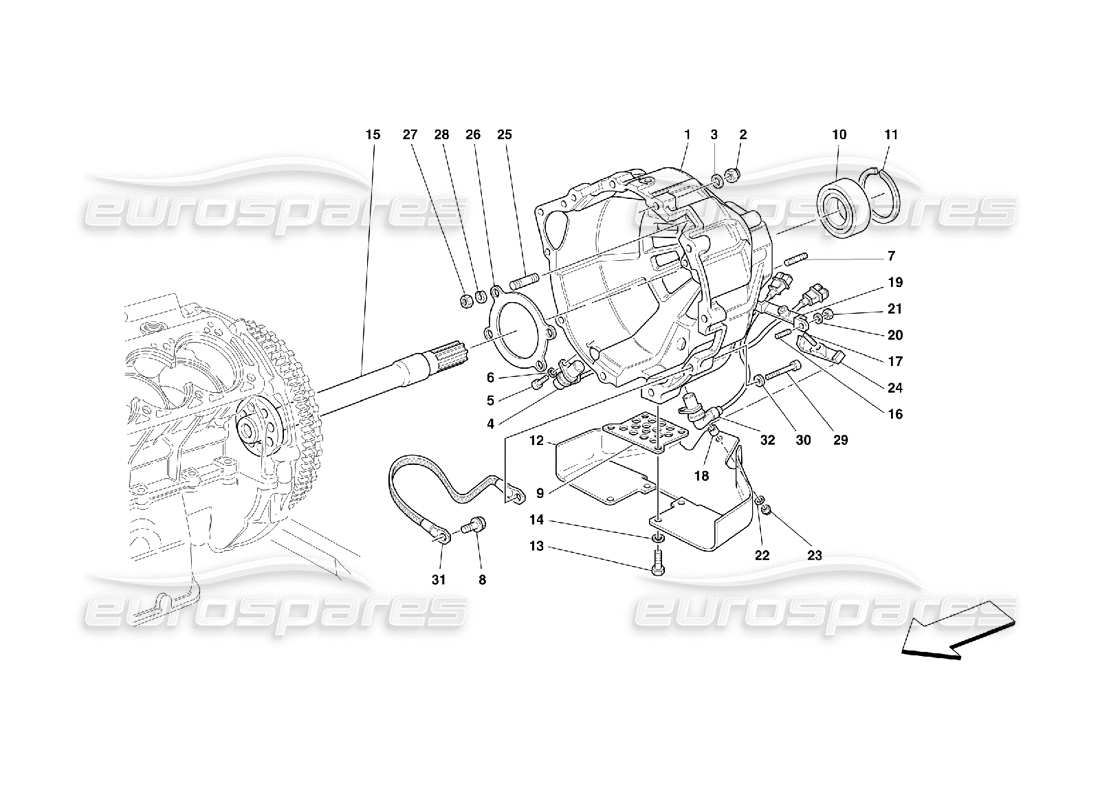

Ferrari 456 M GT/M GTA Clutch Housing -Valid for 456M GTA Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 178870
COMPLETE CLUTCH HOUSING
from £758.01
from £758.01
This part replaces part number 174467 - and 3 more. Click to view details
# 001
MPN: 174467
CLUTCH HOUSING
- Not as spare part - With the complete clutch housing
Supersession
Supersession
# 002
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 003
MPN: 12601374
WASHER
from £0.53
from £0.53
This part replaces part number 10615474 - and 6 more. Click to view details
# 004
MPN: 164082
RH SIDE ANGOLAR SPEED SENSOR
from £108.99
from £108.99
This part replaces part number 152262
# 005
MPN: 14305124
SCREW
from £0.53
from £0.53
This part replaces part number 14305121
# 006
MPN: 12601274
WASHER
from £0.53
from £0.53
This part replaces part number 12601221 - and 5 more. Click to view details
# 007
MPN: 13546334
STUD
from £0.60
from £0.60
This part replaces part number 13546331
# 008
MPN: 16296421
SCREW
from £37.16
from £37.16
# 009
MPN: 144441
CLUTCH HOUSING COVER
from £1.09
from £1.09
# 010
MPN: 174470
BEARING
from £28.29
from £28.29
This part replaces part number 174469
# 011
MPN: 144511
STOP RING
from £1.61
from £1.61
# 012
MPN: 154485
SHIELD
from £55.96
from £55.96
# 013
MPN: 10977824
SCREW
from £1.11
from £1.11
This part replaces part number 10977814 - and 1 more. Click to view details
# 014
MPN: 12601174
WASHER
from £0.53
from £0.53
This part replaces part number 12601173 which we have in stock - and 5 more. Click to view details
# 015
MPN: 174216
PROPELLER SHAFT WITH FLANGE
from £532.41
from £532.41
# 016
MPN: 13540824
STUD
from £14.21
from £14.21
This part replaces part number 13540821
# 017
MPN: 155177
STUD
from £4.25
from £4.25
# 018
MPN: 155175
SPACER
from £0.94
from £0.94
# 019
MPN: 154464
SUPPORT
from £13.72
from £13.72
# 020
MPN: 12639724
WASHER
from £0.54
from £0.54
This part replaces part number 12639725 - and 1 more. Click to view details
# 021
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 022
MPN: 11199274
WASHER
from £0.54
from £0.54
# 023
MPN: 15896470
NUT
(minimum order quantity = 20)
from £0.81
from £0.81
This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
# 024
MPN: 146654
SUPPORT
from £46.14
from £46.14
# 025
MPN: 13543124
STUD
from £3.68
from £3.68
This part replaces part number 13543121
# 026
MPN: 174643
FLANGE
from £99.58
from £99.58
# 027
MPN: 133989
NUT
from £0.53
from £0.53
This part replaces part number 8 D 4-UNI 207
# 028
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 029
MPN: 14306824
SCREW
from £0.51
from £0.51
This part replaces part number 14306874
# 030
MPN: 11193874
WASHER
from £0.53
from £0.53
This part replaces part number 11193879 which we have in stock
# 031
MPN: 155918
CABLE FOR ENGINE
from £7.23
from £7.23
# 032
MPN: 164083
LH SIDE ANGOLAR SPEED SENSOR
from £104.18
from £104.18
This part replaces part number 158729
