034 - Gearbox Cooling Radiator -Valid for 456M GTA

Ferrari 456 M GT/M GTA Gearbox Cooling Radiator -Valid for 456M GTA Parts Diagram

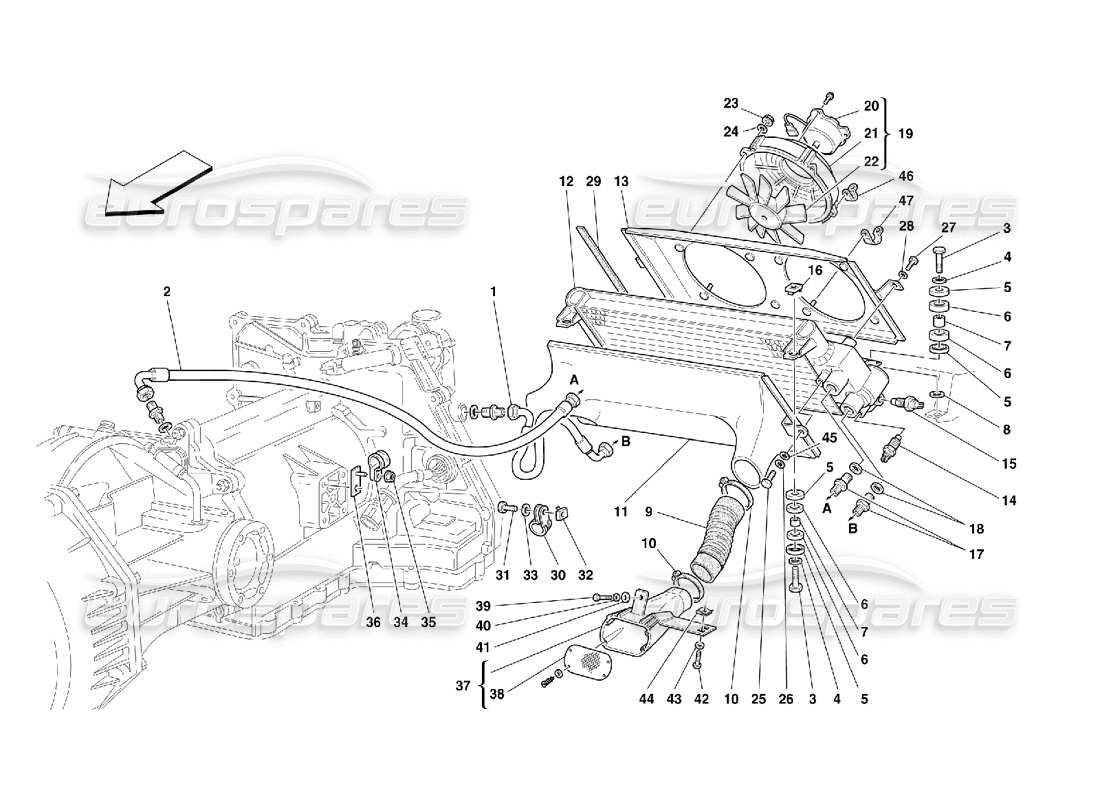

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                        #
                                                                                        Part number
                                                                                        Description
                                                                                        Price
                                                                                        # 001
                                                                                        MPN: 177412
                                                                                        OIL DELIVERY TUBE
                                                                                        from £173.05
                                                                                        from £173.05
                                                                                        # 002
                                                                                        MPN: 177413
                                                                                        OIL RETURN TUBE
                                                                                        from £561.90
                                                                                        from £561.90
                                                                                        # 003
                                                                                        MPN: 16043834
                                                                                        SCREW
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 16043824
                                                                                        # 004
                                                                                        MPN: 12601374
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                        # 005
                                                                                        MPN: 107979
                                                                                        CUP
                                                                                        from £1.08
                                                                                        from £1.08
                                                                                        # 006
                                                                                        MPN: 107978
                                                                                        PAD
                                                                                        from £1.07
                                                                                        from £1.07
                                                                                        # 007
                                                                                        MPN: 155395
                                                                                        SPACER
                                                                                        from £0.64
                                                                                        from £0.64
                                                                                        # 008
                                                                                        MPN: 12638524
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 12638501 - and 2 more. Click to view details
                                                                                        # 009
                                                                                        MPN: 176378

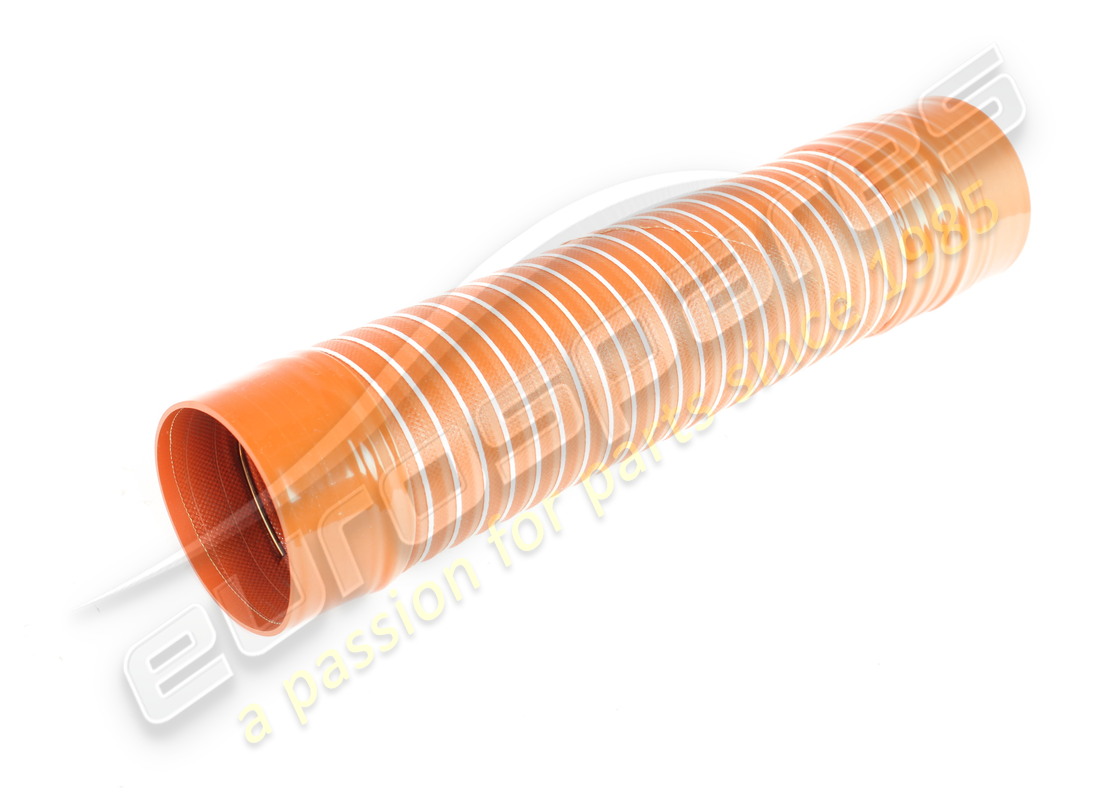

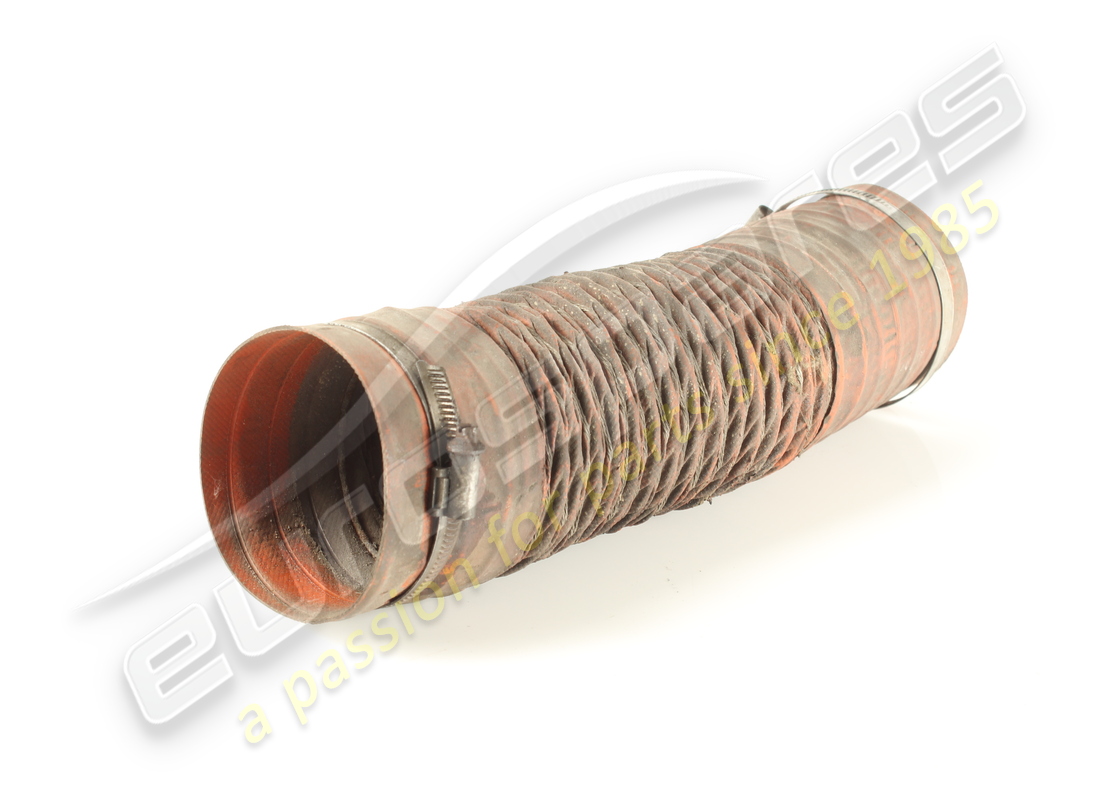

                                                                                        COOLING PIPE
                                                                                        from £119.76
                                                                                        from £119.76
                                                                                        This part replaces part number 165737 which we have in stock
                                                                                        # 010
                                                                                        MPN: 13001090
                                                                                        SCREW COLLAR
                                                                                        from £0.84
                                                                                        from £0.84
                                                                                        This part replaces part number 12174990 - and 2 more. Click to view details
                                                                                        # 011
                                                                                        MPN: 175699

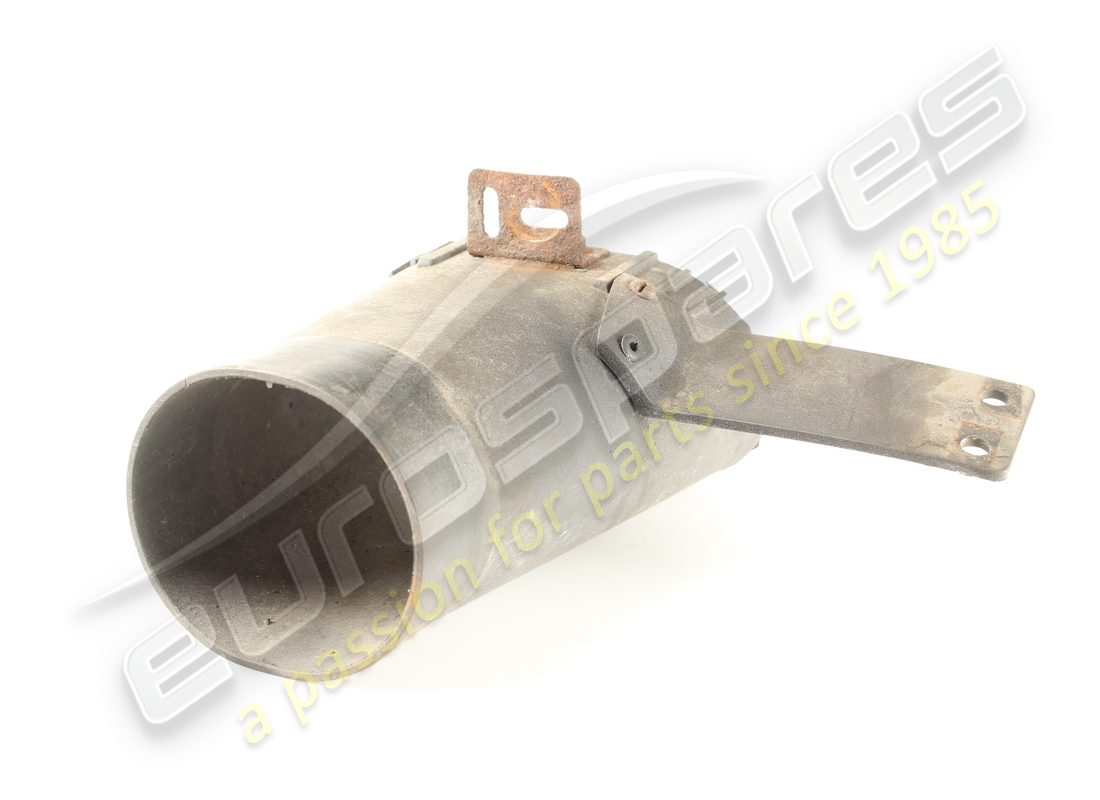

                                                                                        FRONT CONVEYOR
                                                                                        from £130.85
                                                                                        from £130.85
                                                                                        # 012
                                                                                        MPN: 175696

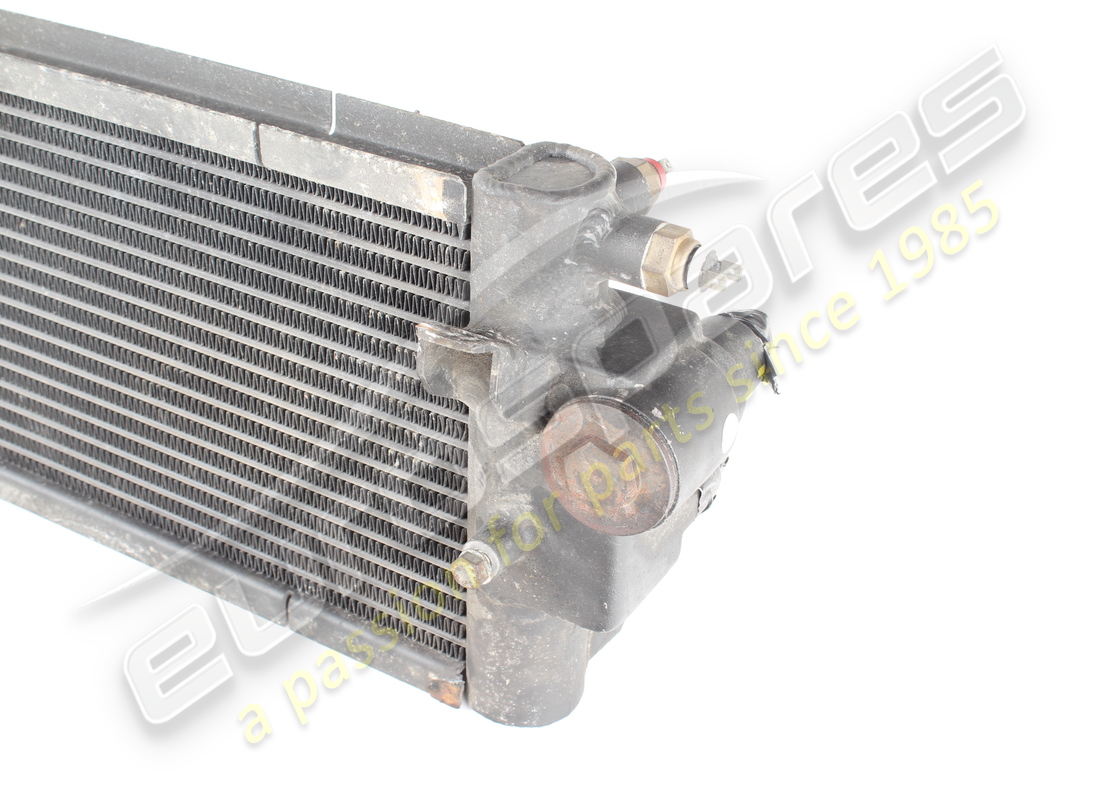

                                                                                        OIL RADIATOR
                                                                                        from £583.29
                                                                                        from £583.29
                                                                                        # 013
                                                                                        MPN: 175320
                                                                                        HOOD FOR ELECTROFAN
                                                                                        from £51.66
                                                                                        from £51.66
                                                                                        # 014
                                                                                        MPN: 167475

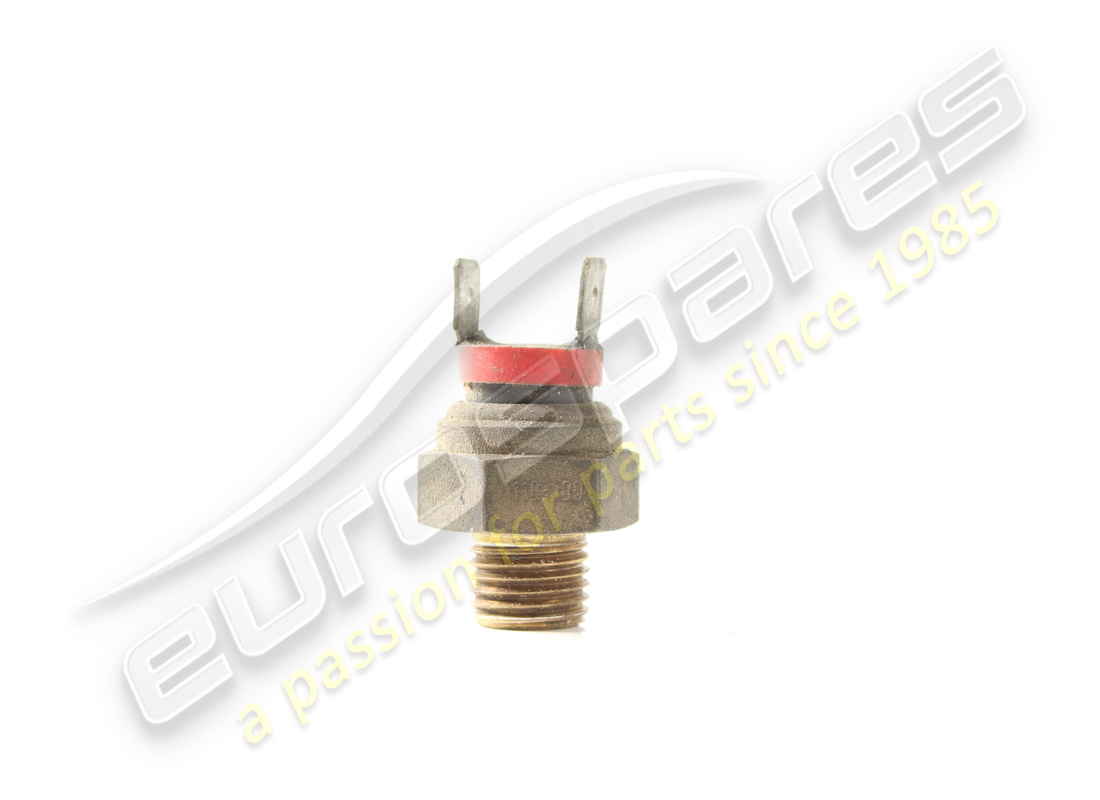

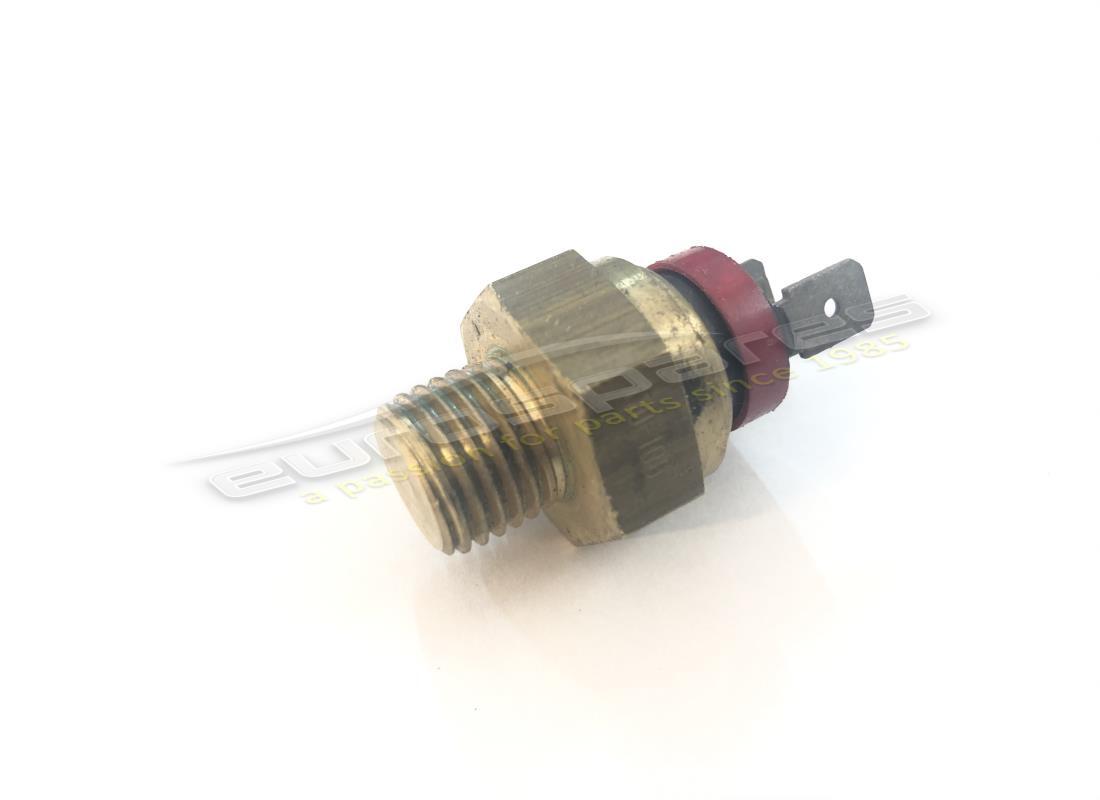

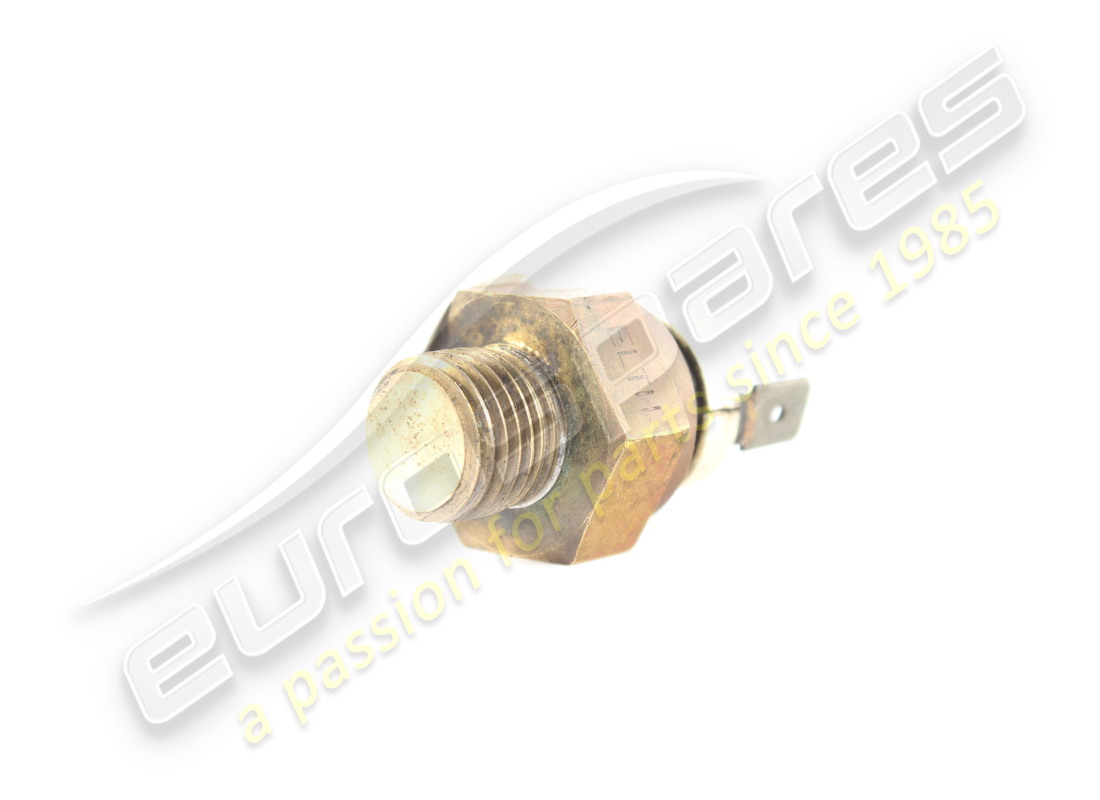

                                                                                        TEMPERATURE SWITCH 110° - 100° C
                                                                                        from £11.07
                                                                                        from £11.07
                                                                                        # 015
                                                                                        MPN: 167476

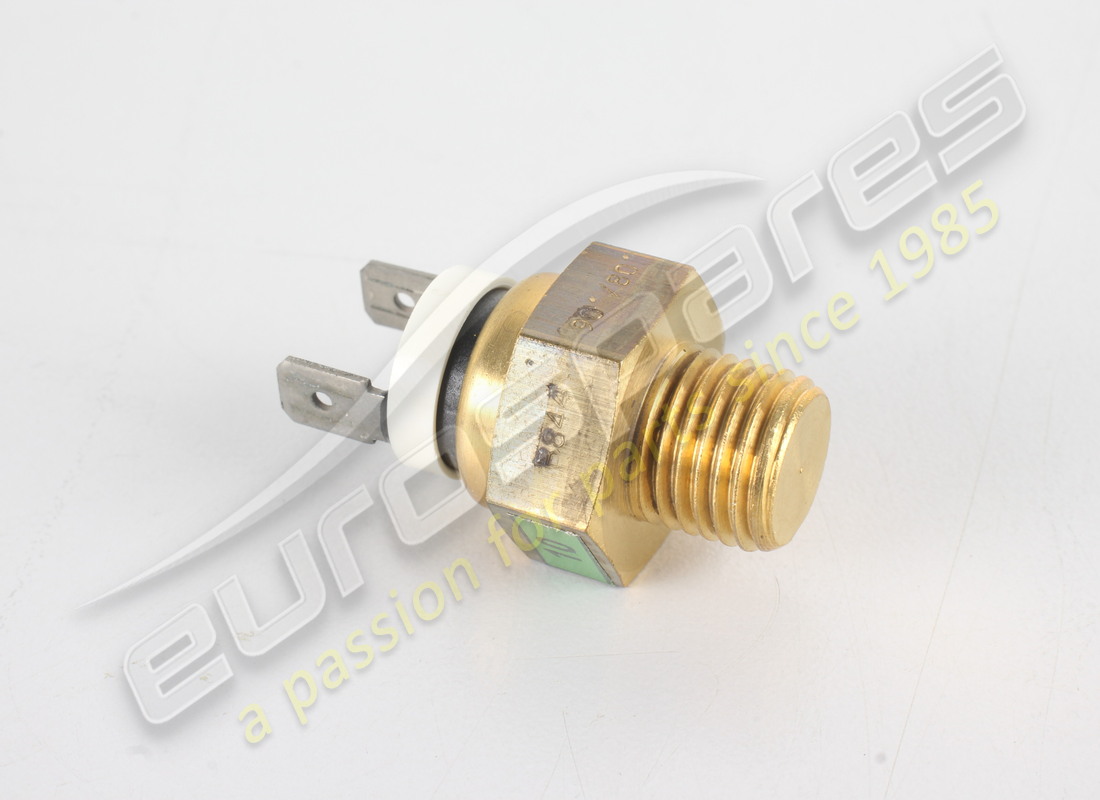

                                                                                        TEMPERATURE SWITCH 90° - 80° C
                                                                                        from £51.79
                                                                                        from £51.79
                                                                                        # 016
                                                                                        MPN: 141530
                                                                                        NUT WITH CAGE
                                                                                        from £0.71
                                                                                        from £0.71
                                                                                        # 017
                                                                                        MPN: 170796
                                                                                        THREADED UNION
                                                                                        from £6.46
                                                                                        from £6.46
                                                                                        # 018
                                                                                        MPN: 10263460
                                                                                        GASKET
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 95119
                                                                                        # 019
                                                                                        MPN: 153431
                                                                                        COMPLETE ELECTROFAN
                                                                                        from £55.17
                                                                                        from £55.17
                                                                                        # 020
                                                                                        MPN: 154225
                                                                                        MOTOR
                                                                                        from £103.26
                                                                                        from £103.26
                                                                                        # 021
                                                                                        MPN: 154224
                                                                                        AIR CONVEYOR
                                                                                        from £102.72
                                                                                        from £102.72
                                                                                        # 022
                                                                                        MPN: 154223
                                                                                        BLOWER
                                                                                        from £138.99
                                                                                        from £138.99
                                                                                        # 023
                                                                                        MPN: 14058311
                                                                                        NUT
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 024
                                                                                        MPN: 12601174
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 12601173 - and 5 more. Click to view details
                                                                                        # 025
                                                                                        MPN: 16043224
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 026
                                                                                        MPN: 12601374
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                        # 027
                                                                                        MPN: 16043224
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        # 028
                                                                                        MPN: 12601374
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                        # 029
                                                                                        MPN: 168796
                                                                                        GASKET
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 030
                                                                                        MPN: 10441890
                                                                                        BRACKET WITH SHEATH
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 031
                                                                                        MPN: 10902124
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                        # 032
                                                                                        MPN: 60659100
                                                                                        NUT WITH CAGE
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
                                                                                        # 033
                                                                                        MPN: 127494
                                                                                        WASHER
                                                                                        (minimum order quantity = 20)
                                                                                        from £0.54
                                                                                        from £0.54
                                                                                        This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                        # 034
                                                                                        MPN: 10441890
                                                                                        BRACKET WITH SHEATH
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 035
                                                                                        MPN: 102948
                                                                                        NUT
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 12574211 - and 4 more. Click to view details
                                                                                        # 036
                                                                                        MPN: 159386
                                                                                        SMALL PLATE
                                                                                        from £1.08
                                                                                        from £1.08
                                                                                        # 037
                                                                                        MPN: 65467500
                                                                                        COMPLETE LH AIR INTAKE
                                                                                        from £76.02
                                                                                        from £76.02
                                                                                        # 037
                                                                                        MPN: 65467600
                                                                                        COMPLETE RH AIR INTAKE
                                                                                        from £83.81
                                                                                        from £83.81
                                                                                        # 038
                                                                                        MPN: 65050900
                                                                                        AIR INTAKE SHIELD
                                                                                        from £32.39
                                                                                        from £32.39
                                                                                        # 039
                                                                                        MPN: 10902124
                                                                                        SCREW
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                        # 040
                                                                                        MPN: 127494
                                                                                        WASHER
                                                                                        (minimum order quantity = 20)
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                        # 041
                                                                                        MPN: 12643778
                                                                                        WASHER
                                                                                        (minimum order quantity = 20)
                                                                                        from £0.53
                                                                                        from £0.53
                                                                                        This part replaces part number 12643777 - and 1 more. Click to view details
                                                                                        # 042
                                                                                        MPN: 15688375
                                                                                        SCREW
                                                                                        (minimum order quantity = 30)
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 15688306 which we have in stock
                                                                                        # 043
                                                                                        MPN: 12638178
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                        # 044
                                                                                        MPN: 61789700
                                                                                        BRACKET
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 045
                                                                                        MPN: 12601374
                                                                                        WASHER
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                        # 046
                                                                                        MPN: 10418101
                                                                                        BRACKET
                                                                                        from £0.47
                                                                                        from £0.47
                                                                                        # 047
                                                                                        MPN: 10418401
                                                                                        BRACKET
                                                                                        from £1.55
                                                                                        from £1.55
