035 - Main Shaft Gears and Gearbox Oil Pump -Not for 456M GTA

Ferrari 456 M GT/M GTA Main Shaft Gears and Gearbox Oil Pump -Not for 456M GTA Parts Diagram

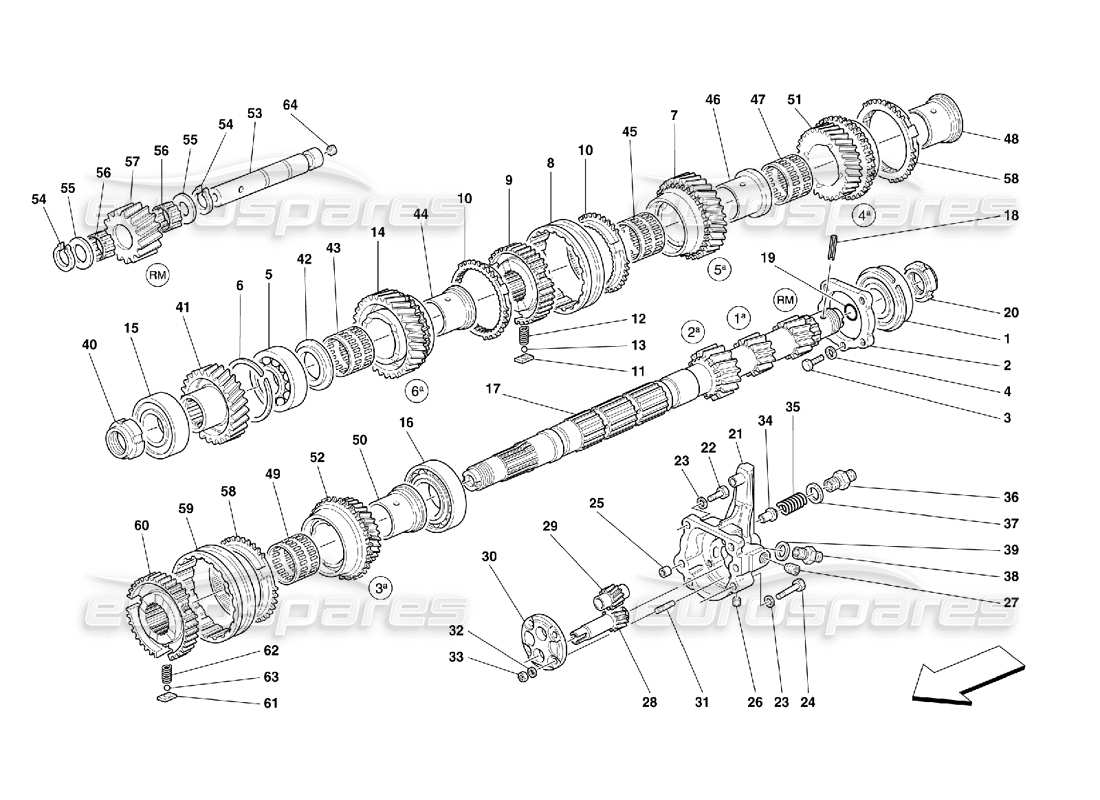

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                                #
                                                                                                                                Part number
                                                                                                                                Description
                                                                                                                                Price
                                                                                                                                # 000
                                                                                                                                MPN: 153206
                                                                                                                                COMPLETE OIL PUMP BODY
                                                                                                                                from £536.54
                                                                                                                                from £536.54
                                                                                                                                # 001
                                                                                                                                MPN: 144502
                                                                                                                                BEARING FOR MAIN SHAFT PUMP OIL SIDE
                                                                                                                                from £91.39
                                                                                                                                from £91.39
                                                                                                                                # 002
                                                                                                                                MPN: 144444
                                                                                                                                SUPPORT RING
                                                                                                                                from £36.67
                                                                                                                                from £36.67
                                                                                                                                # 003
                                                                                                                                MPN: 16043424
                                                                                                                                SCREW
                                                                                                                                from £0.53
                                                                                                                                from £0.53
                                                                                                                                This part replaces part number 16043421
                                                                                                                                # 004
                                                                                                                                MPN: 127496
                                                                                                                                WASHER
                                                                                                                                from £0.54
                                                                                                                                from £0.54
                                                                                                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                                                # 005
                                                                                                                                MPN: 108656
                                                                                                                                ROLLER BEARING
                                                                                                                                from £309.40
                                                                                                                                from £309.40
                                                                                                                                This part replaces part number 104257
                                                                                                                                # 006
                                                                                                                                MPN: 144511
                                                                                                                                STOP RING
                                                                                                                                from £1.55
                                                                                                                                from £1.55
                                                                                                                                # 007
                                                                                                                                MPN: 155851
                                                                                                                                COMPLETE PINION FOR 5TH GEAR - Z 30
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 008
                                                                                                                                MPN: 152206
                                                                                                                                SLEEVE FOR SYNCHRONIZER
                                                                                                                                from £42.34
                                                                                                                                from £42.34
                                                                                                                                # 009
                                                                                                                                MPN: 152207
                                                                                                                                SYNCHRONIZER BODY
                                                                                                                                from £168.75
                                                                                                                                from £168.75
                                                                                                                                # 010
                                                                                                                                MPN: 152209
                                                                                                                                SYNCHRONIZER RING
                                                                                                                                from £89.66
                                                                                                                                from £89.66
                                                                                                                                # 011
                                                                                                                                MPN: 152195
                                                                                                                                SMALL BLOCK
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 012
                                                                                                                                MPN: 152196
                                                                                                                                SPRING
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 013
                                                                                                                                MPN: 152197
                                                                                                                                BALL
                                                                                                                                from £2.09
                                                                                                                                from £2.09
                                                                                                                                # 014
                                                                                                                                MPN: 155852
                                                                                                                                COMPLETE PINION FOR 6TH GEAR - Z 33
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 015
                                                                                                                                MPN: 156472
                                                                                                                                ROLLER BEARING
                                                                                                                                from £122.97
                                                                                                                                from £122.97
                                                                                                                                # 016
                                                                                                                                MPN: 228055
                                                                                                                                ROLLER BEARING
                                                                                                                                from £47.37
                                                                                                                                from £47.37
                                                                                                                                This part replaces part number 131056 - and 1 more. Click to view details
                                                                                                                                # 017
                                                                                                                                MPN: 157374
                                                                                                                                MAIN SHAFT FOR GEAR LEVER
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 018
                                                                                                                                MPN: 14601270
                                                                                                                                FLEXIBLE PIN
                                                                                                                                from £0.53
                                                                                                                                from £0.53
                                                                                                                                # 019
                                                                                                                                MPN: 109724
                                                                                                                                O.R. GASKET
                                                                                                                                from £0.76
                                                                                                                                from £0.76
                                                                                                                                # 020
                                                                                                                                MPN: 150963
                                                                                                                                RING NUT
                                                                                                                                from £15.28
                                                                                                                                from £15.28
                                                                                                                                # 021
                                                                                                                                MPN: 150555
                                                                                                                                OIL PUMP BODY
                                                                                                                                - Not as spare part - With complete oil pump body
                                                                                                                                # 022
                                                                                                                                MPN: 16044224
                                                                                                                                SCREW
                                                                                                                                from £0.53
                                                                                                                                from £0.53
                                                                                                                                This part replaces part number 16044221 which we have in stock
                                                                                                                                # 023
                                                                                                                                MPN: 12601374
                                                                                                                                WASHER
                                                                                                                                from £0.53
                                                                                                                                from £0.53
                                                                                                                                This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                                # 024
                                                                                                                                MPN: 16044521
                                                                                                                                SCREW
                                                                                                                                from £0.71
                                                                                                                                from £0.71
                                                                                                                                # 025
                                                                                                                                MPN: 102704
                                                                                                                                CENTERING DOWEL
                                                                                                                                from £1.77
                                                                                                                                from £1.77
                                                                                                                                This part replaces part number 500805
                                                                                                                                # 026
                                                                                                                                MPN: 14326150
                                                                                                                                PLUG
                                                                                                                                from £0.51
                                                                                                                                from £0.51
                                                                                                                                This part replaces part number 12326150
                                                                                                                                # 027
                                                                                                                                MPN: 10269450
                                                                                                                                PLUG
                                                                                                                                from £16.22
                                                                                                                                from £16.22
                                                                                                                                # 028
                                                                                                                                MPN: 109722
                                                                                                                                DRIVING GEAR
                                                                                                                                from £1,360.03
                                                                                                                                from £1,360.03
                                                                                                                                # 029
                                                                                                                                MPN: 109723
                                                                                                                                DRIVEN GEAR
                                                                                                                                from £29.76
                                                                                                                                from £29.76
                                                                                                                                # 030
                                                                                                                                MPN: 121962
                                                                                                                                SMALL COVER
                                                                                                                                from £107.47
                                                                                                                                from £107.47
                                                                                                                                # 031
                                                                                                                                MPN: 11500024
                                                                                                                                STUD
                                                                                                                                from £1.55
                                                                                                                                from £1.55
                                                                                                                                This part replaces part number 11500011 which we have in stock - and 1 more. Click to view details
                                                                                                                                # 032
                                                                                                                                MPN: 12601274
                                                                                                                                WASHER
                                                                                                                                from £0.53
                                                                                                                                from £0.53
                                                                                                                                This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                                # 033
                                                                                                                                MPN: 15896214
                                                                                                                                NUT
                                                                                                                                from £0.53
                                                                                                                                from £0.53
                                                                                                                                This part replaces part number 15896211
                                                                                                                                # 034
                                                                                                                                MPN: 150484
                                                                                                                                VALVE
                                                                                                                                from £45.32
                                                                                                                                from £45.32
                                                                                                                                # 035
                                                                                                                                MPN: 150576
                                                                                                                                SPRING
                                                                                                                                from £2.03
                                                                                                                                from £2.03
                                                                                                                                # 036
                                                                                                                                MPN: 150577
                                                                                                                                UNION
                                                                                                                                from £10.75
                                                                                                                                from £10.75
                                                                                                                                # 037
                                                                                                                                MPN: 10257060
                                                                                                                                GASKET
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                                                # 038
                                                                                                                                MPN: 150571
                                                                                                                                UNION
                                                                                                                                from £7.51
                                                                                                                                from £7.51
                                                                                                                                # 039
                                                                                                                                MPN: 10259960
                                                                                                                                GASKET
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                This part replaces part number 95017
                                                                                                                                # 040
                                                                                                                                MPN: 125534
                                                                                                                                RING NUT
                                                                                                                                from £53.54
                                                                                                                                from £53.54
                                                                                                                                # 041
                                                                                                                                MPN: 154761
                                                                                                                                DRIVEN GEAR - Z 28
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 042
                                                                                                                                MPN: 143886
                                                                                                                                SPACER
                                                                                                                                from £11.20
                                                                                                                                from £11.20

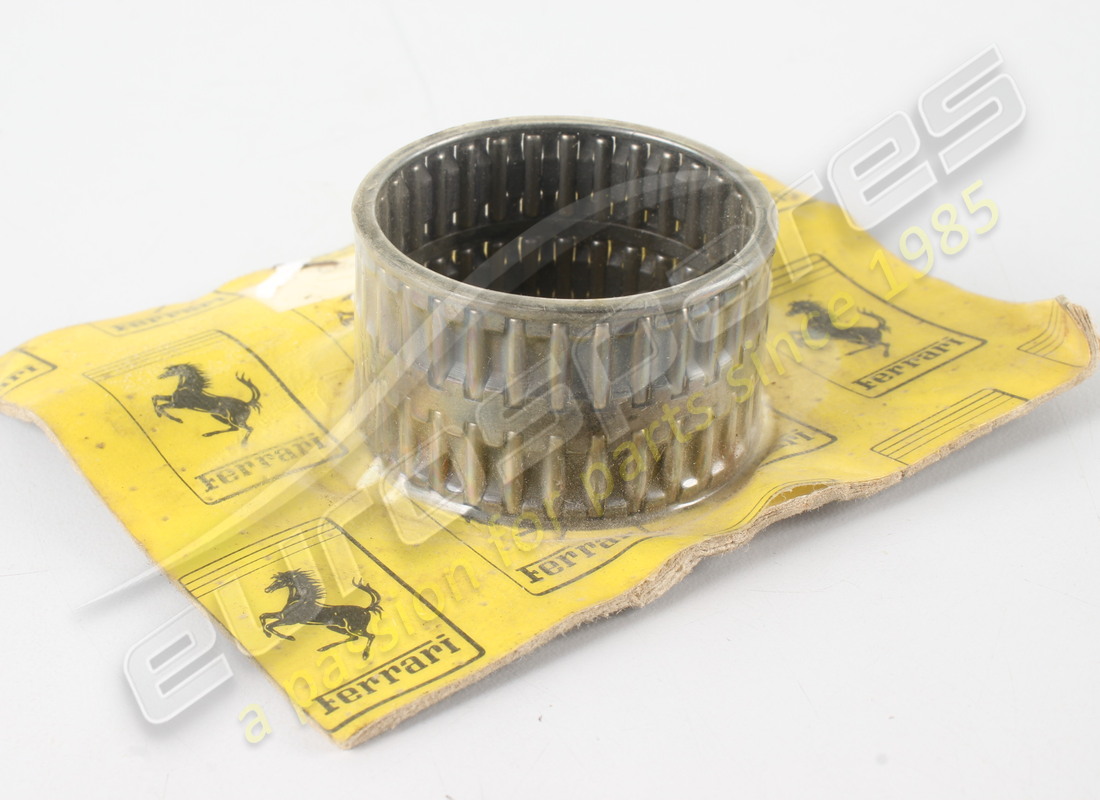

                                                                                                                                # 043
                                                                                                                                MPN: 107525
                                                                                                                                ROLLER CAGE
                                                                                                                                from £9.67
                                                                                                                                from £9.67
                                                                                                                                # 044
                                                                                                                                MPN: 143893
                                                                                                                                BUSHING
                                                                                                                                from £240.31
                                                                                                                                from £240.31
                                                                                                                                # 045
                                                                                                                                MPN: 107525
                                                                                                                                ROLLER CAGE
                                                                                                                                from £9.67
                                                                                                                                from £9.67
                                                                                                                                # 046
                                                                                                                                MPN: 152094
                                                                                                                                BUSHING
                                                                                                                                from £42.75
                                                                                                                                from £42.75
                                                                                                                                # 047
                                                                                                                                MPN: 107525
                                                                                                                                ROLLER CAGE
                                                                                                                                from £9.67
                                                                                                                                from £9.67
                                                                                                                                # 048
                                                                                                                                MPN: 152093
                                                                                                                                BUSHING
                                                                                                                                from £37.53
                                                                                                                                from £37.53
                                                                                                                                # 049
                                                                                                                                MPN: 109002
                                                                                                                                ROLLER CAGE
                                                                                                                                from £18.16
                                                                                                                                from £18.16
                                                                                                                                This part replaces part number 114059
                                                                                                                                # 050
                                                                                                                                MPN: 161445
                                                                                                                                BUSHING
                                                                                                                                from £77.01
                                                                                                                                from £77.01
                                                                                                                                # 051
                                                                                                                                MPN: 155850
                                                                                                                                COMPLETE PINION FOR 4TH GEAR - Z 27
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 052
                                                                                                                                MPN: 157084
                                                                                                                                COMPLETE PINION FOR 3RD GEAR - Z 23
                                                                                                                                Supersession
                                                                                                                                Supersession
                                                                                                                                # 053
                                                                                                                                MPN: 159410
                                                                                                                                SHAFT
                                                                                                                                from £32.29
                                                                                                                                from £32.29
                                                                                                                                # 054
                                                                                                                                MPN: 158272
                                                                                                                                SEEGER RING
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 055
                                                                                                                                MPN: 104249
                                                                                                                                WASHER - TH. 4 MM
                                                                                                                                from £37.40
                                                                                                                                from £37.40
                                                                                                                                # 055
                                                                                                                                MPN: 158257
                                                                                                                                WASHER - TH. 4,1 MM
                                                                                                                                - As an alternative
                                                                                                                                from £6.41
                                                                                                                                from £6.41
                                                                                                                                # 055
                                                                                                                                MPN: 164555
                                                                                                                                WASHER - TH. 3,9 MM
                                                                                                                                - As an alternative
                                                                                                                                from £22.05
                                                                                                                                from £22.05
                                                                                                                                # 056
                                                                                                                                MPN: 104256
                                                                                                                                ROLLER CAGE
                                                                                                                                from £5.85
                                                                                                                                from £5.85
                                                                                                                                # 058
                                                                                                                                MPN: 155155
                                                                                                                                SYNCHRONIZER RING
                                                                                                                                from £661.02
                                                                                                                                from £661.02
                                                                                                                                # 059
                                                                                                                                MPN: 152198
                                                                                                                                SLEEVE
                                                                                                                                from £198.29
                                                                                                                                from £198.29
                                                                                                                                # 060
                                                                                                                                MPN: 161015
                                                                                                                                SYNCHRONIZER BODY
                                                                                                                                from £226.26
                                                                                                                                from £226.26
                                                                                                                                # 061
                                                                                                                                MPN: 152195
                                                                                                                                SMALL BLOCK
                                                                                                                                from £0.47
                                                                                                                                from £0.47
                                                                                                                                # 062
                                                                                                                                MPN: 161016
                                                                                                                                SPRING
                                                                                                                                from £2.85
                                                                                                                                from £2.85
                                                                                                                                # 063
                                                                                                                                MPN: 152197
                                                                                                                                BALL
                                                                                                                                from £2.09
                                                                                                                                from £2.09
                                                                                                                                # 064
                                                                                                                                MPN: 10269350
                                                                                                                                PLUG
                                                                                                                                from £1.00
                                                                                                                                from £1.00
                                                                                                                                Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
