ferrari 456 m gt/m gta outside gearbox controls -not for 456m gta parts diagram

038 - Outside Gearbox Controls -Not for 456M GTA

Ferrari 456 M GT/M GTA Outside Gearbox Controls -Not for 456M GTA Parts Diagram

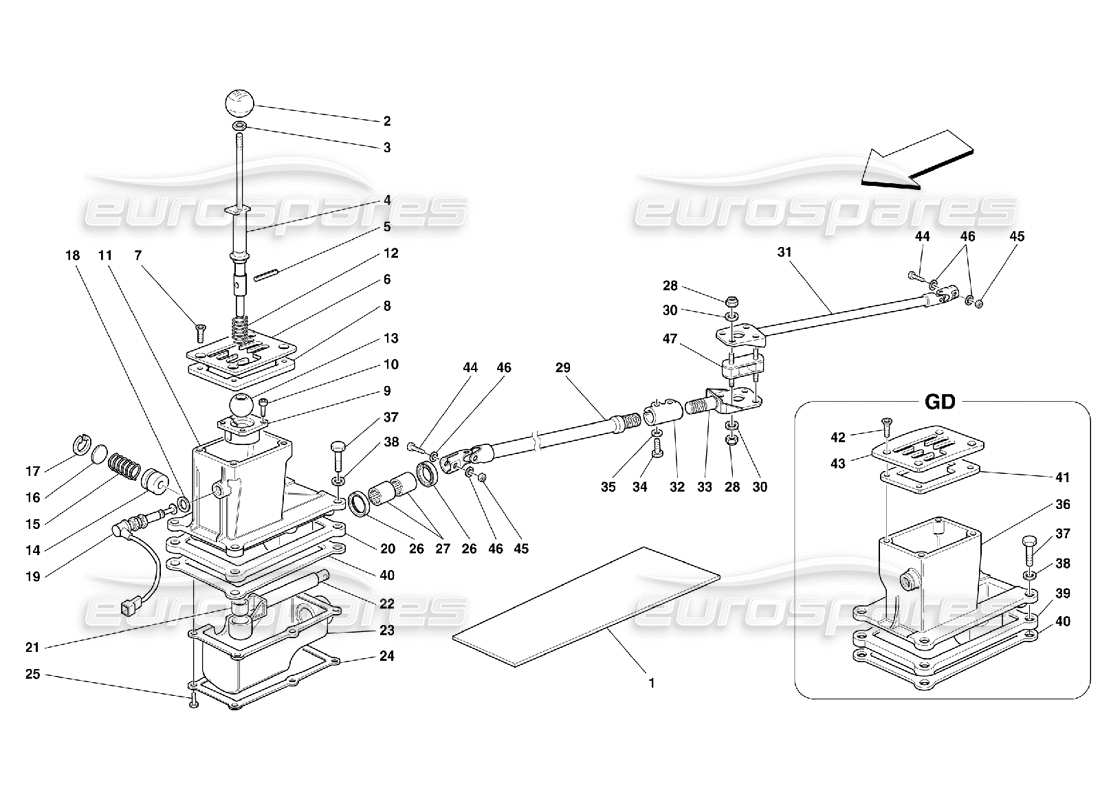

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                #
                                                                Part number
                                                                Description
                                                                Price
                                                                # 001
                                                                MPN: 63964300
                                                                SHIELD
                                                                from £31.56
                                                                from £31.56
                                                                # 002
                                                                MPN: 156712
                                                                GEAR KNOB
                                                                from £88.00
                                                                from £88.00
                                                                This part replaces part number 154800
                                                                # 003
                                                                MPN: 108010
                                                                COUNTER NUT
                                                                from £5.46
                                                                from £5.46
                                                                This part replaces part number 103312 - and 1 more. Click to view details
                                                                # 004
                                                                MPN: 171763
                                                                CONTROL LEVER
                                                                - Valid for GD - Not as spare part now - Replaced by 179283
                                                                from £345.21
                                                                from £345.21
                                                                # 004
                                                                MPN: 178741
                                                                CONTROL LEVER
                                                                - Not for GD
                                                                from £349.22
                                                                from £349.22
                                                                # 004
                                                                MPN: 179283
                                                                CONTROL LEVER
                                                                - Valid for GD
                                                                from £114.28
                                                                from £114.28
                                                                # 005
                                                                MPN: 146994
                                                                PIN
                                                                from £19.75
                                                                from £19.75
                                                                # 006
                                                                MPN: 167127
                                                                GEAR SELECTOR
                                                                - Not for GD
                                                                from £1,733.12
                                                                from £1,733.12
                                                                This part replaces part number 171831
                                                                # 006
                                                                MPN: 171831
                                                                GEAR SELECTOR
                                                                - Not for GD - Not as spare part now - Replaced by 167127
                                                                Supersession
                                                                Supersession
                                                                # 007
                                                                MPN: 157883
                                                                SCREW
                                                                - Not for GD
                                                                from £0.71
                                                                from £0.71
                                                                This part replaces part number 175883
                                                                # 008
                                                                MPN: 168955
                                                                GASKET
                                                                - Not for GD
                                                                from £17.87
                                                                from £17.87
                                                                # 009
                                                                MPN: 154741
                                                                BUSHING FOR SPRING AND BALL
                                                                from £23.28
                                                                from £23.28
                                                                # 010
                                                                MPN: 14303024
                                                                SCREW
                                                                from £0.51
                                                                from £0.51
                                                                This part replaces part number 14303021 - and 1 more. Click to view details
                                                                # 011
                                                                MPN: 155435
                                                                TURRET
                                                                - Not for GD
                                                                from £782.76
                                                                from £782.76
                                                                # 012
                                                                MPN: 159137
                                                                SPRING
                                                                from £80.55
                                                                from £80.55
                                                                This part replaces part number 147561
                                                                # 013
                                                                MPN: 154745
                                                                BALL
                                                                from £167.34
                                                                from £167.34
                                                                # 014
                                                                MPN: 154744
                                                                PIN
                                                                - Valid till car Ass. Nr. 30769
                                                                from £70.06
                                                                from £70.06
                                                                # 014
                                                                MPN: 178692
                                                                PIN
                                                                - Valid from car Ass. 30770
                                                                from £5.06
                                                                from £5.06
                                                                # 015
                                                                MPN: 103318

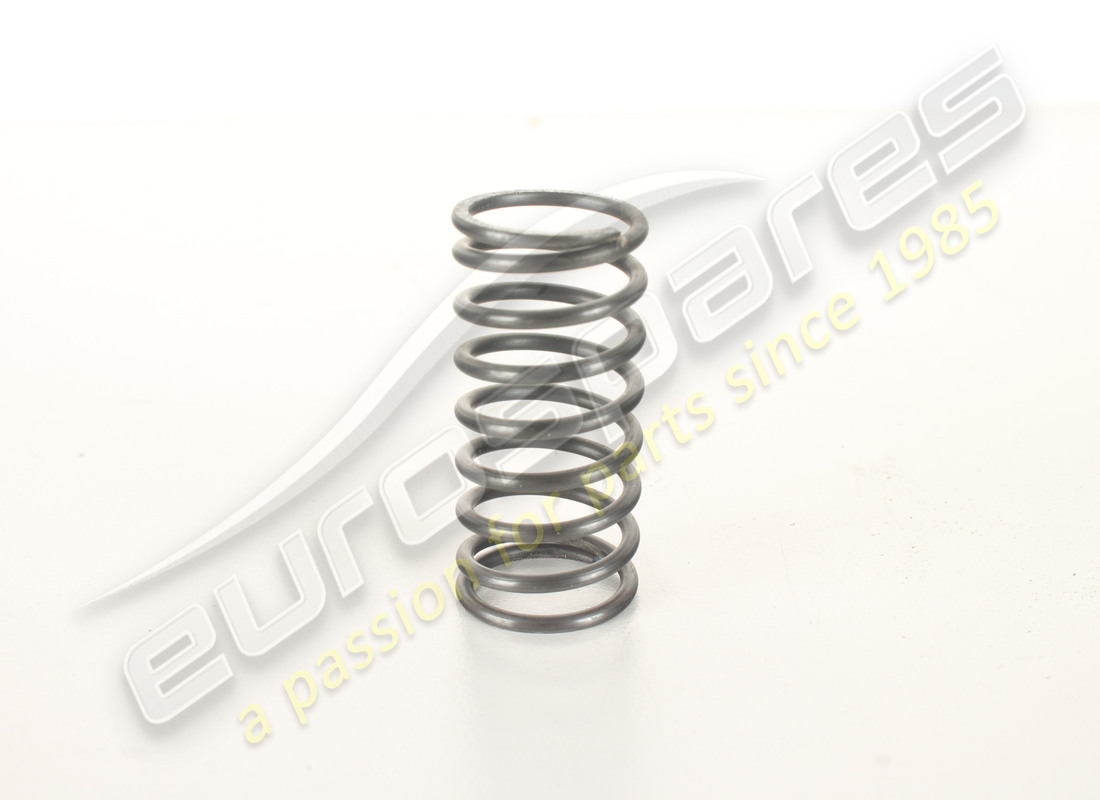

                                                                SPRING
                                                                from £2.88
                                                                from £2.88
                                                                This part replaces part number 522483
                                                                # 016
                                                                MPN: 156101
                                                                PLATE
                                                                from £2.42
                                                                from £2.42
                                                                # 017
                                                                MPN: 103326
                                                                SEEGER RING
                                                                from £0.26
                                                                from £0.26
                                                                # 018
                                                                MPN: 12601574
                                                                WASHER
                                                                from £0.54
                                                                from £0.54
                                                                This part replaces part number 106616 - and 2 more. Click to view details
                                                                # 019
                                                                MPN: 115980
                                                                PUSH-BUTTON SWITCH
                                                                Supersession
                                                                Supersession
                                                                This part replaces part number 104320
                                                                # 020
                                                                MPN: 155813
                                                                GASKET
                                                                - Not for GD
                                                                Supersession
                                                                Supersession
                                                                # 021
                                                                MPN: 127446
                                                                BALL JOINT SEAT
                                                                from £8.19
                                                                from £8.19
                                                                This part replaces part number 104316 - and 3 more. Click to view details
                                                                # 022
                                                                MPN: 155480
                                                                ROCKER IN TURRET
                                                                from £211.14
                                                                from £211.14
                                                                # 023
                                                                MPN: 156128
                                                                RUBBER BOOT
                                                                - Not for GD
                                                                from £131.15
                                                                from £131.15
                                                                # 023
                                                                MPN: 157962
                                                                RUBBER BOOT
                                                                - Valid for GD
                                                                from £100.71
                                                                from £100.71
                                                                # 024
                                                                MPN: 156129
                                                                Frame
                                                                - Not for GD
                                                                from £5.99
                                                                from £5.99
                                                                # 024
                                                                MPN: 157961
                                                                Frame
                                                                - Valid for GD
                                                                from £24.87
                                                                from £24.87
                                                                # 025
                                                                MPN: 10444621
                                                                SCREW
                                                                from £0.47
                                                                from £0.47
                                                                # 026
                                                                MPN: 145773
                                                                GASKET
                                                                - Valid till car Ass. Nr. 30769
                                                                from £3.70
                                                                from £3.70
                                                                # 027
                                                                MPN: 149907
                                                                BEARING BUSH
                                                                from £17.74
                                                                from £17.74
                                                                This part replaces part number 143775 - and 1 more. Click to view details
                                                                # 028
                                                                MPN: 14058519
                                                                NUT
                                                                from £0.51
                                                                from £0.51
                                                                # 029
                                                                MPN: 175111
                                                                FRONT CONTROL BAR FOR GEAR BOX
                                                                from £241.73
                                                                from £241.73
                                                                # 030
                                                                MPN: 12601374
                                                                WASHER
                                                                from £0.53
                                                                from £0.53
                                                                This part replaces part number 10615474 - and 6 more. Click to view details
                                                                # 031
                                                                MPN: 175112
                                                                REAR CONTROL BAR FOR GEAR BOX
                                                                from £312.88
                                                                from £312.88
                                                                # 032
                                                                MPN: 155473
                                                                CONNECTION
                                                                from £163.14
                                                                from £163.14
                                                                # 033
                                                                MPN: 169976
                                                                BAR FIXING
                                                                from £203.07
                                                                from £203.07
                                                                # 034
                                                                MPN: 16043624
                                                                SCREW
                                                                from £0.53
                                                                from £0.53
                                                                This part replaces part number 106526 - and 1 more. Click to view details
                                                                # 035
                                                                MPN: 127496
                                                                WASHER
                                                                from £0.54
                                                                from £0.54
                                                                This part replaces part number 10516671 - and 2 more. Click to view details
                                                                # 036
                                                                MPN: 157453
                                                                TURRET
                                                                - Valid for GD
                                                                # 037
                                                                MPN: 16043724
                                                                SCREW
                                                                from £0.71
                                                                from £0.71
                                                                This part replaces part number 16043721 which we have in stock
                                                                # 038
                                                                MPN: 12601374
                                                                WASHER
                                                                from £0.53
                                                                from £0.53
                                                                This part replaces part number 10615474 - and 6 more. Click to view details
                                                                # 039
                                                                MPN: 158341
                                                                GASKET
                                                                - Valid for GD
                                                                Supersession
                                                                Supersession
                                                                # 040
                                                                MPN: 159762
                                                                SPACER
                                                                - Possible fitting
                                                                from £2.89
                                                                from £2.89
                                                                # 041
                                                                MPN: 171823
                                                                GASKET
                                                                - Valid for GD
                                                                from £39.74
                                                                from £39.74
                                                                # 042
                                                                MPN: 156100
                                                                SCREW
                                                                - Valid for GD
                                                                from £1.77
                                                                from £1.77
                                                                # 043
                                                                MPN: 175705
                                                                GEAR SELECTOR
                                                                - Valid for GD
                                                                Supersession
                                                                Supersession
                                                                This part replaces part number 171787
                                                                # 044
                                                                MPN: 125515
                                                                SCREW
                                                                from £10.64
                                                                from £10.64
                                                                # 045
                                                                MPN: 102948
                                                                NUT
                                                                from £0.47
                                                                from £0.47
                                                                This part replaces part number 12574211 - and 3 more. Click to view details
                                                                # 046
                                                                MPN: 125516
                                                                WASHER
                                                                from £2.53
                                                                from £2.53
                                                                # 047
                                                                MPN: 163926
                                                                PAD
                                                                from £123.48
                                                                from £123.48
