040 - Engine Connection Tube - Gearbox and Insulation

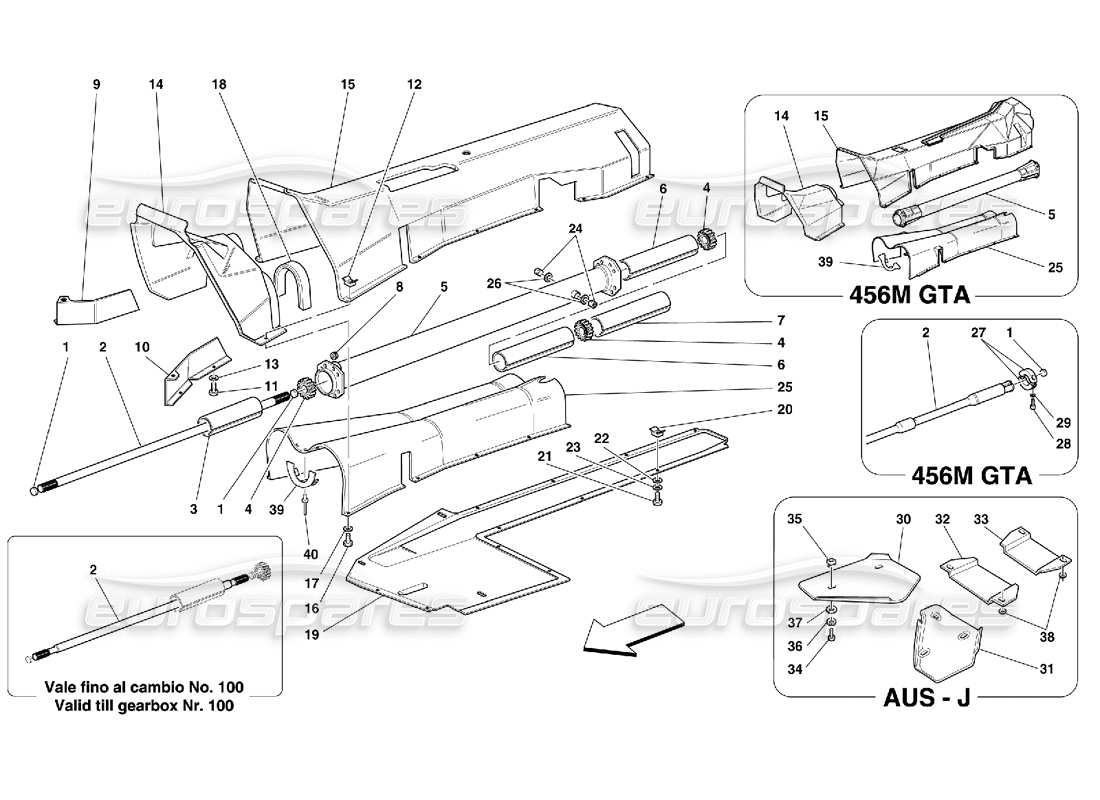

Ferrari 456 M GT/M GTA Engine Connection Tube - Gearbox and Insulation Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 144443
SPACER
from £2.19
from £2.19
# 002
MPN: 154501
propeller shaft
- Not for 456M GTA - Valid till gearbox Nr. 100
from £5,417.25
from £5,417.25
# 002
MPN: 172986
propeller shaft
- Valid for 456M GTA - Valid till stock exhaustion
from £439.25
from £439.25
This part replaces part number 172565 - and 1 more. Click to view details
# 002
MPN: 172986
propeller shaft
- Valid for 456M GTA - Valid after stock exhaustion of 172565
from £439.25
from £439.25
This part replaces part number 172565 - and 1 more. Click to view details
# 002
MPN: 178297
propeller shaft
- Not for 456M GTA - Valid from gearbox Nr. 101
from £625.74
from £625.74
# 003
MPN: 157055
ENGINE SIDE SPACER
- Not for 456M GTA
from £176.13
from £176.13
# 003
MPN: 162448
ENGINE SIDE SPACER
- Valid for 456M GTA
from £253.64
from £253.64
# 004
MPN: 155564
BEARING
- Not for 456M GTA
from £72.08
from £72.08
# 004
MPN: 168319
BEARING
- Valid for 456M GTA
from £754.34
from £754.34
# 005
MPN: 175106

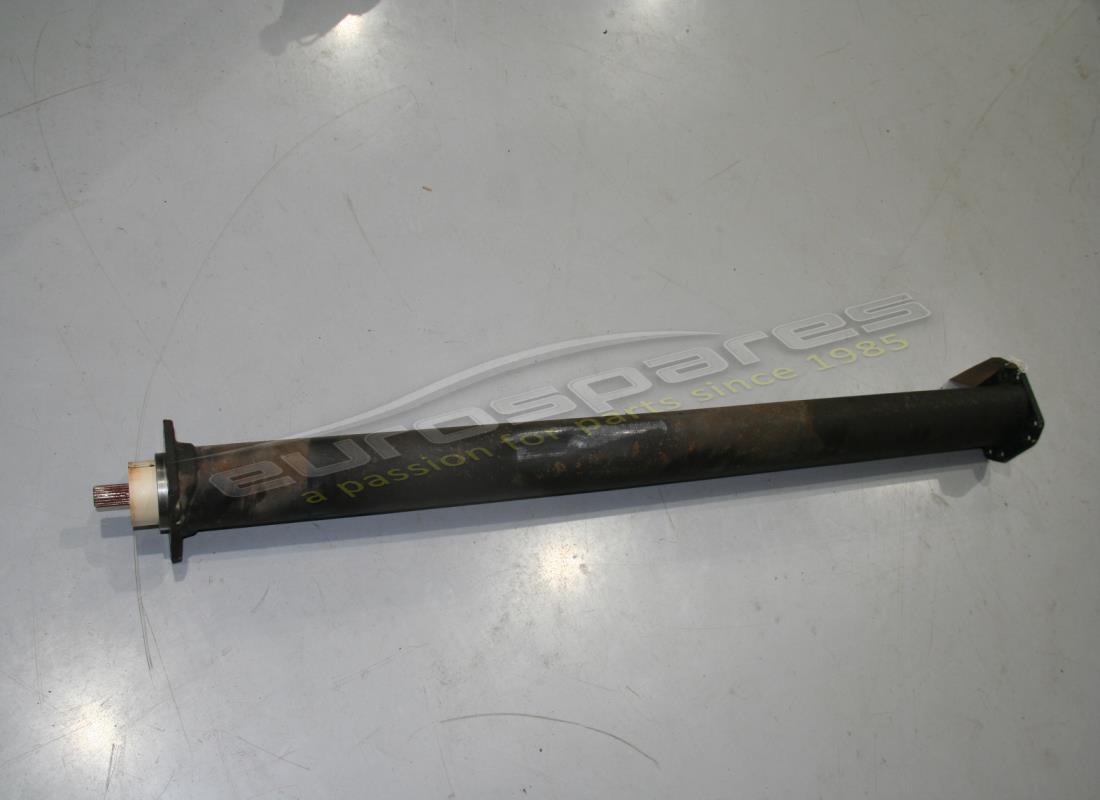

ENGINE-GEARBOX CONNECTING PIPE
- Not for 456M GTA
from £1,253.79
from £1,253.79
# 005
MPN: 176907
ENGINE-GEARBOX CONNECTING PIPE
- Valid for 456M GTA
from £969.53
from £969.53
# 006
MPN: 157057
INTERMEDIATE SPACER
- Not for 456M GTA
from £63.80
from £63.80
# 006
MPN: 162447
INTERMEDIATE SPACER
- Valid for 456M GTA
from £81.49
from £81.49
# 007
MPN: 157056
GEARBOX SIDE SPACER
- Not for 456M GTA
from £74.31
from £74.31
# 007
MPN: 169800
GEARBOX SIDE SPACER
- Valid for 456M GTA
from £123.38
from £123.38
# 008
MPN: 156462
NUT
Supersession
Supersession
# 009
MPN: 65505900
RH HEAT PROTECTION SHIELD
from £45.89
from £45.89
# 010
MPN: 65506100
LH HEAT PROTECTION SHIELD
from £45.89
from £45.89
# 011
MPN: 10902124
SCREW
from £0.50
from £0.50
This part replaces part number 10902111 - and 1 more. Click to view details
# 012
MPN: 65774200
NUT WITH CAGE
from £0.56
from £0.56
# 013
MPN: 14488670
WASHER
(minimum order quantity = 20)
from £0.71
from £0.71
# 014
MPN: 64234200
HEAT PROTECTION SHIELD FOR CLUTCH HOUSING
- Not for 456M GTA
from £321.88
from £321.88
# 014
MPN: 65648900
HEAT PROTECTION SHIELD FOR CLUTCH HOUSING
- Valid for 456M GTA
from £465.69
from £465.69
# 015
MPN: 63964100
TUNNEL ASSEMBLY
- Not for 456M GTA
from £2,541.93
from £2,541.93
# 015
MPN: 65649100
TUNNEL ASSEMBLY
- Valid for 456M GTA
from £1,258.74
from £1,258.74
# 016
MPN: 10902380
SCREW
(minimum order quantity = 20)
from £1.13
from £1.13
# 017
MPN: 12643770
WASHER
from £0.71
from £0.71
# 018
MPN: 63940000
RUBBER BOOT
- Not for 456M GTA
from £212.36
from £212.36
# 018
MPN: 64888600
RUBBER BOOT
- Valid for 456M GTA
from £169.73
from £169.73
# 019
MPN: 63939600
RH UNDERFLOOR SHIELD
from £280.12
from £280.12
# 019
MPN: 63939700
LH UNDERFLOOR SHIELD
from £112.05
from £112.05
# 020
MPN: 65774200
NUT WITH CAGE
from £0.56
from £0.56
# 021
MPN: 10902180
SCREW
from £0.71
from £0.71
# 022
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.49
from £0.49
This part replaces part number 10516470 - and 4 more. Click to view details
# 023
MPN: 12643770
WASHER
- Front part
from £0.71
from £0.71
# 023
MPN: 14488670
WASHER
(minimum order quantity = 20)
from £0.71
from £0.71
# 024
MPN: 162393
THREADED PLUG
- Not for 456M GTA
from £2.80
from £2.80
# 025
MPN: 155474
TUNNEL SHIELD
- Not for 456M GTA
from £779.15
from £779.15
# 025
MPN: 65649300
TUNNEL SHIELD
- Valid for 456M GTA
from £222.23
from £222.23
# 026
MPN: 10520224
WASHER
- Not for 456M GTA
from £0.47
from £0.47
This part replaces part number 10520221 which we have in stock
# 027
MPN: 172558
SLEEVE
- Valid for 456M GTA
from £46.38
from £46.38
# 028
MPN: 14306524
SCREW
- Valid for 456M GTA
from £0.53
from £0.53
This part replaces part number 14306521
# 029
MPN: 10569373
WASHER
- Valid for 456M GTA
from £0.47
from £0.47
# 030
MPN: 158292
RH FRONT SHIELD
- Valid for AUS and J
from £88.71
from £88.71
# 031
MPN: 158293
LH FRONT SHIELD
- Valid for AUS and J
from £65.46
from £65.46
# 032
MPN: 178561
CENTRAL SHIELD
- Valid for AUS and J
from £58.62
from £58.62
# 033
MPN: 178562
REAR SHIELD
- Valid for AUS and J
from £75.88
from £75.88
# 034
MPN: 10902180
SCREW
- Valid for AUS and J
from £0.75
from £0.75
# 035
MPN: 60659100
NUT WITH CAGE
- Valid for AUS and J
from £0.59
from £0.59
This part replaces part number 0-166-1-039-50 - and 1 more. Click to view details
# 036
MPN: 127494
WASHER
- Valid for AUS and J - (minimum order quantity = 20)
from £0.52
from £0.52
This part replaces part number 10516470 - and 4 more. Click to view details
# 037
MPN: 12643770
WASHER
- Valid for AUS and J
from £0.71
from £0.71
# 038
MPN: 12625224
WASHER
- Valid for AUS and J
from £0.53
from £0.53
This part replaces part number 12625201 - and 2 more. Click to view details
# 039
MPN: 65914900
PLATE
- Valid for 456M GTA
from £22.00
from £22.00
# 039
MPN: 65915000
PLATE
- Not for 456M GTA
from £22.00
from £22.00
# 040
MPN: 61741600
RIVET
from £0.53
from £0.53
