ferrari 456 m gt/m gta pedals and accelerator control -not for gd parts diagram

045 - Pedals and Accelerator Control -Not for GD

Ferrari 456 M GT/M GTA Pedals and Accelerator Control -Not for GD Parts Diagram

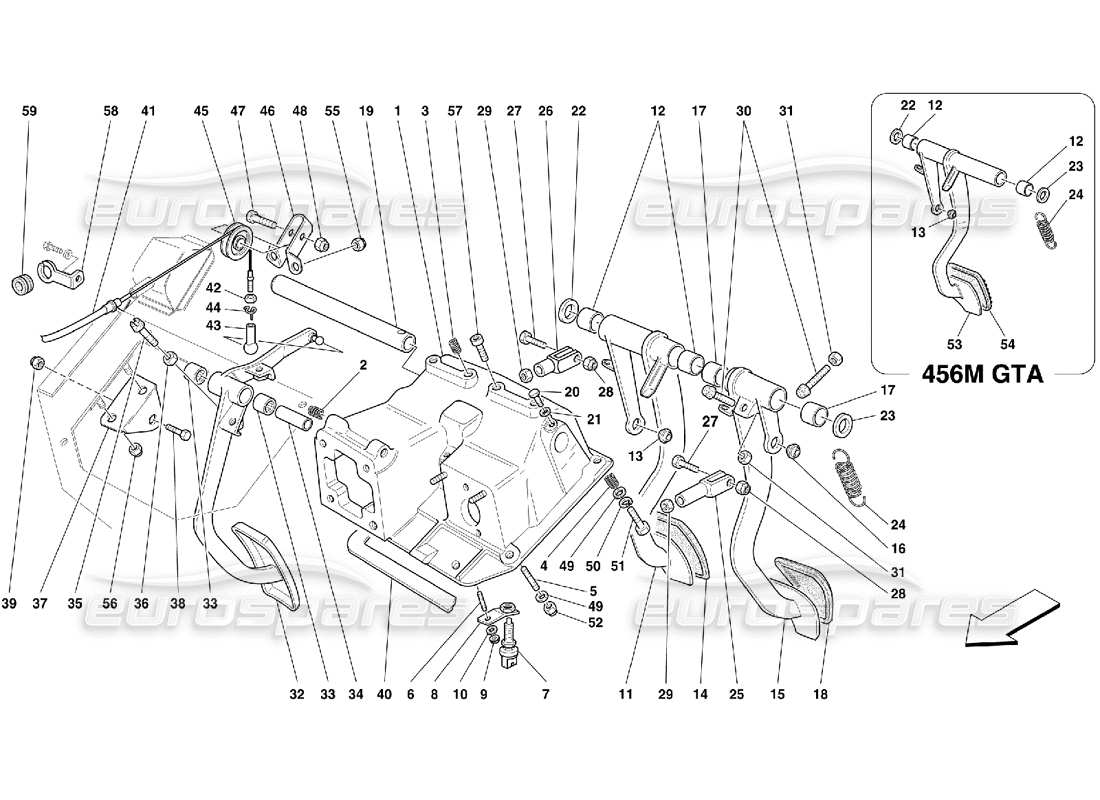

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 000
                                                                                      MPN: 178879
                                                                                      COMPLETE PEDAL SUPPORT
                                                                                      from £433.09
                                                                                      from £433.09
                                                                                      This part replaces part number 175097 - and 1 more. Click to view details
                                                                                      # 001
                                                                                      MPN: 175097
                                                                                      PEDAL SUPPORT
                                                                                      - Not as spare part - With complete pedal support
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 002
                                                                                      MPN: 13525770
                                                                                      THREADED INSERT
                                                                                      from £1.55
                                                                                      from £1.55
                                                                                      This part replaces part number 103830
                                                                                      # 003
                                                                                      MPN: 13525470
                                                                                      THREADED INSERT
                                                                                      from £0.48
                                                                                      from £0.48
                                                                                      This part replaces part number 107333
                                                                                      # 004
                                                                                      MPN: 13525770
                                                                                      THREADED INSERT
                                                                                      from £1.55
                                                                                      from £1.55
                                                                                      This part replaces part number 103830
                                                                                      # 005
                                                                                      MPN: 13516824
                                                                                      STUD
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 13516821
                                                                                      # 006
                                                                                      MPN: 11500224
                                                                                      STUD
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 11500221 - and 1 more. Click to view details
                                                                                      # 007
                                                                                      MPN: 133555
                                                                                      STOP LIGHT SWITCH
                                                                                      from £18.75
                                                                                      from £18.75
                                                                                      # 008
                                                                                      MPN: 152310
                                                                                      SMALL PLATE
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      # 009
                                                                                      MPN: 14058411
                                                                                      NUT
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 010
                                                                                      MPN: 12646601
                                                                                      WASHER
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      # 011
                                                                                      MPN: 174244
                                                                                      BRAKE PEDAL
                                                                                      - Not for 456M GTA
                                                                                      from £650.50
                                                                                      from £650.50
                                                                                      # 012
                                                                                      MPN: 103163
                                                                                      BUSHING
                                                                                      from £2.85
                                                                                      from £2.85
                                                                                      # 013
                                                                                      MPN: 109407
                                                                                      BALL JOINT
                                                                                      from £21.95
                                                                                      from £21.95
                                                                                      # 014
                                                                                      MPN: 106950
                                                                                      PEDAL RUBBER
                                                                                      - Not for 456M GTA
                                                                                      from £11.78
                                                                                      from £11.78
                                                                                      # 015
                                                                                      MPN: 174245
                                                                                      CLUTCH PEDAL
                                                                                      - Not for 456M GTA
                                                                                      from £565.43
                                                                                      from £565.43
                                                                                      # 016
                                                                                      MPN: 109407
                                                                                      BALL JOINT
                                                                                      - Not for 456M GTA
                                                                                      from £21.95
                                                                                      from £21.95
                                                                                      # 017
                                                                                      MPN: 103163
                                                                                      BUSHING
                                                                                      - Not for 456M GTA
                                                                                      from £2.85
                                                                                      from £2.85
                                                                                      # 018
                                                                                      MPN: 106949
                                                                                      PEDAL RUBBER
                                                                                      - Not for 456M GTA
                                                                                      from £18.10
                                                                                      from £18.10
                                                                                      # 019
                                                                                      MPN: 129954
                                                                                      PEDALS SUPPORT PIN
                                                                                      from £198.75
                                                                                      from £198.75
                                                                                      # 020
                                                                                      MPN: 10902224
                                                                                      SCREW
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 021
                                                                                      MPN: 12601274
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                      # 022
                                                                                      MPN: 106083
                                                                                      SPACER WASHER
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      # 023
                                                                                      MPN: 106083
                                                                                      WASHER MM.1.0
                                                                                      - Possible fitting
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      # 023
                                                                                      MPN: 113833
                                                                                      DITTO THICKNESS MM.1.1
                                                                                      from £1.85
                                                                                      from £1.85
                                                                                      # 023
                                                                                      MPN: 113834
                                                                                      DITTO THICKNESS MM.1.2
                                                                                      from £2.09
                                                                                      from £2.09
                                                                                      # 023
                                                                                      MPN: 113835
                                                                                      DITTO THICKNESS MM.1.3
                                                                                      from £1.85
                                                                                      from £1.85
                                                                                      # 023
                                                                                      MPN: 113836
                                                                                      DITTO THICKNESS MM.1.4
                                                                                      from £2.31
                                                                                      from £2.31
                                                                                      # 024
                                                                                      MPN: 101305
                                                                                      SPRING
                                                                                      - For 456M GTA Q.ty 1
                                                                                      from £8.15
                                                                                      from £8.15
                                                                                      This part replaces part number 660343
                                                                                      # 025
                                                                                      MPN: 164393
                                                                                      FORK FOR CLUTCH LEVER
                                                                                      - Not for 456M GTA
                                                                                      from £30.77
                                                                                      from £30.77
                                                                                      # 026
                                                                                      MPN: 10007871
                                                                                      FORK FOR BRAKE LEVER
                                                                                      from £5.83
                                                                                      from £5.83
                                                                                      # 027
                                                                                      MPN: 16043621
                                                                                      SCREW
                                                                                      - For 456M GTA Q.ty 1
                                                                                      from £1.08
                                                                                      from £1.08
                                                                                      # 028
                                                                                      MPN: 147985
                                                                                      NUT
                                                                                      - For 456M GTA Q.ty 1
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 029
                                                                                      MPN: 16102314
                                                                                      NUT
                                                                                      - For 456M GTA Q.ty 1
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 16102311 - and 1 more. Click to view details
                                                                                      # 030
                                                                                      MPN: 144011
                                                                                      PIN
                                                                                      - Not for 456M GTA
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 031
                                                                                      MPN: 16102314
                                                                                      NUT
                                                                                      - Not for 456M GTA
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 16102311 - and 1 more. Click to view details
                                                                                      # 032
                                                                                      MPN: 174556
                                                                                      Accelerator Pedal
                                                                                      from £45.32
                                                                                      from £45.32
                                                                                      # 033
                                                                                      MPN: 101677
                                                                                      ROLLER BEARING
                                                                                      from £2.04
                                                                                      from £2.04
                                                                                      # 034
                                                                                      MPN: 138219
                                                                                      CARRIER BUSH
                                                                                      from £58.51
                                                                                      from £58.51
                                                                                      # 035
                                                                                      MPN: 123961
                                                                                      PIN
                                                                                      from £2.48
                                                                                      from £2.48
                                                                                      # 036
                                                                                      MPN: 16102314
                                                                                      NUT
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 16102311 - and 1 more. Click to view details
                                                                                      # 037
                                                                                      MPN: 152328
                                                                                      ACCELERATOR SUPPORT
                                                                                      from £7.62
                                                                                      from £7.62
                                                                                      # 038
                                                                                      MPN: 10903621
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 039
                                                                                      MPN: 102741
                                                                                      NUT
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                      # 040
                                                                                      MPN: 170706
                                                                                      GASKET
                                                                                      from £7.25
                                                                                      from £7.25
                                                                                      # 041
                                                                                      MPN: 156123

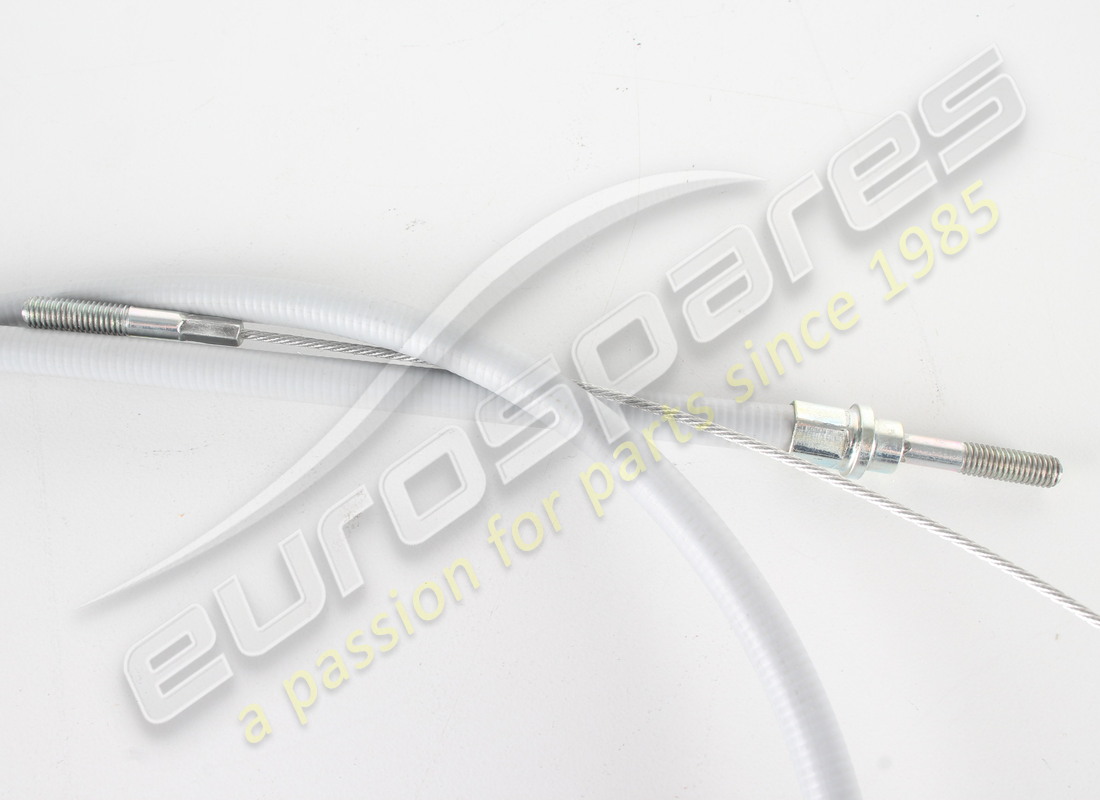

                                                                                      RHD ACCELERATOR CABLE
                                                                                      from £14.42
                                                                                      from £14.42
                                                                                      # 041
                                                                                      MPN: 159536
                                                                                      LHD ACCELERATOR CABLE
                                                                                      from £47.59
                                                                                      from £47.59
                                                                                      # 042
                                                                                      MPN: 15896470
                                                                                      NUT
                                                                                      (minimum order quantity = 20)
                                                                                      from £0.78
                                                                                      from £0.78
                                                                                      This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                      # 043
                                                                                      MPN: 173999
                                                                                      RH THREAD THROTTLE BALL JOINT
                                                                                      from £4.17
                                                                                      from £4.17
                                                                                      This part replaces part number 105617
                                                                                      # 044
                                                                                      MPN: 174001
                                                                                      CLIP
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 10124776 - and 1 more. Click to view details
                                                                                      # 045
                                                                                      MPN: 157557
                                                                                      PULLEY
                                                                                      from £11.42
                                                                                      from £11.42
                                                                                      This part replaces part number 105665 - and 3 more. Click to view details
                                                                                      # 046
                                                                                      MPN: 152377
                                                                                      SUPPORT
                                                                                      from £22.13
                                                                                      from £22.13
                                                                                      # 047
                                                                                      MPN: 10902624
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 10902621
                                                                                      # 048
                                                                                      MPN: 102741
                                                                                      NUT
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                      # 049
                                                                                      MPN: 14499401
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 050
                                                                                      MPN: 127496
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                      # 051
                                                                                      MPN: 16043324
                                                                                      SCREW
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 16043321
                                                                                      # 052
                                                                                      MPN: 104030
                                                                                      NUT
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 16104125
                                                                                      # 053
                                                                                      MPN: 174305
                                                                                      BRAKE PEDAL
                                                                                      - Valid for 456M GTA
                                                                                      from £308.14
                                                                                      from £308.14
                                                                                      # 054
                                                                                      MPN: 144237
                                                                                      PEDAL RUBBER
                                                                                      - Valid for 456M GTA
                                                                                      from £56.08
                                                                                      from £56.08
                                                                                      # 055
                                                                                      MPN: 102948
                                                                                      NUT
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                      # 056
                                                                                      MPN: 104030
                                                                                      NUT
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 16104125
                                                                                      # 057
                                                                                      MPN: 13276011
                                                                                      SCREW
                                                                                      from £13.53
                                                                                      from £13.53
                                                                                      # 058
                                                                                      MPN: 175257
                                                                                      BRACKET
                                                                                      from £44.50
                                                                                      from £44.50
                                                                                      This part replaces part number 168239
                                                                                      # 059
                                                                                      MPN: 10396680
                                                                                      CABLE GROMMET
                                                                                      from £1.08
                                                                                      from £1.08
