ferrari 456 m gt/m gta caliper for front brake parts diagram

050 - Caliper for Front Brake

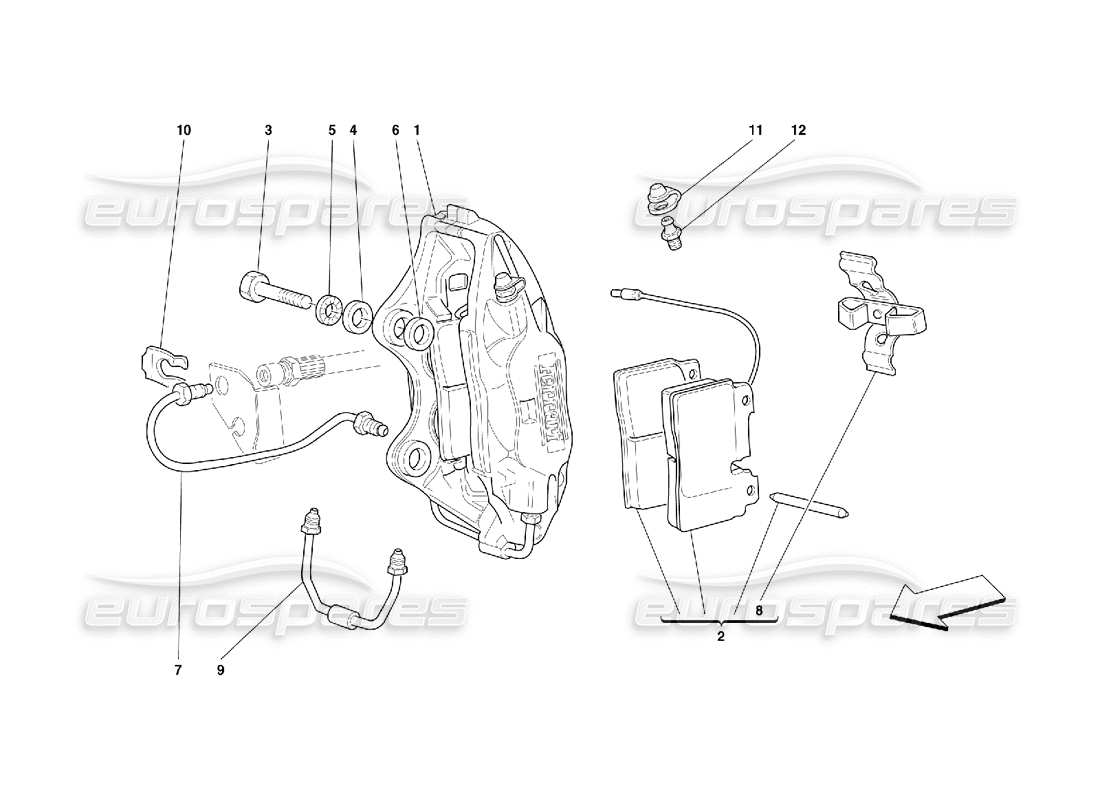

Ferrari 456 M GT/M GTA Caliper for Front Brake Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                        #
                        Part number
                        Description
                        Price
                        # 001
                        MPN: 178902

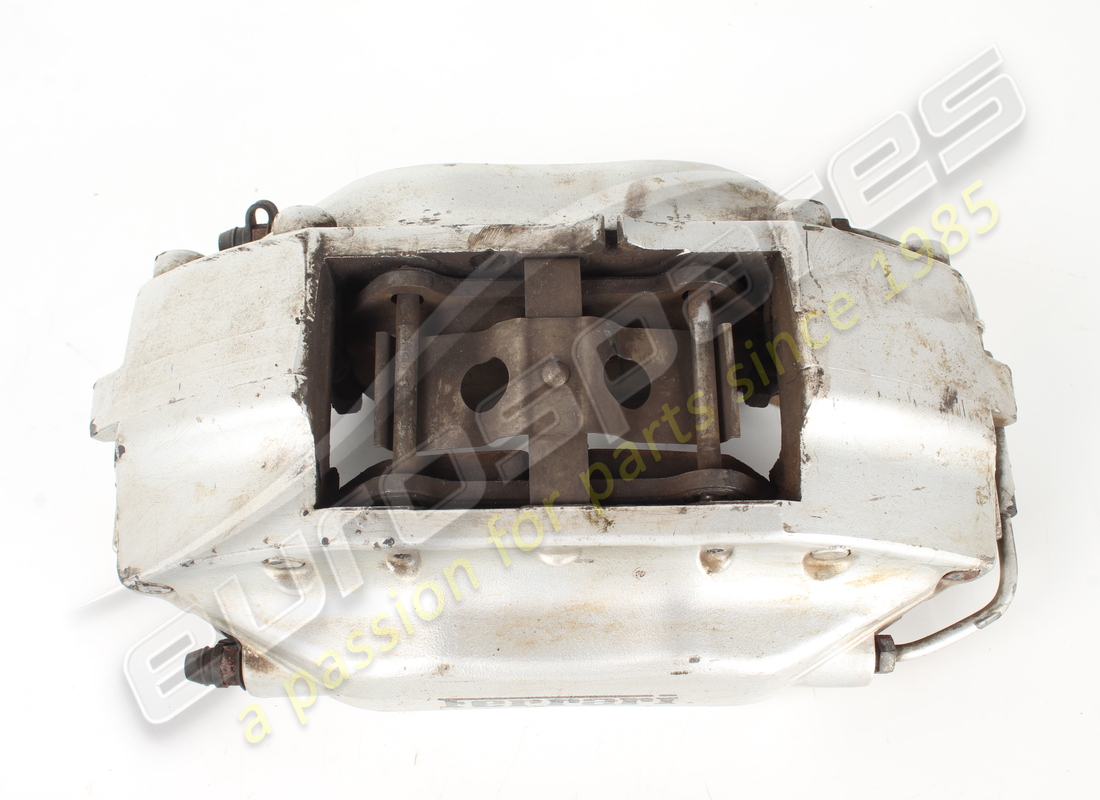

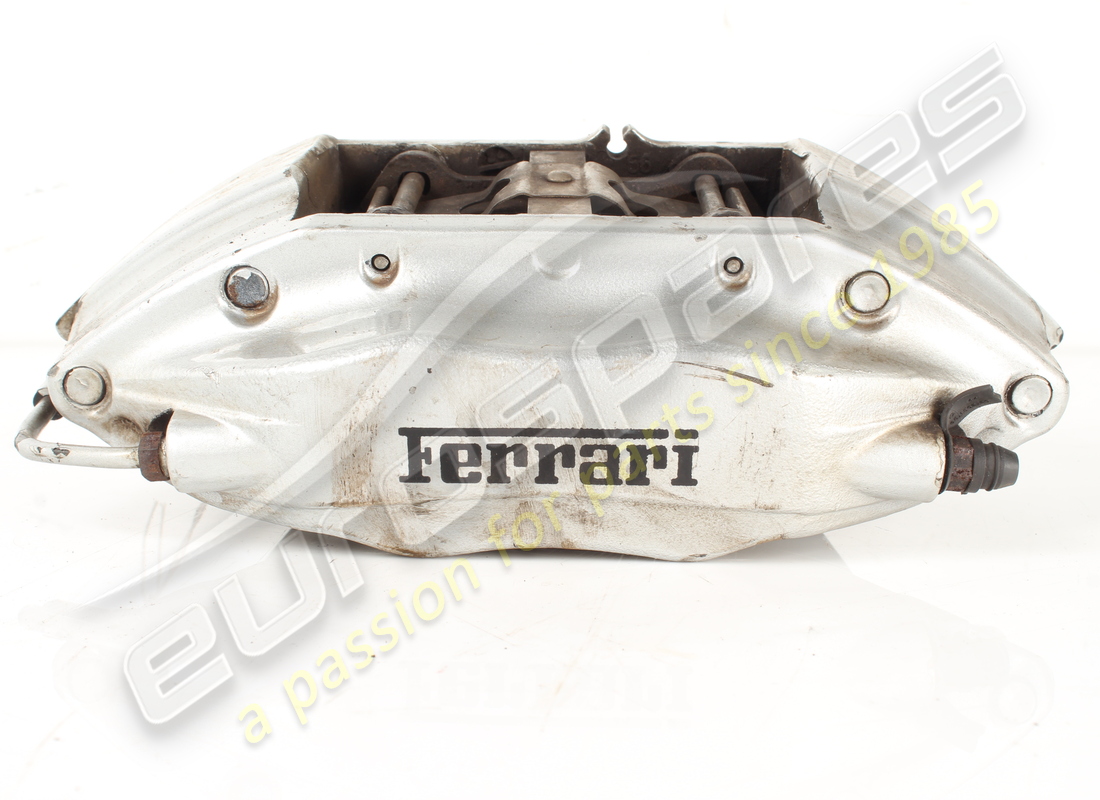

                        RH FRONT CALIPER UNIT WITH PADS
                        from £227.05
                        from £227.05
                        This part replaces part number 169850 - and 3 more. Click to view details
                        # 001
                        MPN: 178903
                        LH FRONT CALIPER UNIT WITH PADS
                        from £566.47
                        from £566.47
                        This part replaces part number 169851 - and 3 more. Click to view details
                        # 001
                        MPN: 178908
                        RH FRONT CALIPER UNIT WITH PADS
                        - Red
                        from £882.51
                        from £882.51
                        This part replaces part number 175539
                        # 001
                        MPN: 178909
                        LH FRONT CALIPER UNIT WITH PADS
                        - Red
                        from £882.51
                        from £882.51
                        This part replaces part number 175540
                        # 001
                        MPN: 178914
                        RH FRONT CALIPER UNIT WITH PADS
                        - Gold
                        from £1,158.21
                        from £1,158.21
                        # 001
                        MPN: 178915
                        LH FRONT CALIPER UNIT WITH PADS
                        - Gold
                        from £1,193.69
                        from £1,193.69
                        # 001
                        MPN: 178920
                        RH FRONT CALIPER UNIT WITH PADS
                        - Grey
                        from £1,158.21
                        from £1,158.21
                        # 001
                        MPN: 178921
                        LH FRONT CALIPER UNIT WITH PADS
                        - Grey
                        from £1,158.21
                        from £1,158.21
                        # 002
                        MPN: 70000924
                        KIT OF FRONT PADS WITH SPRING FOR CALIPERS
                        from £288.05
                        from £288.05
                        This part replaces part number 70000881
                        # 003
                        MPN: 174214
                        SCREW
                        from £1.30
                        from £1.30
                        This part replaces part number 132213 which we have in stock - and 3 more. Click to view details
                        # 004
                        MPN: 106616
                        WASHER
                        from £0.76
                        from £0.76
                        # 005
                        MPN: 10615874
                        WASHER
                        from £0.47
                        from £0.47
                        This part replaces part number 10615870 which we have in stock - and 1 more. Click to view details
                        # 006
                        MPN: 156260
                        THRUST WASHER BETWEEN CALIPER AND SPINDLE TH. MM.0.2
                        from £0.64
                        from £0.64
                        This part replaces part number 108918
                        # 006
                        MPN: 156261
                        DITTO THICKNESS MM.0.3
                        from £2.97
                        from £2.97
                        This part replaces part number 108919
                        # 006
                        MPN: 156262
                        DITTO THICKNESS MM.0.5
                        from £0.64
                        from £0.64
                        This part replaces part number 108920
                        # 006
                        MPN: 156263
                        DITTO THICKNESS MM.0.6
                        from £0.65
                        from £0.65
                        This part replaces part number 108921
                        # 006
                        MPN: 156264
                        DITTO THICKNESS MM.0.7
                        from £0.67
                        from £0.67
                        This part replaces part number 108922
                        # 006
                        MPN: 156265
                        DITTO THICKNESS MM.0.8
                        from £1.56
                        from £1.56
                        This part replaces part number 108923
                        # 006
                        MPN: 156266
                        DITTO THICKNESS MM.1.0
                        from £0.64
                        from £0.64
                        This part replaces part number 108924
                        # 007
                        MPN: 163151
                        PIPE TO LH FRONT CALIPER
                        Supersession
                        Supersession
                        # 007
                        MPN: 212528
                        PIPE TO RH FRONT CALIPER
                        from £65.93
                        from £65.93
                        This part replaces part number 163150
                        # 008
                        MPN: 172348
                        SPRING
                        from £18.79
                        from £18.79
                        # 009
                        MPN: 172868
                        CONNECTION PIPE
                        from £31.27
                        from £31.27
                        # 010
                        MPN: 116374
                        CLIP
                        from £1.16
                        from £1.16
                        # 011
                        MPN: 152955
                        PROTECTION BOOT
                        from £2.95
                        from £2.95
                        # 012
                        MPN: 152954
                        UNION WITH EXHAUST VALVE
                        from £3.18
                        from £3.18
