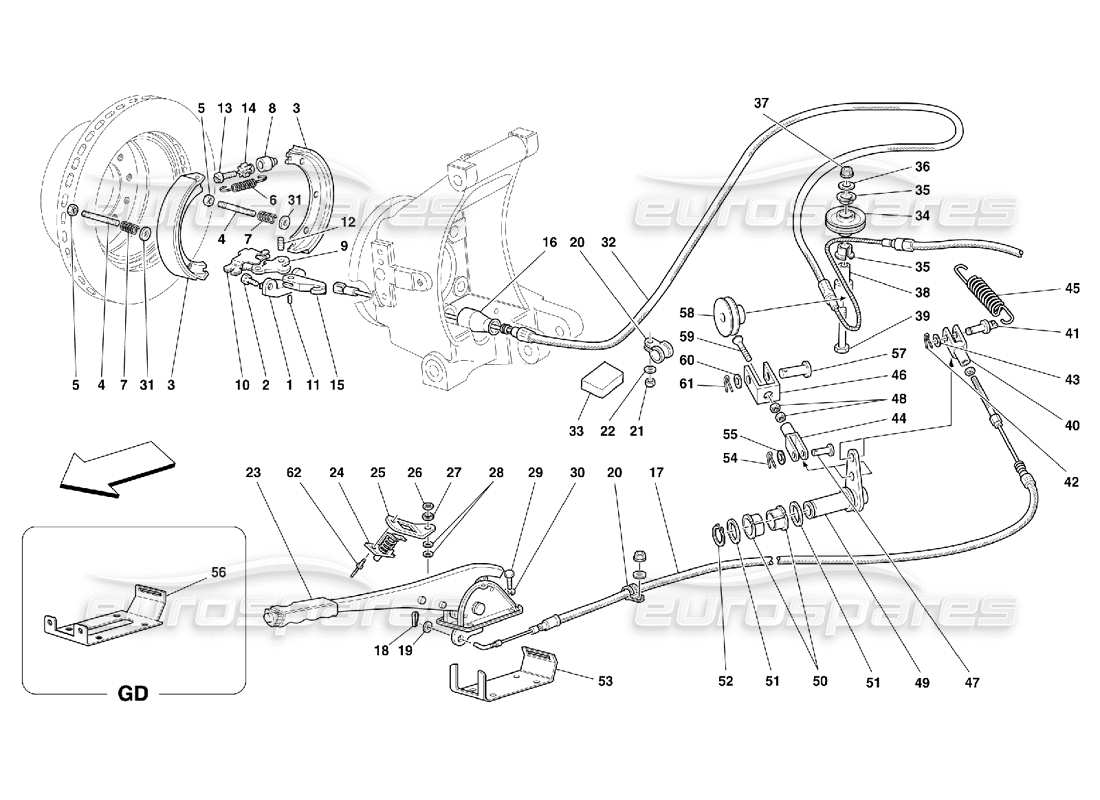

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Price
                                                                                                                    # 001
                                                                                                                    MPN: 142861
                                                                                                                    SMALL BLOCK
                                                                                                                    from £81.94
                                                                                                                    from £81.94
                                                                                                                    # 002
                                                                                                                    MPN: 142856
                                                                                                                    SCREW
                                                                                                                    from £2.47
                                                                                                                    from £2.47
                                                                                                                    # 003
                                                                                                                    MPN: 178382
                                                                                                                    COMPLETE BRAKE SHOE
                                                                                                                    use part number: 170701
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 004
                                                                                                                    MPN: 13539224
                                                                                                                    STUD
                                                                                                                    from £2.48
                                                                                                                    from £2.48
                                                                                                                    # 005
                                                                                                                    MPN: 14058319
                                                                                                                    NUT
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 139951 - and 1 more. Click to view details
                                                                                                                    # 006
                                                                                                                    MPN: 101276
                                                                                                                    SPRING
                                                                                                                    from £1.52
                                                                                                                    from £1.52
                                                                                                                    This part replaces part number 680516 - and 6 more. Click to view details
                                                                                                                    # 007
                                                                                                                    MPN: 177625
                                                                                                                    SPRING
                                                                                                                    from £65.63
                                                                                                                    from £65.63
                                                                                                                    # 008
                                                                                                                    MPN: 101279
                                                                                                                    SCREW SEAT
                                                                                                                    from £31.50
                                                                                                                    from £31.50
                                                                                                                    # 009
                                                                                                                    MPN: 101280
                                                                                                                    INNER LEVER
                                                                                                                    from £26.31
                                                                                                                    from £26.31
                                                                                                                    This part replaces part number 680538 - and 6 more. Click to view details
                                                                                                                    # 010
                                                                                                                    MPN: 101281
                                                                                                                    OUTER LEVER
                                                                                                                    from £34.41
                                                                                                                    from £34.41
                                                                                                                    This part replaces part number 680539 - and 7 more. Click to view details
                                                                                                                    # 011
                                                                                                                    MPN: 101282
                                                                                                                    PIN
                                                                                                                    from £4.02
                                                                                                                    from £4.02
                                                                                                                    This part replaces part number 680540 - and 1 more. Click to view details
                                                                                                                    # 012
                                                                                                                    MPN: 101283
                                                                                                                    PIN
                                                                                                                    from £8.70
                                                                                                                    from £8.70
                                                                                                                    This part replaces part number 680541 - and 3 more. Click to view details
                                                                                                                    # 013
                                                                                                                    MPN: 101285
                                                                                                                    SCREW
                                                                                                                    from £18.13
                                                                                                                    from £18.13
                                                                                                                    This part replaces part number 680543 - and 8 more. Click to view details
                                                                                                                    # 014
                                                                                                                    MPN: 101286
                                                                                                                    NUT
                                                                                                                    from £21.81
                                                                                                                    from £21.81
                                                                                                                    This part replaces part number 680544 - and 6 more. Click to view details
                                                                                                                    # 016
                                                                                                                    MPN: 143938
                                                                                                                    STOP LIMIT FOR HAND BRAKE SHEATH
                                                                                                                    from £16.30
                                                                                                                    from £16.30
                                                                                                                    # 017
                                                                                                                    MPN: 172908
                                                                                                                    HAND-BRAKE CONTROL FRONT CABLE
                                                                                                                    from £12.86
                                                                                                                    from £12.86
                                                                                                                    # 018
                                                                                                                    MPN: 10796440
                                                                                                                    SPLIT PIN
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 264555
                                                                                                                    # 019
                                                                                                                    MPN: 10519624
                                                                                                                    WASHER
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                                    # 020
                                                                                                                    MPN: 10441290
                                                                                                                    BRACKET WITH SHEATH
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 021
                                                                                                                    MPN: 102741
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                    # 022
                                                                                                                    MPN: 10519424
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 10519401 - and 3 more. Click to view details
                                                                                                                    # 023
                                                                                                                    MPN: 154095
                                                                                                                    HAND BRAKE LEVER
                                                                                                                    - Without lining
                                                                                                                    from £241.17
                                                                                                                    from £241.17
                                                                                                                    This part replaces part number 141460 - and 2 more. Click to view details
                                                                                                                    # 023
                                                                                                                    MPN: 657538..
                                                                                                                    LINING
                                                                                                                    - See relevant table for leather colours
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 025
                                                                                                                    MPN: 169291
                                                                                                                    BRACKET
                                                                                                                    from £1.55
                                                                                                                    from £1.55
                                                                                                                    # 026
                                                                                                                    MPN: 15896470
                                                                                                                    NUT
                                                                                                                    (minimum order quantity = 20)
                                                                                                                    from £0.78
                                                                                                                    from £0.78
                                                                                                                    This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                                    # 027
                                                                                                                    MPN: 12605274
                                                                                                                    WASHER
                                                                                                                    from £0.71
                                                                                                                    from £0.71
                                                                                                                    This part replaces part number 12605270 - and 1 more. Click to view details
                                                                                                                    # 029
                                                                                                                    MPN: 10902124
                                                                                                                    SCREW
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                                    # 030
                                                                                                                    MPN: 127494
                                                                                                                    WASHER
                                                                                                                    (minimum order quantity = 20)
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                    # 031
                                                                                                                    MPN: 12637824
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 12637801 - and 1 more. Click to view details
                                                                                                                    # 032
                                                                                                                    MPN: 172909
                                                                                                                    HAND-BRAKE CONTROL REAR CABLE
                                                                                                                    from £18.10
                                                                                                                    from £18.10
                                                                                                                    # 033
                                                                                                                    MPN: 158346
                                                                                                                    RUBBER THICKNESS
                                                                                                                    from £0.80
                                                                                                                    from £0.80
                                                                                                                    # 034
                                                                                                                    MPN: 175781
                                                                                                                    PULLEY
                                                                                                                    from £29.08
                                                                                                                    from £29.08
                                                                                                                    This part replaces part number 163188 - and 3 more. Click to view details
                                                                                                                    # 035
                                                                                                                    MPN: 163501
                                                                                                                    BUSHING
                                                                                                                    from £2.47
                                                                                                                    from £2.47
                                                                                                                    # 036
                                                                                                                    MPN: 14496424
                                                                                                                    WASHER
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 14496401 - and 3 more. Click to view details
                                                                                                                    # 037
                                                                                                                    MPN: 102948
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                                                    # 038
                                                                                                                    MPN: 163182
                                                                                                                    PIN
                                                                                                                    from £5.30
                                                                                                                    from £5.30
                                                                                                                    # 039
                                                                                                                    MPN: 10903421
                                                                                                                    SCREW
                                                                                                                    from £1.08
                                                                                                                    from £1.08
                                                                                                                    # 040
                                                                                                                    MPN: 10007871
                                                                                                                    FORK
                                                                                                                    from £5.83
                                                                                                                    from £5.83
                                                                                                                    # 041
                                                                                                                    MPN: 168954
                                                                                                                    PIN
                                                                                                                    from £17.79
                                                                                                                    from £17.79
                                                                                                                    # 042
                                                                                                                    MPN: 10734301
                                                                                                                    SPLIT PIN
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 043
                                                                                                                    MPN: 107618
                                                                                                                    WASHER
                                                                                                                    from £0.97
                                                                                                                    from £0.97
                                                                                                                    # 044
                                                                                                                    MPN: 10248271
                                                                                                                    FORK
                                                                                                                    from £12.83
                                                                                                                    from £12.83
                                                                                                                    # 046
                                                                                                                    MPN: 172906
                                                                                                                    FORK
                                                                                                                    from £12.61
                                                                                                                    from £12.61
                                                                                                                    # 047
                                                                                                                    MPN: 10050814
                                                                                                                    PIN
                                                                                                                    from £1.29
                                                                                                                    from £1.29
                                                                                                                    This part replaces part number 10050811
                                                                                                                    # 048
                                                                                                                    MPN: 16102314
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 16102311 - and 1 more. Click to view details
                                                                                                                    # 049
                                                                                                                    MPN: 163192
                                                                                                                    BRAKE LEVER CABLE
                                                                                                                    from £101.20
                                                                                                                    from £101.20
                                                                                                                    # 050
                                                                                                                    MPN: 152273
                                                                                                                    BUSHING
                                                                                                                    from £5.44
                                                                                                                    from £5.44
                                                                                                                    # 051
                                                                                                                    MPN: 152300
                                                                                                                    WASHER
                                                                                                                    from £0.92
                                                                                                                    from £0.92
                                                                                                                    # 052
                                                                                                                    MPN: 11066476
                                                                                                                    SEEGER RING
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 053
                                                                                                                    MPN: 64051200
                                                                                                                    SUPPORT
                                                                                                                    from £8.50
                                                                                                                    from £8.50
                                                                                                                    # 054
                                                                                                                    MPN: 10734301
                                                                                                                    SPLIT PIN
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 055
                                                                                                                    MPN: 10519624
                                                                                                                    WASHER
                                                                                                                    from £0.54
                                                                                                                    from £0.54
                                                                                                                    This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                                    # 056
                                                                                                                    MPN: 65562800
                                                                                                                    BRACKET
                                                                                                                    - Valid for GD
                                                                                                                    from £7.94
                                                                                                                    from £7.94
                                                                                                                    # 057
                                                                                                                    MPN: 172907
                                                                                                                    PIN
                                                                                                                    from £4.03
                                                                                                                    from £4.03
                                                                                                                    # 058
                                                                                                                    MPN: 175781
                                                                                                                    PULLEY
                                                                                                                    from £29.08
                                                                                                                    from £29.08
                                                                                                                    This part replaces part number 163188 - and 3 more. Click to view details
                                                                                                                    # 059
                                                                                                                    MPN: 14442434
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 060
                                                                                                                    MPN: 14499624
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 061
                                                                                                                    MPN: 10733601
                                                                                                                    SPLIT PIN
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number C1
                                                                                                                    # 062
                                                                                                                    MPN: 50084409
                                                                                                                    RIVET
                                                                                                                    from £0.93
                                                                                                                    from £0.93
