ferrari 456 m gt/m gta steering column parts diagram

056 - Steering Column

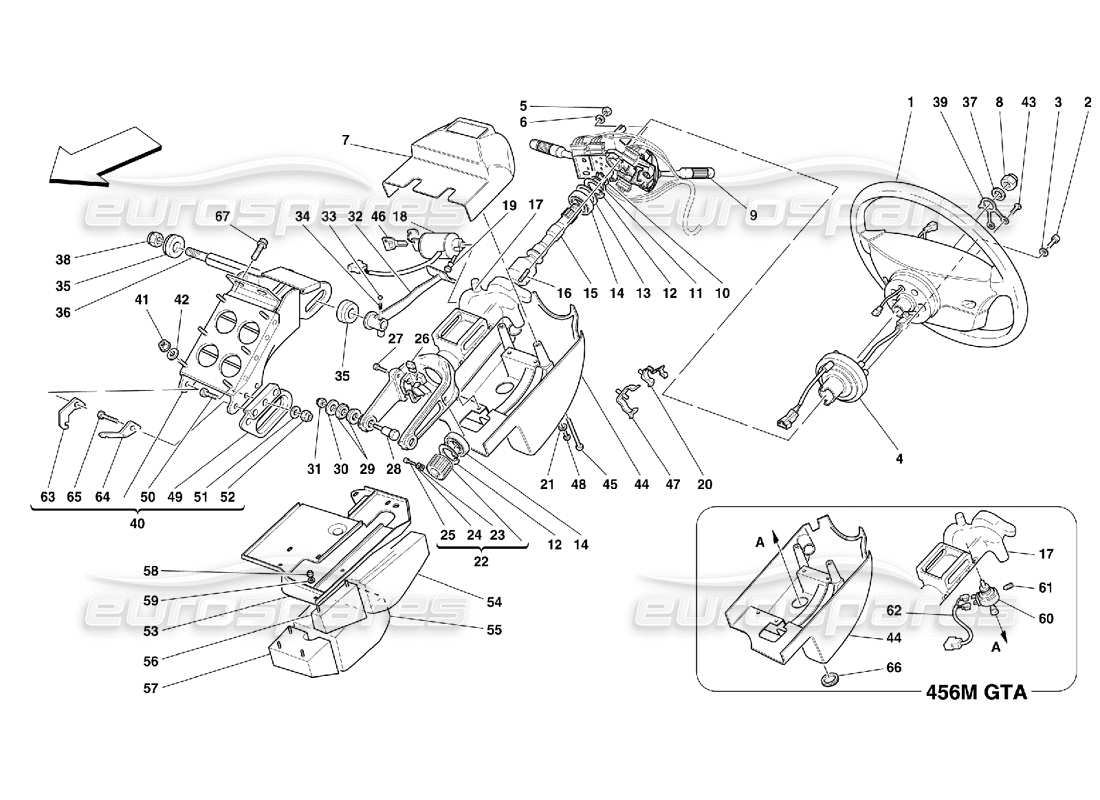

Ferrari 456 M GT/M GTA Steering Column Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                  #
                                                                                                                  Part number
                                                                                                                  Description
                                                                                                                  Price
                                                                                                                  # 001

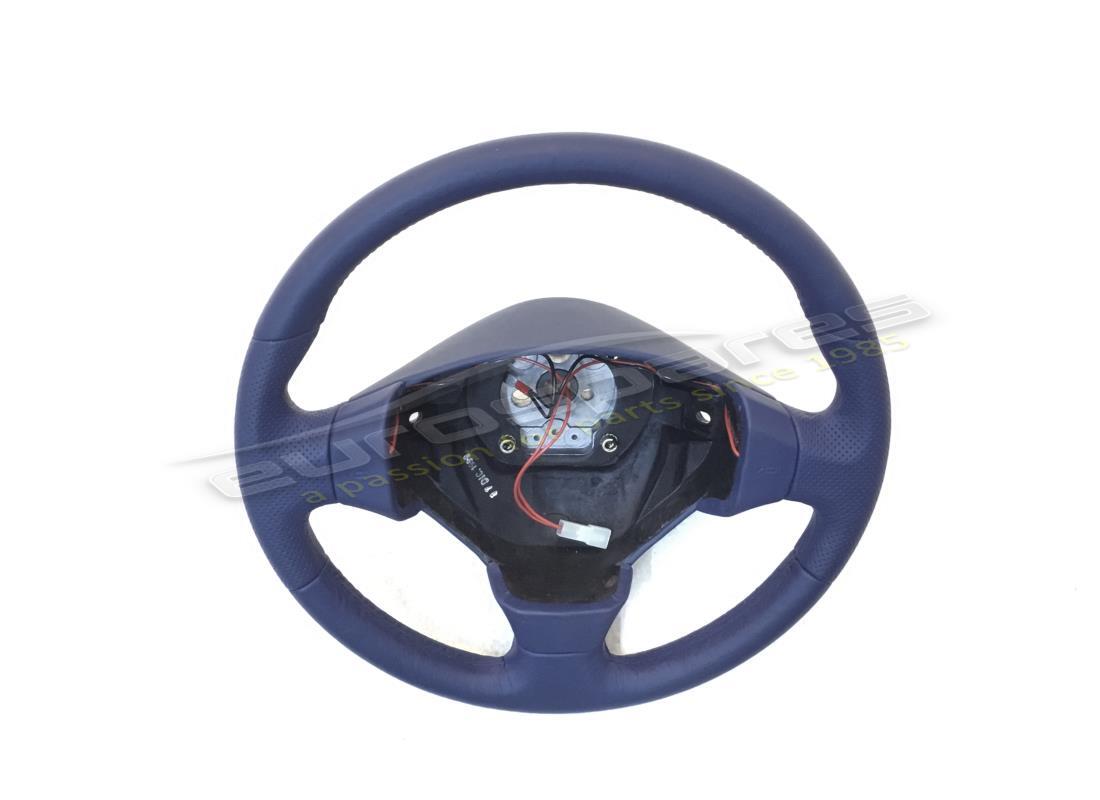

                                                                                                                  MPN: 174545
                                                                                                                  COMPLETE STEERING WHEEL
                                                                                                                  (blue colour)
                                                                                                                  from £630.00
                                                                                                                  from £630.00
                                                                                                                  This part replaces part number 66120700 - and 1 more. Click to view details
                                                                                                                  # 001

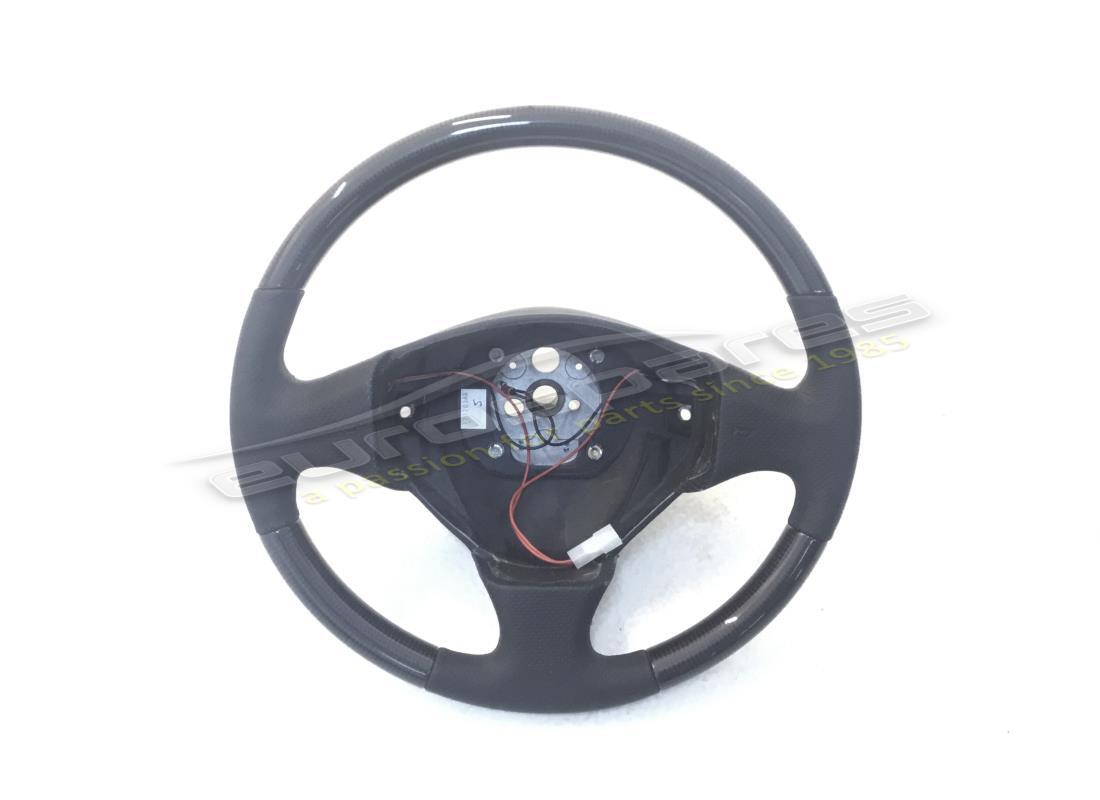

                                                                                                                  MPN: 174545/A
                                                                                                                  STEERING WHEEL
                                                                                                                  Black & Carbon
                                                                                                                  from £2,409.75
                                                                                                                  from £2,409.75
                                                                                                                  # 001

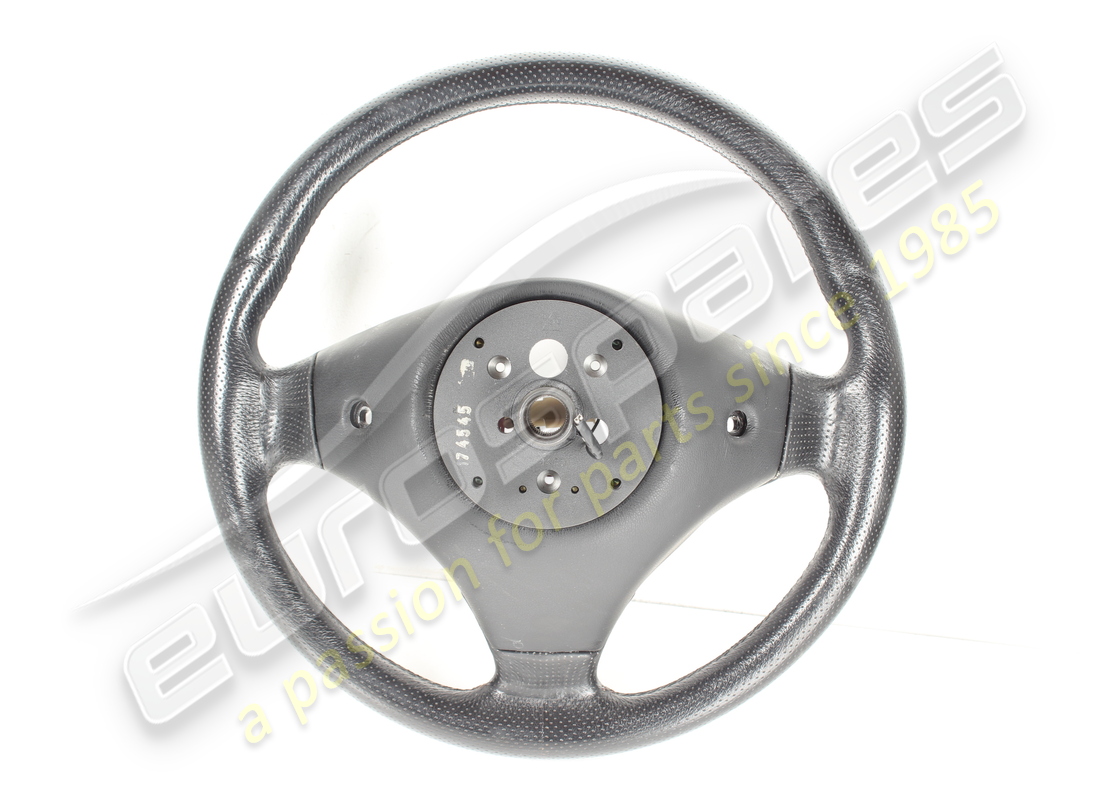

                                                                                                                  MPN: 66120700
                                                                                                                  COMPLETE STEERING WHEEL
                                                                                                                  Black Leather
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 001
                                                                                                                  MPN: 66120729
                                                                                                                  COMPLETE STEERING WHEEL
                                                                                                                  Tan Leather
                                                                                                                  from £882.29
                                                                                                                  from £882.29
                                                                                                                  # 002
                                                                                                                  MPN: 13271914
                                                                                                                  SCREW
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 13271911 - and 1 more. Click to view details
                                                                                                                  # 003
                                                                                                                  MPN: 10615274
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 10615270 - and 2 more. Click to view details
                                                                                                                  # 004
                                                                                                                  MPN: 169471
                                                                                                                  SPIRAL CONTACT
                                                                                                                  from £108.22
                                                                                                                  from £108.22
                                                                                                                  This part replaces part number 155394
                                                                                                                  # 005
                                                                                                                  MPN: 15896470
                                                                                                                  NUT
                                                                                                                  (minimum order quantity = 20)
                                                                                                                  from £0.78
                                                                                                                  from £0.78
                                                                                                                  This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                                  # 006
                                                                                                                  MPN: 12601174
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 12601173 - and 5 more. Click to view details
                                                                                                                  # 007
                                                                                                                  MPN: 65734700
                                                                                                                  UPPER COVER FOR STEERING ROD
                                                                                                                  from £102.49
                                                                                                                  from £102.49
                                                                                                                  # 008
                                                                                                                  MPN: 101648
                                                                                                                  NUT
                                                                                                                  from £1.71
                                                                                                                  from £1.71
                                                                                                                  This part replaces part number 106082
                                                                                                                  # 009
                                                                                                                  MPN: 159411
                                                                                                                  UNHOOK DEVIATION
                                                                                                                  from £750.00
                                                                                                                  from £750.00
                                                                                                                  This part replaces part number 164446 - and 8 more. Click to view details
                                                                                                                  # 010
                                                                                                                  MPN: 11066876
                                                                                                                  SEEGER RING
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 11066875
                                                                                                                  # 011
                                                                                                                  MPN: 134070
                                                                                                                  SEEGER RING
                                                                                                                  from £1.82
                                                                                                                  from £1.82
                                                                                                                  # 011
                                                                                                                  MPN: 134071
                                                                                                                  DITTO THICKNESS MM.1.1
                                                                                                                  from £0.83
                                                                                                                  from £0.83
                                                                                                                  # 011
                                                                                                                  MPN: 134072
                                                                                                                  DITTO THICKNESS MM.1.2
                                                                                                                  from £0.83
                                                                                                                  from £0.83
                                                                                                                  # 011
                                                                                                                  MPN: 134073
                                                                                                                  DITTO THICKNESS MM.1.3
                                                                                                                  from £0.94
                                                                                                                  from £0.94
                                                                                                                  # 011
                                                                                                                  MPN: 134074
                                                                                                                  DITTO THICKNESS MM.1.4
                                                                                                                  from £4.13
                                                                                                                  from £4.13
                                                                                                                  # 012
                                                                                                                  MPN: 11060076
                                                                                                                  SEEGER RING
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 013
                                                                                                                  MPN: 134065
                                                                                                                  BEERING THRUST WASHER THINCKNESS MM.1.0
                                                                                                                  from £0.97
                                                                                                                  from £0.97
                                                                                                                  # 013
                                                                                                                  MPN: 134066
                                                                                                                  DITTO THICKNESS MM.1.1
                                                                                                                  from £0.54
                                                                                                                  from £0.54
                                                                                                                  # 013
                                                                                                                  MPN: 134067
                                                                                                                  DITTO THICKNESS MM.1.2
                                                                                                                  from £0.83
                                                                                                                  from £0.83
                                                                                                                  # 013
                                                                                                                  MPN: 134068
                                                                                                                  DITTO THICKNESS MM.1.3
                                                                                                                  from £0.76
                                                                                                                  from £0.76
                                                                                                                  # 013
                                                                                                                  MPN: 134069
                                                                                                                  DITTO THICKNESS MM.1.4
                                                                                                                  from £1.21
                                                                                                                  from £1.21
                                                                                                                  # 014
                                                                                                                  MPN: 134061
                                                                                                                  BEARING
                                                                                                                  from £6.90
                                                                                                                  from £6.90
                                                                                                                  This part replaces part number 119213
                                                                                                                  # 015
                                                                                                                  MPN: 157968
                                                                                                                  UPPER SHAFT FOR STEERING CONTROL
                                                                                                                  from £270.48
                                                                                                                  from £270.48
                                                                                                                  This part replaces part number 151522
                                                                                                                  # 016
                                                                                                                  MPN: 11001224
                                                                                                                  STUD
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 11001221
                                                                                                                  # 017
                                                                                                                  MPN: 175817
                                                                                                                  COLUMN SUPPORT
                                                                                                                  - Not for 456M GTA
                                                                                                                  from £551.25
                                                                                                                  from £551.25
                                                                                                                  # 017
                                                                                                                  MPN: 178008
                                                                                                                  COLUMN SUPPORT
                                                                                                                  - Valid for 456M GTA
                                                                                                                  from £218.06
                                                                                                                  from £218.06
                                                                                                                  # 018
                                                                                                                  MPN: 162547
                                                                                                                  STEERING LOCK WITH DOORS LOCKS SET AND KEY
                                                                                                                  - Not for 456M GTA
                                                                                                                  from £1,922.60
                                                                                                                  from £1,922.60
                                                                                                                  # 018
                                                                                                                  MPN: 164514
                                                                                                                  STEERING LOCK WITH KEY
                                                                                                                  - Valid for 456M GTA
                                                                                                                  from £195.75
                                                                                                                  from £195.75
                                                                                                                  # 019
                                                                                                                  MPN: 168046
                                                                                                                  SCREW
                                                                                                                  from £2.44
                                                                                                                  from £2.44
                                                                                                                  This part replaces part number 156456
                                                                                                                  # 020
                                                                                                                  MPN: 157386
                                                                                                                  CLIP
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  # 021
                                                                                                                  MPN: 12601176
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 022
                                                                                                                  MPN: 150944
                                                                                                                  COMPLETE THED WHEEL
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 023
                                                                                                                  MPN: 12604079
                                                                                                                  WASHER
                                                                                                                  from £0.85
                                                                                                                  from £0.85
                                                                                                                  # 024
                                                                                                                  MPN: 14497701
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 025
                                                                                                                  MPN: 14303324
                                                                                                                  SCREW
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  This part replaces part number 014303324
                                                                                                                  # 026
                                                                                                                  MPN: 171835
                                                                                                                  STEERING SENSOR
                                                                                                                  from £55.94
                                                                                                                  from £55.94
                                                                                                                  This part replaces part number 150943
                                                                                                                  # 027
                                                                                                                  MPN: 14303374
                                                                                                                  SCREW
                                                                                                                  from £0.71
                                                                                                                  from £0.71
                                                                                                                  # 028
                                                                                                                  MPN: 152044
                                                                                                                  PIN
                                                                                                                  from £15.21
                                                                                                                  from £15.21
                                                                                                                  # 029
                                                                                                                  MPN: 156061
                                                                                                                  BUSHING
                                                                                                                  from £9.00
                                                                                                                  from £9.00
                                                                                                                  # 030
                                                                                                                  MPN: 100660
                                                                                                                  WASHER
                                                                                                                  from £0.71
                                                                                                                  from £0.71
                                                                                                                  # 031
                                                                                                                  MPN: 147985
                                                                                                                  NUT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 032
                                                                                                                  MPN: 168055
                                                                                                                  LOCK LEVER FOR STEERING COLUMN
                                                                                                                  from £103.57
                                                                                                                  from £103.57
                                                                                                                  This part replaces part number 164530 which we have in stock - and 1 more. Click to view details
                                                                                                                  # 033
                                                                                                                  MPN: 10-16-11
                                                                                                                  BALL
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 034
                                                                                                                  MPN: 155865
                                                                                                                  SPRING
                                                                                                                  from £1.48
                                                                                                                  from £1.48
                                                                                                                  # 035
                                                                                                                  MPN: 163593
                                                                                                                  SPACER
                                                                                                                  from £2.49
                                                                                                                  from £2.49
                                                                                                                  # 036
                                                                                                                  MPN: 175715
                                                                                                                  SHAFT
                                                                                                                  from £47.59
                                                                                                                  from £47.59
                                                                                                                  # 037
                                                                                                                  MPN: 10730921
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 038
                                                                                                                  MPN: 102825
                                                                                                                  NUT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 95900617
                                                                                                                  # 039
                                                                                                                  MPN: 157639
                                                                                                                  SPRING
                                                                                                                  from £4.86
                                                                                                                  from £4.86
                                                                                                                  # 040

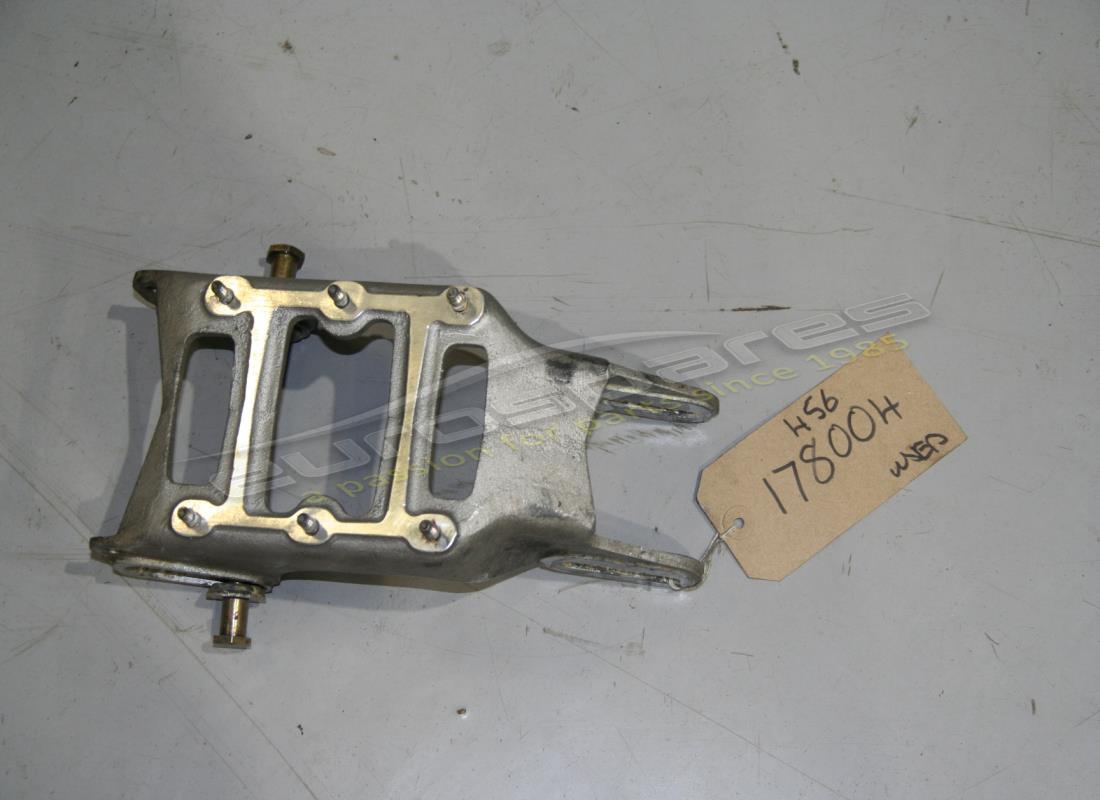

                                                                                                                  MPN: 178004
                                                                                                                  COLUMN SUPPORT BRACKET
                                                                                                                  - Valid till car Ass. Nr. 32064
                                                                                                                  from £222.60
                                                                                                                  from £222.60
                                                                                                                  # 040
                                                                                                                  MPN: 180324
                                                                                                                  COLUMN SUPPORT BRACKET
                                                                                                                  - Valid from car Ass. Nr. 32065
                                                                                                                  from £201.99
                                                                                                                  from £201.99
                                                                                                                  # 041
                                                                                                                  MPN: 14058411
                                                                                                                  NUT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 042
                                                                                                                  MPN: 12643724
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                  # 043
                                                                                                                  MPN: 11021111
                                                                                                                  SCREW
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 131745 which we have in stock
                                                                                                                  # 044

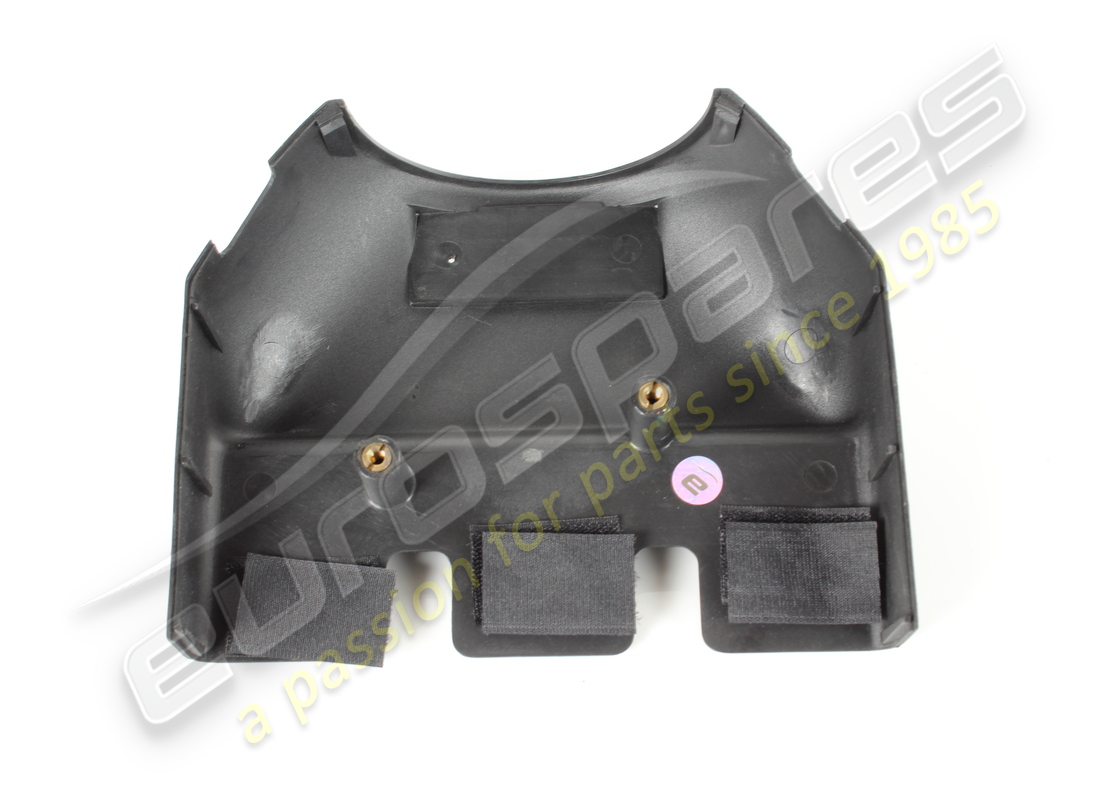

                                                                                                                  MPN: 63895900
                                                                                                                  LOWER COVER FOR STEERING ROD
                                                                                                                  - Not for 456M GTA
                                                                                                                  from £210.00
                                                                                                                  from £210.00
                                                                                                                  This part replaces part number 63711700 - and 1 more. Click to view details
                                                                                                                  # 044
                                                                                                                  MPN: 64889500
                                                                                                                  LOWER COVER FOR STEERING ROD
                                                                                                                  - Valid for 456M GTA
                                                                                                                  from £67.36
                                                                                                                  from £67.36
                                                                                                                  # 045
                                                                                                                  MPN: 13275217
                                                                                                                  SCREW
                                                                                                                  from £1.18
                                                                                                                  from £1.18
                                                                                                                  This part replaces part number 14063014
                                                                                                                  # 046
                                                                                                                  MPN: 170010
                                                                                                                  BLANK KEY
                                                                                                                  from £661.10
                                                                                                                  from £661.10
                                                                                                                  This part replaces part number 170010 ASM - and 1 more. Click to view details
                                                                                                                  # 047
                                                                                                                  MPN: 157385
                                                                                                                  CLIP
                                                                                                                  from £0.48
                                                                                                                  from £0.48
                                                                                                                  # 048
                                                                                                                  MPN: 13274117
                                                                                                                  SCREW
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 049
                                                                                                                  MPN: 177972
                                                                                                                  RH BRACKET
                                                                                                                  from £102.72
                                                                                                                  from £102.72
                                                                                                                  # 049
                                                                                                                  MPN: 177973
                                                                                                                  LH BRACKET
                                                                                                                  from £102.72
                                                                                                                  from £102.72
                                                                                                                  # 050
                                                                                                                  MPN: 10902524
                                                                                                                  SCREW
                                                                                                                  from £0.51
                                                                                                                  from £0.51
                                                                                                                  # 051
                                                                                                                  MPN: 10519424
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 10519401 - and 3 more. Click to view details
                                                                                                                  # 052
                                                                                                                  MPN: 102948
                                                                                                                  NUT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 12574211 - and 3 more. Click to view details
                                                                                                                  # 053
                                                                                                                  MPN: 64450700
                                                                                                                  UNDER COLUMN PLATE
                                                                                                                  from £30.71
                                                                                                                  from £30.71
                                                                                                                  # 056
                                                                                                                  MPN: 64509000
                                                                                                                  LH OUTER INSERT
                                                                                                                  from £20.24
                                                                                                                  from £20.24
                                                                                                                  # 057
                                                                                                                  MPN: 64508900
                                                                                                                  RH OUTER INSERT
                                                                                                                  from £17.02
                                                                                                                  from £17.02
                                                                                                                  # 058
                                                                                                                  MPN: 102741
                                                                                                                  NUT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                                                  # 059
                                                                                                                  MPN: 12601274
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                  # 060
                                                                                                                  MPN: 169982
                                                                                                                  ELECTRO-MAGNET
                                                                                                                  - Valid for 456M GTA
                                                                                                                  from £18.99
                                                                                                                  from £18.99
                                                                                                                  # 061
                                                                                                                  MPN: 169984
                                                                                                                  DOWEL
                                                                                                                  - Valid for 456M GTA
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 062
                                                                                                                  MPN: 169983
                                                                                                                  ELECTRO-MAGNET LINK CABLE
                                                                                                                  - Valid for 456M GTA
                                                                                                                  from £2.15
                                                                                                                  from £2.15
                                                                                                                  # 063
                                                                                                                  MPN: 179121
                                                                                                                  BRAKE PEDAL RETURN SMALL PLATE
                                                                                                                  from £5.92
                                                                                                                  from £5.92
                                                                                                                  # 064
                                                                                                                  MPN: 179120
                                                                                                                  CLUTCH PEDAL RETURN SMALL PLATE
                                                                                                                  from £5.92
                                                                                                                  from £5.92
                                                                                                                  # 065
                                                                                                                  MPN: 10902624
                                                                                                                  SCREW
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 10902621
                                                                                                                  # 066
                                                                                                                  MPN: 64890600
                                                                                                                  PLUG
                                                                                                                  - Valid for 456M GTA
                                                                                                                  from £11.74
                                                                                                                  from £11.74
                                                                                                                  # 067
                                                                                                                  MPN: 16286024
                                                                                                                  SCREW
                                                                                                                  - Valid from car Ass. Nr. 32065
                                                                                                                  from £0.47
                                                                                                                  from £0.47
