060 - Front Suspension - Shock Absorber and Brake Disc

Ferrari 456 M GT/M GTA Front Suspension - Shock Absorber and Brake Disc Parts Diagram

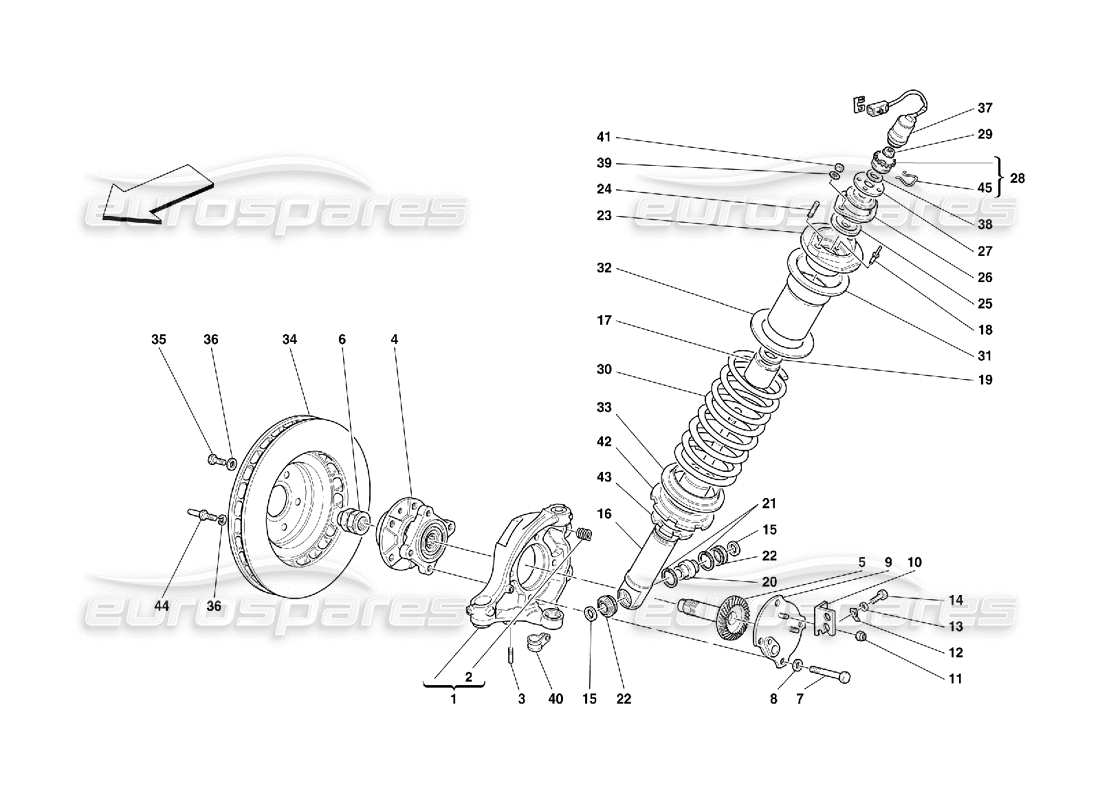

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                    #
                                                                                    Part number
                                                                                    Description
                                                                                    Price
                                                                                    # 000
                                                                                    MPN: 178886
                                                                                    COMPLETE RH STEERING KNUCKLE
                                                                                    - Not as spare part now - Replaced by 185818
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 173708 - and 1 more. Click to view details
                                                                                    # 000
                                                                                    MPN: 178887
                                                                                    COMPLETE LH STEERING KNUCKLE
                                                                                    - Not as spare part now - Replaced by 185819
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 173709 - and 1 more. Click to view details
                                                                                    # 000
                                                                                    MPN: 184626
                                                                                    COMPLETE RH STEERING KNUCKLE
                                                                                    from £939.75
                                                                                    from £939.75
                                                                                    This part replaces part number 185818 - and 3 more. Click to view details
                                                                                    # 000
                                                                                    MPN: 185819
                                                                                    COMPLETE LH STEERING KNUCKLE
                                                                                    Supersession
                                                                                    Supersession
                                                                                    This part replaces part number 178887
                                                                                    # 001
                                                                                    MPN: 176184
                                                                                    RH STEERING KNUCKLE
                                                                                    - Not as spare part - With complete RH steering knuckle 178886
                                                                                    # 001
                                                                                    MPN: 176185
                                                                                    LH STEERING KNUCKLE
                                                                                    - Not as spare part - With complete LH steering knuckle 178887
                                                                                    # 001
                                                                                    MPN: 184621
                                                                                    RH STEERING KNUCKLE
                                                                                    - Not as spare part - With complete RH steering knuckle 185818
                                                                                    # 001
                                                                                    MPN: 184622
                                                                                    LH STEERING KNUCKLE
                                                                                    - Not as spare part - With complete LH steering knuckle 185819
                                                                                    # 002
                                                                                    MPN: 133771
                                                                                    THREADED INSERT
                                                                                    from £1.90
                                                                                    from £1.90
                                                                                    # 003
                                                                                    MPN: 11000924
                                                                                    STUD
                                                                                    from £0.78
                                                                                    from £0.78
                                                                                    This part replaces part number 11000921 which we have in stock
                                                                                    # 004
                                                                                    MPN: 157900

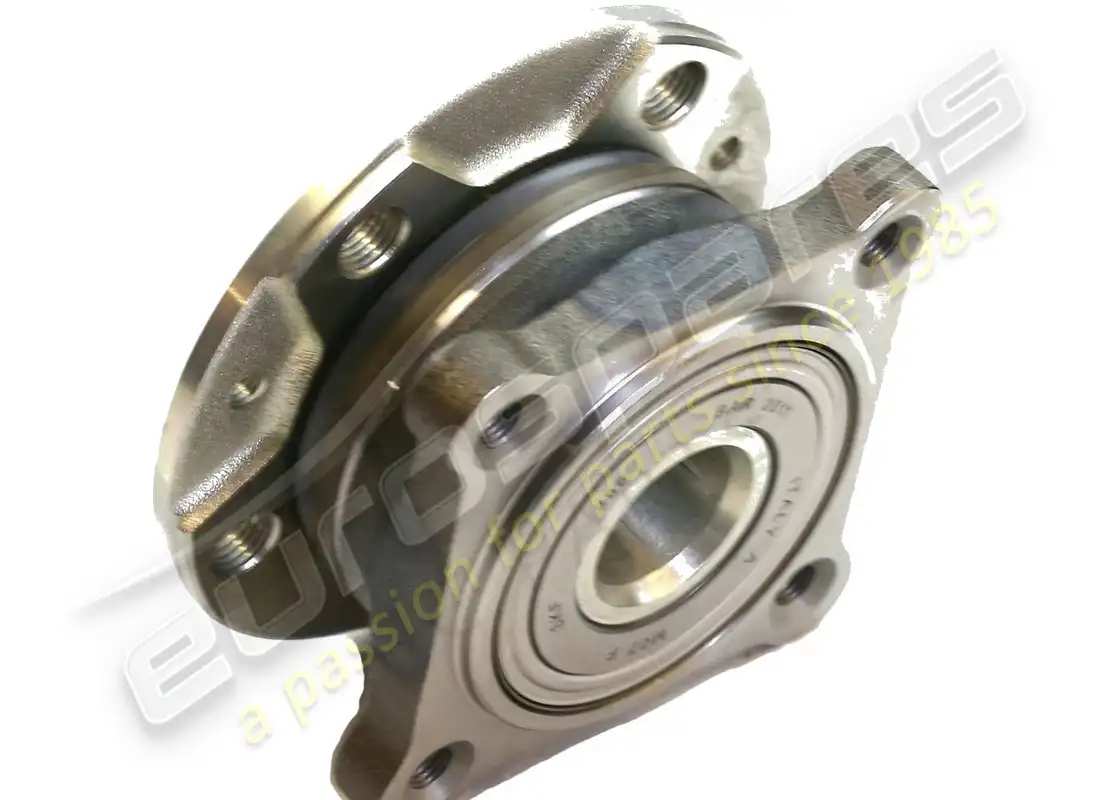

                                                                                    HUB COMPLETE BEARING
                                                                                    from £1,180.71
                                                                                    from £1,180.71
                                                                                    This part replaces part number 143172 - and 6 more. Click to view details
                                                                                    # 005
                                                                                    MPN: 174045
                                                                                    FRONT TOOTHED WHEEL
                                                                                    from £204.75
                                                                                    from £204.75
                                                                                    This part replaces part number 163103 which we have in stock - and 1 more. Click to view details
                                                                                    # 006
                                                                                    MPN: 209184
                                                                                    NUT
                                                                                    from £25.56
                                                                                    from £25.56
                                                                                    This part replaces part number 167259 - and 1 more. Click to view details
                                                                                    # 007
                                                                                    MPN: 16324034
                                                                                    SCREW
                                                                                    from £3.16
                                                                                    from £3.16
                                                                                    # 008
                                                                                    MPN: 102901
                                                                                    WASHER
                                                                                    from £0.71
                                                                                    from £0.71
                                                                                    This part replaces part number 4146930
                                                                                    # 009
                                                                                    MPN: 164925
                                                                                    RH COVER
                                                                                    from £397.74
                                                                                    from £397.74
                                                                                    # 009
                                                                                    MPN: 164926
                                                                                    LH COVER
                                                                                    from £244.80
                                                                                    from £244.80

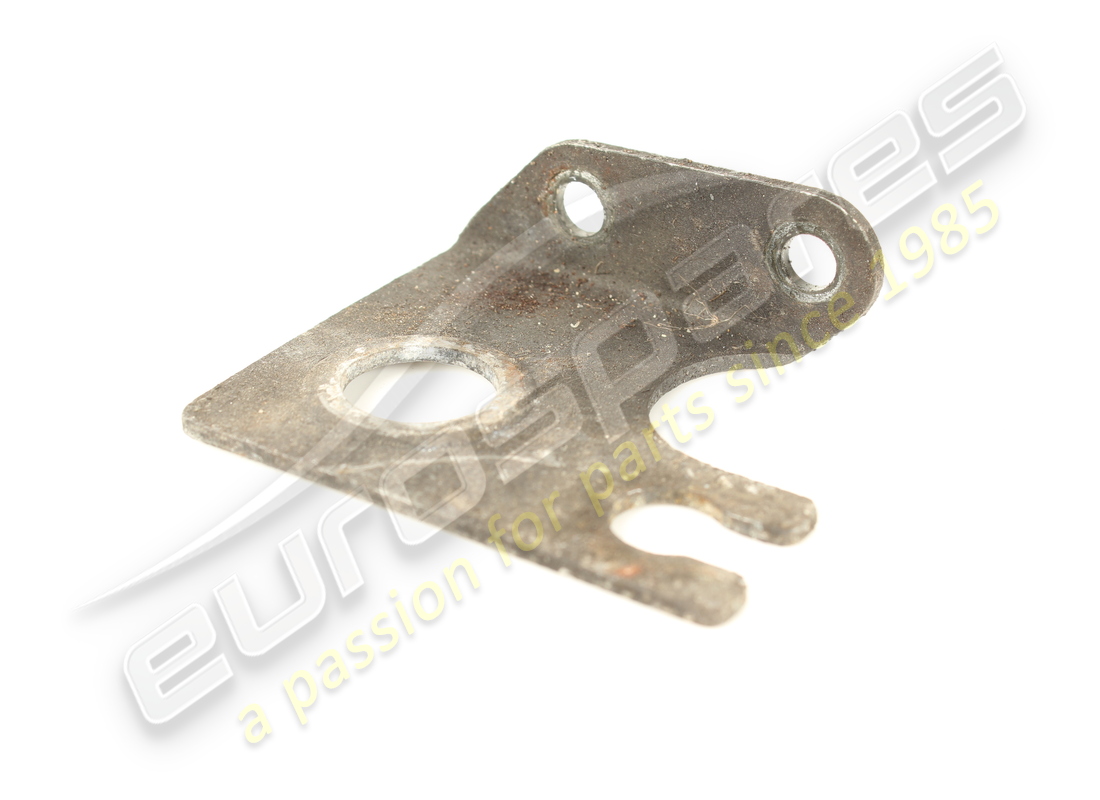

                                                                                    # 010
                                                                                    MPN: 170177
                                                                                    RH SUPPORT
                                                                                    from £136.96
                                                                                    from £136.96
                                                                                    # 010
                                                                                    MPN: 170178
                                                                                    LH SUPPORT
                                                                                    from £94.14
                                                                                    from £94.14
                                                                                    # 011
                                                                                    MPN: 102741
                                                                                    NUT
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 12575411 - and 1 more. Click to view details
                                                                                    # 012
                                                                                    MPN: 143405
                                                                                    Key
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 013
                                                                                    MPN: 149951
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 10615301 which we have in stock - and 4 more. Click to view details
                                                                                    # 014
                                                                                    MPN: 10977524
                                                                                    SCREW
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    # 015
                                                                                    MPN: 153495
                                                                                    SPACER WASHER MM.3.00
                                                                                    from £2.40
                                                                                    from £2.40
                                                                                    # 015
                                                                                    MPN: 153496
                                                                                    SPACER WASHER MM.2.90
                                                                                    - As an alternative of 153495
                                                                                    from £2.40
                                                                                    from £2.40
                                                                                    # 015
                                                                                    MPN: 153497
                                                                                    SPACER WASHER MM.3.10
                                                                                    - As an alternative of 153495
                                                                                    from £2.42
                                                                                    from £2.42
                                                                                    # 016
                                                                                    MPN: 183635

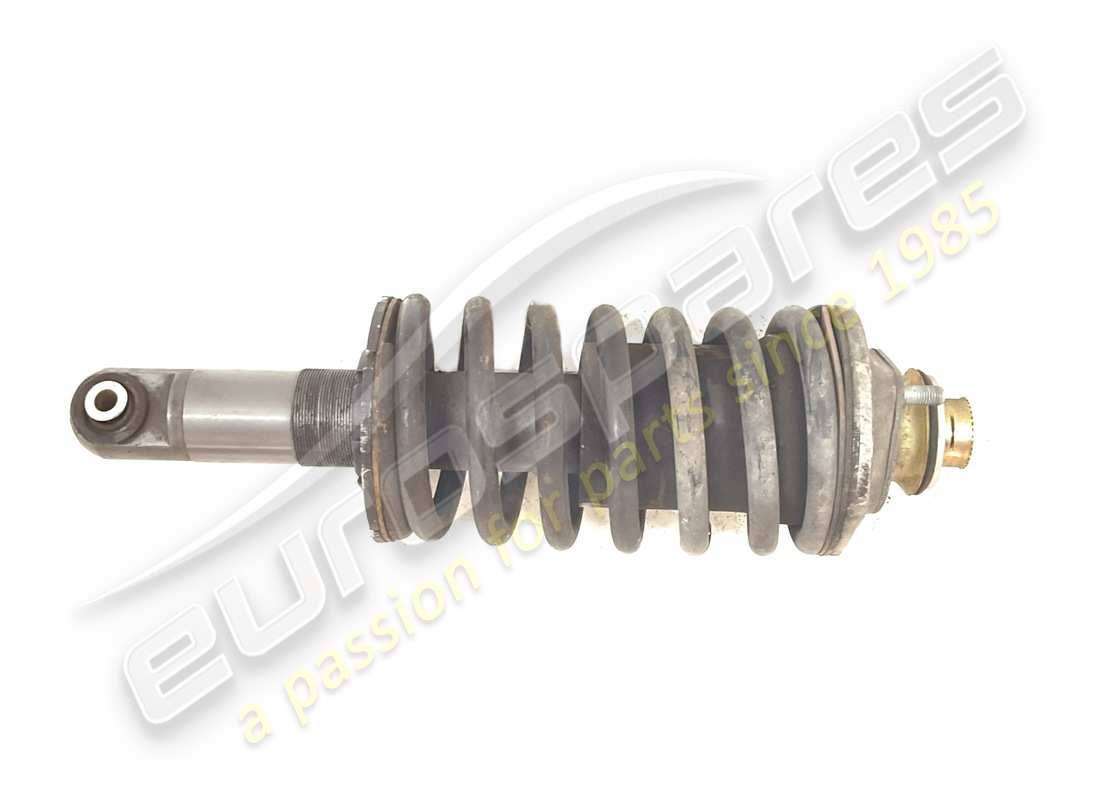

                                                                                    FRONT SHOCK ABSORBER
                                                                                    from £645.45
                                                                                    from £645.45
                                                                                    This part replaces part number 176564 which we have in stock - and 1 more. Click to view details
                                                                                    # 016
                                                                                    MPN: 183635
                                                                                    FRONT SHOCK ABSORBER
                                                                                    from £645.45
                                                                                    from £645.45
                                                                                    This part replaces part number 176564 which we have in stock - and 1 more. Click to view details
                                                                                    # 017
                                                                                    MPN: 152329
                                                                                    PAD
                                                                                    from £18.33
                                                                                    from £18.33
                                                                                    # 018
                                                                                    MPN: 14641491
                                                                                    RIVET
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 019
                                                                                    MPN: 157104
                                                                                    BUSHING
                                                                                    from £13.04
                                                                                    from £13.04
                                                                                    # 020
                                                                                    MPN: 153285
                                                                                    BALL JOINT
                                                                                    from £294.88
                                                                                    from £294.88
                                                                                    # 021
                                                                                    MPN: 145478
                                                                                    SEEGER RING
                                                                                    from £2.42
                                                                                    from £2.42
                                                                                    This part replaces part number 11059370
                                                                                    # 022
                                                                                    MPN: 153286
                                                                                    RUBBER
                                                                                    from £1.21
                                                                                    from £1.21

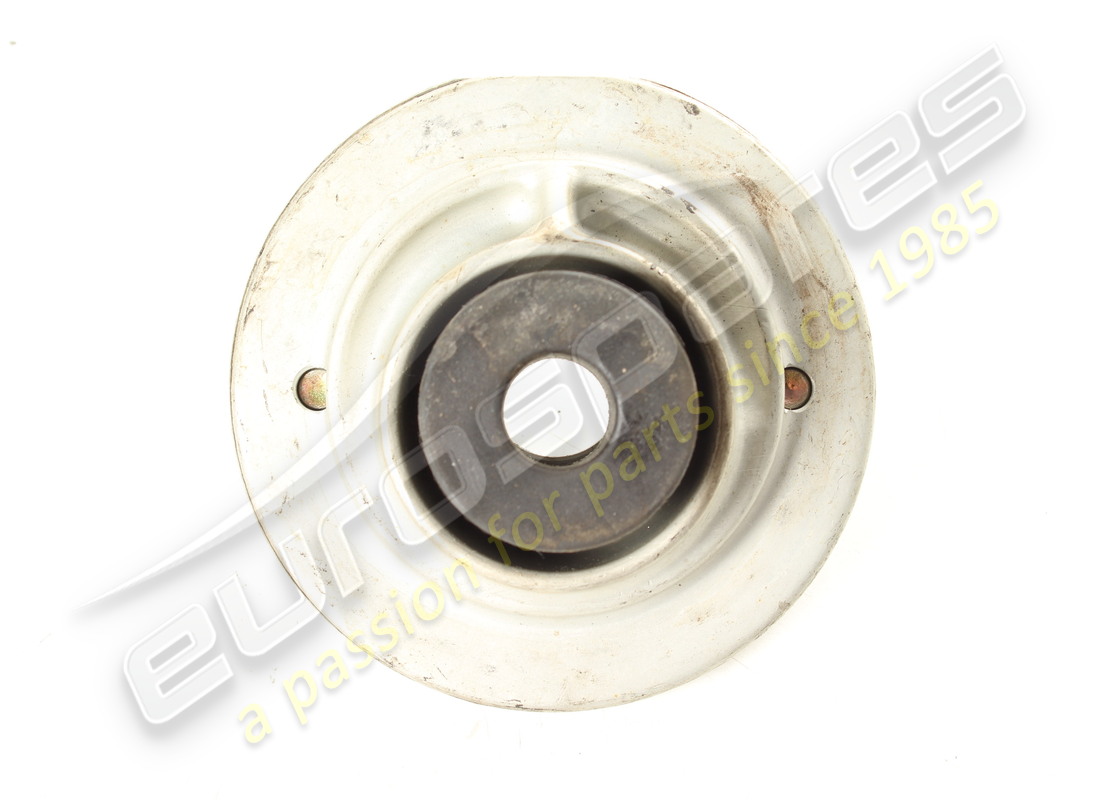

                                                                                    # 023
                                                                                    MPN: 152573
                                                                                    CUP
                                                                                    from £42.37
                                                                                    from £42.37
                                                                                    # 024
                                                                                    MPN: 13546324
                                                                                    STUD
                                                                                    from £1.17
                                                                                    from £1.17
                                                                                    This part replaces part number 13546321
                                                                                    # 026
                                                                                    MPN: 117720
                                                                                    HYPERBLOCK
                                                                                    from £65.20
                                                                                    from £65.20
                                                                                    # 027
                                                                                    MPN: 152653
                                                                                    SPACER WASHER
                                                                                    from £53.58
                                                                                    from £53.58
                                                                                    # 029
                                                                                    MPN: 137826
                                                                                    NUT
                                                                                    from £1.74
                                                                                    from £1.74
                                                                                    # 030
                                                                                    MPN: 156977
                                                                                    SPRING
                                                                                    - Sold in pair
                                                                                    from £98.09
                                                                                    from £98.09
                                                                                    This part replaces part number 168433 which we have in stock - and 2 more. Click to view details
                                                                                    # 030
                                                                                    MPN: 168433
                                                                                    SPRING
                                                                                    - Sold in pair - As an alternatives
                                                                                    # 031
                                                                                    MPN: 127991
                                                                                    SPACER
                                                                                    from £40.72
                                                                                    from £40.72
                                                                                    # 032
                                                                                    MPN: 152655
                                                                                    WASHER
                                                                                    from £2.56
                                                                                    from £2.56
                                                                                    # 033
                                                                                    MPN: 152842
                                                                                    WASHER
                                                                                    from £13.56
                                                                                    from £13.56
                                                                                    # 034
                                                                                    MPN: 165686

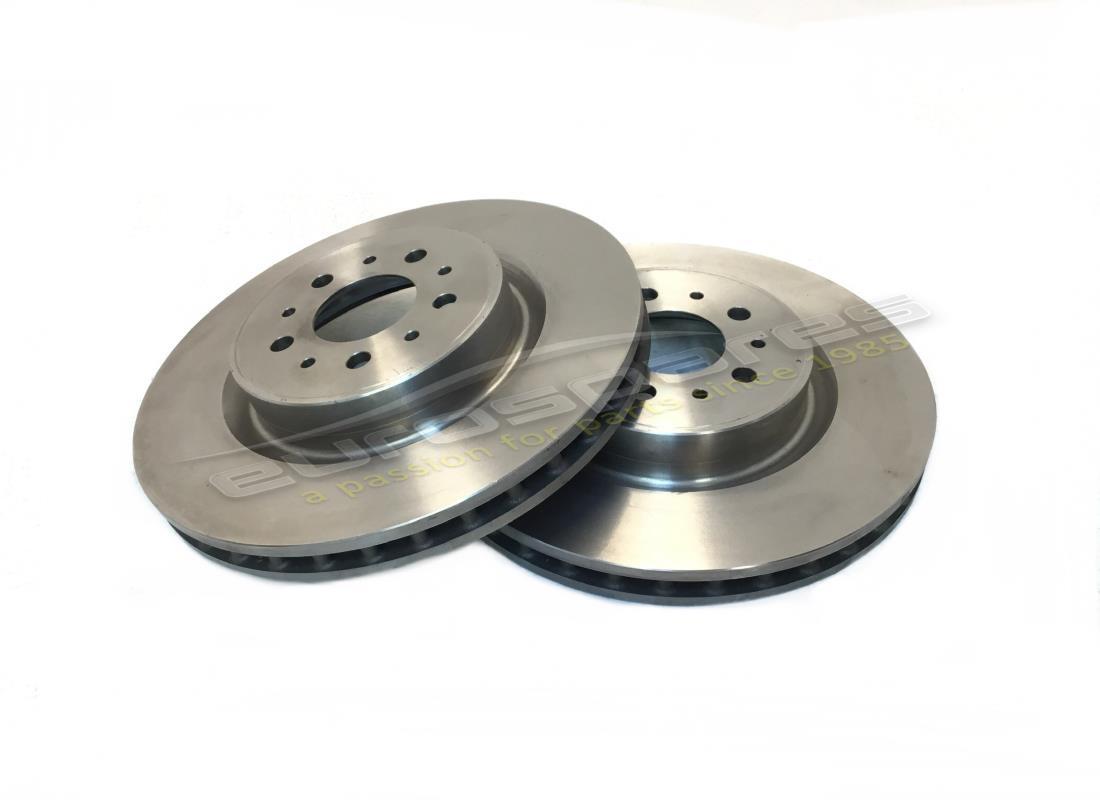

                                                                                    FRONT BRAKE DISC
                                                                                    Untill car 45785
                                                                                    from £163.36
                                                                                    from £163.36
                                                                                    # 034
                                                                                    MPN: 193151

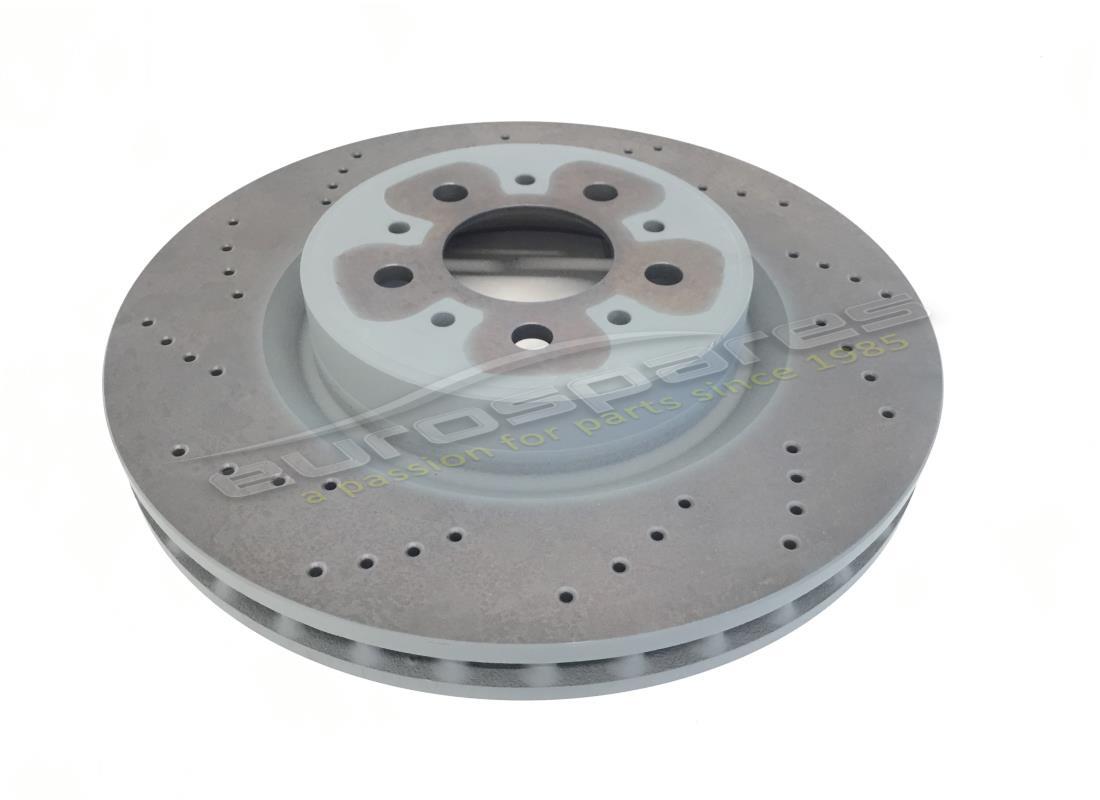

                                                                                    FRONT BRAKE DISC
                                                                                    From Car 45786 (cross drilled)
                                                                                    from £105.00
                                                                                    from £105.00
                                                                                    # 035
                                                                                    MPN: 16043424
                                                                                    BRAKE DISC FIXING SCREW
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 16043421
                                                                                    # 036
                                                                                    MPN: 127496
                                                                                    WASHER
                                                                                    from £0.53
                                                                                    from £0.53
                                                                                    This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                    # 037
                                                                                    MPN: 158732
                                                                                    ACTUATOR ON THE SHOCK ABSORBER
                                                                                    from £808.44
                                                                                    from £808.44
                                                                                    This part replaces part number 154449
                                                                                    # 038
                                                                                    MPN: 160461

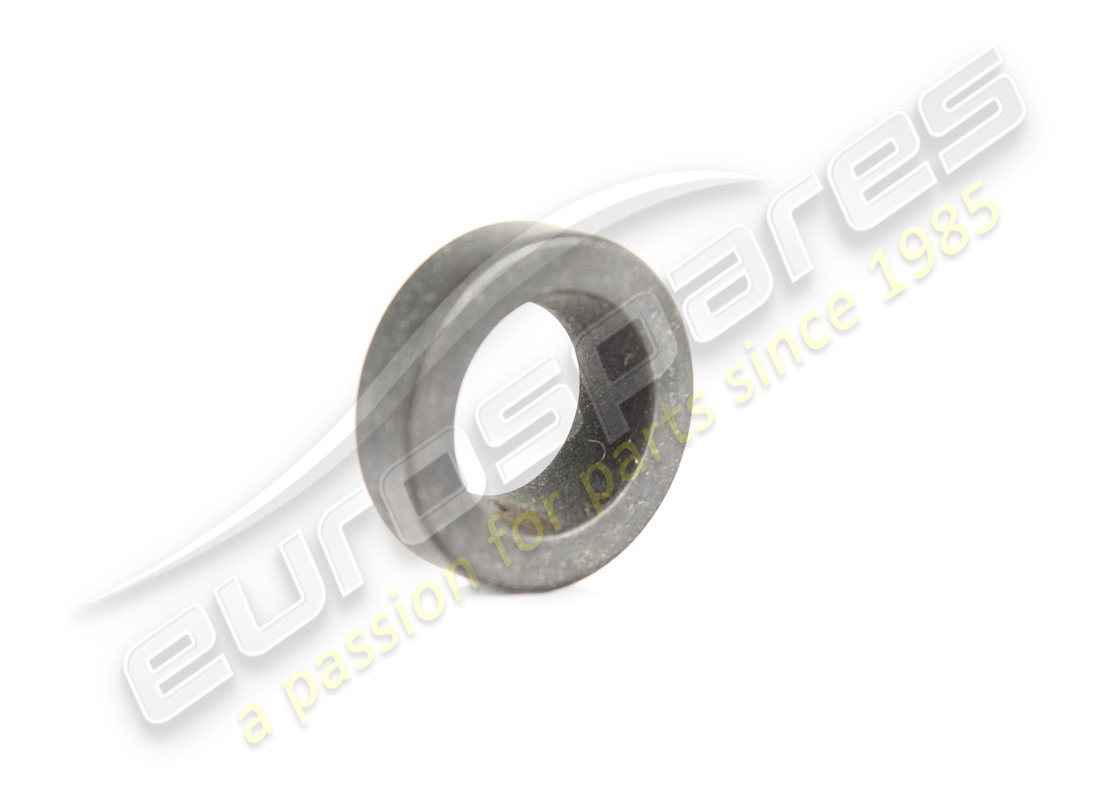

                                                                                    WASHER
                                                                                    from £0.51
                                                                                    from £0.51
                                                                                    # 039
                                                                                    MPN: 12642524
                                                                                    WASHER
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 12642501 - and 1 more. Click to view details
                                                                                    # 040
                                                                                    MPN: 10441190
                                                                                    CLAMP
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    # 041
                                                                                    MPN: 102742
                                                                                    NUT
                                                                                    from £0.47
                                                                                    from £0.47
                                                                                    This part replaces part number 12557621 - and 2 more. Click to view details
                                                                                    # 042
                                                                                    MPN: 144867
                                                                                    SPACER
                                                                                    from £55.15
                                                                                    from £55.15
                                                                                    # 043
                                                                                    MPN: 141860

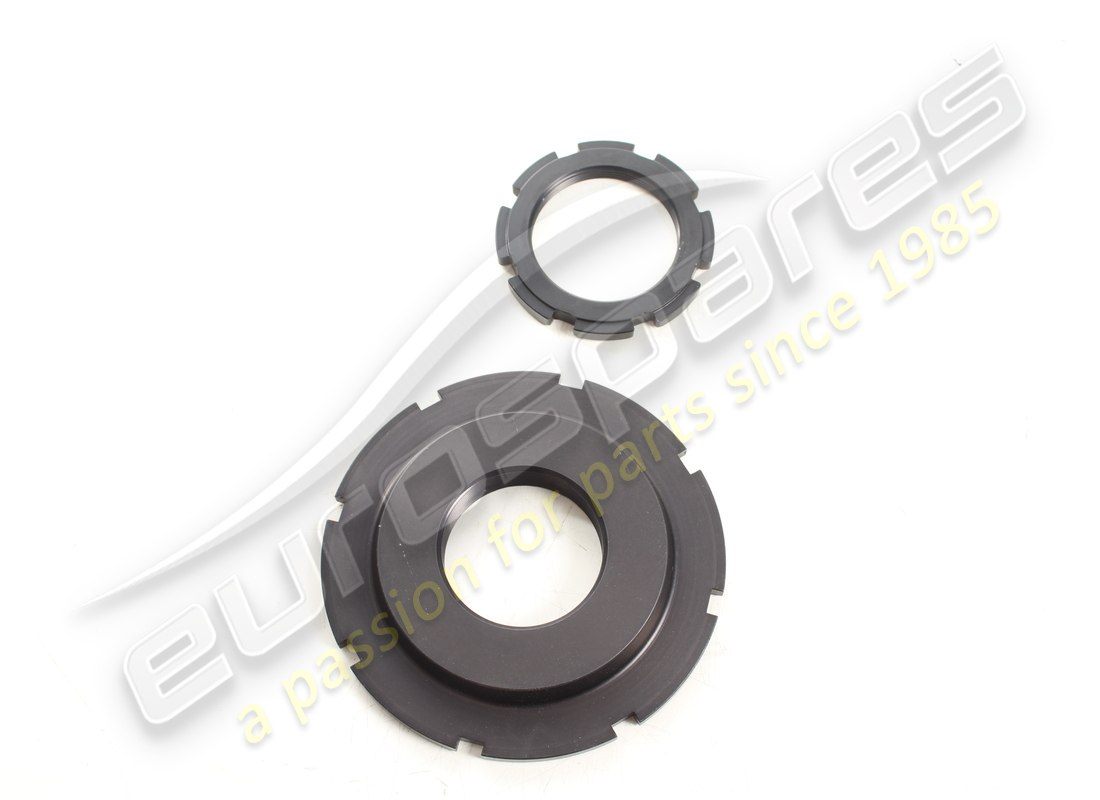

                                                                                    RING NUT
                                                                                    from £63.87
                                                                                    from £63.87
                                                                                    # 044
                                                                                    MPN: 104370
                                                                                    BRAKE DISC FIXING AND CENTERING SCREW
                                                                                    from £5.69
                                                                                    from £5.69
                                                                                    This part replaces part number 139981
                                                                                    # 045
                                                                                    MPN: 142079
                                                                                    CLIP
                                                                                    from £5.84
                                                                                    from £5.84
                                                                                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
