062 - Rear Suspension - Shock Absorber and Brake Disc

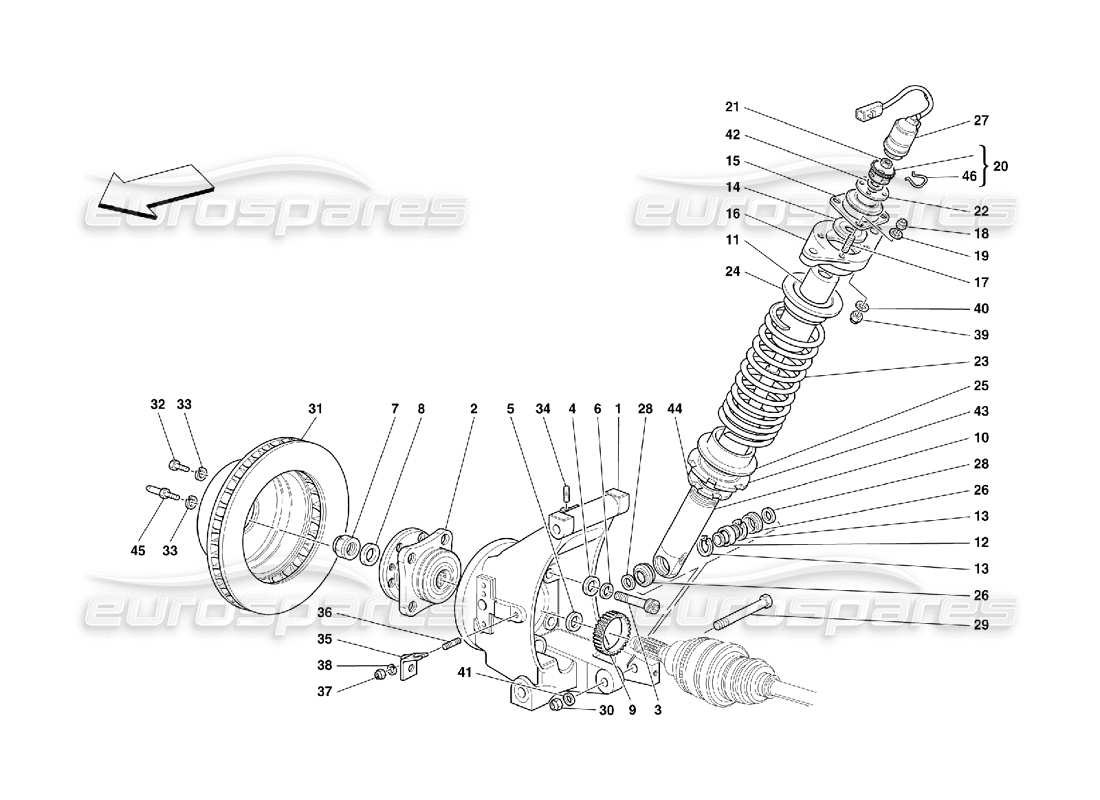

Ferrari 456 M GT/M GTA Rear Suspension - Shock Absorber and Brake Disc Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 178370

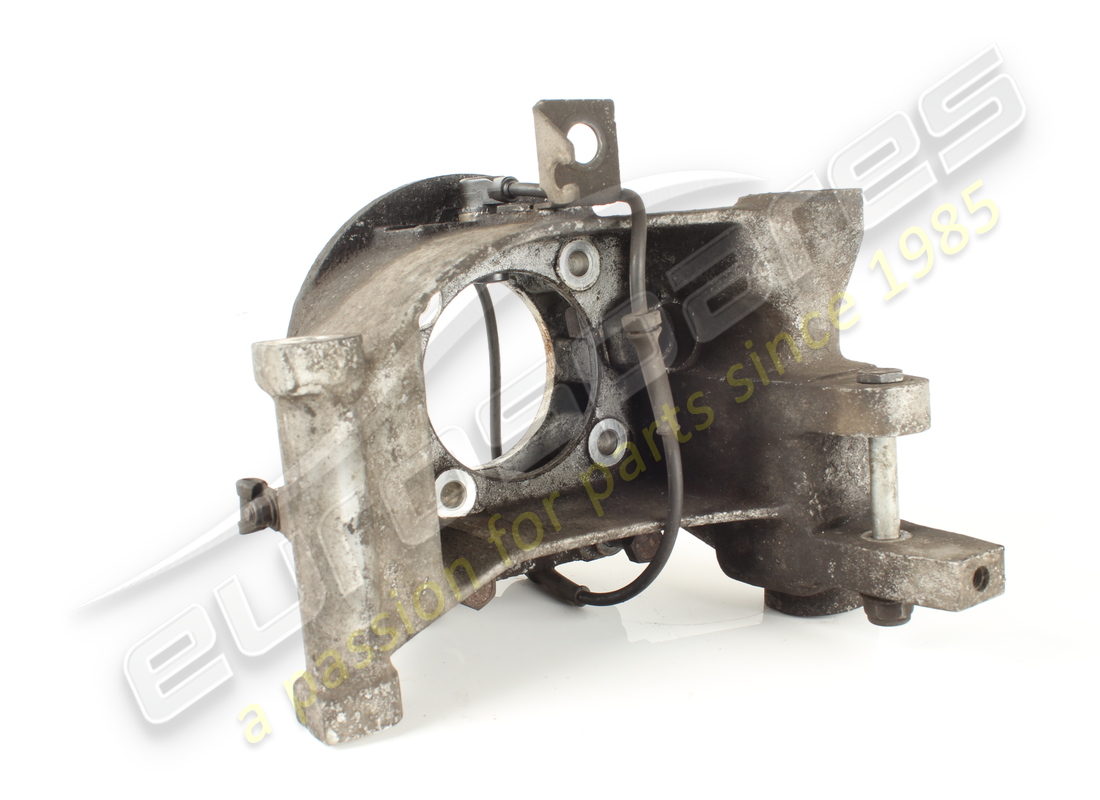

RH REAR HUB HOLDER
from £333.68
from £333.68
This part replaces part number 178888 which we have in stock - and 3 more. Click to view details
# 001
MPN: 178371
LH REAR HUB HOLDER
from £381.88
from £381.88
This part replaces part number 178889 - and 7 more. Click to view details
# 001
MPN: 178888
COMPLETE RH REAR HUB HOLDER
from £320.10
from £320.10
This part replaces part number 178370 which we have in stock - and 1 more. Click to view details
# 001
MPN: 178889
COMPLETE LH REAR HUB HOLDER
Supersession
Supersession
This part replaces part number 178371 which we have in stock
# 002
MPN: 157901
HUB COMPLETE BEARING
from £474.97
from £474.97
This part replaces part number 137105 - and 3 more. Click to view details
# 003
MPN: 14331974
SCREW
from £1.06
from £1.06
# 004
MPN: 10732531
WASHER
from £0.52
from £0.52
# 005
MPN: 153355
WASHER
from £3.14
from £3.14
# 006
MPN: 152250
WASHER
from £0.51
from £0.51
# 007
MPN: 209184
NUT
from £25.44
from £25.44
This part replaces part number 167259 - and 1 more. Click to view details
# 008
MPN: 143332
WASHER
from £38.58
from £38.58
# 009
MPN: 165101
REAR TOOTHED WHEEL
from £629.37
from £629.37
# 010
MPN: 183636

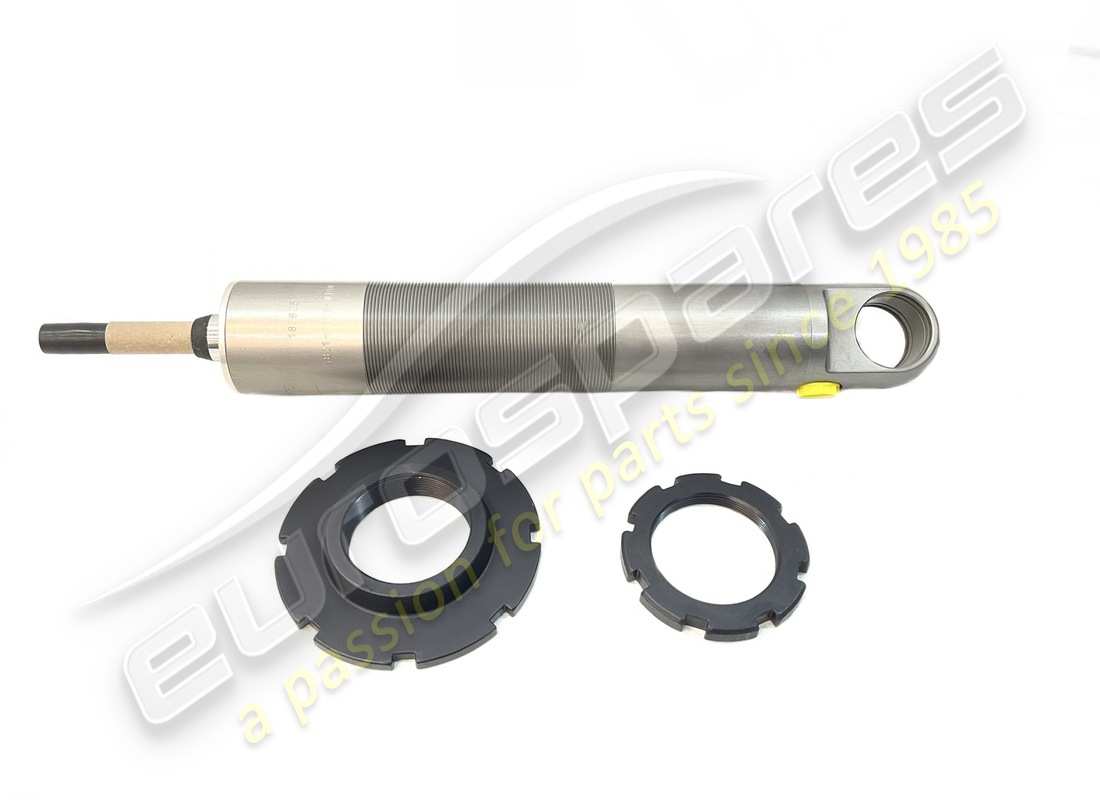

REAR SHOCK ABSORBER
from £1,295.00
from £1,295.00
This part replaces part number 177563
# 011
MPN: 155278
SHOCK ABSORBER PAD
from £6.05
from £6.05
# 012
MPN: 153285
BALL JOINT
from £298.76
from £298.76
# 013
MPN: 145478
SEEGER RING
from £2.42
from £2.42
This part replaces part number 11059370
# 014
MPN: 152654
WASHER
from £20.80
from £20.80
# 015
MPN: 114812
HYPERBLOCK
from £34.18
from £34.18
This part replaces part number 114812/A which we have in stock - and 7 more. Click to view details
# 016
MPN: 144712
CUP
from £52.50
from £52.50
# 017
MPN: 13543324
STUD
from £0.81
from £0.81
This part replaces part number 13543321
# 018
MPN: 104030
NUT
from £0.51
from £0.51
This part replaces part number 16104125
# 019
MPN: 10519624
WASHER
from £0.53
from £0.53
This part replaces part number 10519601 - and 3 more. Click to view details
# 020
MPN: 137824
SUPPORT
from £11.31
from £11.31
# 021
MPN: 137826
NUT
from £2.31
from £2.31
# 022
MPN: 152653
WASHER
from £53.36
from £53.36
# 023
MPN: 156945
SPRING
- Sold in pair
from £80.71
from £80.71
This part replaces part number 168399 - and 2 more. Click to view details
# 023
MPN: 168399
SPRING
- Sold in pair - As an alternatives
Supersession
Supersession
# 024
MPN: 156978
UPPER SPACER
from £16.30
from £16.30
# 025
MPN: 113581
LOWER SPACER
from £6.20
from £6.20
This part replaces part number 387000338 - and 2 more. Click to view details
# 026
MPN: 153286
RUBBER
from £1.27
from £1.27
# 027
MPN: 158732
ACTUATOR ON THE SHOCK ABSORBER
from £450.22
from £450.22
This part replaces part number 154449 - and 1 more. Click to view details
# 028
MPN: 153495
SPACER WASHER MM.3.00
from £2.40
from £2.40
# 028
MPN: 153496
SPACER WASHER MM.2.90
- As an alternative of 153495
from £2.40
from £2.40
# 028
MPN: 153497
SPACER WASHER MM.3.10
- As an alternative of 153495
from £2.42
from £2.42
# 029
MPN: 159309
SCREW
from £20.59
from £20.59
# 030
MPN: 102825
NUT
from £0.53
from £0.53
This part replaces part number 95900617
# 031
MPN: 144061

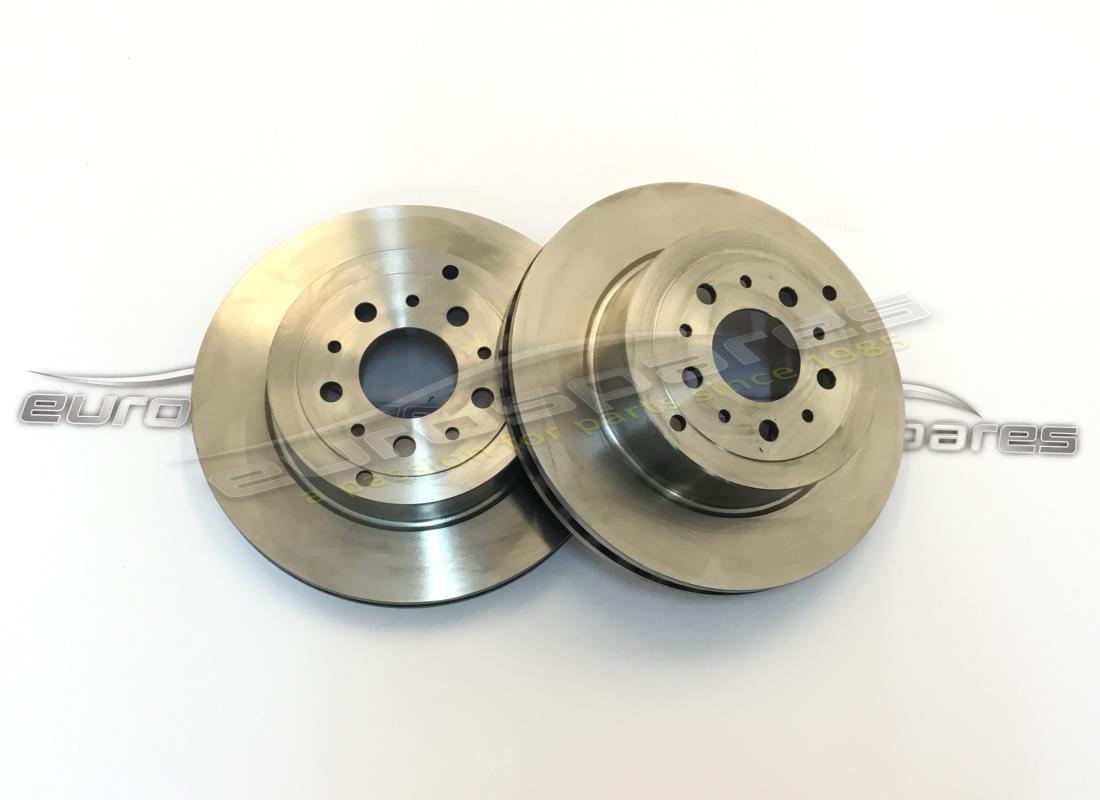

REAR BRAKE DISC
Untill car 45785
from £185.97
from £185.97
# 031
MPN: 193152
REAR BRAKE DISC
From Car 45786 (cross drilled)
from £188.39
from £188.39
# 032
MPN: 16043424
SCREW
from £0.53
from £0.53
This part replaces part number 16043421
# 033
MPN: 127496
WASHER
from £0.53
from £0.53
This part replaces part number 10516671 - and 2 more. Click to view details
# 034
MPN: 11500124
STUD
from £0.69
from £0.69
This part replaces part number 11500121
# 035
MPN: 168383
RH SUPPORT
from £2.34
from £2.34
# 035
MPN: 168384
LH SUPPORT
from £2.34
from £2.34
# 036
MPN: 11500124
STUD
from £0.69
from £0.69
This part replaces part number 11500121
# 037
MPN: 102741
NUT
from £0.53
from £0.53
This part replaces part number 12575411 - and 1 more. Click to view details
# 038
MPN: 10519424
WASHER
from £0.54
from £0.54
This part replaces part number 10519401 which we have in stock - and 3 more. Click to view details
# 039
MPN: 104114
NUT
Supersession
Supersession
This part replaces part number 15503711 - and 1 more. Click to view details
# 040
MPN: 12601474
WASHER
from £0.53
from £0.53
This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
# 041
MPN: 12601574
WASHER
from £0.54
from £0.54
This part replaces part number 106616 which we have in stock - and 2 more. Click to view details
# 042
MPN: 160461
WASHER
from £0.52
from £0.52
# 043
MPN: 155086
SPACER
from £25.61
from £25.61
# 044
MPN: 141860
RING NUT
from £63.87
from £63.87
# 045
MPN: 104370
BRAKE DISC FIXING AND CENTERING SCREW
from £5.66
from £5.66
This part replaces part number 139981
# 046
MPN: 142079
CLIP
from £5.81
from £5.81
