063 - Rear Suspension - Wishbones and Stabilizer Bar

Ferrari 456 M GT/M GTA Rear Suspension - Wishbones and Stabilizer Bar Parts Diagram

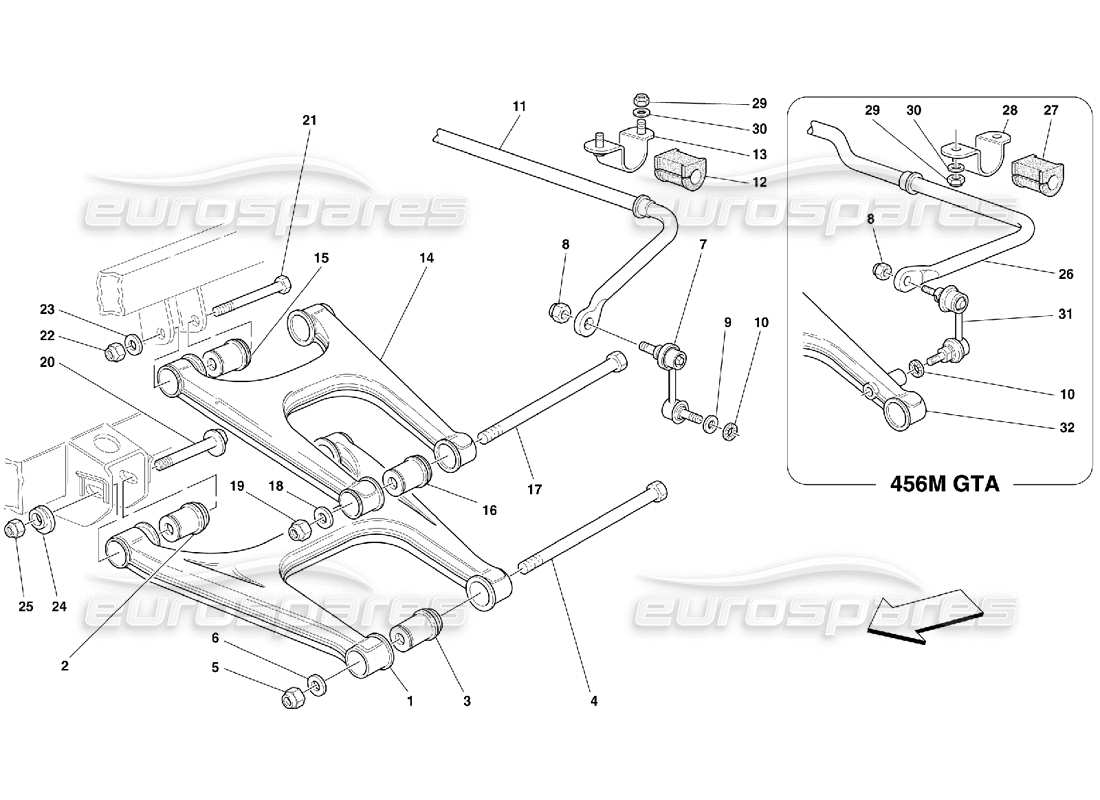

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                              #
                                              Part number
                                              Description
                                              Price
                                              # 001
                                              MPN: 169796
                                              LOWER LEVER
                                              from £288.75
                                              from £288.75
                                              # 002
                                              MPN: 169573
                                              INNER FLANBLOC FOR LOWER FORK
                                              from £167.76
                                              from £167.76
                                              # 003
                                              MPN: 169574
                                              OUTER FLANBLOC FOR LOWER FORK
                                              from £72.50
                                              from £72.50
                                              # 004
                                              MPN: 168445
                                              SCREW
                                              from £42.63
                                              from £42.63
                                              # 005
                                              MPN: 150238
                                              NUT
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12575821 - and 2 more. Click to view details
                                              # 006
                                              MPN: 105434
                                              WASHER
                                              from £20.12
                                              from £20.12
                                              # 007
                                              MPN: 171812
                                              TIE ROD
                                              - Not for 456M GTA
                                              from £41.86
                                              from £41.86
                                              # 008
                                              MPN: 102742
                                              NUT
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12557621 - and 2 more. Click to view details
                                              # 009
                                              MPN: 102901
                                              WASHER
                                              from £0.71
                                              from £0.71
                                              This part replaces part number 4146930
                                              # 010
                                              MPN: 160092
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              # 011
                                              MPN: 169121
                                              REAR ANTI-ROLL BAR - Ø 18
                                              - Not for 456M GTA
                                              from £109.05
                                              from £109.05
                                              # 012
                                              MPN: 153147
                                              BAR BUFFER - Ø 18
                                              - Not for 456M GTA
                                              from £16.49
                                              from £16.49
                                              # 013
                                              MPN: 153148
                                              PLATE
                                              - Not for 456M GTA
                                              from £4.02
                                              from £4.02
                                              # 014
                                              MPN: 169797
                                              UPPER LEVER
                                              - Not for 456M GTA
                                              from £304.12
                                              from £304.12
                                              # 015
                                              MPN: 169574
                                              INNER FLANBLOC FOR UPPER FORK
                                              from £72.50
                                              from £72.50
                                              # 016
                                              MPN: 163038
                                              BUSHES
                                              from £38.54
                                              from £38.54
                                              This part replaces part number 157701
                                              # 017
                                              MPN: 144747
                                              SCREW
                                              from £36.39
                                              from £36.39
                                              # 018
                                              MPN: 12601574
                                              WASHER
                                              from £0.54
                                              from £0.54
                                              This part replaces part number 106616 - and 2 more. Click to view details
                                              # 019
                                              MPN: 102825
                                              NUT
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 95900617
                                              # 020
                                              MPN: 150789
                                              SPECIAL SCREW
                                              from £37.94
                                              from £37.94
                                              # 021
                                              MPN: 106422
                                              SCREW
                                              from £8.21
                                              from £8.21
                                              # 022
                                              MPN: 150238
                                              NUT
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12575821 - and 2 more. Click to view details
                                              # 023
                                              MPN: 12601674
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 122975
                                              # 024
                                              MPN: 175077
                                              SPECIAL WASHER
                                              from £7.36
                                              from £7.36
                                              This part replaces part number 150790 which we have in stock - and 2 more. Click to view details
                                              # 025
                                              MPN: 150238
                                              NUT
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12575821 - and 2 more. Click to view details
                                              # 026
                                              MPN: 162434
                                              REAR ANTI-ROLL BAR - Ø 19
                                              - Valid for 456M GTA
                                              from £114.53
                                              from £114.53
                                              # 027
                                              MPN: 163716
                                              BAR BUFFER - Ø 19
                                              - Valid for 456M GTA
                                              from £7.56
                                              from £7.56
                                              # 028
                                              MPN: 167899
                                              PLATE
                                              - Valid for 456M GTA
                                              from £2.11
                                              from £2.11
                                              # 029
                                              MPN: 14048211
                                              NUT
                                              from £0.53
                                              from £0.53
                                              # 030
                                              MPN: 12638524
                                              WASHER
                                              from £0.47
                                              from £0.47
                                              This part replaces part number 12638501 - and 2 more. Click to view details
                                              # 031
                                              MPN: 162619
                                              LH BALL TIE ROD
                                              - Valid for 456M GTA
                                              Supersession
                                              Supersession
                                              # 031
                                              MPN: 162620
                                              RH BALL TIE ROD
                                              - Valid for 456M GTA
                                              from £34.21
                                              from £34.21
                                              # 032
                                              MPN: 175505
                                              UPPER LEVER
                                              - Valid for 456M GTA
                                              from £119.78
                                              from £119.78
                                              Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
