ferrari 456 m gt/m gta wheels parts diagram

064 - Wheels

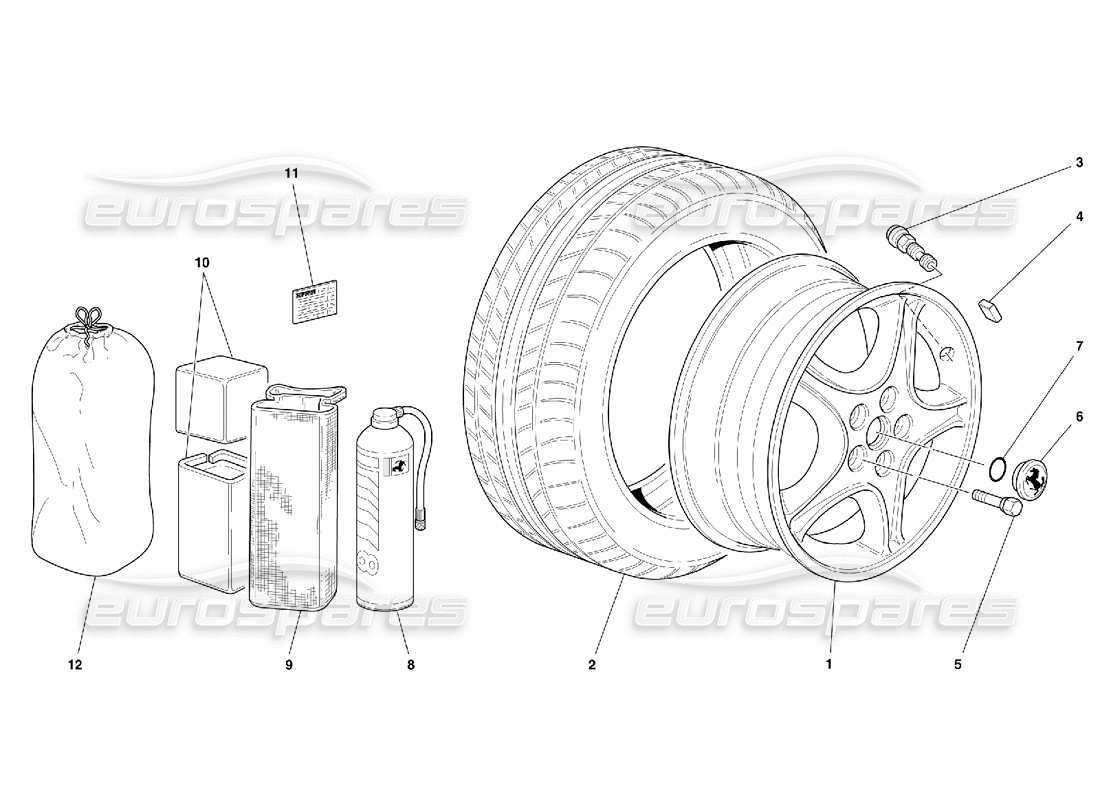

Ferrari 456 M GT/M GTA Wheels Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 151639
                    FRONT WHEEL RIM 81/2 J X 17
                    from £300.54
                    from £300.54
                    # 001
                    MPN: 151640
                    REAR WHEEL RIM 10 J X 17
                    from £322.00
                    from £322.00
                    # 002
                    MPN: 172662
                    FRONT TYRE BRIDGESTONE 255/45 ZR 17
                    # 002
                    MPN: 172663
                    REAR TYRE BRIDGESTONE 285/40 ZR 17
                    # 002
                    MPN: 172664
                    FRONT TYRE PIRELLI 255/45 ZR 17
                    # 002
                    MPN: 172665
                    REAR TYRE PIRELLI 285/40 ZR 17
                    # 002
                    MPN: 177069
                    FRONT TYRE MICHELIN 255/45 ZR 17
                    from £601.67
                    from £601.67
                    # 002
                    MPN: 177070
                    REAR TYRE MICHELIN 285/40 ZR 17
                    from £748.50
                    from £748.50
                    # 003
                    MPN: 174166
                    VALVE
                    from £5.20
                    from £5.20
                    This part replaces part number 105069 - and 1 more. Click to view details
                    # 004
                    MPN: 155302
                    COUNTER-WEIGHT -60GR.-
                    Supersession
                    Supersession
                    This part replaces part number 108851 - and 1 more. Click to view details
                    # 004
                    MPN: 162677
                    COUNTER-WEIGHT -90GR.-
                    - As an alternative
                    from £5.64
                    from £5.64
                    # 005
                    MPN: 139893
                    FRONT WHEEL STUD
                    from £25.20
                    from £25.20
                    # 005
                    MPN: 155041
                    REAR WHEEL STUD
                    from £9.95
                    from £9.95
                    # 006
                    MPN: 174226
                    WHEEL BADGE
                    from £89.02
                    from £89.02
                    # 007
                    MPN: 120065
                    GASKET
                    from £0.82
                    from £0.82
                    # 008
                    MPN: 68926600
                    TYRE REPAIR CYLINDER BOTTLE
                    (UK shipment only or Collection)
                    Supersession
                    Supersession
                    This part replaces part number 152367 which we have in stock - and 3 more. Click to view details
                    # 009
                    MPN: 171577
                    PORTFOLIO FOR CYLINDER
                    from £84.09
                    from £84.09
                    # 010
                    MPN: 166537
                    PLYSTYRENE FOAM CASE
                    from £31.55
                    from £31.55
                    # 011
                    MPN: 157339
                    TYRE PRESSURE PLATE-BRIDGESTONE
                    - Not for USA, CDN and AUS
                    from £2.06
                    from £2.06
                    # 011
                    MPN: 160572
                    TYRE PRESSURE PLATE-PIRELLI
                    - Valid for 456M GT AUS
                    from £2.92
                    from £2.92
                    # 011
                    MPN: 160696
                    TYRE PRESSURE PLATE-BRIDGESTONE
                    - Valid for USA and CDN - Valid for 456M GTA AUS
                    from £2.92
                    from £2.92
                    # 011
                    MPN: 160697
                    TYRE PRESSURE PLATE-PIRELLI
                    - Valid for USA and CDN - Valid for 456M GTA AUS
                    from £2.92
                    from £2.92
                    # 011
                    MPN: 160882
                    TYRE PRESSURE PLATE-PIRELLI
                    - Not for USA, CDN and AUS
                    from £2.64
                    from £2.64
                    # 011
                    MPN: 163047
                    TYRE PRESSURE PLATE-BRIDGESTONE
                    - Valid for 456M GT AUS
                    from £2.40
                    from £2.40
                    # 011
                    MPN: 177062
                    TYRE PRESSURE PLATE-MICHELIN
                    - Not for USA, CDN and AUS
                    from £8.05
                    from £8.05
                    # 011
                    MPN: 177071
                    TYRE PRESSURE PLATE-MICHELIN
                    - Valid for USA and CDN
                    from £11.42
                    from £11.42
                    # 011
                    MPN: 177942
                    TYRE PRESSURE PLATE-MICHELIN
                    - Valid for 456M GT AUS
                    from £13.79
                    from £13.79
                    # 012
                    MPN: 173688
                    BAG
                    from £28.26
                    from £28.26
                    This part replaces part number 173668
