ferrari 456 m gt/m gta alternator starting motor and a.c. compressor parts diagram

066 - Alternator Starting Motor and A.C. Compressor

Ferrari 456 M GT/M GTA Alternator Starting Motor and A.C. Compressor Parts Diagram

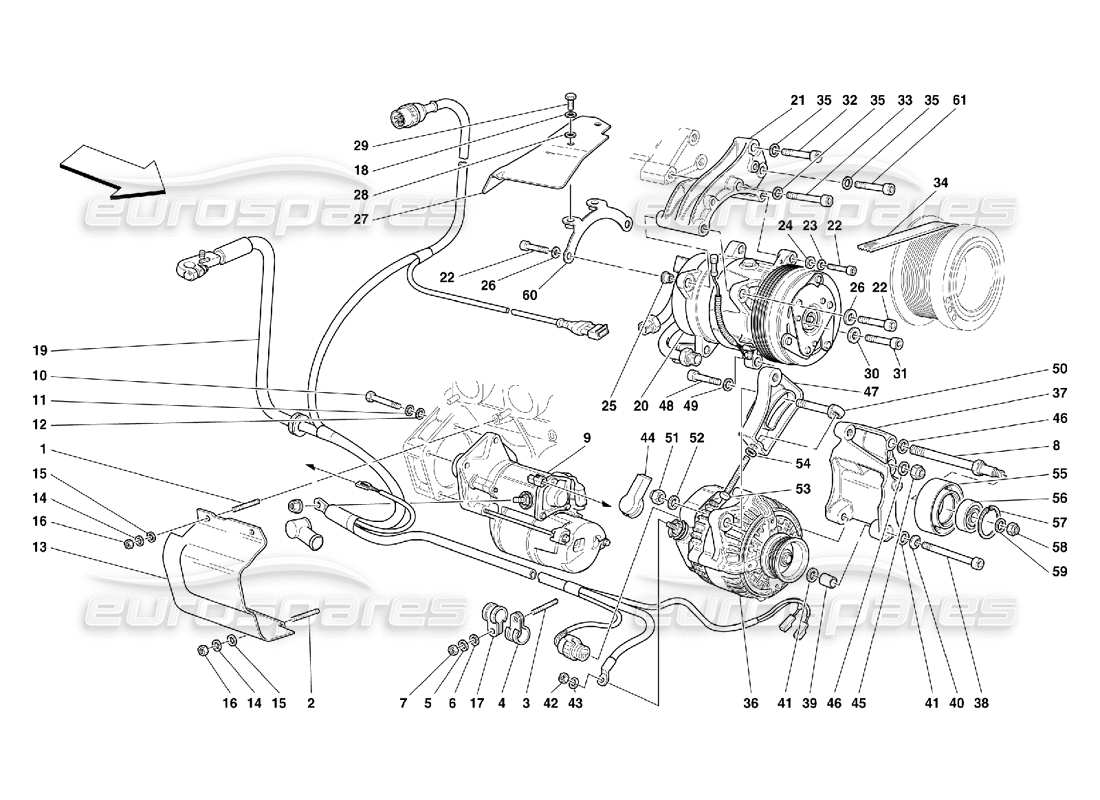

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                  #
                                                                                                                  Part number
                                                                                                                  Description
                                                                                                                  Price
                                                                                                                  # 001
                                                                                                                  MPN: 11500124
                                                                                                                  STUD
                                                                                                                  from £0.68
                                                                                                                  from £0.68
                                                                                                                  This part replaces part number 11500121
                                                                                                                  # 002
                                                                                                                  MPN: 13540824
                                                                                                                  STUD
                                                                                                                  from £14.21
                                                                                                                  from £14.21
                                                                                                                  This part replaces part number 13540821
                                                                                                                  # 003
                                                                                                                  MPN: 13540824
                                                                                                                  STUD
                                                                                                                  from £14.21
                                                                                                                  from £14.21
                                                                                                                  This part replaces part number 13540821
                                                                                                                  # 004
                                                                                                                  MPN: 10441490
                                                                                                                  BRACKET WITH SHEATH
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 005
                                                                                                                  MPN: 12639724
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 12639725 - and 1 more. Click to view details
                                                                                                                  # 006
                                                                                                                  MPN: 127494
                                                                                                                  WASHER
                                                                                                                  (minimum order quantity = 20)
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                  # 007
                                                                                                                  MPN: 15896214
                                                                                                                  NUT
                                                                                                                  from £0.54
                                                                                                                  from £0.54
                                                                                                                  This part replaces part number 15896211
                                                                                                                  # 008
                                                                                                                  MPN: 153390
                                                                                                                  PIN
                                                                                                                  from £31.36
                                                                                                                  from £31.36
                                                                                                                  # 009
                                                                                                                  MPN: 164397
                                                                                                                  STARTER MOTOR
                                                                                                                  from £234.93
                                                                                                                  from £234.93
                                                                                                                  # 010
                                                                                                                  MPN: 16044821
                                                                                                                  SCREW
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 010
                                                                                                                  MPN: 16044921
                                                                                                                  SCREW
                                                                                                                  from £0.51
                                                                                                                  from £0.51
                                                                                                                  # 011
                                                                                                                  MPN: 10519624
                                                                                                                  WASHER
                                                                                                                  from £0.54
                                                                                                                  from £0.54
                                                                                                                  This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                                  # 012
                                                                                                                  MPN: 11193874
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 11193879 which we have in stock
                                                                                                                  # 013
                                                                                                                  MPN: 176333
                                                                                                                  SHIELD FOR STARTER MOTOR PROTECTION
                                                                                                                  from £100.77
                                                                                                                  from £100.77
                                                                                                                  This part replaces part number 165895 which we have in stock - and 1 more. Click to view details
                                                                                                                  # 014
                                                                                                                  MPN: 12644424
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                                                  # 015
                                                                                                                  MPN: 127494
                                                                                                                  WASHER
                                                                                                                  (minimum order quantity = 20)
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                  # 016
                                                                                                                  MPN: 15896214
                                                                                                                  NUT
                                                                                                                  from £0.54
                                                                                                                  from £0.54
                                                                                                                  This part replaces part number 15896211
                                                                                                                  # 017
                                                                                                                  MPN: 10441990
                                                                                                                  BRACKET WITH SHEATH
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 018
                                                                                                                  MPN: 127494
                                                                                                                  WASHER
                                                                                                                  (minimum order quantity = 20)
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                  # 019
                                                                                                                  MPN: 176203
                                                                                                                  CABLES FOR MOTOR DEVICES CONNECTION
                                                                                                                  - Not for GD - Valid till car Ass. Nr. 32087
                                                                                                                  from £497.64
                                                                                                                  from £497.64
                                                                                                                  # 019
                                                                                                                  MPN: 177182
                                                                                                                  CABLES FOR MOTOR DEVICES CONNECTION
                                                                                                                  - Valid for GD - Valid till car Ass. Nr. 32030
                                                                                                                  from £1,099.36
                                                                                                                  from £1,099.36
                                                                                                                  # 019
                                                                                                                  MPN: 179241
                                                                                                                  CABLES FOR MOTOR DEVICES CONNECTION
                                                                                                                  - Not for GD - Valid from car Ass. Nr. 32088
                                                                                                                  from £2,913.68
                                                                                                                  from £2,913.68
                                                                                                                  # 019
                                                                                                                  MPN: 179273
                                                                                                                  CABLES FOR MOTOR DEVICES CONNECTION
                                                                                                                  - Valid for GD - Valid from car Ass. Nr. 32031
                                                                                                                  from £205.71
                                                                                                                  from £205.71
                                                                                                                  # 020
                                                                                                                  MPN: 204539
                                                                                                                  air conditioner compressor
                                                                                                                  from £1,995.00
                                                                                                                  from £1,995.00
                                                                                                                  This part replaces part number 170594
                                                                                                                  # 021
                                                                                                                  MPN: 170595
                                                                                                                  SUPPORT
                                                                                                                  from £107.78
                                                                                                                  from £107.78
                                                                                                                  This part replaces part number 164503 which we have in stock - and 2 more. Click to view details
                                                                                                                  # 022
                                                                                                                  MPN: 14307624
                                                                                                                  SCREW
                                                                                                                  from £3.00
                                                                                                                  from £3.00
                                                                                                                  # 023
                                                                                                                  MPN: 106352
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 024
                                                                                                                  MPN: 10569474
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 025
                                                                                                                  MPN: 164538
                                                                                                                  BUSHING
                                                                                                                  from £40.87
                                                                                                                  from £40.87
                                                                                                                  # 026
                                                                                                                  MPN: 11190574
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 14499504
                                                                                                                  # 027
                                                                                                                  MPN: 176334
                                                                                                                  SHIELD FOR COMPRESSOR PROTECTION
                                                                                                                  from £14.07
                                                                                                                  from £14.07
                                                                                                                  This part replaces part number 165491 - and 4 more. Click to view details
                                                                                                                  # 028
                                                                                                                  MPN: 12644424
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 12644401 - and 1 more. Click to view details
                                                                                                                  # 029
                                                                                                                  MPN: 10902124
                                                                                                                  SCREW
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                                  # 030
                                                                                                                  MPN: 11190574
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 14499504
                                                                                                                  # 031
                                                                                                                  MPN: 14307624
                                                                                                                  SCREW
                                                                                                                  from £3.00
                                                                                                                  from £3.00
                                                                                                                  # 032
                                                                                                                  MPN: 14307924
                                                                                                                  SCREW
                                                                                                                  from £3.20
                                                                                                                  from £3.20
                                                                                                                  This part replaces part number 14307920
                                                                                                                  # 033
                                                                                                                  MPN: 101632
                                                                                                                  DRIVESHAFT BOLT
                                                                                                                  from £14.75
                                                                                                                  from £14.75
                                                                                                                  This part replaces part number 103432 - and 5 more. Click to view details
                                                                                                                  # 034
                                                                                                                  MPN: 167884
                                                                                                                  BELT FOR ALTERNATOR AND COMPRESSORE
                                                                                                                  - Valid for 456M GTA - Valid till car Ass. Nr. 31523
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 034
                                                                                                                  MPN: 201444
                                                                                                                  BELT FOR ALTERNATOR AND COMPRESSOR
                                                                                                                  - Not for 456M GTA - Valid from car Ass. Nr. 31663
                                                                                                                  from £11.58
                                                                                                                  from £11.58
                                                                                                                  This part replaces part number 171092
                                                                                                                  # 034
                                                                                                                  MPN: 201447
                                                                                                                  Alternator & Air Con Belt
                                                                                                                  Use on Exhaustion of 177509
                                                                                                                  from £16.42
                                                                                                                  from £16.42
                                                                                                                  This part replaces part number 177509 - and 1 more. Click to view details
                                                                                                                  # 034
                                                                                                                  MPN: 201447
                                                                                                                  BELT FOR ALTERNATOR AND COMPRESSORE
                                                                                                                  from £16.42
                                                                                                                  from £16.42
                                                                                                                  This part replaces part number 177509 - and 1 more. Click to view details
                                                                                                                  # 035
                                                                                                                  MPN: 11190574
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 14499504
                                                                                                                  # 036
                                                                                                                  MPN: 156858

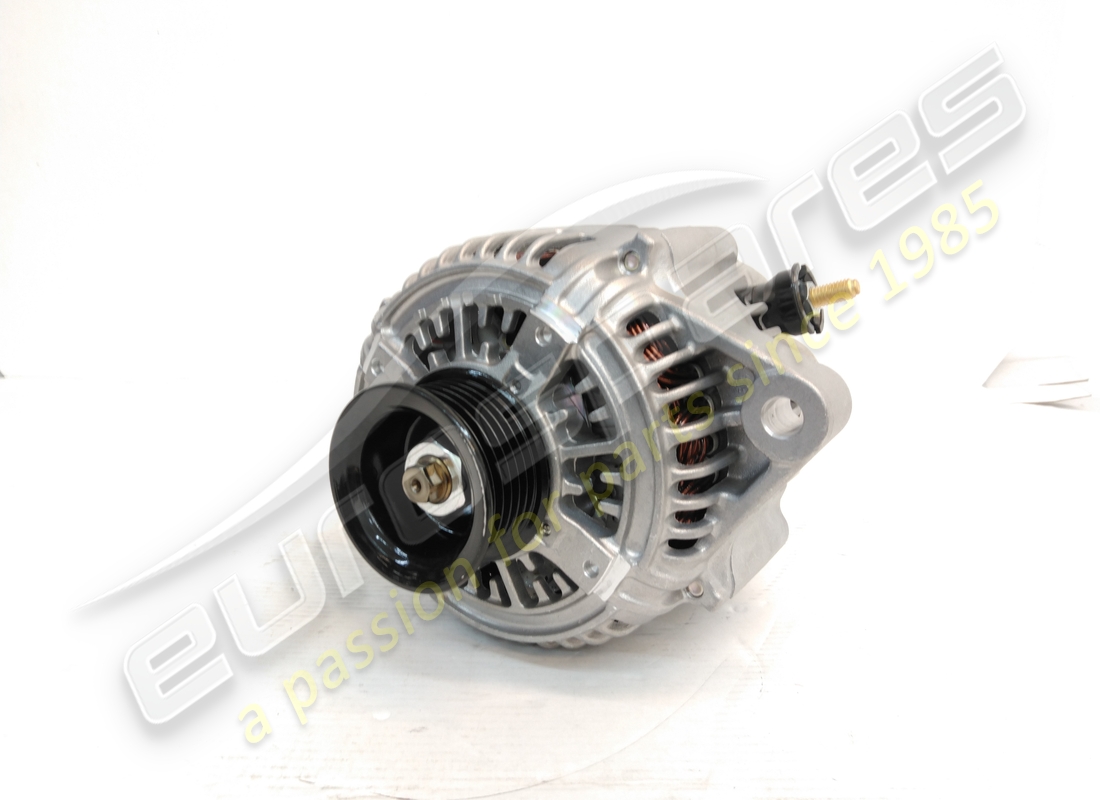

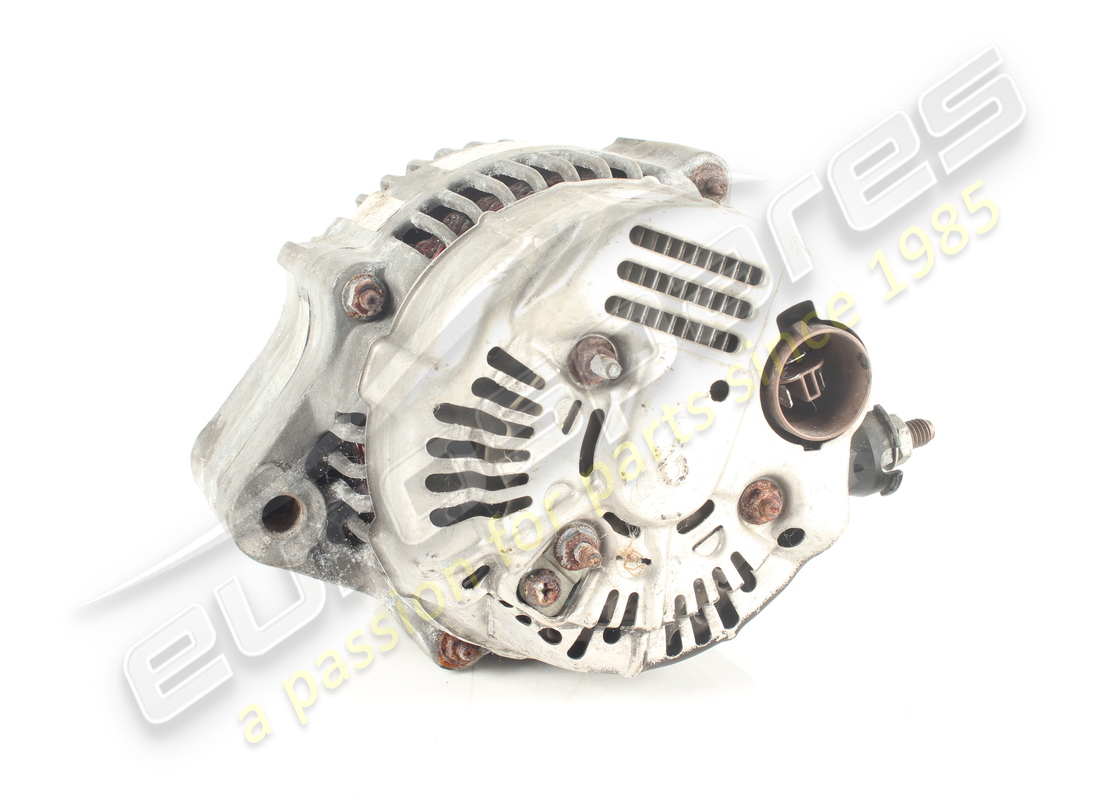

                                                                                                                  ALTERNATOR
                                                                                                                  from £523.01
                                                                                                                  from £523.01
                                                                                                                  This part replaces part number 154751 which we have in stock
                                                                                                                  # 037
                                                                                                                  MPN: 164534
                                                                                                                  ALTERNATOR SUPPORT
                                                                                                                  from £190.25
                                                                                                                  from £190.25
                                                                                                                  # 038
                                                                                                                  MPN: 137920
                                                                                                                  SCREW
                                                                                                                  from £8.33
                                                                                                                  from £8.33
                                                                                                                  # 039
                                                                                                                  MPN: 123172
                                                                                                                  BUSHING
                                                                                                                  from £1.08
                                                                                                                  from £1.08
                                                                                                                  # 040
                                                                                                                  MPN: 11190574
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 14499504
                                                                                                                  # 041
                                                                                                                  MPN: 13550401
                                                                                                                  WASHER
                                                                                                                  from £0.71
                                                                                                                  from £0.71
                                                                                                                  # 042
                                                                                                                  MPN: 16102314
                                                                                                                  NUT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 16102311 which we have in stock - and 1 more. Click to view details
                                                                                                                  # 043
                                                                                                                  MPN: 12601374
                                                                                                                  WASHER
                                                                                                                  from £0.54
                                                                                                                  from £0.54
                                                                                                                  This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                                                  # 044
                                                                                                                  MPN: 154803
                                                                                                                  PROTECTION BOOT
                                                                                                                  from £2.58
                                                                                                                  from £2.58
                                                                                                                  # 045
                                                                                                                  MPN: 102825
                                                                                                                  NUT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 95900617
                                                                                                                  # 046
                                                                                                                  MPN: 13507411
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  # 047
                                                                                                                  MPN: 164533
                                                                                                                  BELT TIGHTENING BRACKET
                                                                                                                  from £40.95
                                                                                                                  from £40.95
                                                                                                                  # 048
                                                                                                                  MPN: 14307524
                                                                                                                  SCREW
                                                                                                                  from £0.62
                                                                                                                  from £0.62
                                                                                                                  # 049
                                                                                                                  MPN: 11190574
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 14499504
                                                                                                                  # 050
                                                                                                                  MPN: 148629
                                                                                                                  PIN
                                                                                                                  from £11.08
                                                                                                                  from £11.08
                                                                                                                  # 051
                                                                                                                  MPN: 102742
                                                                                                                  NUT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 12557621 - and 2 more. Click to view details
                                                                                                                  # 052
                                                                                                                  MPN: 13550401
                                                                                                                  WASHER
                                                                                                                  from £0.71
                                                                                                                  from £0.71
                                                                                                                  # 053
                                                                                                                  MPN: 125668
                                                                                                                  SCREW
                                                                                                                  from £0.86
                                                                                                                  from £0.86
                                                                                                                  # 054
                                                                                                                  MPN: 14496524
                                                                                                                  WASHER
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 14496525 - and 1 more. Click to view details
                                                                                                                  # 055
                                                                                                                  MPN: 148632
                                                                                                                  PULLEY
                                                                                                                  from £262.50
                                                                                                                  from £262.50
                                                                                                                  # 056
                                                                                                                  MPN: 123350
                                                                                                                  BEARING
                                                                                                                  from £20.15
                                                                                                                  from £20.15
                                                                                                                  # 057
                                                                                                                  MPN: 11060076
                                                                                                                  SEEGER RING
                                                                                                                  from £0.53
                                                                                                                  from £0.53
                                                                                                                  # 058
                                                                                                                  MPN: 102825
                                                                                                                  NUT
                                                                                                                  from £0.47
                                                                                                                  from £0.47
                                                                                                                  This part replaces part number 95900617
                                                                                                                  # 059
                                                                                                                  MPN: 10730721
                                                                                                                  WASHER
                                                                                                                  Supersession
                                                                                                                  Supersession
                                                                                                                  # 060
                                                                                                                  MPN: 165490
                                                                                                                  BRACKET
                                                                                                                  from £6.45
                                                                                                                  from £6.45
                                                                                                                  # 061
                                                                                                                  MPN: 14307724
                                                                                                                  SCREW
                                                                                                                  from £0.97
                                                                                                                  from £0.97
                                                                                                                  This part replaces part number 14307721
