067 - air conditioning system

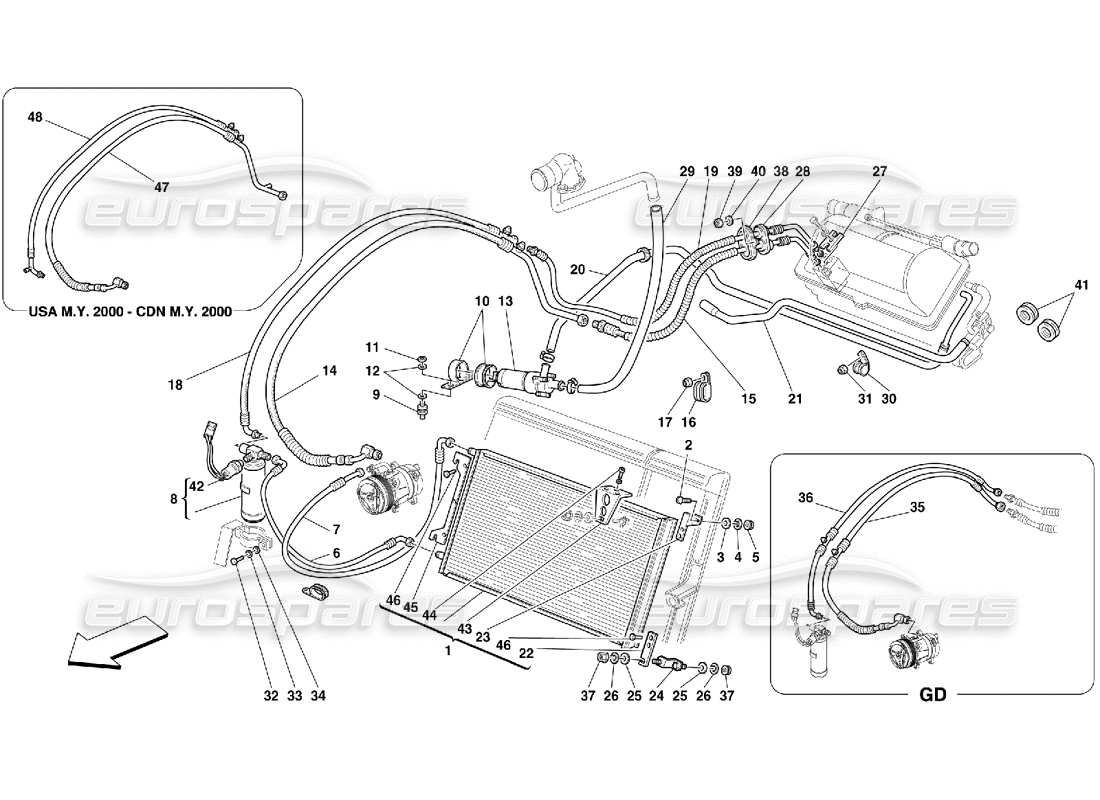

Ferrari 456 M GT/M GTA Air Conditioning System Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 165563

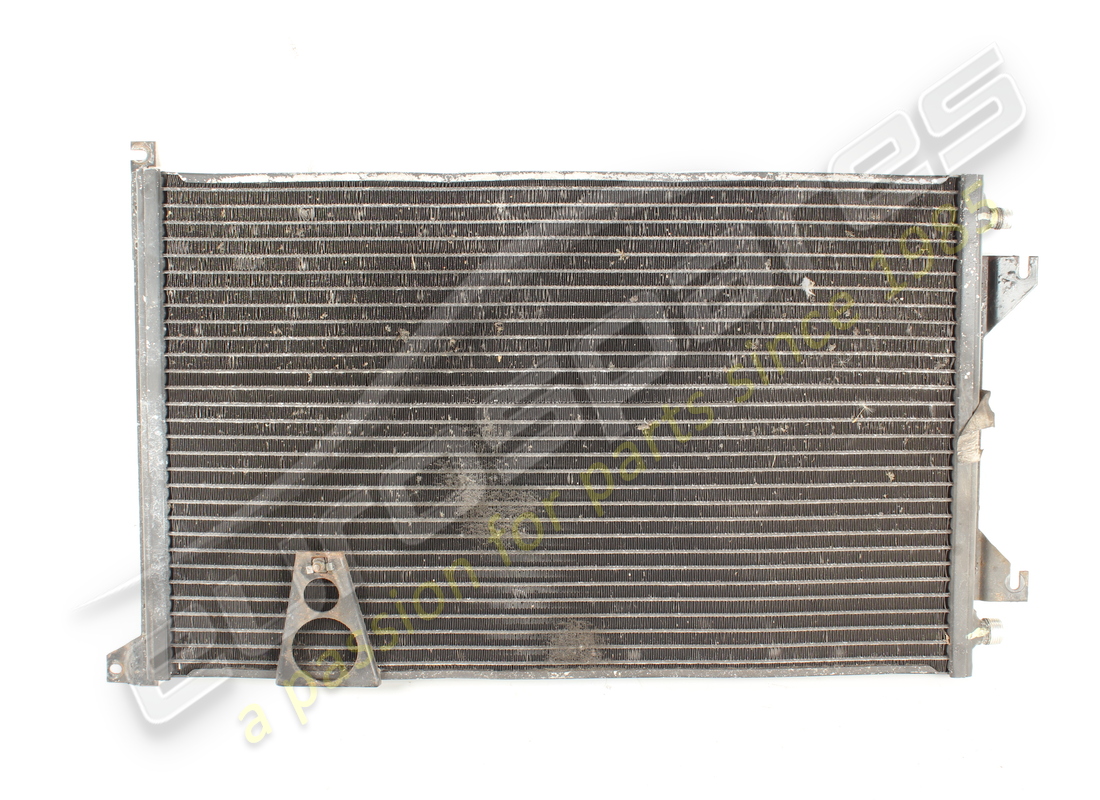

AC CONDENSER
from £937.72
from £937.72
# 002
MPN: 14778814
SCREW
from £1.01
from £1.01
# 003
MPN: 14496424
WASHER
Supersession
Supersession
This part replaces part number 14496401 - and 3 more. Click to view details
# 004
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 005
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
# 006
MPN: 64827500
PIPE FROM CONDENSER TO DEHYDRATOR FILTER
from £286.58
from £286.58
# 007
MPN: 64827400
PIPE FROM COMPRESSOR TO CONDENSER
from £154.01
from £154.01
# 008
MPN: 64799500
DEHYDRATOR FILTER WITH PRESSURE SWITCH
Supersession
Supersession
# 009
MPN: 142202
ANTI-VIBRATION SUPPORT
from £14.50
from £14.50
# 010
MPN: 63994900
COMPLETE BRACKET
from £4.17
from £4.17
This part replaces part number 64246500
# 011
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 012
MPN: 14496424
WASHER
Supersession
Supersession
This part replaces part number 14496401 - and 3 more. Click to view details
# 013
MPN: 65460300
COMPLETE WATER PUMP
from £131.27
from £131.27
This part replaces part number 70000900 - and 3 more. Click to view details
# 014
MPN: 65419600

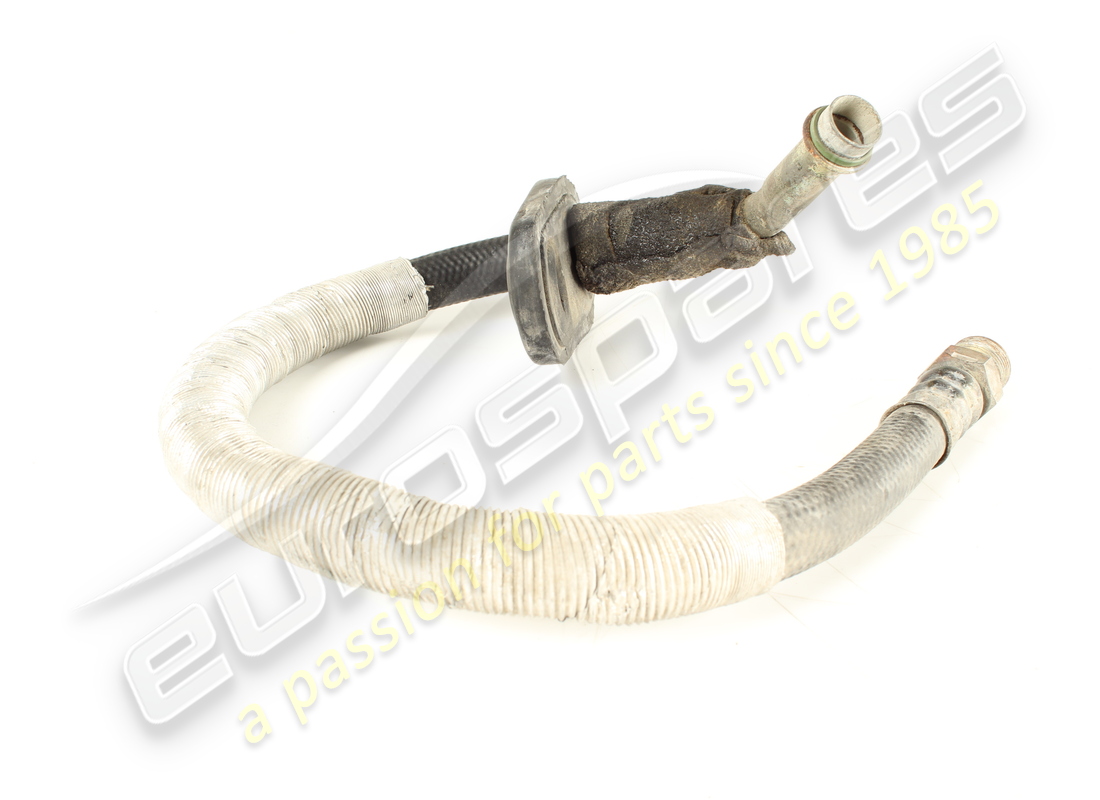

PIPE FROM HOSE TO COMPRESSOR
- Not for GD, USA M.Y. 2000 and CDN M.Y. 2000
from £54.34
from £54.34
# 015
MPN: 64791200

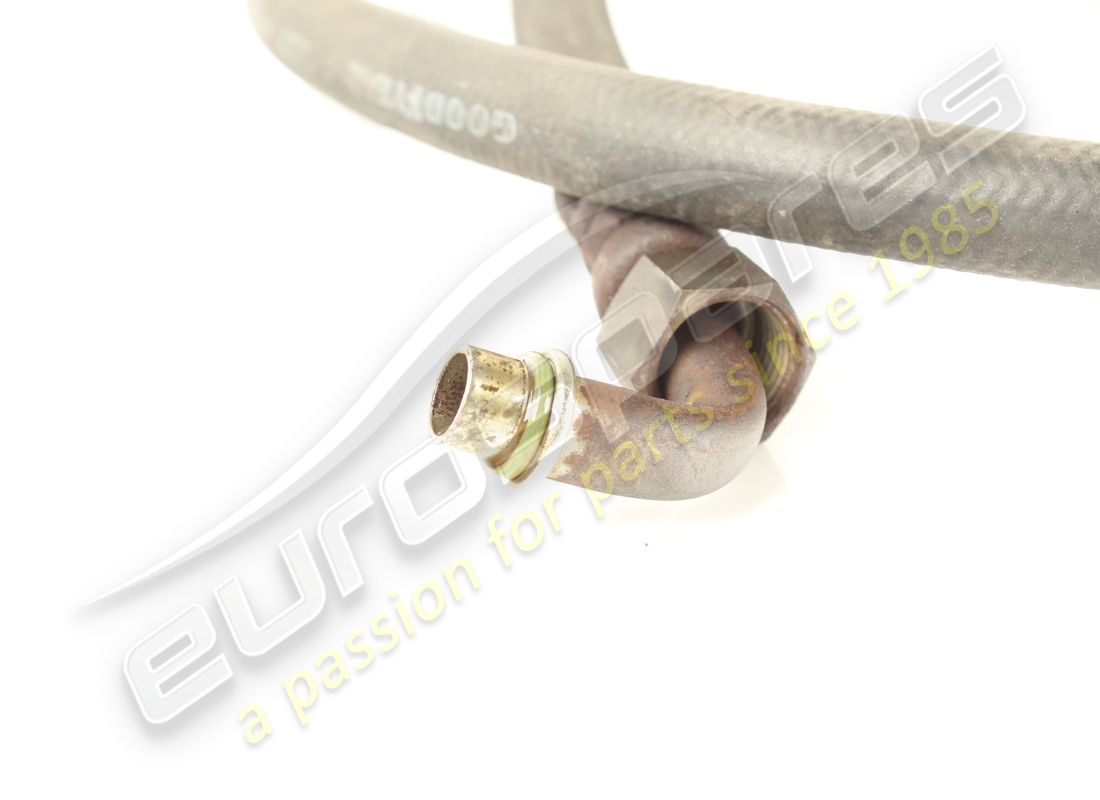

HOSE FROM EVAPORATOR TO PIPE
from £84.73
from £84.73
# 016
MPN: 61712500
BRACKET WITH SHEATH
from £0.88
from £0.88
# 017
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 018
MPN: 64827600
PIPE FROM DEHYDRATOR FILTER TO HOSE
- Not for GD, USA M.Y. 2000 and CDN M.Y. 2000
from £208.97
from £208.97
# 019
MPN: 64791300
HOSE FROM PIPE TO EVAPORETOR
from £78.34
from £78.34
# 020
MPN: 65674900
DELIVERY TUBE FROM WATER PUMP
- Not for GD
from £147.20
from £147.20
# 020
MPN: 65846100
DELIVERY TUBE FROM WATER PUMP
- Valid for GD
from £120.87
from £120.87
# 021
MPN: 65618300
RETURN TUBE FROM VALVE TO NOURICE
- Valid for GD
from £95.86
from £95.86
# 021
MPN: 65674500
RETURN TUBE FROM VALVE TO NOURICE
- Not for GD
from £55.37
from £55.37
# 022
MPN: 168068
BRACKET
from £15.44
from £15.44
# 023
MPN: 165561
BRACKET
from £6.84
from £6.84
# 024
MPN: 156989
SMALL PLATE
from £4.69
from £4.69
# 025
MPN: 12646601
WASHER
from £0.71
from £0.71
# 026
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 027
MPN: 64281500
FLANGE
from £2.21
from £2.21
This part replaces part number 67592000
# 028
MPN: 63961800
RUBBER GASKET
from £16.48
from £16.48
# 029
MPN: 65419500
DELIVERY TUBE FROM ENGINE TO PUMP
from £112.17
from £112.17
# 030
MPN: 61712600

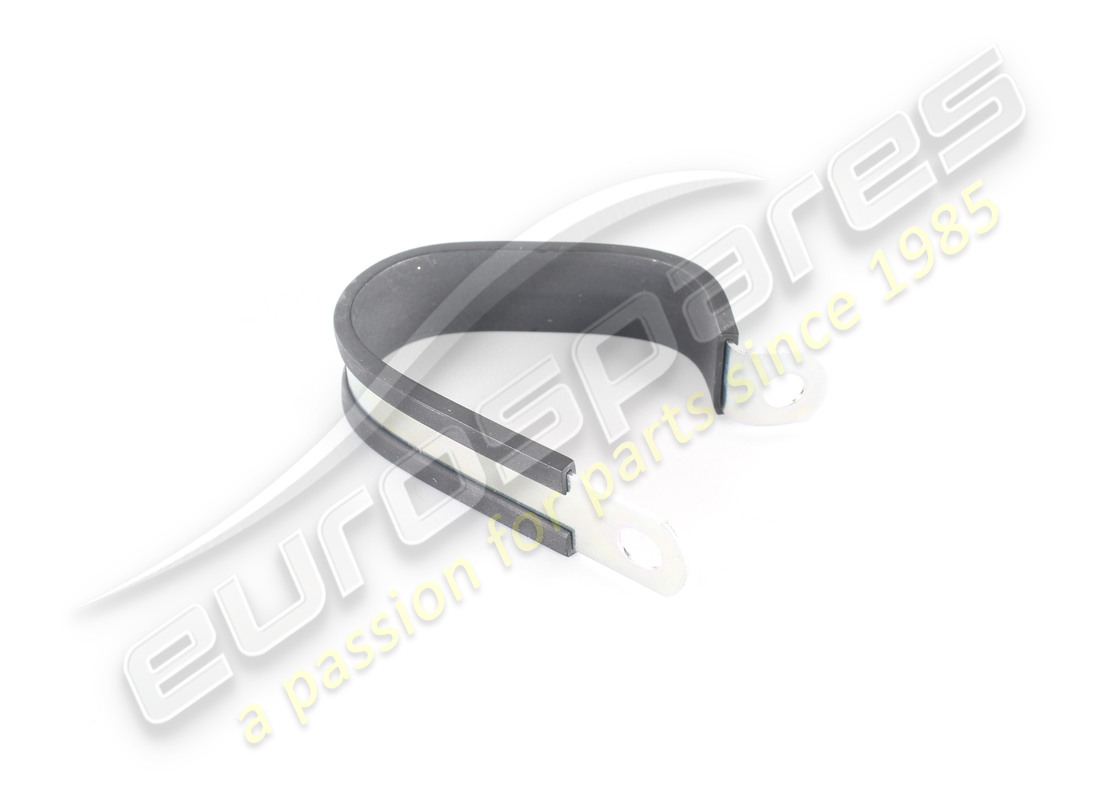

CLAMP
from £0.85
from £0.85
# 031
MPN: 102948
NUT
from £0.47
from £0.47
This part replaces part number 12574211 - and 3 more. Click to view details
# 032
MPN: 10902324
SCREW
from £0.47
from £0.47
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 033
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.54
from £0.54
This part replaces part number 10516470 - and 4 more. Click to view details
# 034
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 035
MPN: 65618200
PIPE FROM HOSE TO COMPRESSOR
- Valid for GD
from £70.00
from £70.00
# 036
MPN: 65655400
PIPE FROM DEHYDRATOR FILTER TO HOSE
- Valid for GD
from £164.34
from £164.34
# 037
MPN: 15896214
NUT
from £0.54
from £0.54
This part replaces part number 15896211
# 038
MPN: 63961900
FRAME FOR PIPE BUSHING
from £5.64
from £5.64
# 039
MPN: 169180
NUT
from £0.53
from £0.53
This part replaces part number 12574121
# 040
MPN: 12638124
WASHER
from £0.47
from £0.47
This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
# 041
MPN: 10459087
CABLE GROMMET
from £0.47
from £0.47
This part replaces part number 10396980 which we have in stock
# 042
MPN: 64799700
PRESSOSTAT
Supersession
Supersession
# 043
MPN: 165562
BRACKET
from £40.18
from £40.18
# 044
MPN: 165136
SCREW
from £0.47
from £0.47
# 045
MPN: 165560
BRACKET
from £23.60
from £23.60
# 046
MPN: 165137
SCREW
from £1.31
from £1.31
# 047
MPN: 65990400
PIPE FROM HOSE TO COMPRESSOR
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £155.18
from £155.18
# 048
MPN: 65990500
PIPE FROM DEHYDRATOR FILTER TO HOSE
- Valid for USA M.Y. 2000 and CDN M.Y. 2000
from £94.46
from £94.46
