101 - Front Structures and Components

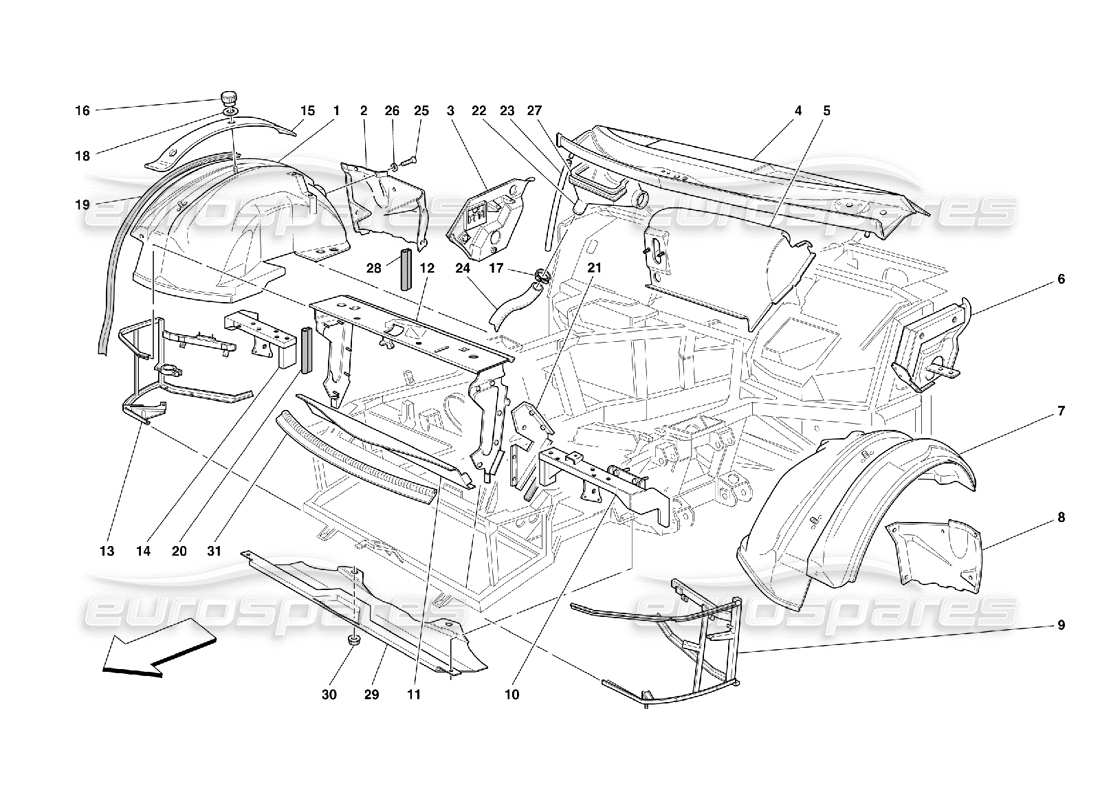

Ferrari 456 M GT/M GTA Front Structures and Components Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 000
MPN: 75136785
FRONT LEFT CHASSIS CUT
Includes All Parts In Picture
# 001
MPN: 65419700
RH FRONT UPPER WHEELHOUSE
- Not for GD
from £374.09
from £374.09
# 001
MPN: 65646800
RH FRONT UPPER WHEELHOUSE
- Valid for GD
from £238.90
from £238.90
# 002
MPN: 65509500
RH WHEELHOUSE REAR PANEL
from £43.96
from £43.96
# 003
MPN: 65582200
RH HINGE CONNECTION
- Not for GD
Supersession
Supersession
# 003
MPN: 65847500
RH HINGE CONNECTION
- Valid for GD
from £80.93
from £80.93
# 004
MPN: 65801600
LOWER WINDSHIELD CROSS MEMBER
- Not for GD
from £641.72
from £641.72
# 004
MPN: 65890900
LOWER WINDSHIELD CROSS MEMBER
- Valid for GD
from £1,648.59
from £1,648.59
# 005
MPN: 177392
PROTECTION FOR AIR CONDITIONING
- Not for USA, CDN, J and GD
from £212.22
from £212.22
# 005
MPN: 177571
PROTECTION FOR AIR CONDITIONING
- Valid for GD
from £240.49
from £240.49
# 005
MPN: 63855800
PROTECTION FOR AIR CONDITIONING
- Valid for USA, CDN and J
from £260.84
from £260.84
# 006
MPN: 65627800
LH HINGE CONNECTION
- Not for GD
Supersession
Supersession
# 006
MPN: 65847600
LH HINGE CONNECTION
- Valid for GD
from £80.93
from £80.93
# 007
MPN: 65419800
LH FRONT UPPER WHEELHOUSE
- Not for GD
from £261.86
from £261.86
# 007
MPN: 65647000
LH FRONT UPPER WHEELHOUSE
- Valid for GD
from £261.86
from £261.86
# 008
MPN: 65509600
LH WHEELHOUSE REAR PANEL
from £43.96
from £43.96
# 009
MPN: 65447000
LH FRONT FRAME
from £479.16
from £479.16
# 010
MPN: 65446600
LH HEAD LAMP SUPPORT
from £265.25
from £265.25
# 011
MPN: 65467200
LOWER AIR CONVEYOR
from £68.23
from £68.23
# 012
MPN: 179534
FRONT CROSS MEMBER
- Valid from car Ass. Nr. 30204
from £1,359.75
from £1,359.75
# 012
MPN: 63789400
FRONT CROSS MEMBER
- Valid till car Ass. Nr. 30203
from £212.23
from £212.23
# 013
MPN: 65446900
RH FRONT FRAME
from £479.16
from £479.16
# 014
MPN: 65446500
RH HEAD LAMP SUPPORT
from £265.25
from £265.25
# 015
MPN: 65142100
COVER
from £10.29
from £10.29
This part replaces part number 63198800 which we have in stock - and 4 more. Click to view details
# 016
MPN: 63198900
RING NUT
from £19.89
from £19.89
# 017
MPN: 13000690
SCREW COLLAR
from £0.51
from £0.51
This part replaces part number 12174090 - and 2 more. Click to view details
# 018
MPN: 65550400
SPACER
from £0.77
from £0.77
# 019
MPN: 65550300
GASKET
from £33.44
from £33.44
# 020
MPN: 64329000
LATERAL GASKET
from £5.51
from £5.51
# 021
MPN: 63480000
RH CONVEYOR LATERAL PANEL
from £60.15
from £60.15
# 021
MPN: 63480100
LH CONVEYOR LATERAL PANEL
from £109.37
from £109.37
# 022
MPN: 63200700
AIR DUCTING
- Not for GD
Supersession
Supersession
# 022
MPN: 65500700
AIR DUCTING
- Valid for GD
Supersession
Supersession
This part replaces part number 64281800
# 023
MPN: 63891600
WATER EXHAUST PIPE
from £2.01
from £2.01
# 024
MPN: 63200800
WATER EXHAUST TUBE
- Not for GD
from £21.88
from £21.88
# 024
MPN: 64537300
WATER EXHAUST TUBE
- Valid for GD
from £27.68
from £27.68
# 025
MPN: 15688375
SCREW
(minimum order quantity = 30)
from £0.50
from £0.50
This part replaces part number 15688306 which we have in stock
# 026
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
# 027
MPN: 63201100
AIR DUCTING GASKET
from £6.11
from £6.11
# 028
MPN: 64517200
GASKET
from £4.68
from £4.68
# 029
MPN: 177901
COMPLETE SHIELD
from £52.69
from £52.69
# 030
MPN: 13046114
NUT
from £0.53
from £0.53
# 031
MPN: 64328900
GASKET
from £9.24
from £9.24
