110 - Passengers Compartment Upholstery and Carpets

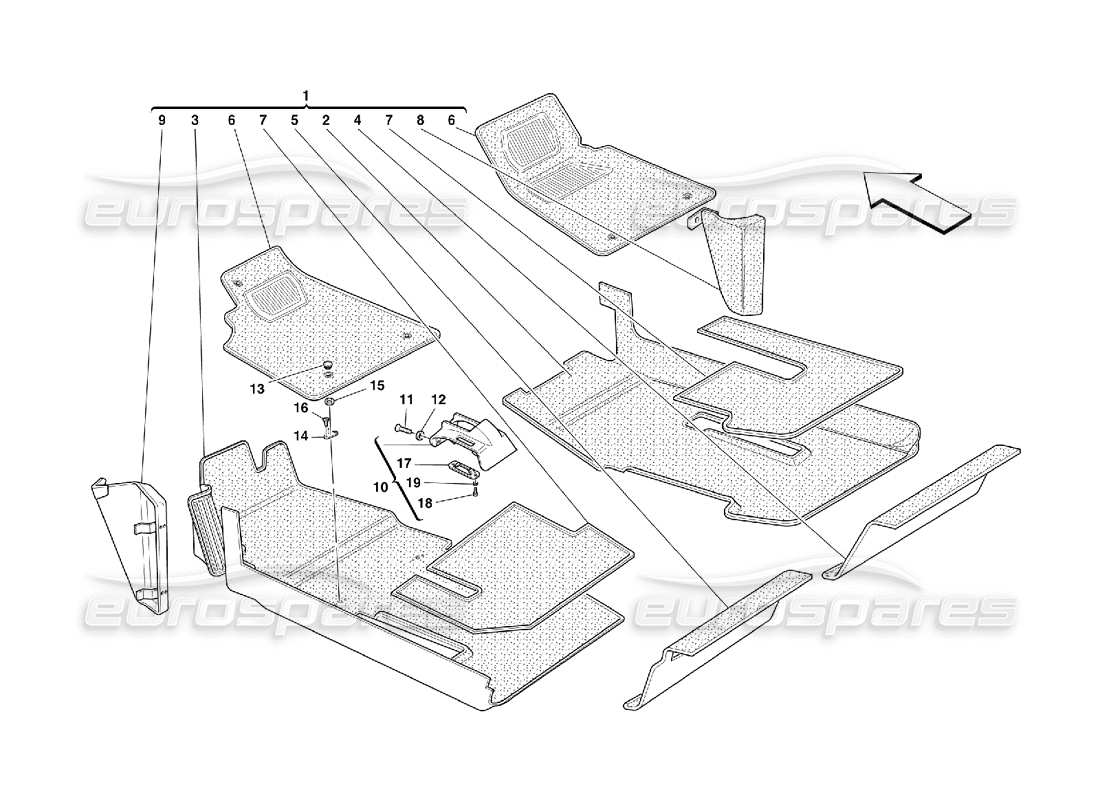

Ferrari 456 M GT/M GTA Passengers Compartment Upholstery and Carpets Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                    #
                    Part number
                    Description
                    Price
                    # 001
                    MPN: 654408..
                    COMPLETE CARPET SERIES
                    - Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                    Supersession
                    Supersession
                    # 001
                    MPN: 656632..
                    COMPLETE CARPET SERIES
                    - Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                    Supersession
                    Supersession
                    # 002
                    -
                    PASSENGER SIDE CARPET
                    # 003
                    -
                    DRIVER SIDE CARPET
                    # 004
                    -
                    RH REAR CARPET
                    # 005
                    -
                    LH REAR CARPET
                    # 006
                    MPN: 658302..
                    FRONT MOVABLE CARPETS
                    - Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                    Supersession
                    Supersession
                    # 006
                    MPN: 658303..
                    FRONT MOVABLE CARPETS
                    - Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                    Supersession
                    Supersession
                    # 007
                    MPN: 658304..
                    REAR MOVABLE CARPETS
                    - Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                    Supersession
                    Supersession
                    # 007
                    MPN: 658305..
                    REAR MOVABLE CARPETS
                    - Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                    Supersession
                    Supersession
                    # 008
                    MPN: 654335..
                    RH CENTRAL UNIT COVERING CARPET
                    - Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                    Supersession
                    Supersession
                    # 008
                    MPN: 656636..
                    RH CENTRAL UNIT COVERING CARPET
                    - Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                    Supersession
                    Supersession
                    # 009
                    MPN: 654338..
                    LH CENTRAL UNIT COVERING CARPET
                    - Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                    Supersession
                    Supersession
                    # 009
                    MPN: 656637..
                    LH CENTRAL UNIT COVERING CARPET
                    - Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                    Supersession
                    Supersession
                    # 010
                    MPN: 655625..
                    UPHOLSTERED MOULDING FOR HAND BRAKE COVER
                    - Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                    Supersession
                    Supersession
                    # 010
                    MPN: 655629..
                    LINING
                    - Not for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                    Supersession
                    Supersession
                    # 010
                    MPN: 655630..
                    UPHOLSTERED MOULDING FOR HAND BRAKE COVER
                    - Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                    Supersession
                    Supersession
                    # 010
                    MPN: 655631..
                    LINING
                    - Valid for GD - See INNER TRIMS CAR CODES table for codes of parts covered in leather or moquette
                    from £105.00
                    from £105.00
                    # 011
                    MPN: 15691370
                    SCREW
                    from £0.71
                    from £0.71
                    # 012
                    MPN: 62768300
                    WASHER
                    from £0.53
                    from £0.53
                    # 013
                    MPN: 63698300
                    UPPER RING
                    Supersession
                    Supersession
                    # 014
                    MPN: 63698100
                    SMALL PLATE
                    Supersession
                    Supersession
                    This part replaces part number 63698200 - and 1 more. Click to view details
                    # 015
                    MPN: 63698200
                    LOWER RING
                    Supersession
                    Supersession
                    # 016
                    MPN: 15687375
                    SCREW
                    from £0.47
                    from £0.47
                    This part replaces part number 15687370 - and 1 more. Click to view details
                    # 017
                    MPN: 65562600
                    PLATE
                    from £10.27
                    from £10.27
                    # 018
                    MPN: 15901501
                    SCREW
                    from £0.54
                    from £0.54
                    # 019
                    MPN: 14496101
                    WASHER
                    from £0.47
                    from £0.47
                    Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
