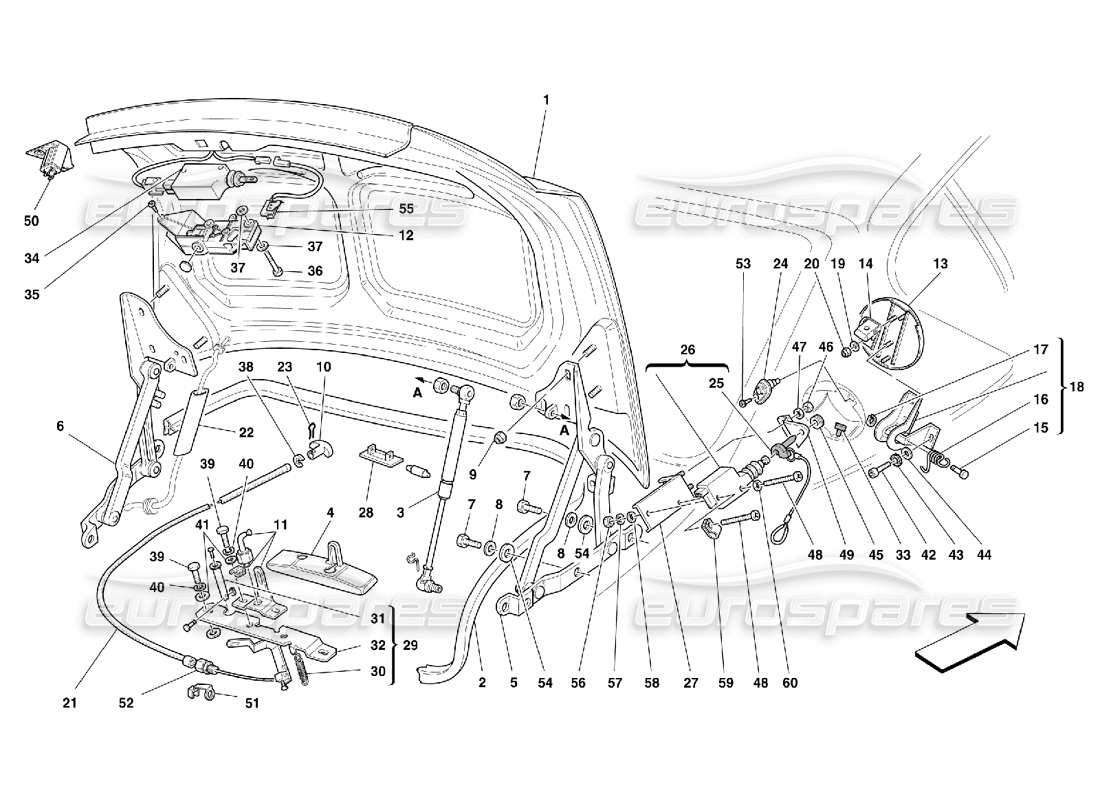

115 - Trunk Hood Bonnet and Petrol Cover

Ferrari 456 M GT/M GTA Trunk Hood Bonnet and Petrol Cover Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Price
                                                                                                                    # 001
                                                                                                                    MPN: 65377100
                                                                                                                    TRUNK HOOD BONNET
                                                                                                                    from £457.44
                                                                                                                    from £457.44
                                                                                                                    # 002
                                                                                                                    MPN: 65384900
                                                                                                                    GASKET FOR TRUNK COMPARTMENT
                                                                                                                    from £353.16
                                                                                                                    from £353.16
                                                                                                                    This part replaces part number 64065000
                                                                                                                    # 003
                                                                                                                    MPN: 67508100
                                                                                                                    GAS SPRING
                                                                                                                    from £104.78
                                                                                                                    from £104.78
                                                                                                                    This part replaces part number 65940000 - and 1 more. Click to view details
                                                                                                                    # 004
                                                                                                                    MPN: 63861700
                                                                                                                    STRIKER PLATE OVERLAP
                                                                                                                    from £20.08
                                                                                                                    from £20.08
                                                                                                                    # 005
                                                                                                                    MPN: 65222700
                                                                                                                    RH TRUNK HOOD BONNET HINGE
                                                                                                                    from £112.00
                                                                                                                    from £112.00
                                                                                                                    # 006
                                                                                                                    MPN: 65222800
                                                                                                                    LH TRUNK HOOD BONNET HINGE
                                                                                                                    from £112.00
                                                                                                                    from £112.00
                                                                                                                    # 007
                                                                                                                    MPN: 10902821
                                                                                                                    SCREW
                                                                                                                    from £1.08
                                                                                                                    from £1.08
                                                                                                                    This part replaces part number 10902801 - and 1 more. Click to view details
                                                                                                                    # 008
                                                                                                                    MPN: 10519424
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 10519401 - and 3 more. Click to view details
                                                                                                                    # 009
                                                                                                                    MPN: 14039614
                                                                                                                    NUT
                                                                                                                    from £0.52
                                                                                                                    from £0.52
                                                                                                                    # 010
                                                                                                                    MPN: 60710900
                                                                                                                    EMERGENCY HANDLE
                                                                                                                    from £5.16
                                                                                                                    from £5.16
                                                                                                                    # 011
                                                                                                                    MPN: 63143600
                                                                                                                    TRUNK HOOD BONNET CLOSING STRIKER
                                                                                                                    from £20.58
                                                                                                                    from £20.58
                                                                                                                    # 012
                                                                                                                    MPN: 63143300
                                                                                                                    TRUNK HOOD BONNET LOCK
                                                                                                                    from £66.87
                                                                                                                    from £66.87
                                                                                                                    This part replaces part number 63891100 which we have in stock - and 1 more. Click to view details
                                                                                                                    # 013
                                                                                                                    MPN: 63707300
                                                                                                                    COMPLETE FUEL INLET LID
                                                                                                                    from £40.49
                                                                                                                    from £40.49
                                                                                                                    # 014
                                                                                                                    MPN: 63771200
                                                                                                                    STRIKER PLATE FOR GAS UNION
                                                                                                                    from £3.58
                                                                                                                    from £3.58
                                                                                                                    # 015
                                                                                                                    MPN: 63196400
                                                                                                                    PIN
                                                                                                                    # 016
                                                                                                                    MPN: 63196500
                                                                                                                    SPRING
                                                                                                                    from £53.02
                                                                                                                    from £53.02
                                                                                                                    # 017
                                                                                                                    MPN: 11087676
                                                                                                                    SEEGER RING
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 11087675
                                                                                                                    # 018
                                                                                                                    MPN: 63746800
                                                                                                                    HINGE FOR GAS UNION DOOR
                                                                                                                    from £17.36
                                                                                                                    from £17.36
                                                                                                                    # 019
                                                                                                                    MPN: 12638124
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 12638101 - and 1 more. Click to view details
                                                                                                                    # 020
                                                                                                                    MPN: 14084111
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 14084100
                                                                                                                    # 021
                                                                                                                    MPN: 65374500
                                                                                                                    EMERGENCY CABLE
                                                                                                                    from £18.31
                                                                                                                    from £18.31
                                                                                                                    # 022
                                                                                                                    MPN: 63887300
                                                                                                                    COVER FOR CABLES
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 023
                                                                                                                    MPN: 60711000
                                                                                                                    CLIP
                                                                                                                    from £0.53
                                                                                                                    from £0.53

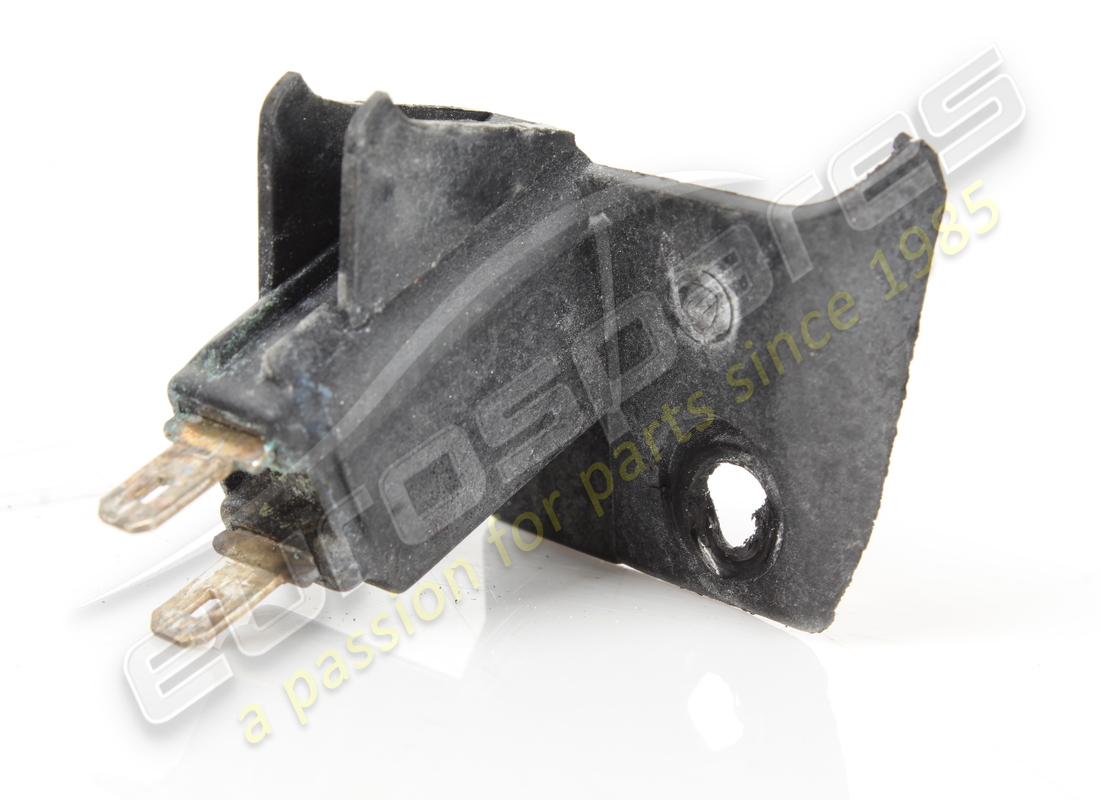

                                                                                                                    # 024
                                                                                                                    MPN: 153069
                                                                                                                    INDICATOR LAMP FOR FUEL DOOR
                                                                                                                    from £2.11
                                                                                                                    from £2.11
                                                                                                                    # 025
                                                                                                                    MPN: 63716300
                                                                                                                    COMPLETE PIN
                                                                                                                    - Not as spare part now - Replaced by 65832900
                                                                                                                    from £5.30
                                                                                                                    from £5.30
                                                                                                                    # 026
                                                                                                                    MPN: 65832900
                                                                                                                    FUEL DOOR SAFETY CABLE
                                                                                                                    from £6.05
                                                                                                                    from £6.05
                                                                                                                    # 026
                                                                                                                    MPN: 65841600
                                                                                                                    FUEL DOOR ACTUATOR
                                                                                                                    - Not as spare part now - Replaced by 65841600
                                                                                                                    from £128.59
                                                                                                                    from £128.59
                                                                                                                    This part replaces part number 63713800 which we have in stock - and 1 more. Click to view details
                                                                                                                    # 026
                                                                                                                    MPN: 65841600
                                                                                                                    FUEL DOOR ACTUATOR
                                                                                                                    from £128.59
                                                                                                                    from £128.59
                                                                                                                    This part replaces part number 63713800 which we have in stock - and 1 more. Click to view details
                                                                                                                    # 027
                                                                                                                    MPN: 63120900
                                                                                                                    BRACKET FOR ACTUATOR FIXING
                                                                                                                    from £0.81
                                                                                                                    from £0.81
                                                                                                                    # 028
                                                                                                                    MPN: 139517
                                                                                                                    DOME LAMP
                                                                                                                    from £7.52
                                                                                                                    from £7.52
                                                                                                                    # 029
                                                                                                                    MPN: 63872300
                                                                                                                    COMPLETE TRUNK LOCK DEVICE
                                                                                                                    from £8.94
                                                                                                                    from £8.94
                                                                                                                    # 030
                                                                                                                    MPN: 63709500
                                                                                                                    SPRING
                                                                                                                    from £1.20
                                                                                                                    from £1.20
                                                                                                                    # 031
                                                                                                                    MPN: 63709300
                                                                                                                    EMERGENCY OPENING ROLL
                                                                                                                    from £13.41
                                                                                                                    from £13.41
                                                                                                                    # 032
                                                                                                                    MPN: 63709100
                                                                                                                    PLATE
                                                                                                                    from £6.51
                                                                                                                    from £6.51
                                                                                                                    # 033
                                                                                                                    MPN: 63879900
                                                                                                                    RUBBER PAD
                                                                                                                    from £9.06
                                                                                                                    from £9.06
                                                                                                                    # 034
                                                                                                                    MPN: 63191100
                                                                                                                    LID ACTUATOR
                                                                                                                    from £81.75
                                                                                                                    from £81.75
                                                                                                                    # 035
                                                                                                                    MPN: 15903870
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 15903801
                                                                                                                    # 036
                                                                                                                    MPN: 10903024
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 10903021
                                                                                                                    # 037
                                                                                                                    MPN: 12601274
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                                    # 038
                                                                                                                    MPN: 11087676
                                                                                                                    FLEXIBLE RING
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 11087675
                                                                                                                    # 039
                                                                                                                    MPN: 10902124
                                                                                                                    SCREW
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                                    # 040
                                                                                                                    MPN: 127494
                                                                                                                    WASHER
                                                                                                                    (minimum order quantity = 20)
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                    # 041
                                                                                                                    MPN: 12643724
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                    # 042
                                                                                                                    MPN: 14304124
                                                                                                                    SCREW
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    # 043
                                                                                                                    MPN: 12605274
                                                                                                                    WASHER
                                                                                                                    from £0.71
                                                                                                                    from £0.71
                                                                                                                    This part replaces part number 12605270 - and 1 more. Click to view details
                                                                                                                    # 044
                                                                                                                    MPN: 12638178
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                                                    # 045
                                                                                                                    MPN: 10396280
                                                                                                                    RUBBER FOR PIN
                                                                                                                    from £1.90
                                                                                                                    from £1.90
                                                                                                                    # 046
                                                                                                                    MPN: 168698
                                                                                                                    NUT
                                                                                                                    from £0.93
                                                                                                                    from £0.93
                                                                                                                    This part replaces part number 14054048
                                                                                                                    # 047
                                                                                                                    MPN: 11181574
                                                                                                                    WASHER
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    # 048
                                                                                                                    MPN: 13273014
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 049
                                                                                                                    MPN: 64061200
                                                                                                                    BRACKET
                                                                                                                    from £0.61
                                                                                                                    from £0.61

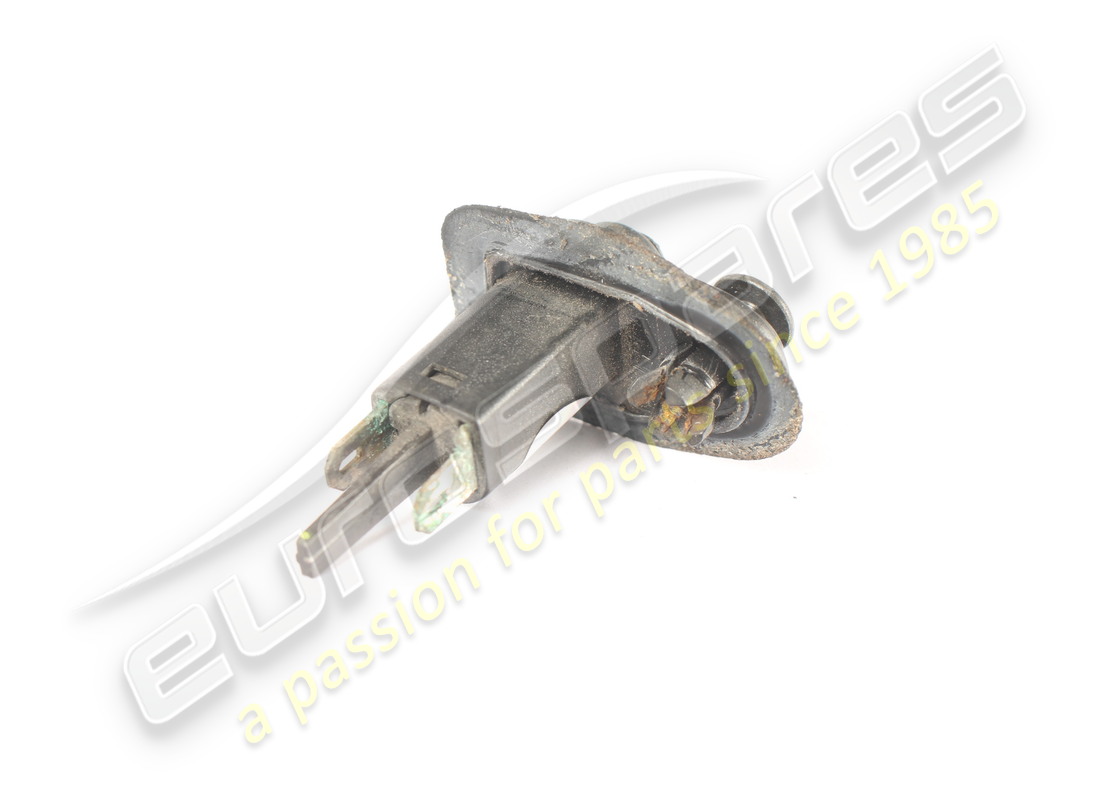

                                                                                                                    # 050
                                                                                                                    MPN: 167175
                                                                                                                    SWITCH
                                                                                                                    from £117.60
                                                                                                                    from £117.60
                                                                                                                    # 051
                                                                                                                    MPN: 62955500
                                                                                                                    CLIP
                                                                                                                    from £8.52
                                                                                                                    from £8.52
                                                                                                                    # 052
                                                                                                                    MPN: 62984500
                                                                                                                    ADJUSTMENT SCREW
                                                                                                                    from £3.15
                                                                                                                    from £3.15
                                                                                                                    # 053
                                                                                                                    MPN: 15915977
                                                                                                                    SCREW
                                                                                                                    from £0.71
                                                                                                                    from £0.71
                                                                                                                    This part replaces part number 64428200
                                                                                                                    # 054
                                                                                                                    MPN: 10571570
                                                                                                                    WASHER
                                                                                                                    from £0.84
                                                                                                                    from £0.84
                                                                                                                    # 055
                                                                                                                    MPN: 173977
                                                                                                                    CABLE COMPLETE MICRO-SWITCH
                                                                                                                    from £34.96
                                                                                                                    from £34.96
                                                                                                                    # 056
                                                                                                                    MPN: 10794014
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 10794034
                                                                                                                    # 057
                                                                                                                    MPN: 127492
                                                                                                                    WASHER
                                                                                                                    from £0.59
                                                                                                                    from £0.59
                                                                                                                    This part replaces part number 106848
                                                                                                                    # 058
                                                                                                                    MPN: 10519224
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 10519201
                                                                                                                    # 059
                                                                                                                    MPN: 10420301
                                                                                                                    BRACKET
                                                                                                                    from £2.46
                                                                                                                    from £2.46
                                                                                                                    # 060
                                                                                                                    MPN: 12637824
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 12637801 - and 1 more. Click to view details
