124 - DASHBOARD

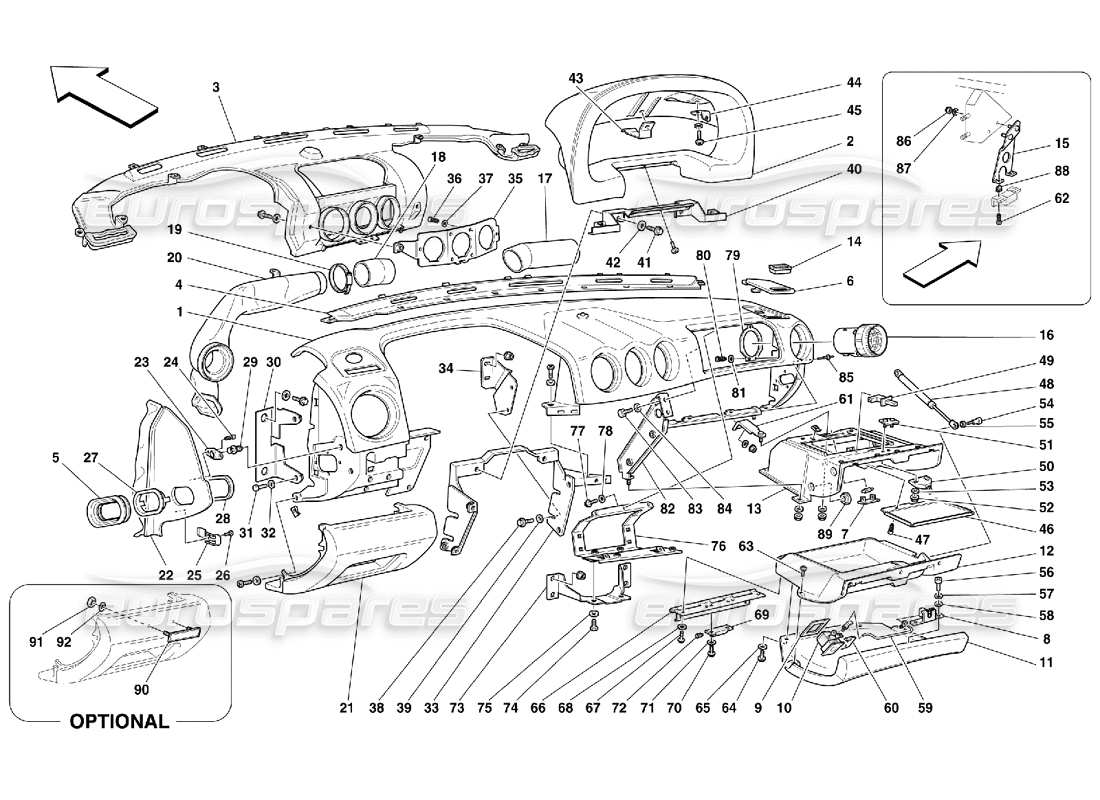

Ferrari 456 M GT/M GTA Dashboard Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price
                                                                                      # 001
                                                                                      MPN: 652893..
                                                                                      LINING
                                                                                      - Not for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 001
                                                                                      MPN: 652894..
                                                                                      COVERED COMPLETE DASHBOARD FRAMEWORK
                                                                                      - Not for GD
                                                                                      from £1,044.75
                                                                                      from £1,044.75
                                                                                      # 001
                                                                                      MPN: 656306..
                                                                                      LINING
                                                                                      - Valid for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 001
                                                                                      MPN: 656310..
                                                                                      COVERED COMPLETE DASHBOARD FRAMEWORK
                                                                                      - Valid for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 002
                                                                                      MPN: 652897..
                                                                                      LINING
                                                                                      - Not for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 002
                                                                                      MPN: 652898..
                                                                                      COVERED INSTRUMENTS DASH BOARD
                                                                                      - Not for GD
                                                                                      from £393.75
                                                                                      from £393.75
                                                                                      # 002
                                                                                      MPN: 656350..
                                                                                      COVERED INSTRUMENTS DASH BOARD
                                                                                      - Valid for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 002
                                                                                      MPN: 656352..
                                                                                      LINING
                                                                                      - Valid for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 003
                                                                                      MPN: 65471800
                                                                                      AIR DIFFUSER
                                                                                      - Not for GD
                                                                                      from £569.69
                                                                                      from £569.69
                                                                                      This part replaces part number 65431400
                                                                                      # 003
                                                                                      MPN: 65630000
                                                                                      AIR DIFFUSER
                                                                                      - Valid for GD
                                                                                      from £605.99
                                                                                      from £605.99
                                                                                      This part replaces part number 65630100
                                                                                      # 004
                                                                                      MPN: 63202100
                                                                                      LOWER ENCLOSURE
                                                                                      from £136.01
                                                                                      from £136.01
                                                                                      # 005
                                                                                      MPN: 63203500
                                                                                      AIR DUCTING OUTER GASKET
                                                                                      from £14.18
                                                                                      from £14.18
                                                                                      # 006
                                                                                      MPN: 63204200
                                                                                      RH AIR OUTLET PLATE
                                                                                      from £72.35
                                                                                      from £72.35
                                                                                      This part replaces part number 64182600
                                                                                      # 006
                                                                                      MPN: 63204300
                                                                                      LH AIR OUTLET PLATE
                                                                                      from £30.97
                                                                                      from £30.97
                                                                                      # 007
                                                                                      MPN: 139517
                                                                                      DOME LAMP
                                                                                      from £7.52
                                                                                      from £7.52
                                                                                      # 008
                                                                                      MPN: 63768800
                                                                                      DRAWER LOCK DEVICE
                                                                                      from £136.79
                                                                                      from £136.79
                                                                                      # 009
                                                                                      MPN: 63768900
                                                                                      PLATE
                                                                                      from £0.35
                                                                                      from £0.35
                                                                                      # 010
                                                                                      MPN: 64926500
                                                                                      CLOSE BUTTON
                                                                                      from £84.00
                                                                                      from £84.00
                                                                                      # 011
                                                                                      MPN: 654103..
                                                                                      LINING
                                                                                      - Not for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 011
                                                                                      MPN: 654104..
                                                                                      GLOVE BOX SHUTTER
                                                                                      - Not for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 011
                                                                                      MPN: 656339..
                                                                                      GLOVE BOX SHUTTER
                                                                                      - Valid for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 011
                                                                                      MPN: 656341..
                                                                                      LINING
                                                                                      - Valid for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 012
                                                                                      MPN: 65410800
                                                                                      GLOVE BOX CONTAINER
                                                                                      - Not for GD
                                                                                      from £209.52
                                                                                      from £209.52
                                                                                      # 012
                                                                                      MPN: 65633700
                                                                                      GLOVE BOX CONTAINER
                                                                                      - Valid for GD
                                                                                      from £597.95
                                                                                      from £597.95
                                                                                      # 013
                                                                                      MPN: 65410600
                                                                                      GLOVE BOX FRAME
                                                                                      - Not for GD
                                                                                      from £192.07
                                                                                      from £192.07
                                                                                      # 013
                                                                                      MPN: 65634400
                                                                                      GLOVE BOX FRAME
                                                                                      - Valid for GD
                                                                                      from £376.61
                                                                                      from £376.61

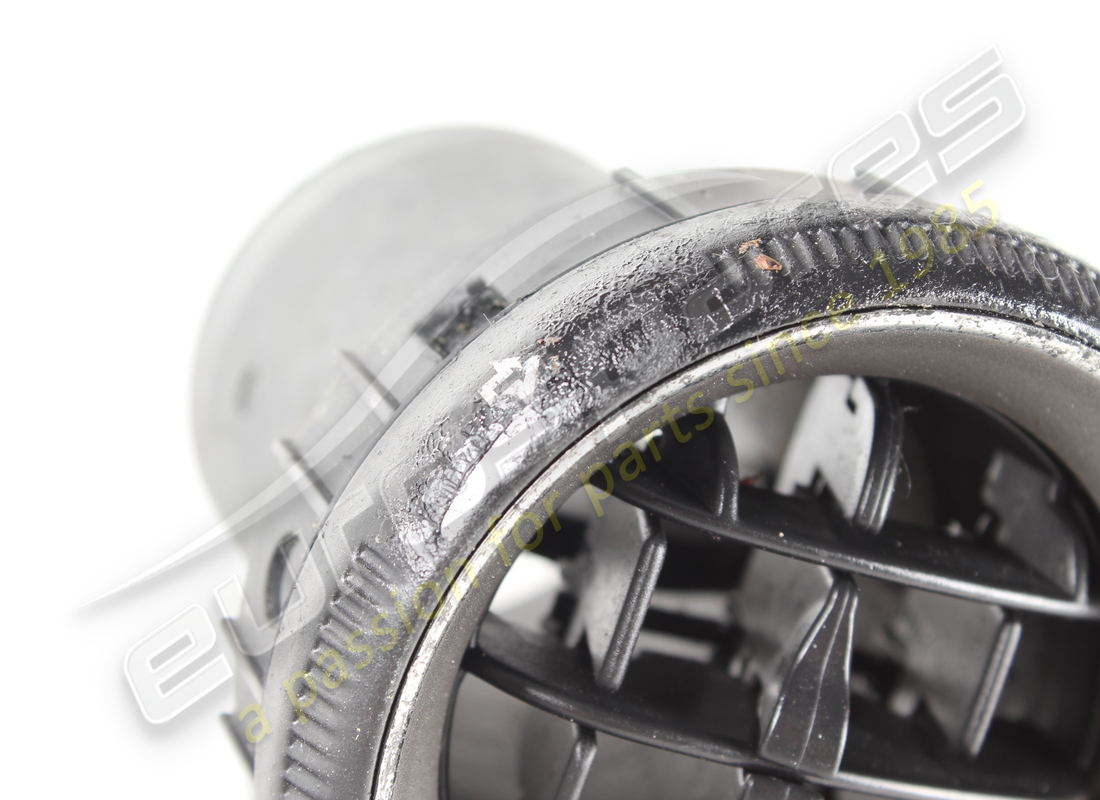

                                                                                      # 014
                                                                                      MPN: 63204000
                                                                                      RH AIR DIFFUSER
                                                                                      from £52.25
                                                                                      from £52.25
                                                                                      # 014
                                                                                      MPN: 63204100
                                                                                      LH AIR DIFFUSER
                                                                                      from £3.42
                                                                                      from £3.42
                                                                                      # 015
                                                                                      MPN: 168961
                                                                                      OBDII CONNECTOR FIXING BRACKET
                                                                                      from £22.09
                                                                                      from £22.09
                                                                                      # 016
                                                                                      MPN: 63352600
                                                                                      AIR OPENING
                                                                                      - Not for GD
                                                                                      from £447.96
                                                                                      from £447.96
                                                                                      # 017
                                                                                      MPN: 63219600
                                                                                      RH SLEEVE
                                                                                      from £33.84
                                                                                      from £33.84
                                                                                      # 017
                                                                                      MPN: 65216600
                                                                                      RH SLEEVE
                                                                                      - Valid for GD
                                                                                      from £61.58
                                                                                      from £61.58
                                                                                      # 018
                                                                                      MPN: 64273800
                                                                                      LH SLEEVE
                                                                                      - Not for GD
                                                                                      from £18.82
                                                                                      from £18.82
                                                                                      # 018
                                                                                      MPN: 65217300
                                                                                      LH SLEEVE
                                                                                      - Valid for GD
                                                                                      from £61.83
                                                                                      from £61.83
                                                                                      # 019
                                                                                      MPN: 13000890
                                                                                      SCREW COLLAR
                                                                                      from £0.63
                                                                                      from £0.63
                                                                                      This part replaces part number 12173290 - and 2 more. Click to view details

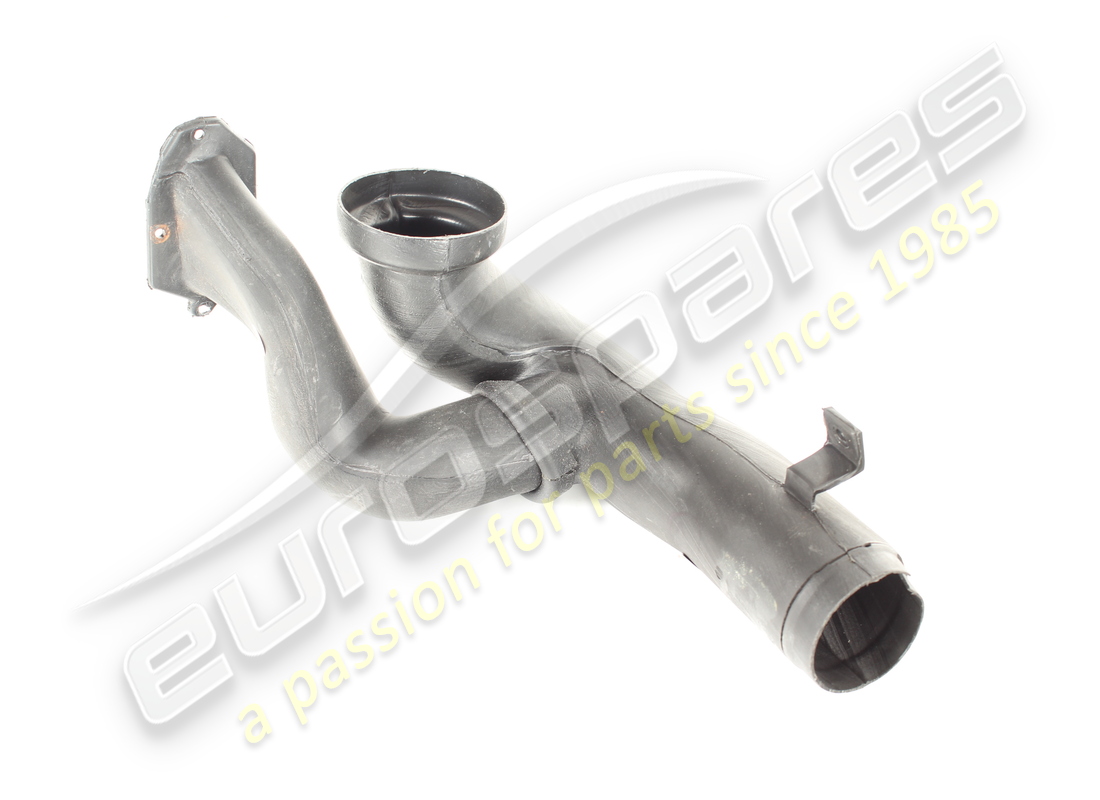

                                                                                      # 020
                                                                                      MPN: 65289900
                                                                                      RH AIR DUCTING
                                                                                      - Not for GD
                                                                                      from £37.66
                                                                                      from £37.66

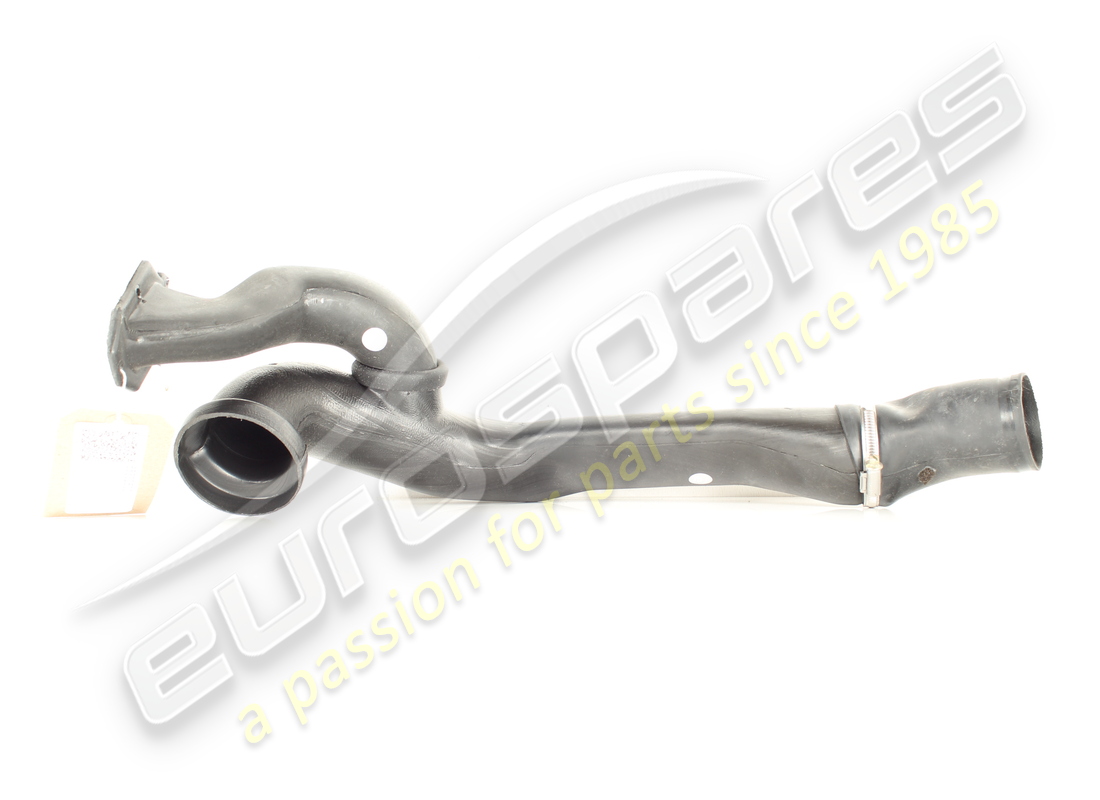

                                                                                      # 020
                                                                                      MPN: 65290000
                                                                                      LH AIR DUCTING
                                                                                      - Not for GD
                                                                                      # 020
                                                                                      MPN: 65632200
                                                                                      RH AIR DUCTING
                                                                                      - Valid for GD
                                                                                      from £37.66
                                                                                      from £37.66
                                                                                      # 020
                                                                                      MPN: 65632500
                                                                                      LH AIR DUCTING
                                                                                      - Valid for GD
                                                                                      from £37.66
                                                                                      from £37.66
                                                                                      # 021
                                                                                      MPN: 654151..
                                                                                      LH DASHBOARD LOWER PART
                                                                                      - Not for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 021
                                                                                      MPN: 654663..
                                                                                      LH LINING
                                                                                      - Not for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 021
                                                                                      MPN: 656320..
                                                                                      RH DASHBOARD LOWER PART
                                                                                      - Valid for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 021
                                                                                      MPN: 656331..
                                                                                      RH LINING
                                                                                      - Valid for GD
                                                                                      Supersession
                                                                                      Supersession

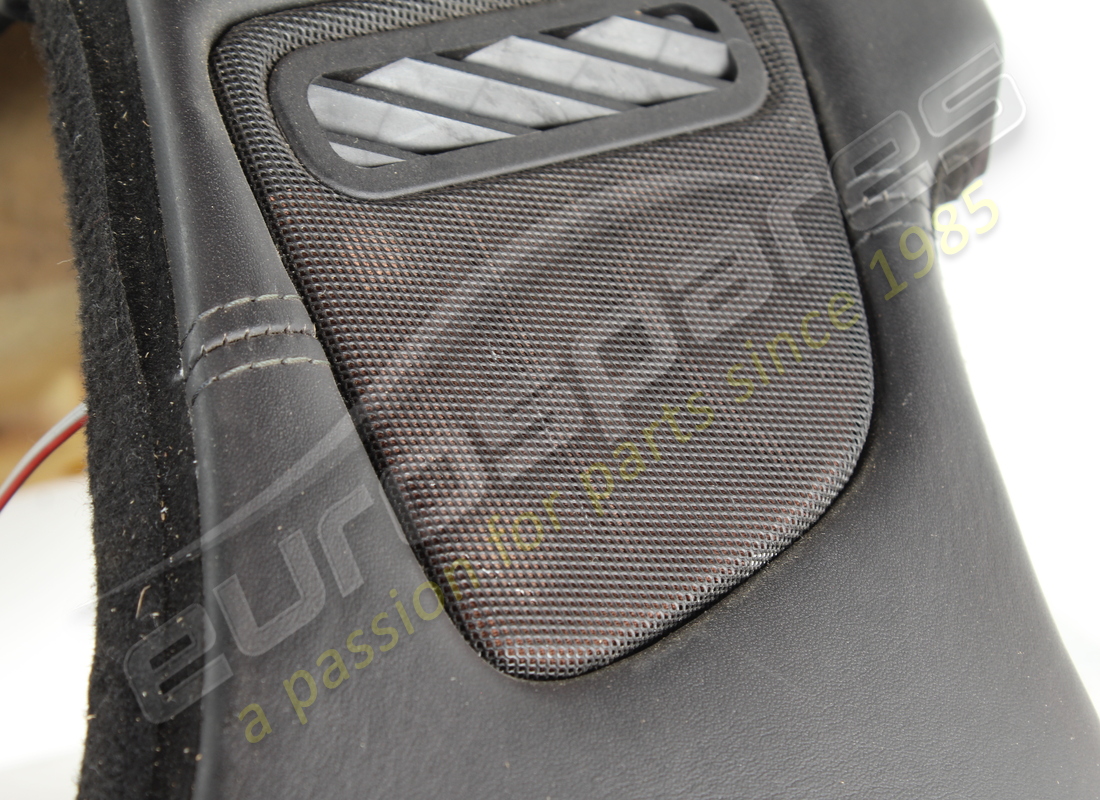

                                                                                      # 022
                                                                                      MPN: 654302..
                                                                                      LH LATERAL DASHBOARD MOULDING
                                                                                      - Not for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 022
                                                                                      MPN: 654303..
                                                                                      RH LATERAL DASHBOARD MOULDING
                                                                                      - Not for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 022
                                                                                      MPN: 654666..
                                                                                      LH LINING
                                                                                      - Not for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 022
                                                                                      MPN: 654667..
                                                                                      RH LINING
                                                                                      - Not for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 022
                                                                                      MPN: 656357..
                                                                                      LH LATERAL DASHBOARD MOULDING
                                                                                      - Valid for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 022
                                                                                      MPN: 656360..
                                                                                      LH LINING
                                                                                      - Valid for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 022
                                                                                      MPN: 656362..
                                                                                      RH LATERAL DASHBOARD MOULDING
                                                                                      - Valid for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 022
                                                                                      MPN: 656364..
                                                                                      RH LINING
                                                                                      - Valid for GD
                                                                                      Supersession
                                                                                      Supersession
                                                                                      # 023
                                                                                      MPN: 64712800
                                                                                      PLATE
                                                                                      from £0.91
                                                                                      from £0.91
                                                                                      # 024
                                                                                      MPN: 15914770
                                                                                      SCREW
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      # 025
                                                                                      MPN: 65471900
                                                                                      CLIP
                                                                                      from £8.14
                                                                                      from £8.14
                                                                                      # 026
                                                                                      MPN: 15914770
                                                                                      SCREW
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      # 027
                                                                                      MPN: 63203400
                                                                                      GASKET RETAIN
                                                                                      from £7.12
                                                                                      from £7.12
                                                                                      # 028
                                                                                      MPN: 65414500
                                                                                      GASKET
                                                                                      # 029
                                                                                      MPN: 14188181
                                                                                      RETAINER
                                                                                      from £0.51
                                                                                      from £0.51
                                                                                      This part replaces part number 14188282

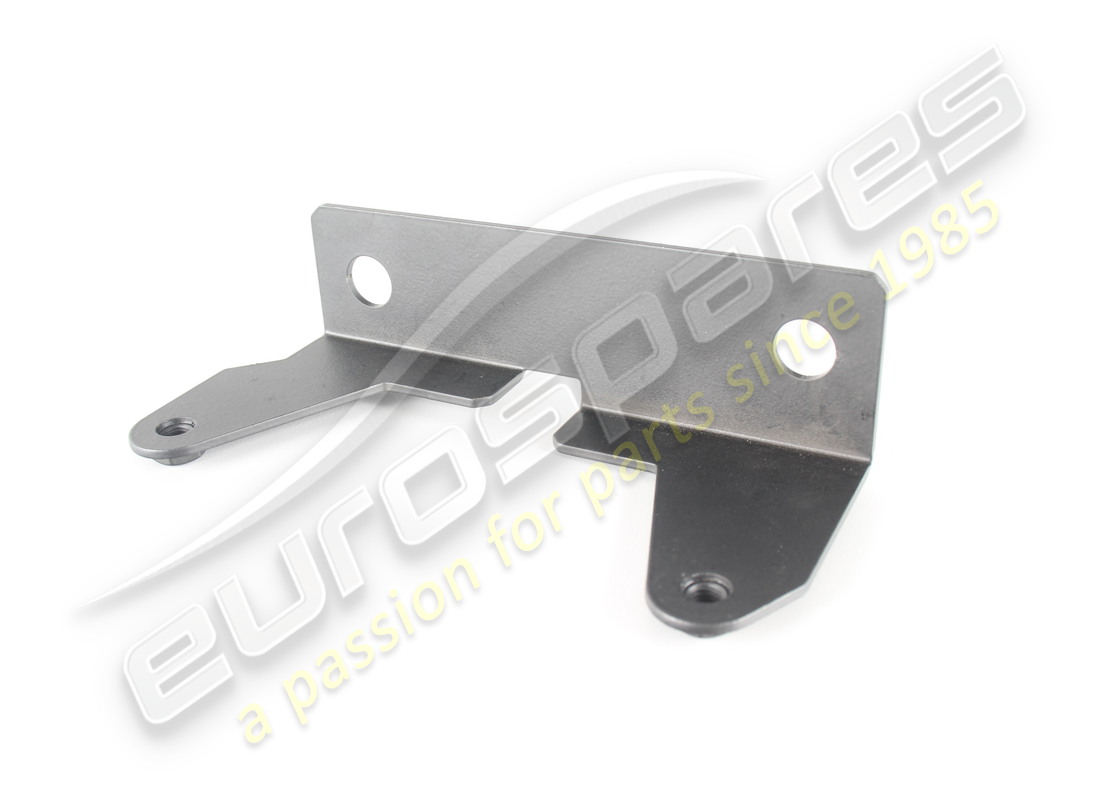

                                                                                      # 030
                                                                                      MPN: 65442400
                                                                                      RH SIDE BRACKET
                                                                                      from £15.40
                                                                                      from £15.40
                                                                                      # 030
                                                                                      MPN: 65442500
                                                                                      LH SIDE BRACKET
                                                                                      from £15.40
                                                                                      from £15.40
                                                                                      # 031
                                                                                      MPN: 10902124
                                                                                      SCREW
                                                                                      from £0.51
                                                                                      from £0.51
                                                                                      This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                      # 032
                                                                                      MPN: 12648978
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 12643770

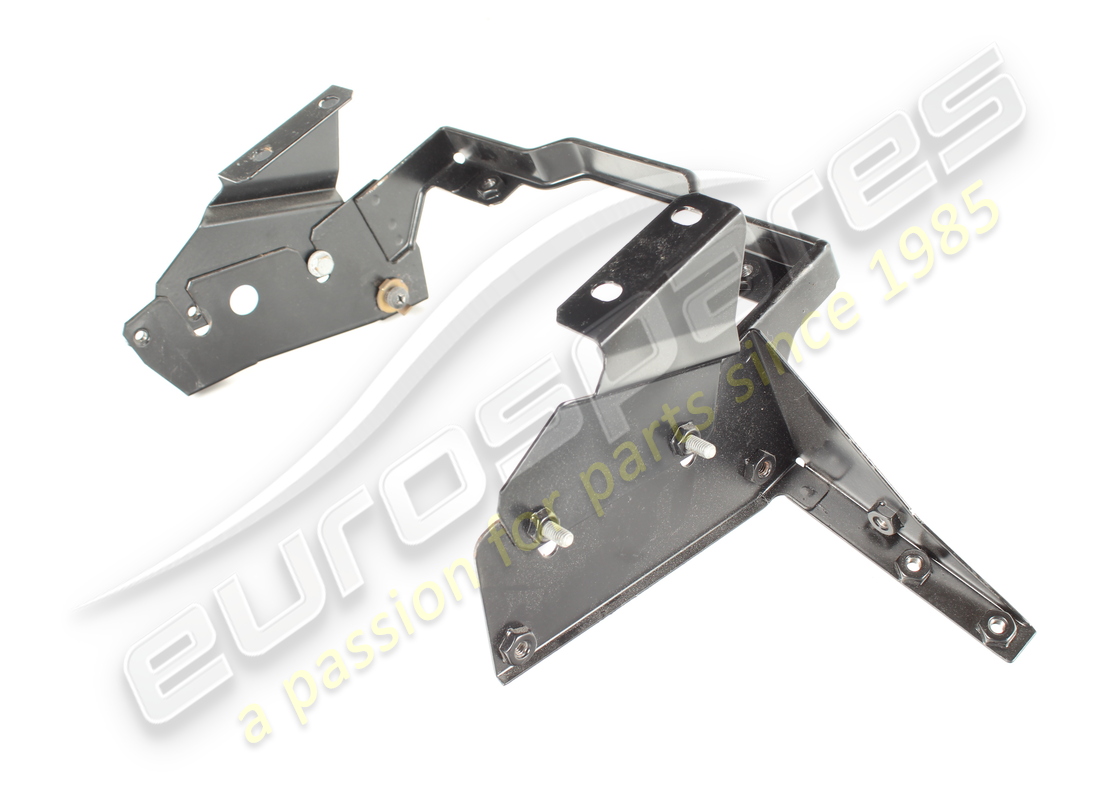

                                                                                      # 033
                                                                                      MPN: 65418500
                                                                                      BRACKET FOR DASHBOARD FIXING
                                                                                      - Not for GD
                                                                                      from £101.13
                                                                                      from £101.13
                                                                                      # 033
                                                                                      MPN: 65631900
                                                                                      BRACKET FOR DASHBOARD FIXING
                                                                                      - Valid for GD
                                                                                      from £96.20
                                                                                      from £96.20
                                                                                      # 034
                                                                                      MPN: 65442200
                                                                                      RH BRACKET
                                                                                      from £16.98
                                                                                      from £16.98
                                                                                      # 034
                                                                                      MPN: 65442300
                                                                                      LH BRACKET
                                                                                      from £16.98
                                                                                      from £16.98
                                                                                      # 035
                                                                                      MPN: 65410700
                                                                                      DIFFUSER FIXING BRACKET
                                                                                      - Not for GD
                                                                                      from £63.75
                                                                                      from £63.75
                                                                                      # 035
                                                                                      MPN: 65632100
                                                                                      DIFFUSER FIXING BRACKET
                                                                                      - Valid for GD
                                                                                      from £73.62
                                                                                      from £73.62
                                                                                      # 036
                                                                                      MPN: 15901501
                                                                                      SCREW
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 037
                                                                                      MPN: 12639901
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 038
                                                                                      MPN: 10902124
                                                                                      SCREW
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                      # 039
                                                                                      MPN: 12644477
                                                                                      WASHER
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      This part replaces part number 12644406
                                                                                      # 040
                                                                                      MPN: 65441800
                                                                                      REAR BRACKET
                                                                                      - Not for GD
                                                                                      from £128.39
                                                                                      from £128.39
                                                                                      # 040
                                                                                      MPN: 65635600
                                                                                      REAR BRACKET
                                                                                      - Valid for GD
                                                                                      from £98.13
                                                                                      from £98.13
                                                                                      # 041
                                                                                      MPN: 10902124
                                                                                      SCREW
                                                                                      from £0.51
                                                                                      from £0.51
                                                                                      This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                      # 042
                                                                                      MPN: 12644477
                                                                                      WASHER
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      This part replaces part number 12644406
                                                                                      # 043
                                                                                      MPN: 65279900
                                                                                      CLIP
                                                                                      from £7.70
                                                                                      from £7.70
                                                                                      # 044
                                                                                      MPN: 65443600
                                                                                      RH BRACKET
                                                                                      from £17.80
                                                                                      from £17.80
                                                                                      # 044
                                                                                      MPN: 65443700
                                                                                      LH BRACKET
                                                                                      from £17.80
                                                                                      from £17.80
                                                                                      # 045
                                                                                      MPN: 13290077
                                                                                      SCREW
                                                                                      from £4.09
                                                                                      from £4.09
                                                                                      # 046
                                                                                      MPN: 65441400
                                                                                      GLOVE BOX MOULDING
                                                                                      - Not for GD
                                                                                      from £59.22
                                                                                      from £59.22
                                                                                      # 046
                                                                                      MPN: 65634900
                                                                                      GLOVE BOX MOULDING
                                                                                      - Valid for GD
                                                                                      from £78.73
                                                                                      from £78.73
                                                                                      # 047
                                                                                      MPN: 15689675
                                                                                      SCREW
                                                                                      from £0.71
                                                                                      from £0.71
                                                                                      # 048
                                                                                      MPN: 65847700
                                                                                      GLOVE BOX STABILUS
                                                                                      from £43.83
                                                                                      from £43.83
                                                                                      This part replaces part number 65677500 - and 2 more. Click to view details
                                                                                      # 049
                                                                                      MPN: 61539800
                                                                                      MAGNETIC SWITCH
                                                                                      from £9.32
                                                                                      from £9.32
                                                                                      This part replaces part number 61538200 - and 1 more. Click to view details
                                                                                      # 050
                                                                                      MPN: 65258900
                                                                                      STRIKER
                                                                                      from £28.98
                                                                                      from £28.98
                                                                                      # 051
                                                                                      MPN: 63765300
                                                                                      PLATE
                                                                                      from £2.52
                                                                                      from £2.52
                                                                                      # 052
                                                                                      MPN: 10725017
                                                                                      NUT
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 053
                                                                                      MPN: 12638178
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 10519578 - and 3 more. Click to view details
                                                                                      # 054
                                                                                      MPN: 65686200
                                                                                      SCREW
                                                                                      from £4.62
                                                                                      from £4.62
                                                                                      # 055
                                                                                      MPN: 65686300
                                                                                      WASHER
                                                                                      from £1.11
                                                                                      from £1.11
                                                                                      # 056
                                                                                      MPN: 13273911
                                                                                      SCREW
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      # 057
                                                                                      MPN: 12637824
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 12637801 - and 1 more. Click to view details
                                                                                      # 058
                                                                                      MPN: 65686300
                                                                                      WASHER
                                                                                      from £1.11
                                                                                      from £1.11
