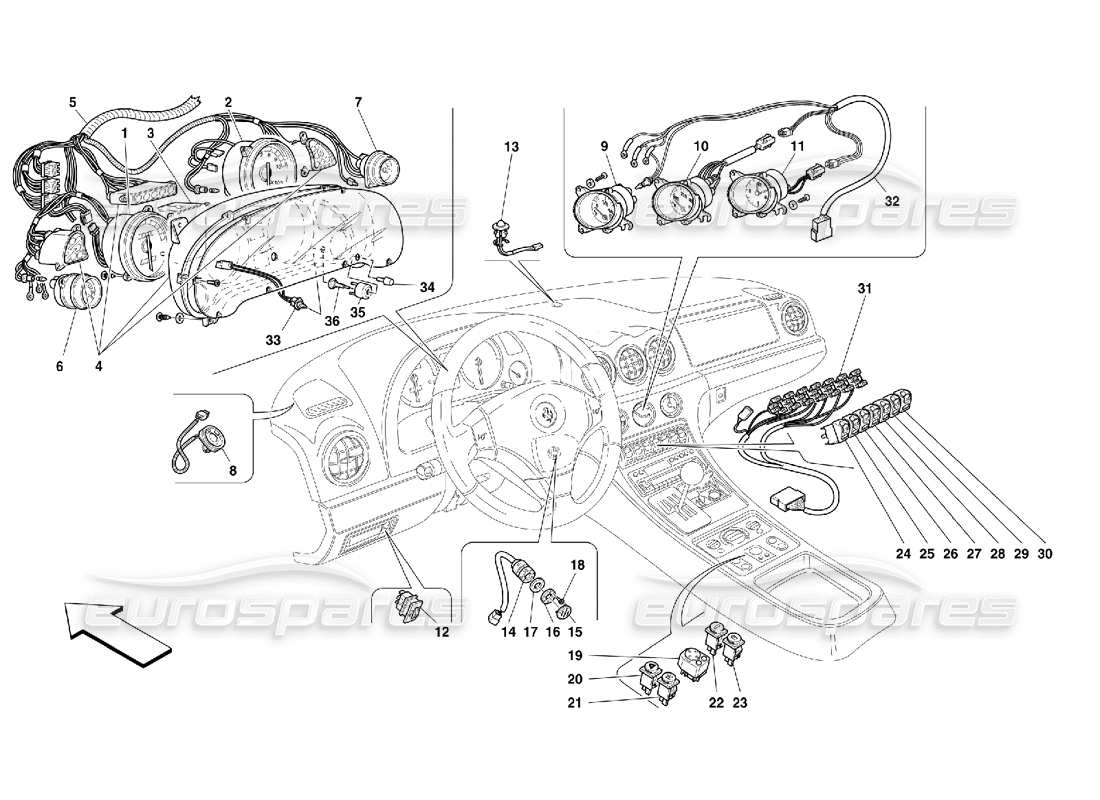

Ferrari 456 M GT/M GTA Instruments Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                    #
                                    Part number
                                    Description
                                    Price
                                    # 001
                                    MPN: 174141
                                    ODOMETER-KM
                                    - Not for USA and GB
                                    from £273.91
                                    from £273.91
                                    # 001
                                    MPN: 176975
                                    ELECTRONIC ODOMETER-MILES
                                    - Valid for USA and GB
                                    from £273.91
                                    from £273.91
                                    # 002
                                    MPN: 174142
                                    ELECTRONIC REVOLUTION COUNTER
                                    from £131.81
                                    from £131.81
                                    # 003
                                    MPN: 174145

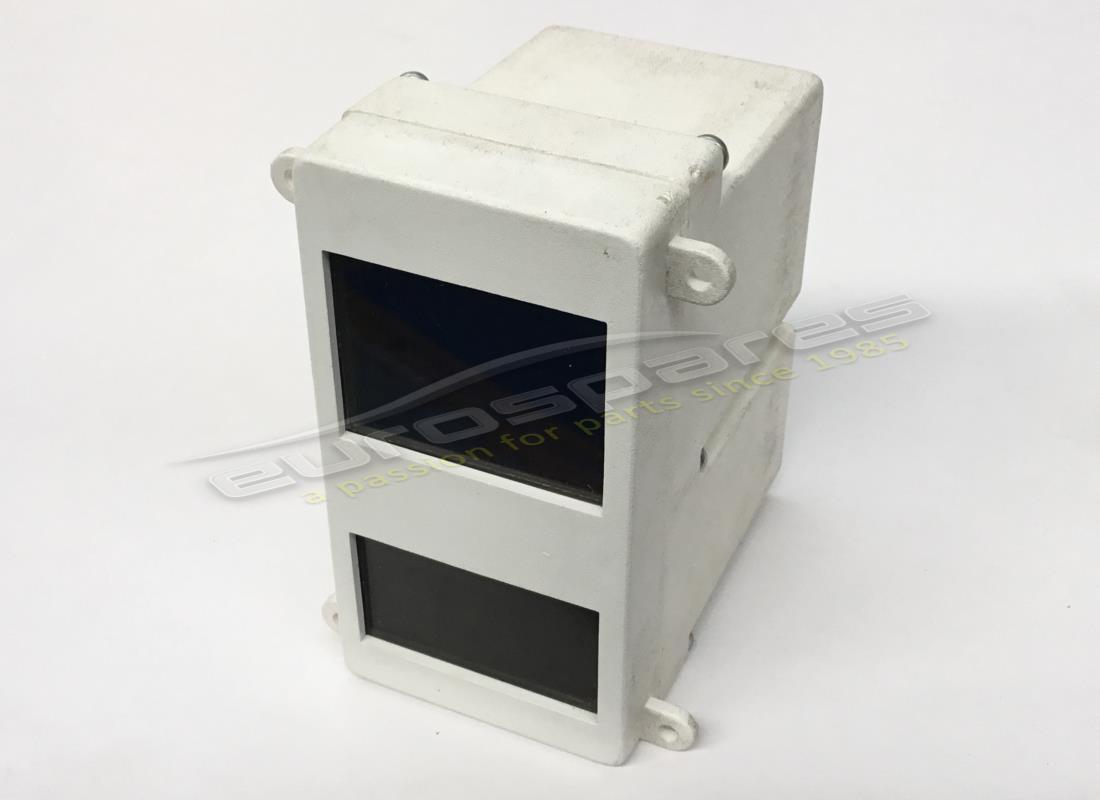

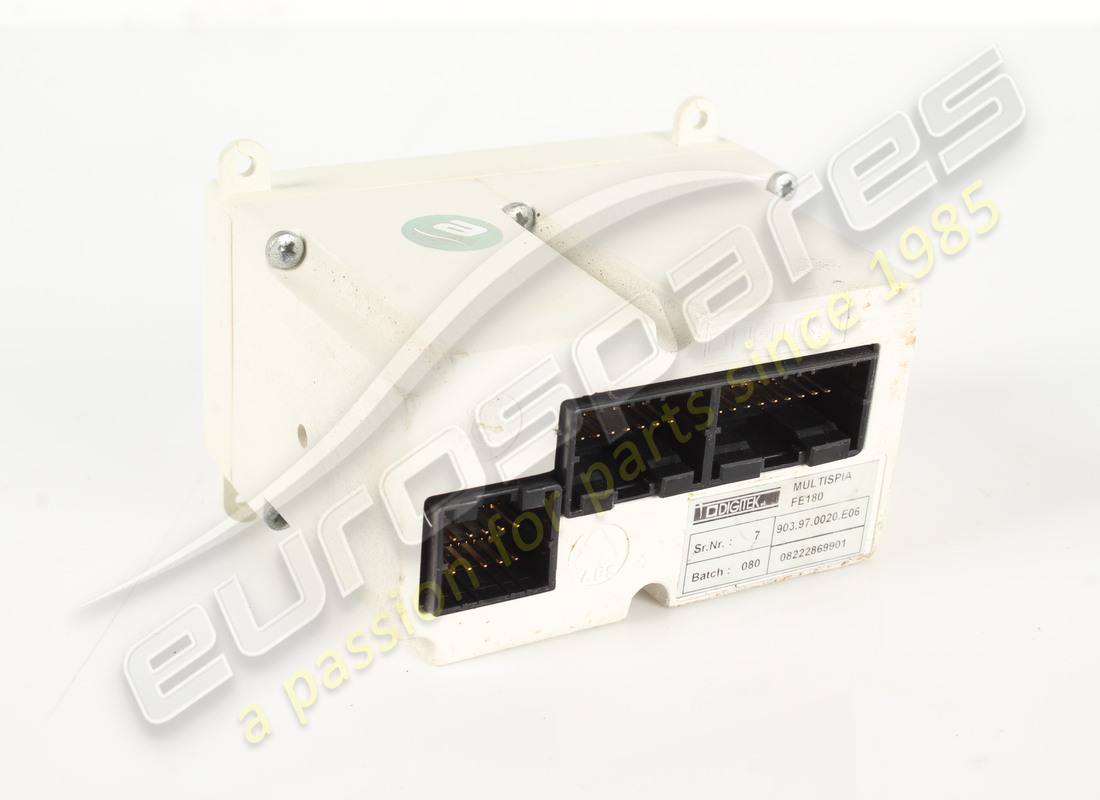

                                    MULTIFUNCTION WARNING LIGHT/DISPLAY ASSEMBLY
                                    - Not for USA M.Y. 2000 and CDN M.Y. 2000 valid till car Ass. Nr. 34578
                                    from £873.35
                                    from £873.35
                                    # 003
                                    MPN: 180226
                                    MULTIFUNCTION WARNING LIGHT/DISPLAY ASSEMBLY
                                    - Not for USA M.Y. 2000 and CDN M.Y. 2000 valid from car Ass. Nr. 34579 - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                    from £821.20
                                    from £821.20

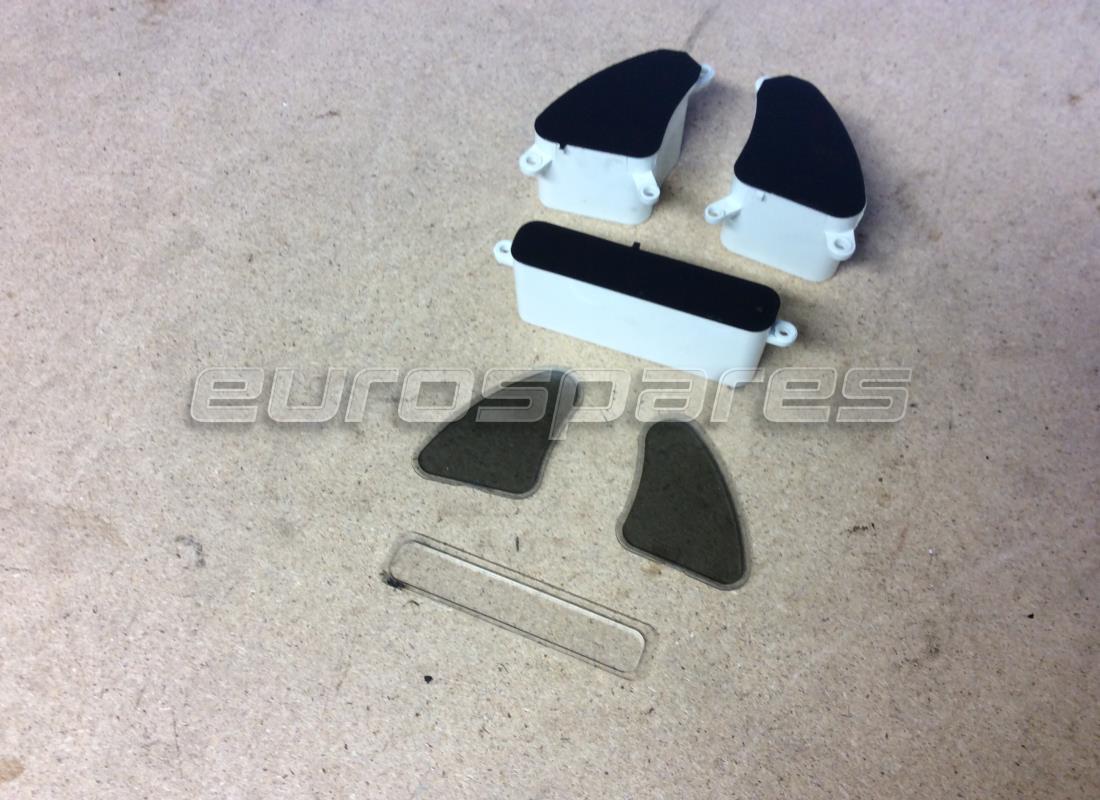

                                    # 004
                                    MPN: 170912/A

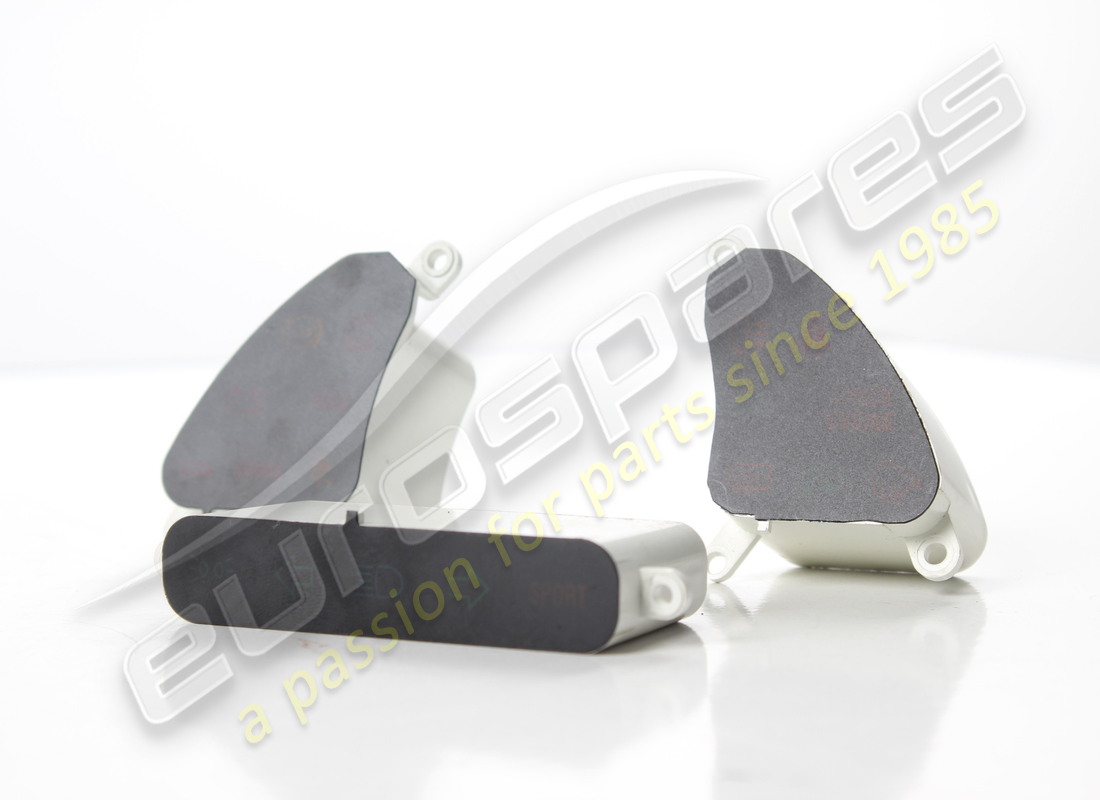

                                    Instrument Panel Casing Only
                                    # 004
                                    MPN: 173624
                                    WARNING LIGHT CONTROL PANEL PLATE
                                    - Valid for USA and GB
                                    from £59.32
                                    from £59.32
                                    # 004
                                    MPN: 185851
                                    WARNING LIGHT CONTROL PANEL PLATE
                                    - Not for USA and GB
                                    from £152.25
                                    from £152.25
                                    This part replaces part number 170916 - and 2 more. Click to view details
                                    # 005
                                    MPN: 174147
                                    DASHBOARD INSTRUMENTS CONNECTING CABLES
                                    - Not for USA M.Y. 2000 and CDN M.Y. 2000 valid till car Ass. Nr. 34578
                                    from £650.52
                                    from £650.52
                                    # 005
                                    MPN: 180570
                                    DASHBOARD INSTRUMENTS CONNECTING CABLES
                                    - Not for USA M.Y. 2000 and CDN M.Y. 2000 valid from car Ass. Nr. 34579 - Valid for USA M.Y. 2000 and CDN M.Y. 2000
                                    from £204.75
                                    from £204.75
                                    # 006
                                    MPN: 174143
                                    WATER THERMOMETER
                                    - Not for USA and GB
                                    from £41.99
                                    from £41.99
                                    # 006
                                    MPN: 176976
                                    WATER THERMOMETER
                                    - Valid for USA and GB
                                    from £41.99
                                    from £41.99
                                    # 007
                                    MPN: 174144

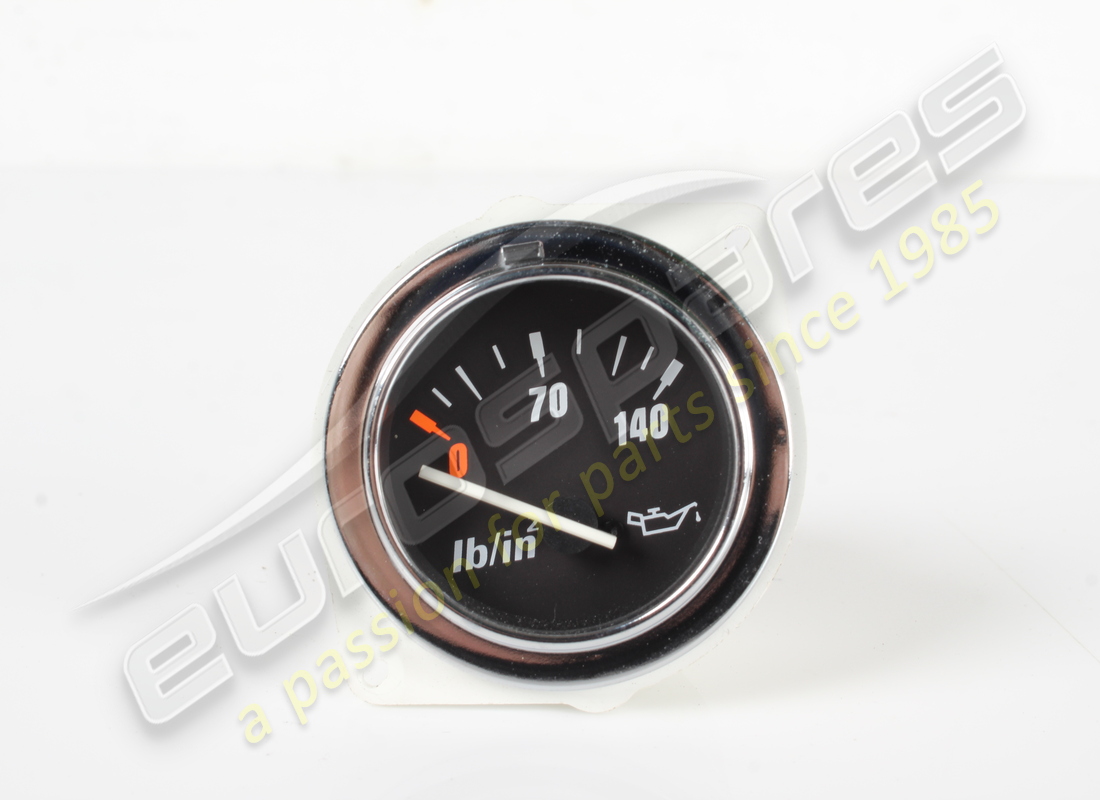

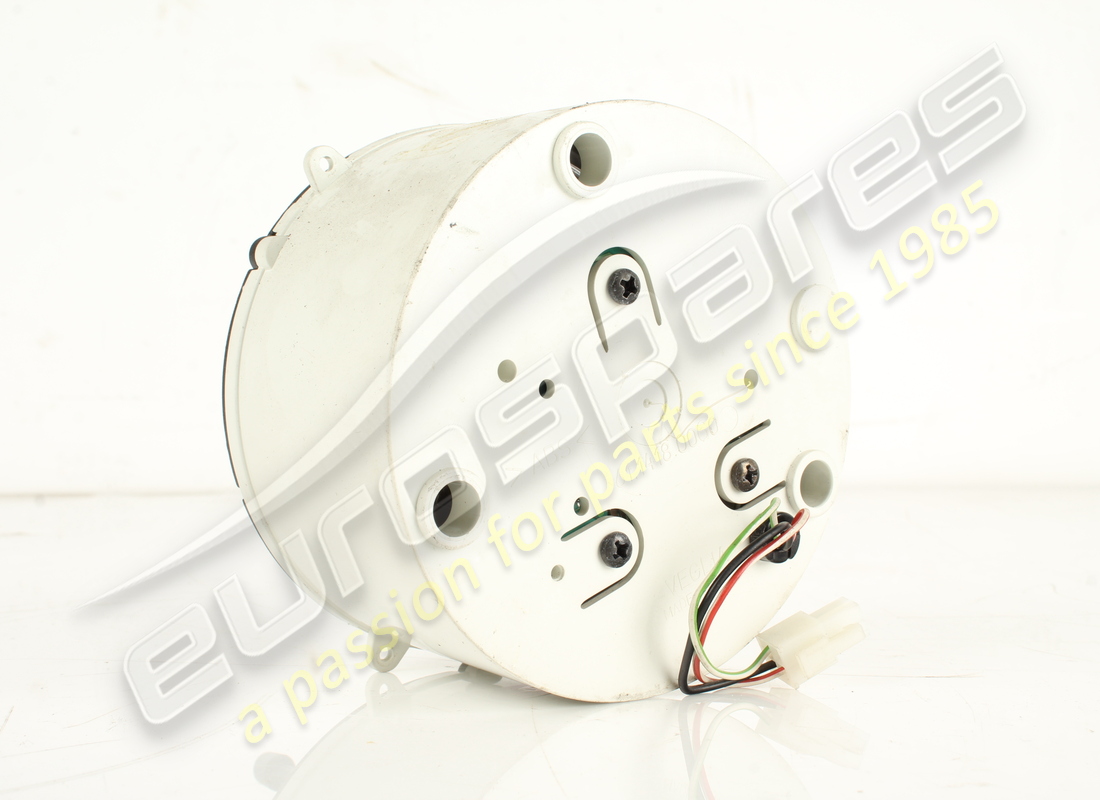

                                    OIL PRESSURE INDICATOR
                                    - Not for USA and GB
                                    from £117.60
                                    from £117.60
                                    # 007
                                    MPN: 176977
                                    OIL PRESSURE INDICATOR
                                    - Valid for USA and GB
                                    from £78.75
                                    from £78.75
                                    # 008
                                    MPN: 174808
                                    LOUD SPEAKER TWEETER
                                    from £29.73
                                    from £29.73
                                    # 009
                                    MPN: 174150
                                    FUEL LEVEL INDICATOR
                                    - Valid for catalyzed cars - Not for GD
                                    from £78.97
                                    from £78.97
                                    # 009
                                    MPN: 177170
                                    FUEL LEVEL INDICATOR
                                    - Valid for catalyzed cars - Valid for GD
                                    from £78.97
                                    from £78.97
                                    # 009
                                    MPN: 177186
                                    FUEL LEVEL INDICATOR
                                    - Valid for not catalyzed cars - Valid for GD
                                    from £158.97
                                    from £158.97
                                    # 009
                                    MPN: 177192
                                    FUEL LEVEL INDICATOR
                                    - Valid for not catalyzed cars - Not for GD
                                    # 010
                                    MPN: 174154
                                    OIL TEMPERATURE INDICATOR
                                    - Not for USA, GB and AUS
                                    from £52.54
                                    from £52.54
                                    # 010
                                    MPN: 176980
                                    OIL TEMPERATURE INDICATOR
                                    - Valid for USA
                                    from £95.66
                                    from £95.66
                                    # 010
                                    MPN: 177169
                                    OIL TEMPERATURE INDICATOR
                                    - Valid for GB
                                    from £44.92
                                    from £44.92
                                    # 010
                                    MPN: 177185
                                    OIL TEMPERATURE INDICATOR
                                    - Valid for AUS and not catalyzed cars
                                    from £81.68
                                    from £81.68
                                    # 011
                                    MPN: 174151
                                    ANALOGIC CLOCK
                                    - Not for GD
                                    from £145.68
                                    from £145.68
                                    # 011
                                    MPN: 177171
                                    ANALOGIC CLOCK
                                    - Valid for GD
                                    from £56.47
                                    from £56.47

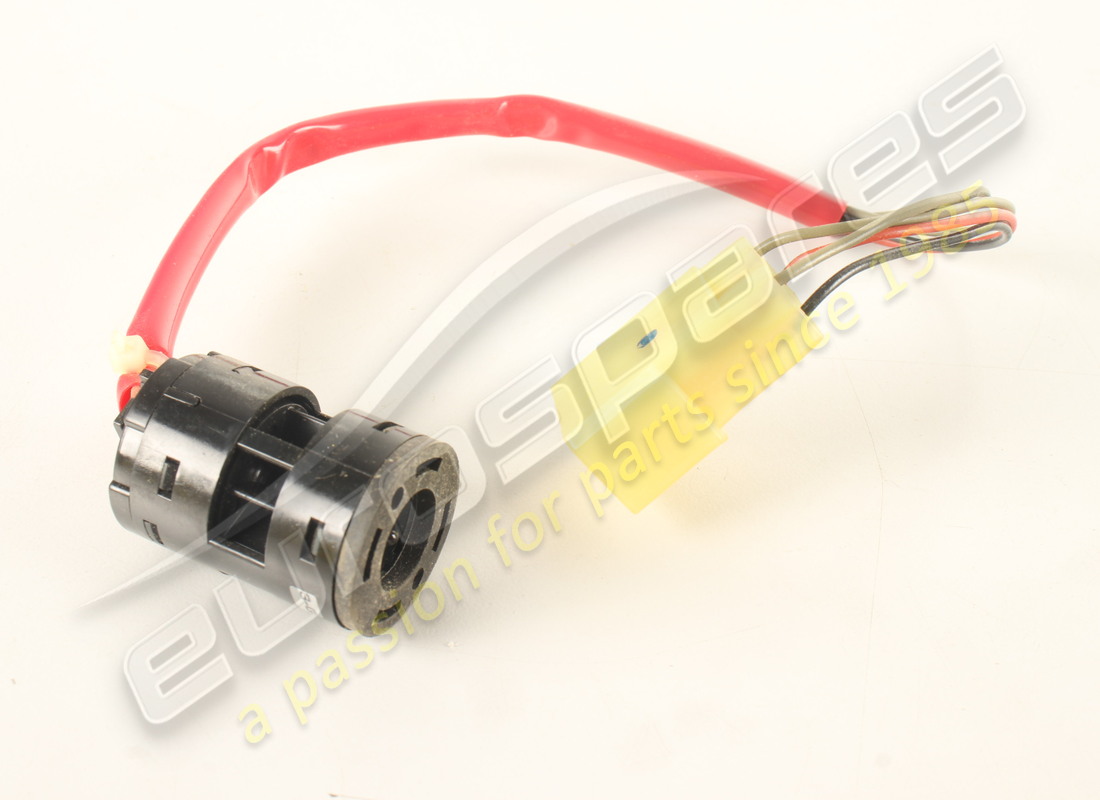

                                    # 012
                                    MPN: 153073
                                    LIGHT ADJUSTING POTENTIOMETER
                                    from £669.79
                                    from £669.79
                                    # 013
                                    MPN: 64692400
                                    INNER COMPARTMENT TEMPERATURE SENSOR
                                    from £48.87
                                    from £48.87
                                    # 014
                                    MPN: 63934200
                                    INNER COMPARTMENT TEMPERATURE SENSOR
                                    from £31.71
                                    from £31.71
                                    # 015
                                    MPN: 63994500
                                    SENSOR COVERING GRILL
                                    from £2.49
                                    from £2.49
                                    # 016
                                    MPN: 63994600
                                    SENSOR FIXING WASHER
                                    from £4.04
                                    from £4.04
                                    # 017
                                    MPN: 63994700
                                    WASHER CASING SENSOR
                                    from £2.58
                                    from £2.58
                                    # 018
                                    MPN: 15915977
                                    SCREW
                                    from £0.71
                                    from £0.71
                                    This part replaces part number 64428200
                                    # 019
                                    MPN: 153114

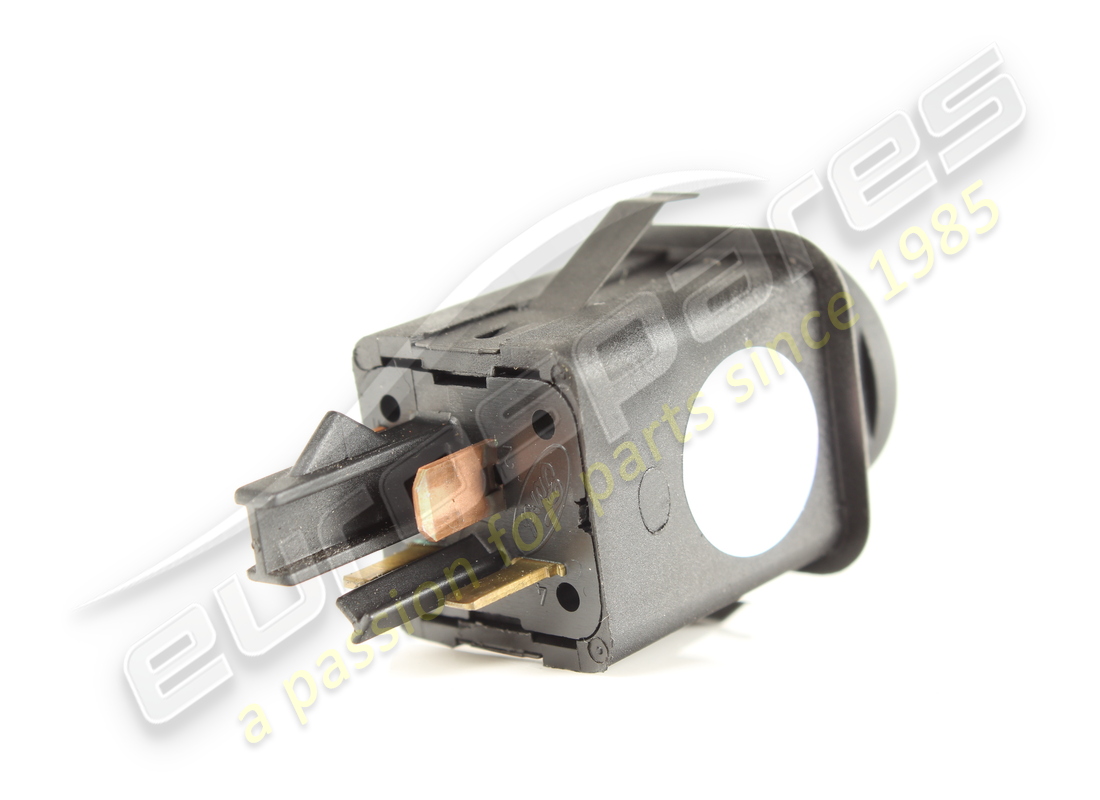

                                    REAR-VIEW MIRROR SWITCH
                                    - Valid till car Ass. Nr. 36332 - Valid till car Ass. Nr. 35477 M.Y. 2000
                                    from £383.10
                                    from £383.10
                                    # 019
                                    MPN: 181275
                                    REAR-VIEW MIRROR SWITCH
                                    - Valid from car Ass. Nr. 36333 - Valid from car Ass. Nr. 35478 M.Y. 2000
                                    from £245.52
                                    from £245.52
                                    # 020
                                    MPN: 229350

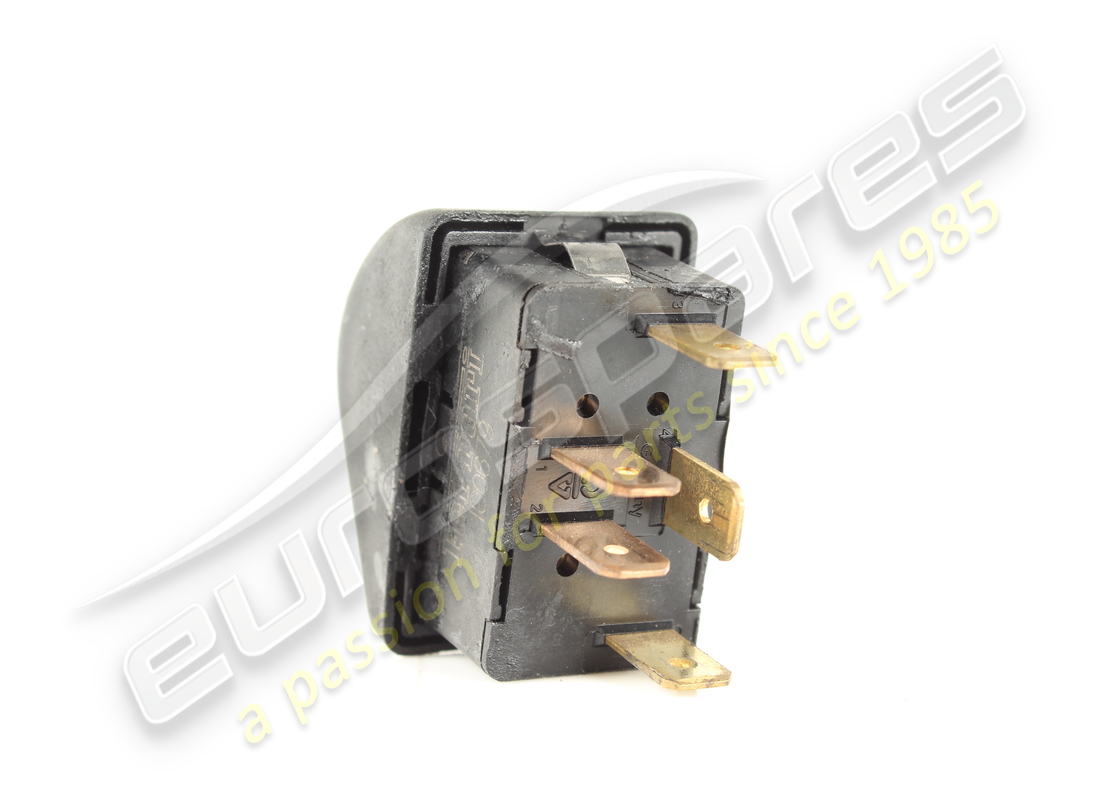

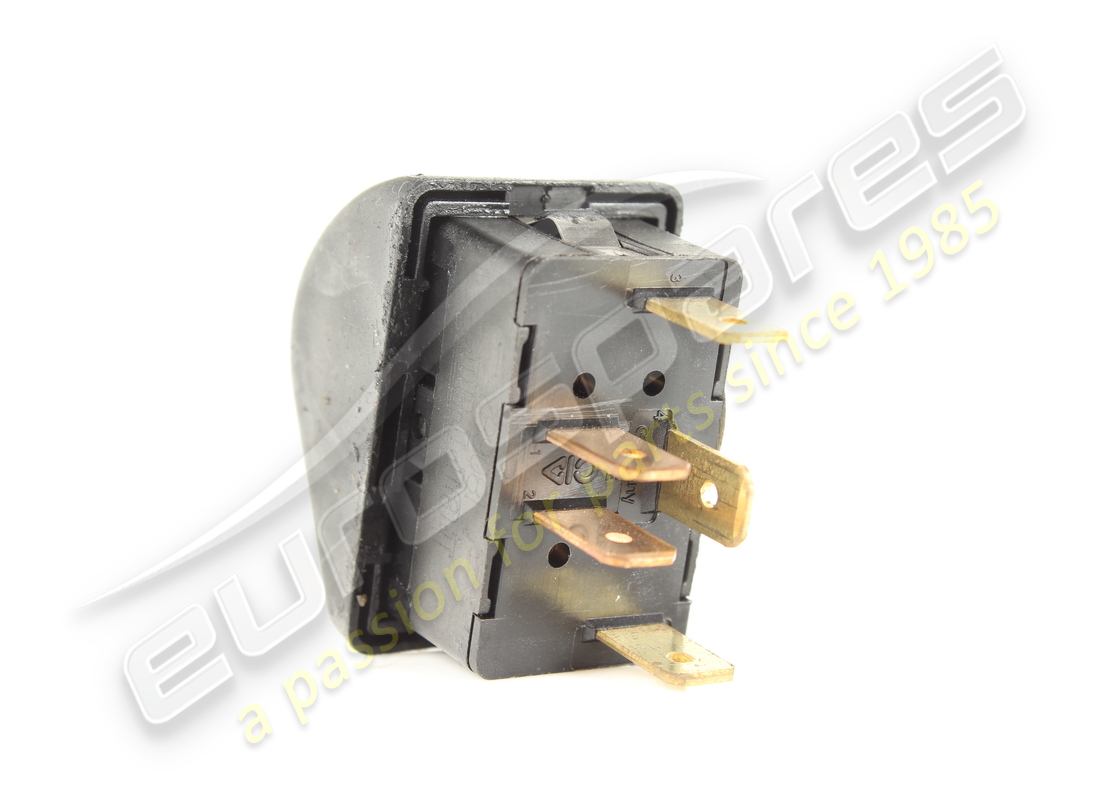

                                    EMERGENCY LIGHTS SWITCH
                                    old number : 157477
                                    from £21.00
                                    from £21.00
                                    This part replaces part number 157477 which we have in stock - and 1 more. Click to view details
                                    # 021
                                    MPN: 208847
                                    PARKING LIGHTS CONTROL SWITCH
                                    from £21.10
                                    from £21.10
                                    This part replaces part number 157479 which we have in stock - and 2 more. Click to view details
                                    # 022
                                    MPN: 174671
                                    REAR HOOD OPENING PUSH BUTTON
                                    from £34.49
                                    from £34.49
                                    # 023
                                    MPN: 157480
                                    FUEL DOOR CONTROL PUSH-BUTTON
                                    from £18.97
                                    from £18.97
                                    # 024
                                    MPN: 178874

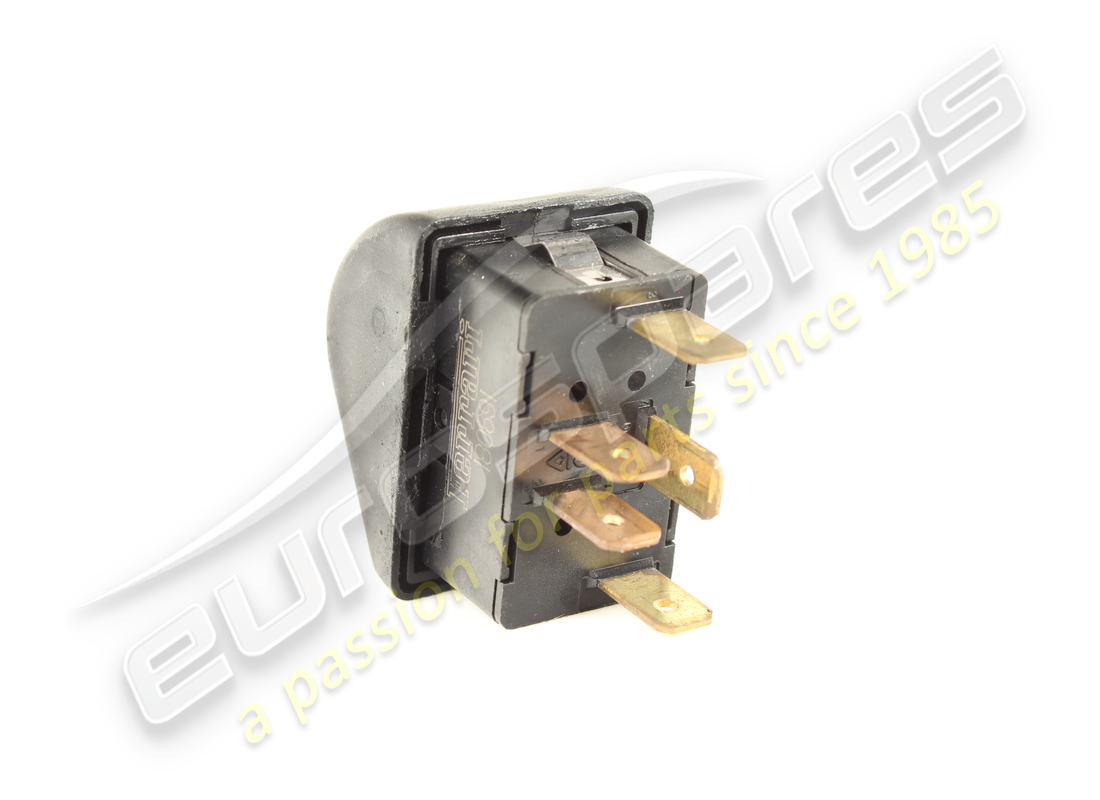

                                    LH SWITCH FOR GLASS LIFT
                                    - Valid till car Ass. Nr. 35206
                                    from £113.66
                                    from £113.66
                                    # 024
                                    MPN: 180679
                                    LH SWITCH FOR GLASS LIFT
                                    - Valid from car Ass. Nr. 35207
                                    from £80.22
                                    from £80.22
                                    # 025
                                    MPN: 170912/A
                                    INSTRUMENT CLUSTER CASING ONLY
                                    # 025
                                    MPN: 171087
                                    ASR EXCLUSION CONTROL SWITCH
                                    - Not for GD - Valid till car Ass. Nr. 35206
                                    from £60.63
                                    from £60.63
                                    # 025
                                    MPN: 174666
                                    REAR DOME LAMP CONTROL SWITCH
                                    - Valid for GD - Valid till car Ass. Nr. 35206
                                    from £52.34
                                    from £52.34
                                    # 025
                                    MPN: 180675
                                    ASR EXCLUSION CONTROL SWITCH
                                    - Not for GD - Valid from car Ass. Nr. 35207
                                    from £241.80
                                    from £241.80
                                    # 025
                                    MPN: 180691
                                    REAR DOME LAMP CONTROL SWITCH
                                    - Valid for GD - Valid from car Ass. Nr. 35207
                                    from £43.73
                                    from £43.73
                                    # 026
                                    MPN: 171071
                                    SPORT SWITCH
                                    - Not for GD - Valid till car Ass. Nr. 35206
                                    from £692.01
                                    from £692.01
                                    # 026
                                    MPN: 171595
                                    REAR FOG LIGHT CONTROL SWITCH
                                    - Valid for GD - Valid till car Ass. Nr. 35206
                                    from £107.96
                                    from £107.96
                                    # 026
                                    MPN: 180676
                                    REAR FOG LIGHT CONTROL SWITCH
                                    - Valid for GD - Valid from car Ass. Nr. 35207
                                    from £230.25
                                    from £230.25
                                    # 026
                                    MPN: 180684
                                    SPORT SWITCH
                                    - Not for GD - Valid from car Ass. Nr. 35207
                                    from £1,226.45
                                    from £1,226.45
                                    # 027
                                    MPN: 171069

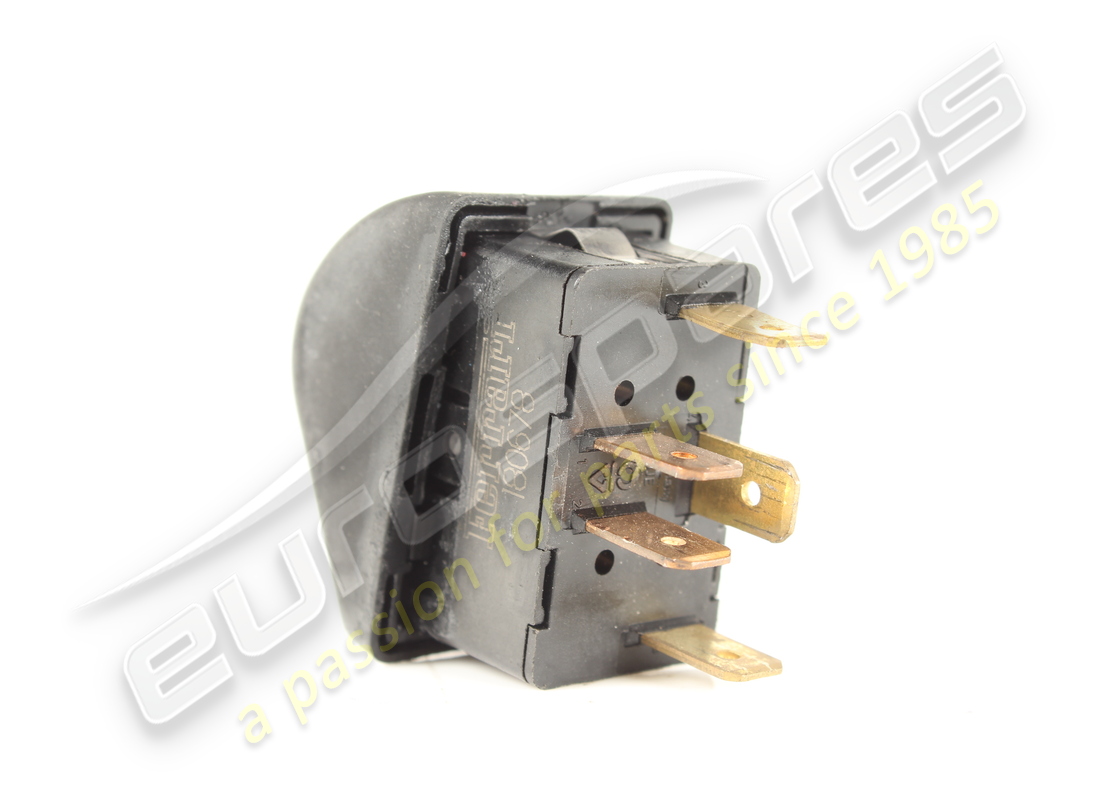

                                    SWITCH FOR REAR WINDOW DEFROSTER
                                    - Valid till car Ass. Nr. 35206
                                    from £152.86
                                    from £152.86
                                    # 027
                                    MPN: 180682
                                    SWITCH FOR REAR WINDOW DEFROSTER
                                    - Valid from car Ass. Nr. 35207
                                    from £225.75
                                    from £225.75
                                    # 028
                                    MPN: 171071
                                    SPORT SWITCH
                                    - Valid for GD - Valid till car Ass. Nr. 35206
                                    from £692.01
                                    from £692.01
                                    # 028
                                    MPN: 171074
                                    FOG LIGHTS SWITCH
                                    - Valid for USA and J - Valid till car Ass. Nr. 35206
                                    from £458.82
                                    from £458.82
                                    # 028
                                    MPN: 171081
                                    DUMMY SWITCH
                                    - Valid for CDN - Valid till car Ass. Nr. 35206
                                    from £136.83
                                    from £136.83
                                    # 028
                                    MPN: 171595
                                    REAR FOG LIGHT CONTROL SWITCH
                                    - Not for USA, CDN, GD and J - Valid till car Ass. Nr. 35206
                                    from £107.96
                                    from £107.96
                                    # 028
                                    MPN: 180676
                                    REAR FOG LIGHT CONTROL SWITCH
                                    - Not for USA, CDN, GD and J - Valid from car Ass. Nr. 35207
                                    from £230.25
                                    from £230.25
                                    # 028
                                    MPN: 180684
                                    SPORT SWITCH
                                    - Valid for GD - Valid from car Ass. Nr. 35207
                                    from £1,226.45
                                    from £1,226.45
                                    # 028
                                    MPN: 180685
                                    FOG LIGHTS SWITCH
                                    - Valid for USA and J - Valid from car Ass. Nr. 35207
                                    from £342.00
                                    from £342.00
                                    # 028
                                    MPN: 180687
                                    DUMMY SWITCH
                                    - Valid for CDN - Valid from car Ass. Nr. 35207
                                    from £168.62
                                    from £168.62
                                    # 029
                                    MPN: 171087
                                    ASR EXCLUSION CONTROL SWITCH
                                    - Valid for GD - Valid till car Ass. Nr. 35206
                                    from £60.63
                                    from £60.63
                                    # 029
                                    MPN: 171595
                                    REAR FOG LIGHT CONTROL SWITCH
                                    - Valid for J - Valid till car Ass. Nr. 35206
                                    from £107.96
                                    from £107.96
                                    # 029
                                    MPN: 174666
                                    REAR DOME LAMP CONTROL SWITCH
                                    - Not for GD and J - Valid till car Ass. Nr. 35206
                                    from £52.34
                                    from £52.34
                                    # 029
                                    MPN: 180675
                                    ASR EXCLUSION CONTROL SWITCH
                                    - Valid for GD - Valid from car Ass. Nr. 35207
                                    from £241.80
                                    from £241.80
                                    # 029
                                    MPN: 180676
                                    REAR FOG LIGHT CONTROL SWITCH
                                    - Valid for J - Valid from car Ass. Nr. 35207
                                    from £230.25
                                    from £230.25
                                    # 029
                                    MPN: 180691
                                    REAR DOME LAMP CONTROL SWITCH
                                    - Not for GD and J - Valid from car Ass. Nr. 35207
                                    from £43.73
                                    from £43.73
                                    # 030
                                    MPN: 178873
                                    RH SWITCH FOR GLASS LIFT
                                    - Valid till car Ass. Nr. 35206
                                    from £67.27
                                    from £67.27
                                    # 030
                                    MPN: 180678
                                    RH SWITCH FOR GLASS LIFT
                                    - Valid from car Ass. Nr. 35207
                                    from £75.69
                                    from £75.69
                                    # 031
                                    MPN: 174485
                                    TUNNEL INSTRUMENTS CONNECTION CABLES
                                    - Not for USA, CDN and J
                                    from £35.74
                                    from £35.74
                                    # 031
                                    MPN: 176981
                                    TUNNEL INSTRUMENTS CONNECTION CABLES
                                    - Valid for USA and CDN
                                    from £281.41
                                    from £281.41
                                    # 031
                                    MPN: 178072
                                    TUNNEL INSTRUMENTS CONNECTION CABLES
                                    - Valid for J
                                    from £219.63
                                    from £219.63
                                    # 032
                                    MPN: 174152
                                    SIDE INSTRUMENTS CONNECTING CABLES
                                    from £41.45
                                    from £41.45
                                    # 033
                                    MPN: 164631
                                    OUTER TEMPERATURE PUSH-BUTTON
                                    from £42.08
                                    from £42.08
                                    This part replaces part number 179575 which we have in stock
                                    # 034
                                    MPN: 179901
                                    OUTER TEMPERATURE BUTTON
                                    from £19.80
                                    from £19.80
                                    # 035
                                    MPN: 181054
                                    OUTER TEMPERATURE BUTTON
                                    from £44.09
                                    from £44.09
                                    # 036
                                    MPN: 181055
                                    OUTER TEMPERATURE PIN
                                    from £49.73
                                    from £49.73
