127 - Front and Rear Lights - Outside Finishings

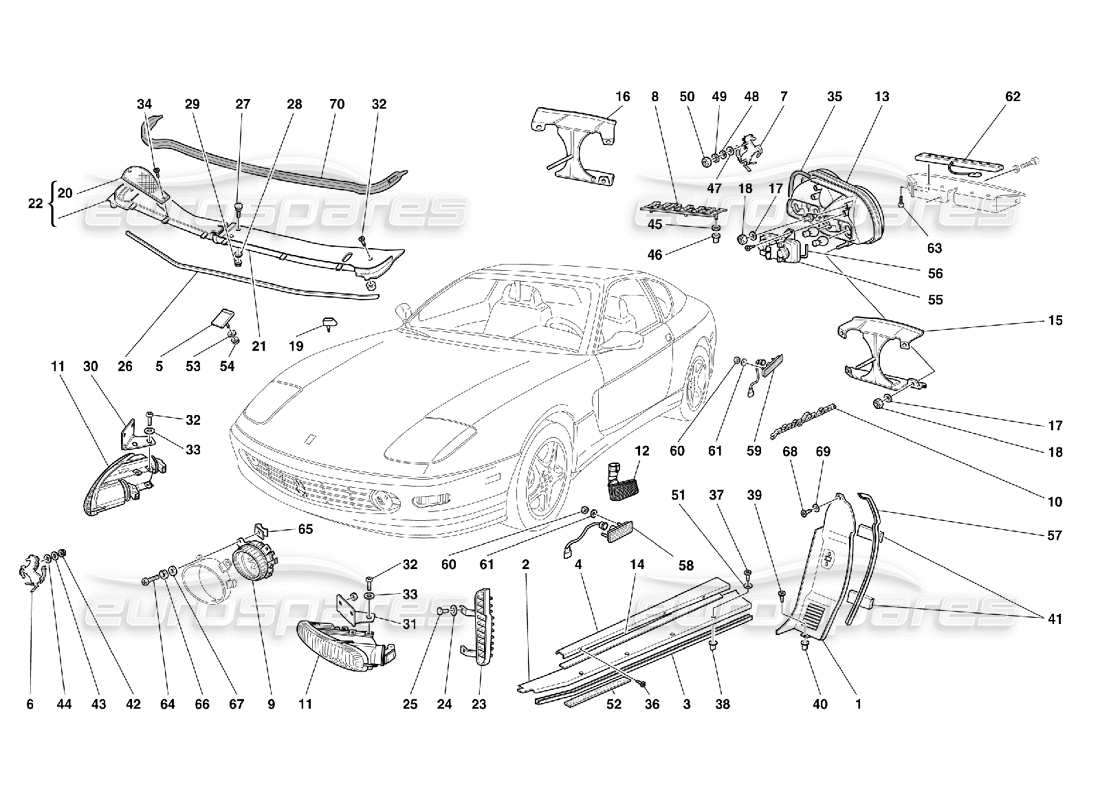

Ferrari 456 M GT/M GTA Front and Rear Lights - Outside Finishings Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 65435710

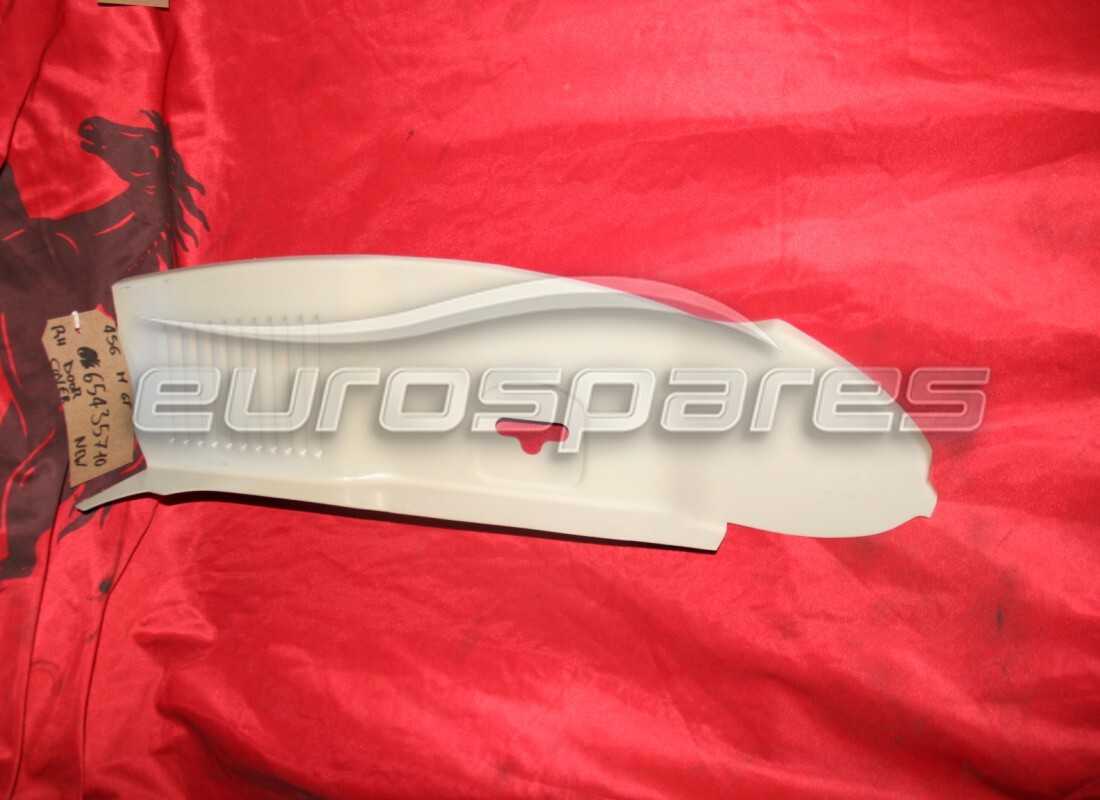

RH DOOR STRIP COVER
from £14.73
from £14.73
# 001
MPN: 65435810

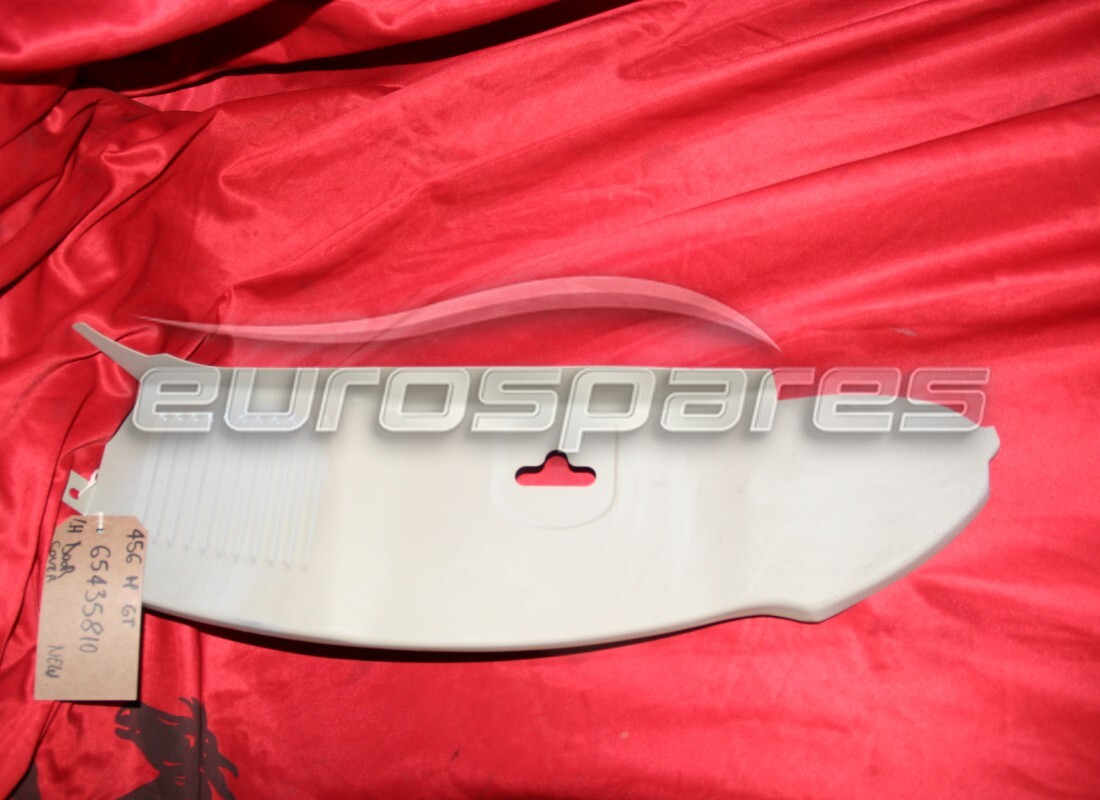

LH DOOR STRIP COVER
from £14.73
from £14.73
# 002
MPN: 63212800
RH KICK PLATE
from £61.82
from £61.82
# 002
MPN: 63212900
LH KICK PLATE
from £56.08
from £56.08
# 003
MPN: 63736800
RUBBER FOR KICK PLATE
from £4.15
from £4.15
# 004
MPN: 65221600
RH KICK PLATE INSERT
from £27.32
from £27.32
This part replaces part number 63213000 which we have in stock - and 5 more. Click to view details
# 004
MPN: 65221700
LH KICK PLATE INSERT
from £27.32
from £27.32
This part replaces part number 63213100 - and 4 more. Click to view details
# 005
MPN: 62673100
FRONT ORNAMENT
from £119.72
from £119.72
# 006
MPN: 63233900
CHROME HORSE
(113mm x 76mm)
from £32.88
from £32.88
This part replaces part number 50097202 - and 5 more. Click to view details
# 007
MPN: 63233900
CHROME HORSE
(113mm x 76mm)
from £32.88
from £32.88
This part replaces part number 50097202 - and 5 more. Click to view details
# 008
MPN: 63482200
Ferrari SCRIPT
Light Alloy type - 3 Pin
from £26.32
from £26.32
# 009
MPN: 175372
RH FRONT LIGHT FOR FLASH
- Not for USA, CDN and J
from £141.96
from £141.96
# 009
MPN: 175373
LH FRONT LIGHT FOR FLASH
- Not for USA, CDN and J
from £141.96
from £141.96
# 009
MPN: 176187
RH FOG LIGHT
- Valid for USA, CDN and J
from £138.42
from £138.42
# 009
MPN: 176584
LH FOG LIGHT
- Valid for USA, CDN and J
from £120.95
from £120.95
# 010
MPN: 64780500
PININFARINA ORNAMENT
from £32.57
from £32.57
# 011
MPN: 174800

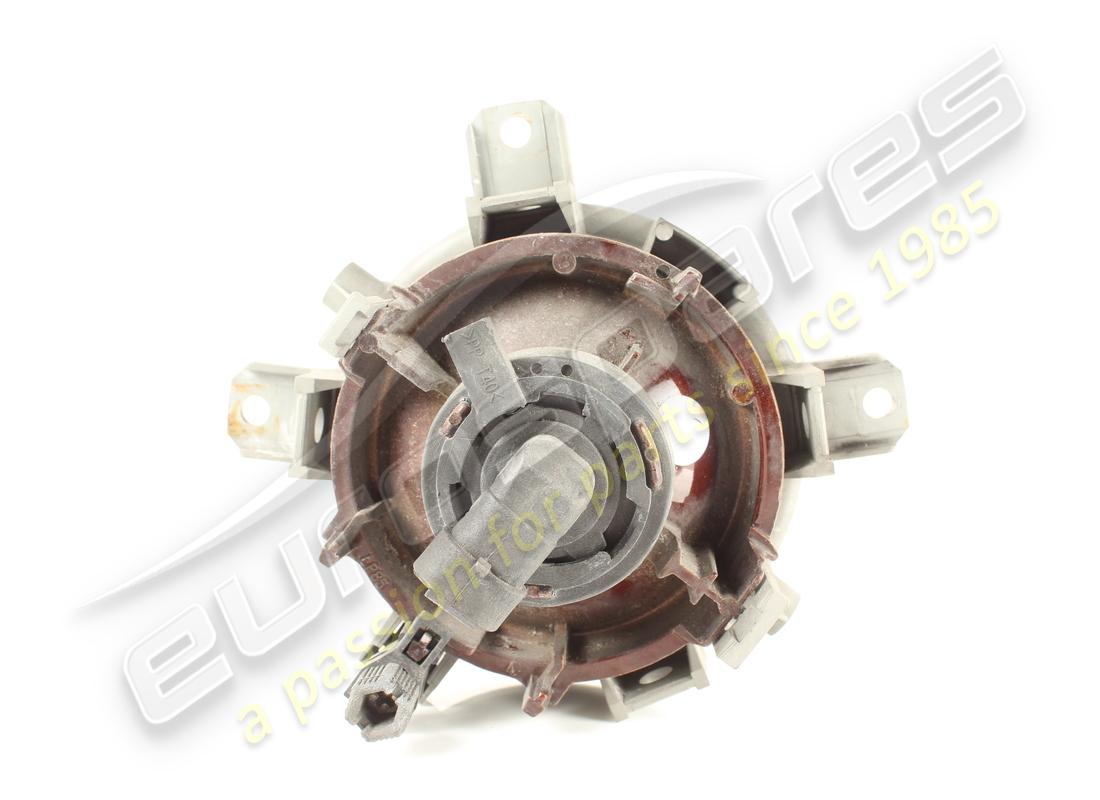

FRONT LAMP
- Not for USA and CDN
from £547.84
from £547.84
# 011
MPN: 176982
FRONT LAMP
- Valid for USA and CDN
from £48.33
from £48.33
# 012
MPN: 173616

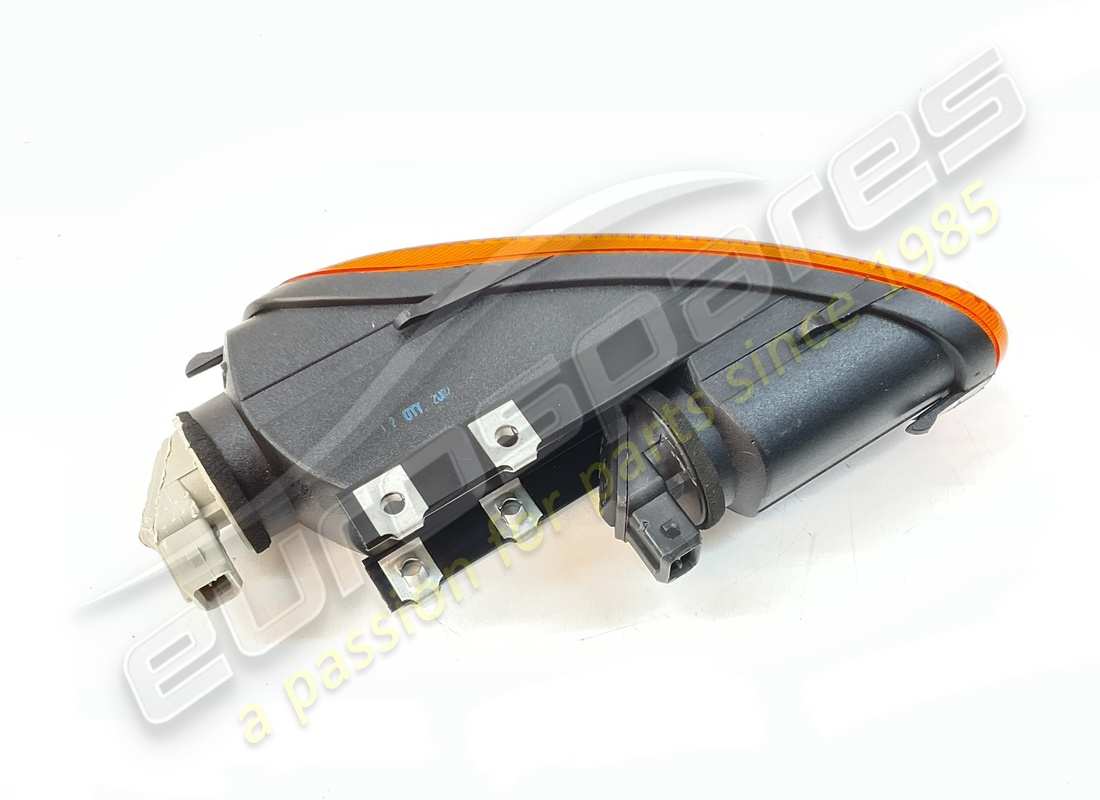

RH FRONT SIDE DIRECTION LIGHT
- Not for USA and CDN
from £125.16
from £125.16
# 012
MPN: 175506
LH FRONT SIDE DIRECTION LIGHT
- Not for USA and CDN
from £8.93
from £8.93
# 013
MPN: 153109
RH REAR LAMP
- Not for USA and CDN
from £749.79
from £749.79
# 013
MPN: 153110
LH REAR LIGHT
- Not for USA and CDN
from £1,345.92
from £1,345.92
# 013
MPN: 159514
RH REAR LAMP
- Valid for USA and CDN
from £1,500.00
from £1,500.00
# 013
MPN: 159515
LH REAR LIGHT
- Valid for USA and CDN
from £2,140.80
from £2,140.80
# 014
MPN: 62791300
ADHESIVE STRAP
Supersession
Supersession
# 015
MPN: 65509700
LH BRACKET FOR REAR LIGHT FIXING
from £54.45
from £54.45
# 016
MPN: 63740400
RH BRACKET FOR REAR LIGHT FIXING
from £101.20
from £101.20
# 017
MPN: 12643777
WASHER
Supersession
Supersession
This part replaces part number 12643706 which we have in stock - and 1 more. Click to view details
# 018
MPN: 15896214
NUT
from £0.53
from £0.53
This part replaces part number 15896211
# 019
MPN: 63487200
RH ANGLE PIECE
from £15.19
from £15.19
# 019
MPN: 63487300
LH ANGLE PIECE
from £15.19
from £15.19
# 020
MPN: 63897800
POLLEN FILTER
- Not for GD
from £65.10
from £65.10
This part replaces part number 63869800
# 020
MPN: 64241800
POLLEN FILTER
- Valid for GD
from £60.90
from £60.90
# 021
MPN: 63773100
LH LOWER WINDSCREEN MOULDING
- Not for GD
from £83.45
from £83.45
# 021
MPN: 64242700
LH LOWER WINDSCREEN MOULDING
- Valid for GD
from £243.93
from £243.93
# 022
MPN: 63898000
RH LOWER WINDSCREEN MOULDING
- Not for GD
from £97.25
from £97.25
This part replaces part number 63773000 - and 4 more. Click to view details
# 022
MPN: 64242600
RH LOWER WINDSCREEN MOULDING
- Valid for GD
from £243.93
from £243.93
# 023
MPN: 63743800
RH GRILLE
from £77.55
from £77.55
# 023
MPN: 63743900
LH GRID
from £77.55
from £77.55
# 024
MPN: 12643724
WASHER
from £0.47
from £0.47
This part replaces part number 109684 - and 4 more. Click to view details
# 025
MPN: 11612624
SCREW
from £0.47
from £0.47
# 026
MPN: 62953900
GASKET
from £0.47
from £0.47
# 027
MPN: 15965817
SCREW
from £0.97
from £0.97
# 028
MPN: 12644424
WASHER
from £0.47
from £0.47
This part replaces part number 12644401 - and 1 more. Click to view details
# 029
MPN: 102948
NUT
from £0.47
from £0.47
This part replaces part number 12574211 - and 3 more. Click to view details
# 030
MPN: 65552600
RH BRACKET
from £40.48
from £40.48
# 031
MPN: 65617000
LH BRACKET
from £61.98
from £61.98
# 032
MPN: 10977724
SCREW
from £0.47
from £0.47
This part replaces part number 10977711
# 033
MPN: 12638124
WASHER
from £0.47
from £0.47
This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
# 034
MPN: 62771900
SCREW
from £0.53
from £0.53
This part replaces part number 68391900
# 035
MPN: 167847
UNDER LAMP GASKET
from £11.30
from £11.30
# 036
MPN: 15913570
SCREW
from £0.71
from £0.71
# 037
MPN: 15687370
SCREW
Supersession
Supersession
# 038
MPN: 14211580
NUT SCREW
Supersession
Supersession
# 039
MPN: 15688075
SCREW
from £0.47
from £0.47
This part replaces part number 15688007 which we have in stock - and 1 more. Click to view details
# 040
MPN: 62765000
NUT SCREW
from £1.16
from £1.16
# 041
MPN: 62765200
ANTI-VIBRATIONS
Supersession
Supersession
# 041
MPN: 62797200
ANTI-VIBRATIONS
Supersession
Supersession
# 042
MPN: 14084011
NUT
from £0.53
from £0.53
# 043
MPN: 10615174
WASHER
(minimum order quantity = 20)
Supersession
Supersession
This part replaces part number 10615170 - and 1 more. Click to view details
# 044
MPN: 10519224
WASHER
from £0.47
from £0.47
This part replaces part number 10519201 which we have in stock
# 045
MPN: 62771600
WASHER
from £0.71
from £0.71
# 046
MPN: 60324506
CLIP
from £1.55
from £1.55
This part replaces part number 62773000
# 047
MPN: 60995100
RUBBER
from £1.52
from £1.52
# 048
MPN: 10519224
WASHER
from £0.47
from £0.47
This part replaces part number 10519201 which we have in stock
# 049
MPN: 10615174
WASHER
(minimum order quantity = 20)
Supersession
Supersession
This part replaces part number 10615170 - and 1 more. Click to view details
# 050
MPN: 14084011
NUT
from £0.53
from £0.53
# 051
MPN: 13577577
WASHER
from £0.71
from £0.71
# 052
MPN: 62984400
ANTI-VIBRATIONS
from £1.55
from £1.55
This part replaces part number 62797200
# 053
MPN: 12638124
WASHER
from £0.47
from £0.47
This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
# 054
MPN: 113647
NUT
from £0.54
from £0.54
# 055
MPN: 167841
LAMP HOLDER PROTECTION
- Not for USA and CDN
from £9.54
from £9.54
# 055
MPN: 168176
LAMP HOLDER PROTECTION
- Not for USA and CDN
from £19.12
from £19.12
# 055
MPN: 168177
LAMP HOLDER PROTECTION
- Valid for USA and CDN
from £34.76
from £34.76
# 055
MPN: 168178
LAMP HOLDER PROTECTION
- Valid for USA and CDN
from £34.76
from £34.76
# 056
MPN: 167844
GASKET
from £11.30
from £11.30
# 057
MPN: 65655300
GASKET
from £12.75
from £12.75
# 058
MPN: 147563
FRONT SIDE-MARKER LAMP
- Valid for USA and CDN
from £16.32
from £16.32
# 059
MPN: 140594
REAR SIDE-MARKER LIGHT
- Valid for USA and CDN
from £22.48
from £22.48
# 060
MPN: 14084111
NUT
- Valid for USA and CDN
from £0.47
from £0.47
This part replaces part number 14084100
# 061
MPN: 12638124
WASHER
- Valid for USA and CDN
from £0.47
from £0.47
This part replaces part number 12638101 which we have in stock - and 1 more. Click to view details
# 062
MPN: 167958
ADDITIONAL STOP LIGHT
from £136.28
from £136.28
This part replaces part number 68708400
# 063
MPN: 15957304
SCREW
from £0.71
from £0.71
# 064
MPN: 13274377
SCREW
from £0.47
from £0.47
This part replaces part number 13288177
# 065
MPN: 62764200
CLIP
from £0.47
from £0.47
This part replaces part number 14369871
# 066
MPN: 10571470
WASHER
from £0.52
from £0.52
# 067
MPN: 12638178
WASHER
from £0.47
from £0.47
This part replaces part number 10519578 which we have in stock - and 3 more. Click to view details
# 068
MPN: 15915077
SCREW
from £0.56
from £0.56
# 069
MPN: 62929300
WASHER
from £1.62
from £1.62
# 070
MPN: 63870100
GASKET
from £24.43
from £24.43
