132 - Windshield Wiper, Washer and Horns

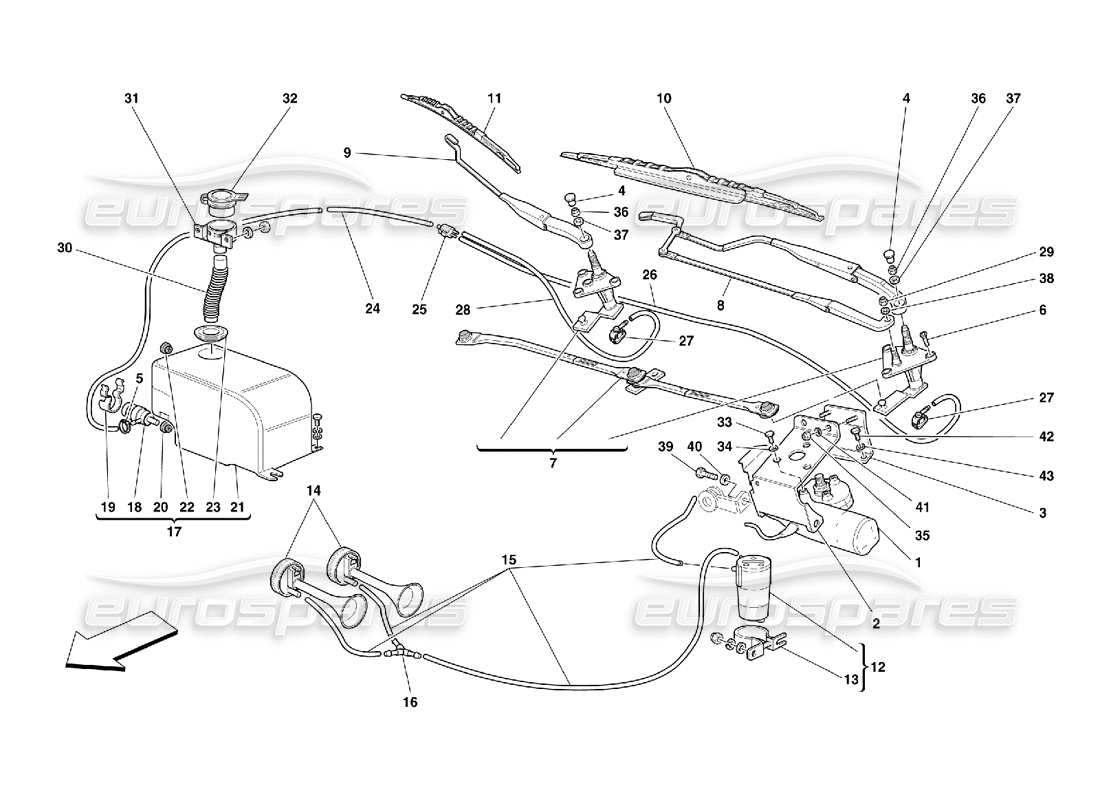

Ferrari 456 M GT/M GTA Windshield Wiper, Washer and Horns Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot
in the parts diagram to locate the part in the table - You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 63780200
wiper motor
- Not for GD
from £293.08
from £293.08
# 001
MPN: 64275500
wiper motor
- Valid for GD
from £173.42
from £173.42
# 002
MPN: 65514300
WINDSHIELD WIPER MOTOR FRONT BRACKET
- Valid for GD
# 002
MPN: 65750400
WINDSHIELD WIPER MOTOR FRONT BRACKET
- Not for GD
from £67.21
from £67.21
# 003
MPN: 63878800
WINDSHIELD WIPER MOTOR REAR BRACKET
- Not for GD
from £42.00
from £42.00
# 004
MPN: 65081700
SMALL COVER
- Valid for GD
from £0.71
from £0.71
# 004
MPN: 65190900
SMALL COVER
- Not for GD
from £0.71
from £0.71
# 005
MPN: 173710
SCREW COLLAR
from £0.54
from £0.54
# 006
MPN: 14441324
SCREW
from £0.50
from £0.50
# 007
MPN: 65081300
COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS
- Not for GD
from £317.77
from £317.77
# 007
MPN: 65202600
COMPLETE WINDSHIELD WIPER LEVERAGE AND PINS
- Valid for GD
from £510.21
from £510.21
# 008
MPN: 65645700
LH WINDSHIELD WIPER ARM
- Not for GD
from £313.07
from £313.07
# 008
MPN: 65848500
LH WINDSHIELD WIPER ARM
- Valid for GD
from £113.74
from £113.74
# 009
MPN: 65081400
RH WINDSHIELD WIPER ARM
- Not for GD
from £86.37
from £86.37
# 009
MPN: 65645800
RH WINDSHIELD WIPER ARM
- Valid for GD
from £107.03
from £107.03
# 010
MPN: 65206400
RH WIPER BLADE
(RHD model)
from £108.95
from £108.95
This part replaces part number 65755100 - and 1 more. Click to view details
# 011
MPN: 63756100
LH WIPER BLADE
(LHD model)
Supersession
Supersession
# 012
MPN: 225757
ELECTRO-COMPRESSOR
from £134.90
from £134.90
This part replaces part number 139920
# 013
MPN: 60741200
BRACKET FOR ELECTRO-COMPRESSOR
from £0.70
from £0.70
# 014
MPN: 189428
PNEUMATIC HORN
from £33.58
from £33.58
This part replaces part number 10665500 which we have in stock - and 3 more. Click to view details
# 015
MPN: 155904
RUBBER PIPE
from £5.54
from £5.54
# 016
MPN: 60741100
3-WAY UNION
from £0.54
from £0.54
This part replaces part number 61741100
# 017
MPN: 63970100
COMPLETE WINDSHIELD WIPER CONTAINER
from £462.28
from £462.28
# 018
MPN: 65358700
WIPER PUMP
from £20.25
from £20.25
# 019
MPN: 63290800
SPRING
from £13.15
from £13.15
# 020
MPN: 63290900
RUBBER BUSHING
from £0.80
from £0.80
# 021
MPN: 63970200
WINDSHIELD WIPER CONTAINER
from £75.05
from £75.05
# 022
MPN: 63291000
CAP FOR BREATHER HOLE
from £0.84
from £0.84
# 023
MPN: 63954700
TUBE TIGHTENING RING
from £10.42
from £10.42
# 024
MPN: 65559600
PIPE FROM PUMP TO VALVE
from £3.72
from £3.72
# 025
MPN: 61648100
NONRETURN VALVE
from £16.32
from £16.32
# 026
MPN: 65559700
PIPE FROM VALVE TO PILOT ARM
from £1.82
from £1.82
# 027
MPN: 65191000
JET FOR WINDOW WASHING
from £1.03
from £1.03
This part replaces part number 80131500 - and 3 more. Click to view details
# 028
MPN: 65559800
PIPE FROM VALVE TO PASSENGER ARM
from £1.42
from £1.42
# 029
MPN: 15896472
NUT
from £0.53
from £0.53
This part replaces part number 15896416 which we have in stock
# 030
MPN: 63969500
PLASTIC HOSE
from £8.61
from £8.61
# 031
MPN: 63449500
FEED OPENING
from £81.56
from £81.56
# 032
MPN: 63118500
PLUG
from £2.33
from £2.33
# 033
MPN: 10902224
SCREW
from £0.52
from £0.52
# 034
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
# 035
MPN: 147985
NUT
from £0.54
from £0.54
# 036
MPN: 16100814
NUT
from £0.71
from £0.71
This part replaces part number 16100811 - and 1 more. Click to view details
# 037
MPN: 12601374
WASHER
from £0.54
from £0.54
This part replaces part number 10615474 - and 6 more. Click to view details
# 038
MPN: 12601176
WASHER
Supersession
Supersession
# 039
MPN: 16043324
SCREW
from £0.53
from £0.53
This part replaces part number 16043321
# 040
MPN: 127496
WASHER
from £0.54
from £0.54
This part replaces part number 10516671 - and 2 more. Click to view details
# 041
MPN: 14499401
WASHER
from £0.47
from £0.47
# 042
MPN: 10902224
SCREW
from £0.53
from £0.53
# 043
MPN: 127494
WASHER
(minimum order quantity = 20)
from £0.53
from £0.53
This part replaces part number 10516470 - and 4 more. Click to view details
