0014 - MANIFOLDS, TURBOCHARGING SYSTEM AND PIPES

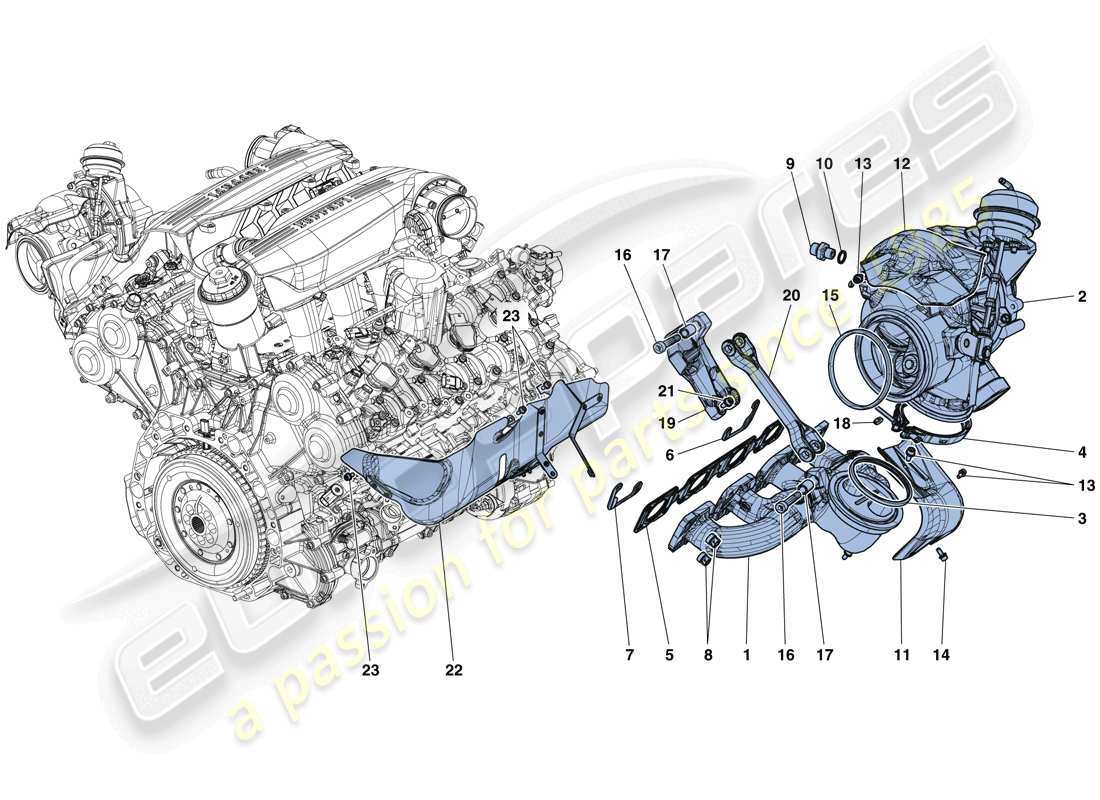

Ferrari 488 Spider (USA) MANIFOLDS, TURBOCHARGING SYSTEM AND PIPES Parts Diagram
View the exploded parts diagram to find the part you are looking for
- You can reposition the diagram by dragging it
- You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
- You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
- You can click on a hotspot in the parts diagram to locate the part in the table
- You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
# 001
MPN: 319026
RH EXHAUST MANIFOLD
from £1,405.39
from £1,405.39
# 001
MPN: 324259
LH EXHAUST MANIFOLD
-Applicable until depletion-
Supersession
Supersession
# 001
MPN: 325315
LH EXHAUST MANIFOLD
-Applicable after depletion of 324259-
from £1,268.21
from £1,268.21
This part replaces part number 324259 - and 2 more. Click to view details
# 002
MPN: 329261
RH TURBOCHARGER
from £5,234.56
from £5,234.56
This part replaces part number 320227 - and 1 more. Click to view details
# 002
MPN: 329267
LH TURBOCHARGER
from £5,234.56
from £5,234.56
This part replaces part number 320228 - and 1 more. Click to view details
# 003
MPN: 314780
STEEL RING SEAL
-Also comes with engine gasket set-
from £69.89
from £69.89
# 004
MPN: 313303
TURBO-MANIFOLD FASTENER V-CLAMP
from £16.82
from £16.82
# 005
MPN: 292736
EXHAUST MANIFOLD GASKET
-Also comes with engine gasket set-
from £50.43
from £50.43
# 006
MPN: 321327
FASTENER SLIDING BAR, CYLINDERS 1 AND 5
-Applicable until depletion-
Supersession
Supersession
# 006
MPN: 321573
FASTENER SLIDING BAR, CYLINDERS 1 AND 5
-Applicable after depletion of 321327-
from £16.09
from £16.09
This part replaces part number 321327 - and 1 more. Click to view details
# 007
MPN: 321328
FASTENER SLIDING BAR, CYLINDERS 4 AND 8
-Applicable until depletion-
Supersession
Supersession
# 007
MPN: 321574
FASTENER SLIDING BAR, CYLINDERS 4 AND 8
-Applicable after depletion of 321328-
from £16.09
from £16.09
This part replaces part number 321328 - and 1 more. Click to view details
# 008
MPN: 307964
NUT
from £2.02
from £2.02
# 009
MPN: 290216
THREADED CONNECTOR WITH SEAL RING
from £15.86
from £15.86
# 010
MPN: 10261060
GASKET
-Also comes with engine gasket set-
from £0.53
from £0.53
# 011
MPN: 322188
RH EXHAUST MANIFOLD HEAT SHIELD
from £32.91
from £32.91
This part replaces part number 322470 - and 1 more. Click to view details
# 011
MPN: 322189
LH EXHAUST MANIFOLD HEAT SHIELD
from £32.91
from £32.91
This part replaces part number 318313 - and 1 more. Click to view details
# 012
MPN: 315957
RH TURBO HEAT SHIELD
-Applicable until depletion-
Supersession
Supersession
# 012
MPN: 321692
LH TURBO HEAT SHIELD
from £32.91
from £32.91
# 012
MPN: 765057
RH TURBO HEAT SHIELD
-Applicable after depletion of 315957- -Applicable until depletion-
Supersession
Supersession
This part replaces part number 315957
# 012
MPN: 828860
RH TURBO HEAT SHIELD
-Applicable after depletion of 765057-
from £33.24
from £33.24
This part replaces part number 765057 - and 4 more. Click to view details
# 013
MPN: 233600
SCREW
-M6 X 12-
from £0.47
from £0.47
# 014
MPN: 280460
SCREW
from £2.43
from £2.43
# 015
MPN: 309013
TURBO-CAT. CONVERTER FLANGE GASKET
-Also comes with engine gasket set-
from £44.14
from £44.14
# 016
MPN: 318436
CALIBRATED SCREW
-M8 X 1.25- -Applicable until depletion-
Supersession
Supersession
# 016
MPN: 338841
CALIBRATED SCREW
-M8 X 1.25- -Applicable after depletion of 318436-
from £43.51
from £43.51
This part replaces part number 318436
# 017
MPN: 314448
CALIBRATED BUSH
-Applicable until depletion-
Supersession
Supersession
# 017
MPN: 338842
CALIBRATED BUSH
-Applicable after depletion of 314448-
from £18.55
from £18.55
This part replaces part number 314448
# 018
MPN: 14076611
NUT
from £0.73
from £0.73
# 019
MPN: 325811
TURBO SUPPORT PLATE
from £155.38
from £155.38
This part replaces part number 314440 - and 1 more. Click to view details
# 020
MPN: 320401
RH TURBO MOUNTING BRACKET
from £138.92
from £138.92
This part replaces part number 314443 - and 1 more. Click to view details
# 020
MPN: 320402
LH TURBO MOUNTING BRACKET
from £138.92
from £138.92
This part replaces part number 314446 - and 1 more. Click to view details
# 021
MPN: 231619
SCREW
-M6 X 22-
from £0.47
from £0.47
# 022
MPN: 321689
LH CYLINDER HEAD HEAT SHIELD
from £160.77
from £160.77
# 022
MPN: 322386
RH CYLINDER HEAD HEAT SHIELD
from £160.77
from £160.77
This part replaces part number 322472 - and 1 more. Click to view details
# 022
MPN: 322472
RH CYLINDER HEAD HEAT SHIELD
-No longer supplied- -Replaced by 322386-
Supersession
Supersession
# 023
MPN: 231616
SCREW
-M6 X 14-
from £0.47
from £0.47
This part replaces part number 14305724 which we have in stock
