ferrari 512 m left cylinder head parts diagram

004 - left cylinder head

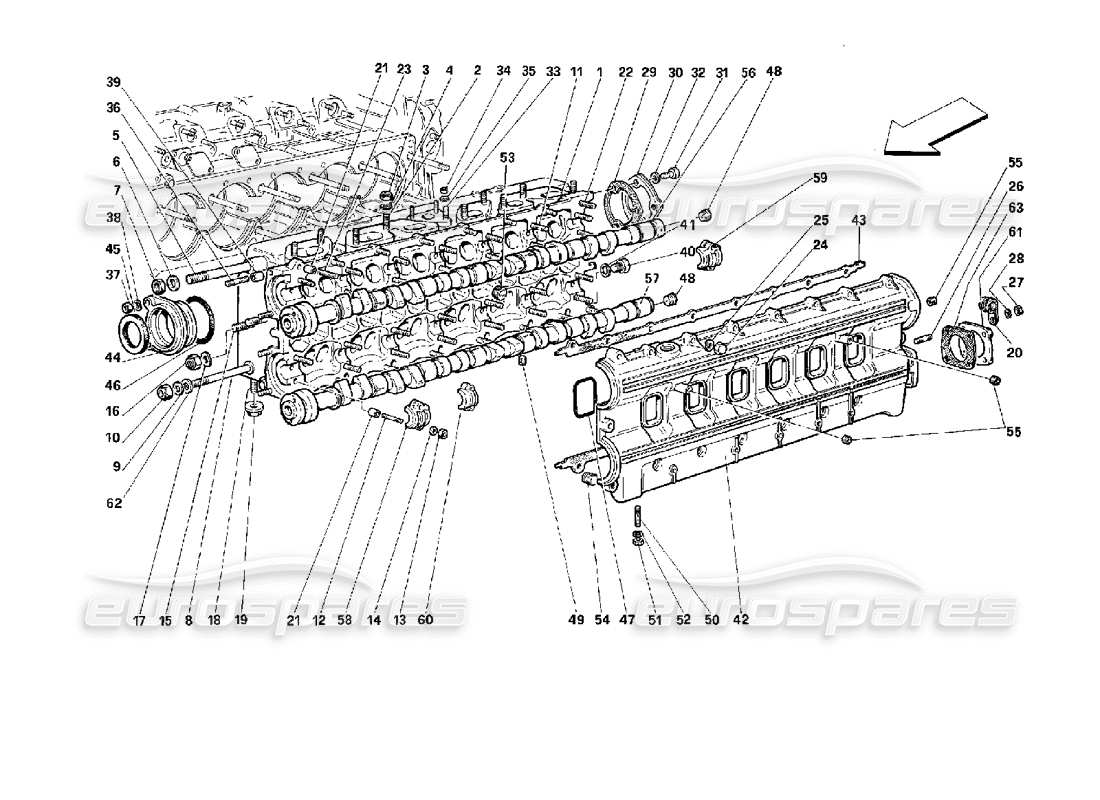

Ferrari 512 M Left Cylinder Head Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
#
Part number
Description
Price
# 000
MPN: 137717
LEFT CYLINDER HEAD, COMPLETE
from £7,122.43
from £7,122.43
This part replaces part number 139960 - and 1 more. Click to view details
# 001
MPN: 139960
left cylinder head
- Not as spare parts - With complete cylinder head 137717
Supersession
Supersession
# 002
MPN: 12354524
STUD
from £15.48
from £15.48
This part replaces part number 12354521
# 003
MPN: 16100824
NUT
from £0.47
from £0.47
This part replaces part number 16100814 - and 1 more. Click to view details
# 004
MPN: 11194079
WASHER
Supersession
Supersession
# 005
MPN: 13953124
STUD
from £5.30
from £5.30
This part replaces part number 13953121
# 006
MPN: 12601474
WASHER
from £0.54
from £0.54
This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
# 007
MPN: 12575625
NUT
Supersession
Supersession
This part replaces part number 121660 - and 2 more. Click to view details
# 008
MPN: 13970321
STUD
Supersession
Supersession
# 009
MPN: 12604479
WASHER
Supersession
Supersession
# 010
MPN: 16104411
NUT
from £0.47
from £0.47
# 011
MPN: 102735
STUD (INNER CAPS)
from £11.07
from £11.07
This part replaces part number 4146561
# 012
MPN: 102754
STUD (OUTER CAPS)
from £5.00
from £5.00
# 013
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210
# 014
MPN: 11197774
WASHER
from £0.50
from £0.50
This part replaces part number 11197770 - and 3 more. Click to view details
# 015
MPN: 13543421
STUD (BELT STRETCHER)
Supersession
Supersession
# 016
MPN: 101139
NUT
from £0.47
from £0.47
This part replaces part number 16104425
# 017
MPN: 12601374
WASHER
from £0.47
from £0.47
This part replaces part number 10615474 - and 6 more. Click to view details
# 018
MPN: 13543524
STUD
from £2.01
from £2.01
This part replaces part number 13543521
# 019
MPN: 114748
NUT
from £8.88
from £8.88
# 020
MPN: 10441790
BRACKET
from £0.47
from £0.47
# 021
MPN: 102725
DOWEL
from £0.59
from £0.59
# 022
MPN: 13541324
STUD FOR COVERS
from £0.94
from £0.94
This part replaces part number 13541321
# 023
MPN: 13541421
STUD ON DOWEL
Supersession
Supersession
# 024
MPN: 100044
NUT
from £0.26
from £0.26
This part replaces part number 151230 - and 1 more. Click to view details
# 025
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 026
MPN: 13541021
STUD
Supersession
Supersession
# 027
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 028
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 029
MPN: 150074
GASKET
from £5.33
from £5.33
This part replaces part number 133744
# 030
MPN: 140102
REAR COVER
from £28.52
from £28.52
# 031
MPN: 10902324
SCREW
from £0.47
from £0.47
This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
# 032
MPN: 11197774
WASHER
from £0.54
from £0.54
This part replaces part number 11197770 - and 3 more. Click to view details
# 033
MPN: 13541021
STUD
Supersession
Supersession
# 034
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 035
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 036
MPN: 13541124
STUD
from £11.72
from £11.72
This part replaces part number 13541121
# 037
MPN: 102741
NUT
from £0.47
from £0.47
This part replaces part number 12575411 - and 1 more. Click to view details
# 038
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 039
MPN: 102725
DOWEL
from £0.64
from £0.64
# 040
MPN: 10300740
WATER DRAIN PLUG
from £12.10
from £12.10
# 041
MPN: 10257060
GASKET
from £0.47
from £0.47
This part replaces part number 10253060 - and 2 more. Click to view details
# 042
MPN: 148785
LEFT CYLINDER HEAD COVER
- Not as spare parts - With complete cylinder head 137717
Supersession
Supersession
# 043
MPN: 150195
GASKET
from £54.00
from £54.00
This part replaces part number 134949 - and 1 more. Click to view details
# 043
MPN: 600014950
O'RINGS SET
# 043
MPN: FCCG014
CAM COVER GASKET SET
includes 1x 150196, 1x 150195, 1x 150075 and 1x 150074
from £72.77
from £72.77
# 044
MPN: 121116
FRONT COVER
from £65.66
from £65.66
# 045
MPN: 133628
OIL SEAL
from £29.85
from £29.85
This part replaces part number 125077 - and 1 more. Click to view details
# 046
MPN: 117036
SEALING RING
from £4.93
from £4.93
# 047
MPN: 127649
SEALING RING
from £5.33
from £5.33
# 048
MPN: 10269750
PLUG
from £0.91
from £0.91
This part replaces part number 95184
# 049
MPN: 14326150
PLUG
from £0.50
from £0.50
This part replaces part number 12326150
# 050
MPN: 11500124
STUD
from £0.70
from £0.70
This part replaces part number 11500121
# 051
MPN: 15896211
NUT
Supersession
Supersession
This part replaces part number 15896210
# 052
MPN: 12601274
WASHER
from £0.47
from £0.47
This part replaces part number 12601221 - and 5 more. Click to view details
# 053
MPN: 127635
PLUG
from £1.48
from £1.48
This part replaces part number 183447
# 054
MPN: 10269750
PLUG
from £0.90
from £0.90
This part replaces part number 95184
# 055
MPN: 13525470
HELI COIL
from £0.50
from £0.50
This part replaces part number 107333
# 056
MPN: 145600
LEFT INTAKE CAMSHAFT, COMPLETE
from £759.25
from £759.25
# 057
MPN: 141425
LEFT EXHAUST CAMSHAFT, COMPLETE
from £1,288.48
from £1,288.48
# 058
MPN: 114499
FRONT CAP
- Not as spare parts - With complete cylinder head 137717
# 059
MPN: 114497
REAR CAP
- Not as spare parts - With complete cylinder head 137717
# 060
MPN: 126811
INTERMEDIATE CAP
- Not as spare parts - With complete cylinder head 137717
# 061
MPN: 146928
REAR COVER
from £231.00
from £231.00
# 063
MPN: 150194
GASKET
from £16.34
from £16.34
This part replaces part number 134954 - and 1 more. Click to view details
