ferrari 512 m timing system - valves parts diagram

007 - timing system - valves

Ferrari 512 M Timing System - Valves Parts Diagram

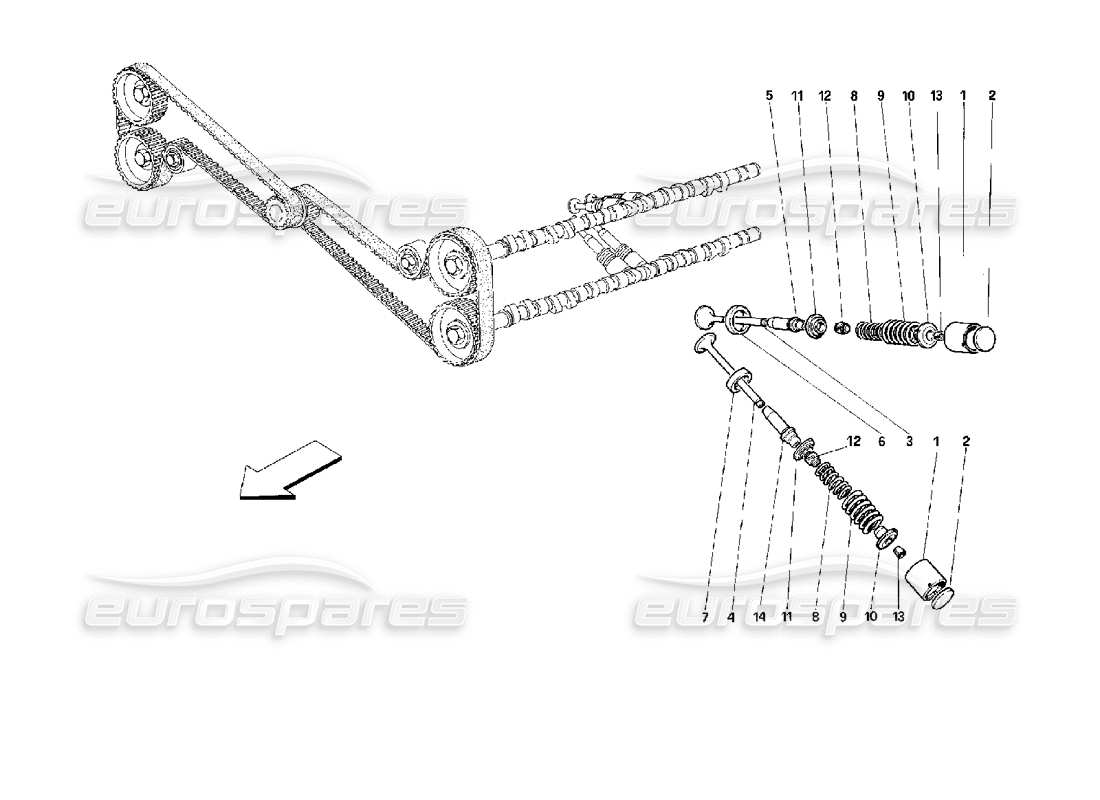

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                              #
                              Part number
                              Description
                              Price
                              # 001
                              MPN: 149863
                              TAPPET FOR VALVE CONTROL
                              from £11.86
                              from £11.86
                              # 002
                              MPN: 117569
                              SHIM FOR VALVE ADJUSTMENT THICKNESS 3,25 MM.
                              from £10.92
                              from £10.92
                              # 002
                              MPN: 117570
                              DITTO, THICKNESS 3.30 MM
                              from £10.92
                              from £10.92
                              # 002
                              MPN: 117571
                              DITTO, THICKNESS 3.35 MM
                              from £10.92
                              from £10.92
                              # 002
                              MPN: 117572
                              DITTO, THICKNESS 3.40 MM
                              from £10.92
                              from £10.92
                              # 002
                              MPN: 117573
                              DITTO, THICKNESS 3.45 MM
                              from £10.92
                              from £10.92
                              # 002
                              MPN: 117574
                              DITTO, THICKNESS 3.50 MM
                              from £10.92
                              from £10.92
                              # 002
                              MPN: 117575
                              DITTO, THICKNESS 3.55 MM
                              from £22.76
                              from £22.76
                              # 002
                              MPN: 117576
                              DITTO, THICKNESS 3.60 MM
                              from £27.30
                              from £27.30
                              # 002
                              MPN: 117577
                              DITTO, THICKNESS 3.65 MM
                              from £9.18
                              from £9.18
                              # 002
                              MPN: 117578
                              DITTO, THICKNESS 3.70 MM
                              from £27.30
                              from £27.30
                              # 002
                              MPN: 117579
                              SHIM 3,75 MM.
                              from £9.70
                              from £9.70
                              # 002
                              MPN: 117580
                              DITTO, THICKNESS 3.80 MM
                              from £27.30
                              from £27.30
                              # 002
                              MPN: 117581
                              DITTO, THICKNESS 3.85 MM
                              from £27.30
                              from £27.30
                              # 002
                              MPN: 117582
                              DITTO, THICKNESS 3.90 MM
                              from £27.30
                              from £27.30
                              # 002
                              MPN: 117583
                              DITTO, THICKNESS 3.95 MM
                              from £22.76
                              from £22.76
                              # 002
                              MPN: 117584
                              DITTO, THICKNESS 4.00 MM
                              from £27.30
                              from £27.30
                              # 002
                              MPN: 117585
                              DITTO, THICKNESS 4.05 MM
                              from £22.76
                              from £22.76
                              # 002
                              MPN: 117586
                              DITTO, THICKNESS 4.10 MM
                              from £15.02
                              from £15.02
                              # 002
                              MPN: 117587
                              DITTO, THICKNESS 4.15 MM
                              from £15.02
                              from £15.02
                              # 002
                              MPN: 117588
                              DITTO, THICKNESS 4.20 MM
                              from £20.79
                              from £20.79
                              # 002
                              MPN: 117589
                              DITTO, THICKNESS 4.25 MM
                              from £20.79
                              from £20.79
                              # 002
                              MPN: 117590
                              DITTO, THICKNESS 4.30 MM
                              from £11.43
                              from £11.43
                              # 002
                              MPN: 117591
                              DITTO, THICKNESS 4.35 MM
                              from £6.01
                              from £6.01
                              # 002
                              MPN: 117592
                              DITTO, THICKNESS 4.40 MM
                              from £6.01
                              from £6.01
                              # 002
                              MPN: 117593
                              DITTO, THICKNESS 4.45 MM
                              from £6.01
                              from £6.01
                              # 002
                              MPN: 117594
                              DITTO, THICKNESS 4.50 MM
                              from £10.92
                              from £10.92
                              # 002
                              MPN: 117595
                              DITTO, THICKNESS 4.55 MM
                              from £10.92
                              from £10.92
                              # 002
                              MPN: 117596
                              DITTO, THICKNESS 4.60 MM
                              from £10.92
                              from £10.92
                              # 002
                              MPN: 153731
                              DITTO, THICKNESS 3.725 MM
                              from £7.62
                              from £7.62
                              # 002
                              MPN: 153732
                              DITTO, THICKNESS 3.775 MM
                              from £7.62
                              from £7.62
                              # 002
                              MPN: 153733
                              DITTO, THICKNESS 3.825 MM
                              from £7.62
                              from £7.62
                              # 002
                              MPN: 153734
                              DITTO, THICKNESS 3.875 MM
                              from £7.62
                              from £7.62
                              # 002
                              MPN: 153735
                              DITTO, THICKNESS 3.925 MM
                              from £7.62
                              from £7.62
                              # 002
                              MPN: 153736
                              DITTO, THICKNESS 3.975 MM
                              from £22.76
                              from £22.76
                              # 002
                              MPN: 153737
                              DITTO, THICKNESS 4.025 MM
                              from £21.90
                              from £21.90
                              # 002
                              MPN: 153738
                              DITTO, THICKNESS 4.075 MM
                              from £21.90
                              from £21.90
                              # 002
                              MPN: 153739
                              DITTO, THICKNESS 4.125 MM
                              from £16.79
                              from £16.79
                              # 002
                              MPN: 153740
                              DITTO, THICKNESS 4.175 MM
                              from £22.76
                              from £22.76
                              # 002
                              MPN: 153741
                              DITTO, THICKNESS 4.225 MM
                              from £7.62
                              from £7.62
                              # 002
                              MPN: 153742
                              DITTO, THICKNESS 4.275 MM
                              from £7.62
                              from £7.62
                              # 003
                              MPN: 139855
                              INTAKE VALVE
                              from £65.22
                              from £65.22
                              # 004
                              MPN: 149217
                              EXHAUST VALVE
                              from £50.68
                              from £50.68
                              # 005
                              MPN: 117565
                              INTAKE VALVE GUIDE
                              from £66.27
                              from £66.27
                              # 005
                              MPN: 117566
                              INTAKE VALVE GUIDE OVERSIZED BY 0.2 MM.
                              from £69.75
                              from £69.75
                              # 006
                              MPN: 148313
                              INTAKE VALVE SEAT
                              from £8.34
                              from £8.34
                              # 007
                              MPN: 148312
                              EXHAUST VALVE SEAT
                              from £10.86
                              from £10.86
                              # 008
                              MPN: 156648
                              VALVE RETURN INNER SPRING
                              from £34.75
                              from £34.75
                              # 009
                              MPN: 160049
                              VALVE RETURN OUTER SPRING
                              from £34.75
                              from £34.75
                              # 010
                              MPN: 117567
                              SPRING RETAINING UPPER CUP
                              from £21.89
                              from £21.89
                              # 011
                              MPN: 117568
                              SPRING RETAINING LOWER CUP
                              from £5.37
                              from £5.37
                              # 012
                              MPN: 141565
                              OIL SEAL FOR VALVES GUIDE
                              Supersession
                              Supersession
                              This part replaces part number 119051 - and 1 more. Click to view details
                              # 013
                              MPN: 117283
                              COTTER FOR VALVE SPRING CUP
                              from £1.25
                              from £1.25
                              # 014
                              MPN: 117565
                              EXHAUST VALVE GUIDE
                              from £66.27
                              from £66.27
                              # 014
                              MPN: 117566
                              EXHAUST VALVE GUIDE OVERSIZED BY 0.2 MM.
                              from £69.75
                              from £69.75
