ferrari 512 m exhaust system -not for usa, cdn, aus, ch- parts diagram

018 - Exhaust System -Not for USA, CDN, AUS, CH-

Ferrari 512 M Exhaust System -Not for USA, CDN, AUS, CH- Parts Diagram

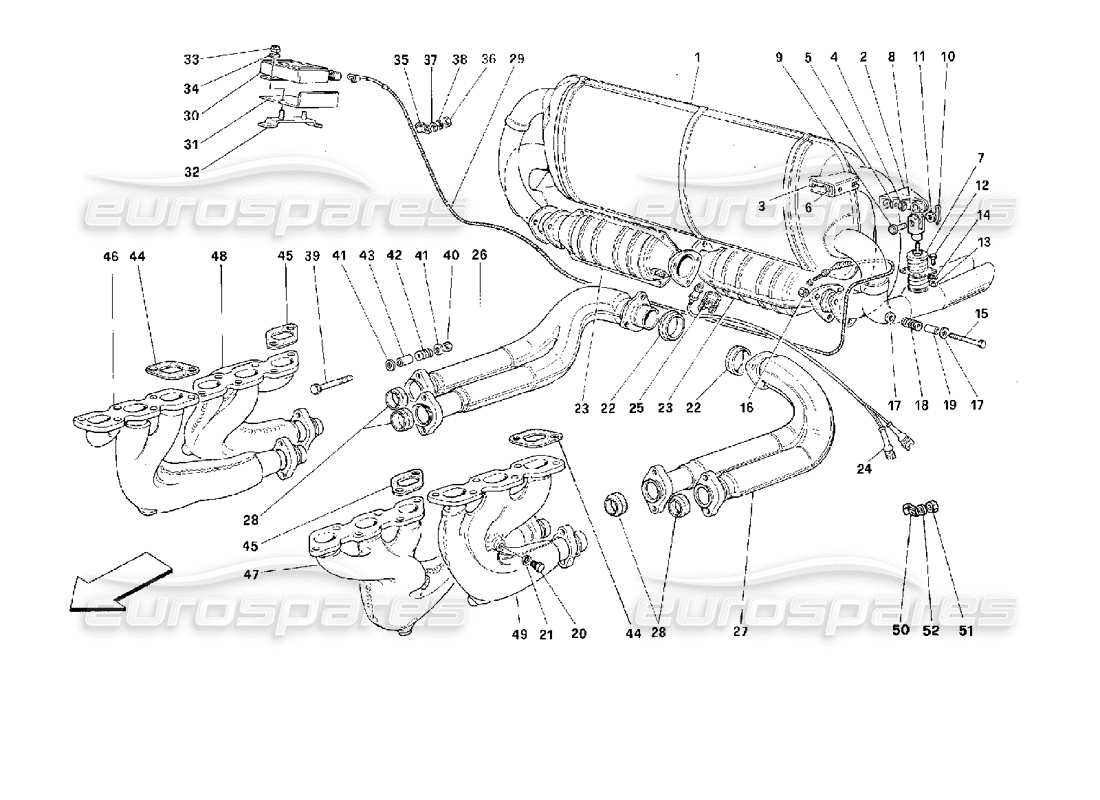

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                #
                                                                                                Part number
                                                                                                Description
                                                                                                Price
                                                                                                # 001
                                                                                                MPN: 161819
                                                                                                EXHAUST SILENCER
                                                                                                - Not for CH
                                                                                                from £2,760.26
                                                                                                from £2,760.26
                                                                                                # 002
                                                                                                MPN: 122689
                                                                                                BRACKET
                                                                                                from £160.79
                                                                                                from £160.79
                                                                                                # 003
                                                                                                MPN: 16043534
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 16043521 - and 1 more. Click to view details
                                                                                                # 004
                                                                                                MPN: 114748
                                                                                                NUT
                                                                                                from £9.07
                                                                                                from £9.07
                                                                                                # 005
                                                                                                MPN: 10519624
                                                                                                WASHER
                                                                                                from £0.53
                                                                                                from £0.53
                                                                                                This part replaces part number 10519601 - and 3 more. Click to view details
                                                                                                # 006
                                                                                                MPN: 12646724
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 12601571 - and 2 more. Click to view details
                                                                                                # 007
                                                                                                MPN: 106052
                                                                                                EXHAUST MOUNT
                                                                                                from £57.78
                                                                                                from £57.78
                                                                                                # 008
                                                                                                MPN: 108257
                                                                                                FORK
                                                                                                from £100.31
                                                                                                from £100.31
                                                                                                # 009
                                                                                                MPN: 10033414
                                                                                                PIN
                                                                                                from £8.63
                                                                                                from £8.63
                                                                                                This part replaces part number 10033411 which we have in stock
                                                                                                # 010
                                                                                                MPN: 10796440
                                                                                                COTTER PIN
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 264555
                                                                                                # 011
                                                                                                MPN: 103167
                                                                                                WASHER
                                                                                                from £1.98
                                                                                                from £1.98
                                                                                                # 012
                                                                                                MPN: 10977624
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 10977611 - and 1 more. Click to view details
                                                                                                # 013
                                                                                                MPN: 15896470
                                                                                                NUT
                                                                                                (minimum order quantity = 20)
                                                                                                from £0.78
                                                                                                from £0.78
                                                                                                This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                                                # 014
                                                                                                MPN: 127493
                                                                                                WASHER
                                                                                                from £0.48
                                                                                                from £0.48
                                                                                                This part replaces part number 106849 - and 1 more. Click to view details
                                                                                                # 015
                                                                                                MPN: 15971324
                                                                                                SCREW
                                                                                                from £0.82
                                                                                                from £0.82
                                                                                                This part replaces part number 123198 - and 1 more. Click to view details
                                                                                                # 016
                                                                                                MPN: 121677
                                                                                                NUT
                                                                                                from £3.82
                                                                                                from £3.82
                                                                                                # 017
                                                                                                MPN: 121678
                                                                                                WASHER
                                                                                                from £6.73
                                                                                                from £6.73
                                                                                                # 018
                                                                                                MPN: 121674
                                                                                                SPRING
                                                                                                from £12.27
                                                                                                from £12.27
                                                                                                # 019
                                                                                                MPN: 121675
                                                                                                SPACER
                                                                                                from £23.19
                                                                                                from £23.19
                                                                                                # 020
                                                                                                MPN: 10298460
                                                                                                GASKET
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 93353
                                                                                                # 021
                                                                                                MPN: 110860
                                                                                                PLUG
                                                                                                from £7.65
                                                                                                from £7.65
                                                                                                This part replaces part number 11903240
                                                                                                # 022
                                                                                                MPN: 154985
                                                                                                GASKET
                                                                                                from £11.09
                                                                                                from £11.09
                                                                                                This part replaces part number 121426 - and 1 more. Click to view details
                                                                                                # 023
                                                                                                MPN: 149304
                                                                                                CATALYTIC CONVERTER
                                                                                                - Not for SA and ZA
                                                                                                from £1,516.52
                                                                                                from £1,516.52
                                                                                                # 023
                                                                                                MPN: 151509
                                                                                                PRE MUFFLER
                                                                                                - Valid for SA and ZA
                                                                                                from £284.98
                                                                                                from £284.98
                                                                                                # 024
                                                                                                MPN: 158231

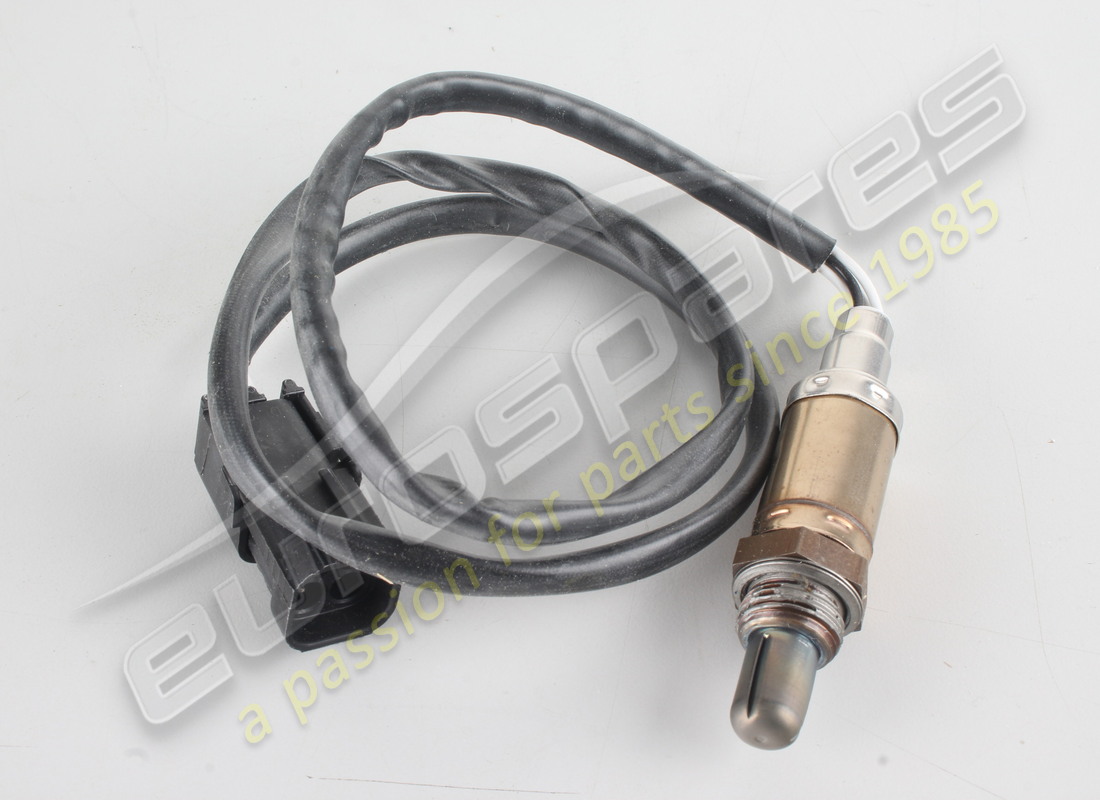

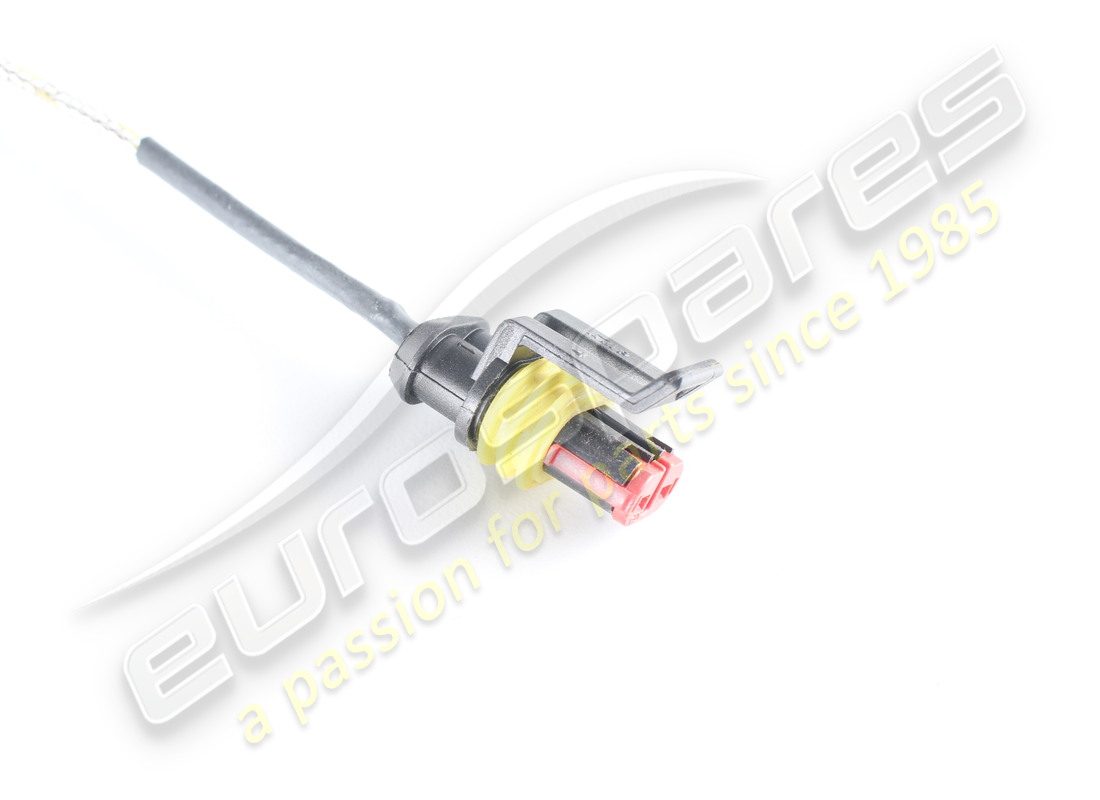

                                                                                                OXIGEN SENSOR
                                                                                                - Valid for SA and ZA
                                                                                                from £415.13
                                                                                                from £415.13
                                                                                                This part replaces part number 162206
                                                                                                # 024
                                                                                                MPN: 161853
                                                                                                OXIGEN SENSOR
                                                                                                - Not for SA and ZA
                                                                                                from £1,030.34
                                                                                                from £1,030.34
                                                                                                # 024
                                                                                                MPN: 162206
                                                                                                OXIGEN SENSOR
                                                                                                - Valid for SA and ZA - Not as spare part now
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 025
                                                                                                MPN: 121833
                                                                                                PROTECTION
                                                                                                - Valid for SA and ZA
                                                                                                from £39.97
                                                                                                from £39.97
                                                                                                # 026
                                                                                                MPN: 148140
                                                                                                RH EXTENSION
                                                                                                from £904.05
                                                                                                from £904.05
                                                                                                # 027
                                                                                                MPN: 148141
                                                                                                LH EXTENSION
                                                                                                from £2,127.02
                                                                                                from £2,127.02
                                                                                                # 028
                                                                                                MPN: 154981
                                                                                                GASKET
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 125917 - and 1 more. Click to view details
                                                                                                # 029
                                                                                                MPN: 151166
                                                                                                THERMOCOUPLE
                                                                                                from £320.37
                                                                                                from £320.37
                                                                                                # 030
                                                                                                MPN: 154470
                                                                                                CENTRAL UNIT
                                                                                                from £728.54
                                                                                                from £728.54
                                                                                                This part replaces part number 148449
                                                                                                # 031
                                                                                                MPN: 150043
                                                                                                PLATE
                                                                                                from £37.36
                                                                                                from £37.36
                                                                                                # 032
                                                                                                MPN: 150044
                                                                                                PLATE
                                                                                                from £5.09
                                                                                                from £5.09
                                                                                                # 033
                                                                                                MPN: 12574115
                                                                                                NUT
                                                                                                from £1.08
                                                                                                from £1.08
                                                                                                # 034
                                                                                                MPN: 10519377
                                                                                                WASHER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 10519305 - and 1 more. Click to view details
                                                                                                # 035
                                                                                                MPN: 10420301
                                                                                                BRACKET
                                                                                                from £2.46
                                                                                                from £2.46
                                                                                                # 036
                                                                                                MPN: 15896211
                                                                                                NUT
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 15896210
                                                                                                # 037
                                                                                                MPN: 14496401
                                                                                                WASHER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                # 038
                                                                                                MPN: 106850
                                                                                                WASHER
                                                                                                Supersession
                                                                                                Supersession
                                                                                                This part replaces part number 10516473 - and 1 more. Click to view details
                                                                                                # 039
                                                                                                MPN: 16045024
                                                                                                SCREW
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 125924 - and 1 more. Click to view details
                                                                                                # 040
                                                                                                MPN: 114748
                                                                                                NUT
                                                                                                from £8.97
                                                                                                from £8.97
                                                                                                # 041
                                                                                                MPN: 128010
                                                                                                WASHER
                                                                                                from £2.16
                                                                                                from £2.16
                                                                                                # 042
                                                                                                MPN: 111743
                                                                                                SPRING
                                                                                                from £6.91
                                                                                                from £6.91
                                                                                                # 043
                                                                                                MPN: 114749
                                                                                                SPACER
                                                                                                from £1.24
                                                                                                from £1.24
                                                                                                # 044
                                                                                                MPN: 138076
                                                                                                GASKET
                                                                                                from £6.24
                                                                                                from £6.24
                                                                                                This part replaces part number 133908
                                                                                                # 045
                                                                                                MPN: 146658
                                                                                                GASKET
                                                                                                from £11.95
                                                                                                from £11.95
                                                                                                # 046
                                                                                                MPN: 145519
                                                                                                RH FRONT EXHAUST MANIFOLD
                                                                                                from £498.48
                                                                                                from £498.48
                                                                                                # 047
                                                                                                MPN: 145520
                                                                                                LH FRONT EXHAUST MANIFOLD
                                                                                                from £488.15
                                                                                                from £488.15
                                                                                                # 048
                                                                                                MPN: 145521
                                                                                                RH REAR EXHAUST MANIFOLD
                                                                                                from £581.05
                                                                                                from £581.05
                                                                                                # 049
                                                                                                MPN: 145522
                                                                                                LH REAR EXHAUST MANIFOLD
                                                                                                from £1,045.84
                                                                                                from £1,045.84
                                                                                                # 050
                                                                                                MPN: 10440990
                                                                                                BRACKET
                                                                                                from £0.77
                                                                                                from £0.77
                                                                                                # 051
                                                                                                MPN: 127494
                                                                                                NUT
                                                                                                from £0.52
                                                                                                from £0.52
                                                                                                This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                # 052
                                                                                                MPN: 12643724
                                                                                                WASHER
                                                                                                from £0.47
                                                                                                from £0.47
                                                                                                This part replaces part number 109684 - and 4 more. Click to view details
