ferrari 512 m cooling system parts diagram

024 - Cooling System

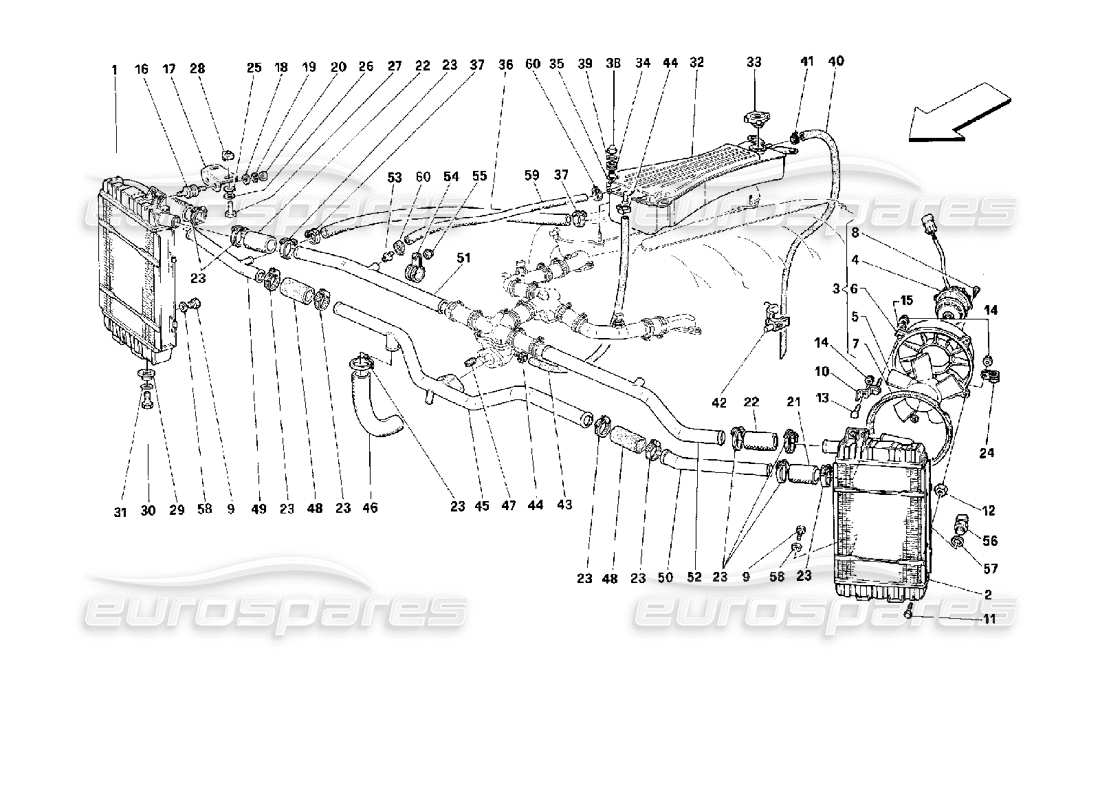

Ferrari 512 M Cooling System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                                    #
                                                                                                                    Part number
                                                                                                                    Description
                                                                                                                    Price
                                                                                                                    # 001
                                                                                                                    MPN: 150212
                                                                                                                    RH RADIATOR
                                                                                                                    from £3,225.87
                                                                                                                    from £3,225.87
                                                                                                                    This part replaces part number 148775
                                                                                                                    # 002
                                                                                                                    MPN: 150213
                                                                                                                    LH RADIATOR
                                                                                                                    from £6,540.90
                                                                                                                    from £6,540.90
                                                                                                                    This part replaces part number 148776
                                                                                                                    # 003
                                                                                                                    MPN: 147710
                                                                                                                    ELECTRO FAN SET COMPLETE
                                                                                                                    from £419.54
                                                                                                                    from £419.54
                                                                                                                    # 004
                                                                                                                    MPN: 148620
                                                                                                                    ELECTRIC FAN MOTOR
                                                                                                                    from £125.66
                                                                                                                    from £125.66
                                                                                                                    # 005
                                                                                                                    MPN: 137299
                                                                                                                    FAN
                                                                                                                    from £91.34
                                                                                                                    from £91.34
                                                                                                                    # 006
                                                                                                                    MPN: 140618
                                                                                                                    CONVEYOR
                                                                                                                    from £142.37
                                                                                                                    from £142.37
                                                                                                                    # 007
                                                                                                                    MPN: 126883
                                                                                                                    GASKET
                                                                                                                    from £10.83
                                                                                                                    from £10.83
                                                                                                                    # 008
                                                                                                                    MPN: 123298
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 009
                                                                                                                    MPN: 140149
                                                                                                                    PLUG
                                                                                                                    from £10.53
                                                                                                                    from £10.53
                                                                                                                    # 010
                                                                                                                    MPN: 147708
                                                                                                                    BRACKET
                                                                                                                    from £1.69
                                                                                                                    from £1.69
                                                                                                                    # 011
                                                                                                                    MPN: 10902724
                                                                                                                    SCREW
                                                                                                                    from £0.71
                                                                                                                    from £0.71
                                                                                                                    This part replaces part number 10902721 which we have in stock
                                                                                                                    # 012
                                                                                                                    MPN: 148059
                                                                                                                    NUT
                                                                                                                    from £8.45
                                                                                                                    from £8.45
                                                                                                                    # 013
                                                                                                                    MPN: 11944111
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 014
                                                                                                                    MPN: 14058411
                                                                                                                    NUT
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 015
                                                                                                                    MPN: 12646601
                                                                                                                    WASHER
                                                                                                                    from £0.71
                                                                                                                    from £0.71
                                                                                                                    # 016
                                                                                                                    MPN: 102947
                                                                                                                    BUFFER
                                                                                                                    from £6.17
                                                                                                                    from £6.17
                                                                                                                    This part replaces part number 102007 - and 14 more. Click to view details
                                                                                                                    # 017
                                                                                                                    MPN: 148777
                                                                                                                    BRACKET
                                                                                                                    from £7.68
                                                                                                                    from £7.68
                                                                                                                    # 018
                                                                                                                    MPN: 12643724
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                    # 019
                                                                                                                    MPN: 127494
                                                                                                                    WASHER
                                                                                                                    (minimum order quantity = 20)
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                    # 020
                                                                                                                    MPN: 15896211
                                                                                                                    NUT
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    This part replaces part number 15896210
                                                                                                                    # 021
                                                                                                                    MPN: 149045
                                                                                                                    RUBBER PIPE
                                                                                                                    from £110.98
                                                                                                                    from £110.98
                                                                                                                    # 022
                                                                                                                    MPN: 148649
                                                                                                                    RUBBER PIPE
                                                                                                                    from £17.08
                                                                                                                    from £17.08
                                                                                                                    # 023
                                                                                                                    MPN: 296782
                                                                                                                    CLAMP
                                                                                                                    from £4.99
                                                                                                                    from £4.99
                                                                                                                    This part replaces part number 12174090
                                                                                                                    # 024
                                                                                                                    MPN: 10441990
                                                                                                                    BRACKET
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    # 025
                                                                                                                    MPN: 12643724
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                    # 026
                                                                                                                    MPN: 127494
                                                                                                                    WASHER
                                                                                                                    (minimum order quantity = 20)
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                                    # 027
                                                                                                                    MPN: 10902324
                                                                                                                    SCREW
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 10902311 which we have in stock - and 3 more. Click to view details
                                                                                                                    # 028
                                                                                                                    MPN: 60758600
                                                                                                                    CRATE NUT
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    # 029
                                                                                                                    MPN: 137624
                                                                                                                    VIBRATION DAMPING BUFFER
                                                                                                                    from £23.05
                                                                                                                    from £23.05
                                                                                                                    # 030
                                                                                                                    MPN: 152315
                                                                                                                    SCREW
                                                                                                                    from £4.60
                                                                                                                    from £4.60
                                                                                                                    This part replaces part number 150214
                                                                                                                    # 031
                                                                                                                    MPN: 147882
                                                                                                                    WASHER
                                                                                                                    from £5.91
                                                                                                                    from £5.91
                                                                                                                    # 032
                                                                                                                    MPN: 155027
                                                                                                                    TANK FOR RADIATOR
                                                                                                                    from £896.59
                                                                                                                    from £896.59
                                                                                                                    # 033
                                                                                                                    MPN: 137644
                                                                                                                    RADIATOR PRESSURE CAP
                                                                                                                    Square cap 1.1 Bar
                                                                                                                    from £10.47
                                                                                                                    from £10.47
                                                                                                                    This part replaces part number 101499
                                                                                                                    # 033
                                                                                                                    MPN: 137644/A
                                                                                                                    OVAL CAP 1.1 BAR
                                                                                                                    from £19.63
                                                                                                                    from £19.63
                                                                                                                    This part replaces part number 137644
                                                                                                                    # 033
                                                                                                                    MPN: 137664/A
                                                                                                                    RADIATOR PRESSURE CAP
                                                                                                                    Round cap 1.1 Bar
                                                                                                                    # 034
                                                                                                                    MPN: 103549
                                                                                                                    CABLE GROMMET
                                                                                                                    from £0.70
                                                                                                                    from £0.70
                                                                                                                    # 035
                                                                                                                    MPN: 149707
                                                                                                                    SPACER
                                                                                                                    from £0.63
                                                                                                                    from £0.63
                                                                                                                    # 036
                                                                                                                    MPN: 151348
                                                                                                                    PIPE FROM TANK TO RETURN PIPE
                                                                                                                    from £227.20
                                                                                                                    from £227.20
                                                                                                                    This part replaces part number 150064
                                                                                                                    # 037
                                                                                                                    MPN: 13000490
                                                                                                                    CLAMP
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 10169090 - and 3 more. Click to view details
                                                                                                                    # 038
                                                                                                                    MPN: 101239
                                                                                                                    NUT
                                                                                                                    from £1.60
                                                                                                                    from £1.60
                                                                                                                    This part replaces part number 92310
                                                                                                                    # 039
                                                                                                                    MPN: 12643724
                                                                                                                    WASHER
                                                                                                                    from £0.47
                                                                                                                    from £0.47
                                                                                                                    This part replaces part number 109684 - and 4 more. Click to view details
                                                                                                                    # 040
                                                                                                                    MPN: 162347
                                                                                                                    PIPE
                                                                                                                    from £7.42
                                                                                                                    from £7.42
                                                                                                                    # 041
                                                                                                                    MPN: 13423379
                                                                                                                    ELASTIC COLLAR
                                                                                                                    from £0.71
                                                                                                                    from £0.71
                                                                                                                    # 042
                                                                                                                    MPN: 157385
                                                                                                                    SPRING
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    # 043
                                                                                                                    MPN: 122219
                                                                                                                    PIPE FROM TANK TO VALVE BODY
                                                                                                                    from £19.82
                                                                                                                    from £19.82
                                                                                                                    This part replaces part number 113351 - and 1 more. Click to view details
                                                                                                                    # 044
                                                                                                                    MPN: 13000190
                                                                                                                    SCREW COLLAR
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 12178990 - and 1 more. Click to view details
                                                                                                                    # 045
                                                                                                                    MPN: 148647
                                                                                                                    PIPE ON THERMOSTAT BODY
                                                                                                                    from £97.07
                                                                                                                    from £97.07
                                                                                                                    # 046
                                                                                                                    MPN: 148648
                                                                                                                    RUBBER PIPE
                                                                                                                    from £100.73
                                                                                                                    from £100.73
                                                                                                                    # 047
                                                                                                                    MPN: 13525470
                                                                                                                    INSERT
                                                                                                                    from £0.51
                                                                                                                    from £0.51
                                                                                                                    This part replaces part number 107333
                                                                                                                    # 048
                                                                                                                    MPN: 148649
                                                                                                                    RUBBER PIPE
                                                                                                                    from £17.08
                                                                                                                    from £17.08
                                                                                                                    # 049
                                                                                                                    MPN: 148780
                                                                                                                    RETURN PIPE FROM RH RADIATOR
                                                                                                                    from £36.03
                                                                                                                    from £36.03
                                                                                                                    # 050
                                                                                                                    MPN: 148781
                                                                                                                    RETURN PIPE FROM LH RADIATOR
                                                                                                                    from £46.23
                                                                                                                    from £46.23
                                                                                                                    # 051
                                                                                                                    MPN: 148778
                                                                                                                    PIPE FROM THERMOSTAT BODY TO RH RADIATOR
                                                                                                                    from £32.96
                                                                                                                    from £32.96
                                                                                                                    # 052
                                                                                                                    MPN: 148779
                                                                                                                    PIPE FROM THERMOSTAT BODY TO LH RADIATOR
                                                                                                                    from £37.77
                                                                                                                    from £37.77
                                                                                                                    # 053
                                                                                                                    MPN: 155187
                                                                                                                    BREATHER UNION
                                                                                                                    from £5.46
                                                                                                                    from £5.46
                                                                                                                    # 054
                                                                                                                    MPN: 106195
                                                                                                                    CLIP BRACKET
                                                                                                                    from £17.08
                                                                                                                    from £17.08
                                                                                                                    # 056
                                                                                                                    MPN: 140314
                                                                                                                    TEMPERATURE SWITCH
                                                                                                                    Supersession
                                                                                                                    Supersession
                                                                                                                    # 057
                                                                                                                    MPN: 101508
                                                                                                                    GASKET
                                                                                                                    from £0.69
                                                                                                                    from £0.69
                                                                                                                    This part replaces part number 94706
                                                                                                                    # 058
                                                                                                                    MPN: 140150
                                                                                                                    GASKET
                                                                                                                    from £1.02
                                                                                                                    from £1.02
                                                                                                                    # 059
                                                                                                                    MPN: 126293
                                                                                                                    PIPE FROM TANK TO BREATHER UNION
                                                                                                                    from £85.73
                                                                                                                    from £85.73
                                                                                                                    # 060
                                                                                                                    MPN: 13000190
                                                                                                                    SCREW COLLAR
                                                                                                                    from £0.53
                                                                                                                    from £0.53
                                                                                                                    This part replaces part number 12178990 - and 1 more. Click to view details
