026 - ClutCH Controls

Ferrari 512 M Clutch Controls Parts Diagram

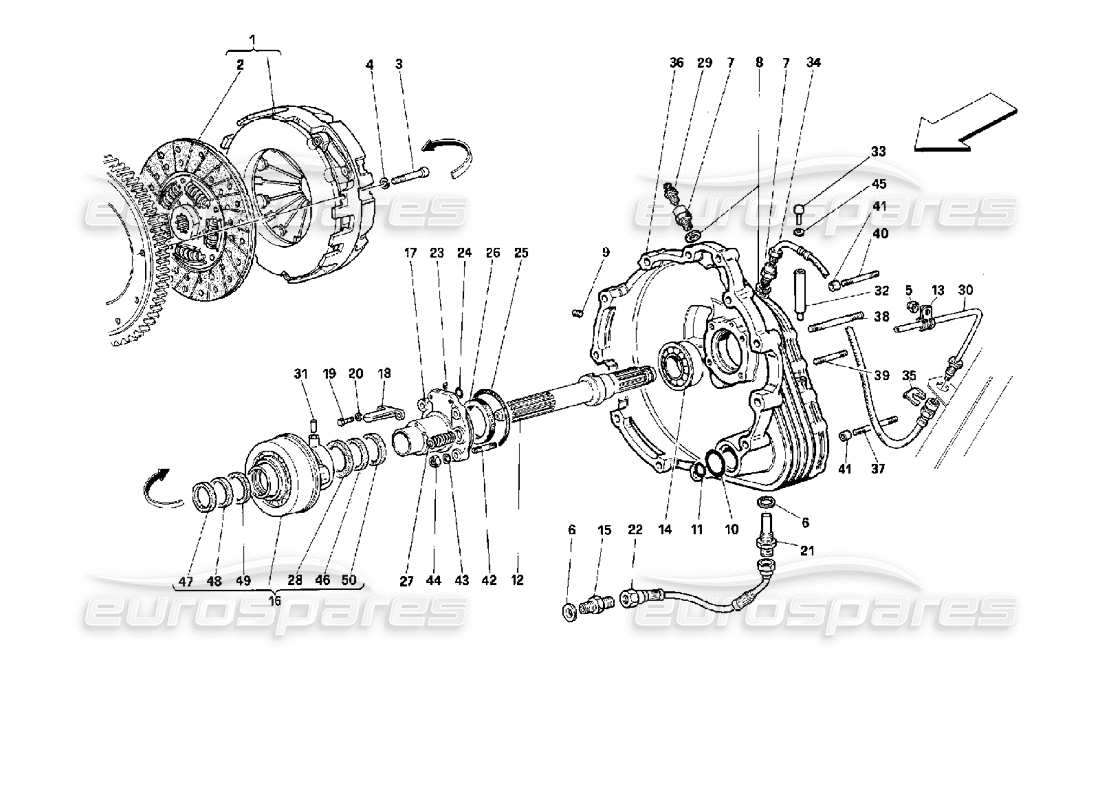

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                  #
                                                                                                  Part number
                                                                                                  Description
                                                                                                  Price
                                                                                                  # 000
                                                                                                  MPN: 153232
                                                                                                  CLUTCH HOUSING COMPLETE
                                                                                                  from £826.49
                                                                                                  from £826.49
                                                                                                  This part replaces part number 153701 - and 3 more. Click to view details
                                                                                                  # 001
                                                                                                  MPN: 157030
                                                                                                  PRESSURE PLATE
                                                                                                  - Not as spare part - With complete clutch 194775
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 001
                                                                                                  MPN: 194775
                                                                                                  COMPLETE CLUTCH
                                                                                                  from £1,546.14
                                                                                                  from £1,546.14
                                                                                                  This part replaces part number 153724 - and 1 more. Click to view details
                                                                                                  # 002
                                                                                                  MPN: 138961
                                                                                                  CLUTCH DISC
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 002
                                                                                                  MPN: 194776
                                                                                                  CLUTCH DISC
                                                                                                  from £665.19
                                                                                                  from £665.19
                                                                                                  This part replaces part number 153721
                                                                                                  # 003
                                                                                                  MPN: 14305934
                                                                                                  SCREW
                                                                                                  from £0.80
                                                                                                  from £0.80
                                                                                                  This part replaces part number 14305931
                                                                                                  # 004
                                                                                                  MPN: 10569279
                                                                                                  WASHER
                                                                                                  from £0.71
                                                                                                  from £0.71
                                                                                                  # 006
                                                                                                  MPN: 153722
                                                                                                  GASKET
                                                                                                  from £6.66
                                                                                                  from £6.66
                                                                                                  # 007
                                                                                                  MPN: 148604
                                                                                                  UNION
                                                                                                  from £60.55
                                                                                                  from £60.55
                                                                                                  This part replaces part number 126496
                                                                                                  # 008
                                                                                                  MPN: 10257060
                                                                                                  GASKET
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 10253060 - and 2 more. Click to view details
                                                                                                  # 009
                                                                                                  MPN: 14326150
                                                                                                  PLUG
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 12326150
                                                                                                  # 010
                                                                                                  MPN: 104756
                                                                                                  SEALING RING
                                                                                                  from £5.40
                                                                                                  from £5.40
                                                                                                  # 011
                                                                                                  MPN: 104747
                                                                                                  SEALING RING
                                                                                                  from £1.15
                                                                                                  from £1.15
                                                                                                  # 012
                                                                                                  MPN: 151945
                                                                                                  CLUTCH SHAFT
                                                                                                  from £439.60
                                                                                                  from £439.60
                                                                                                  # 013
                                                                                                  MPN: 10440990
                                                                                                  BRACKET
                                                                                                  from £0.77
                                                                                                  from £0.77
                                                                                                  # 014
                                                                                                  MPN: 155694
                                                                                                  BEARING
                                                                                                  from £69.05
                                                                                                  from £69.05
                                                                                                  This part replaces part number 149774
                                                                                                  # 015
                                                                                                  MPN: 153905
                                                                                                  UNION
                                                                                                  from £42.81
                                                                                                  from £42.81
                                                                                                  # 016
                                                                                                  -
                                                                                                  THRUST BEARING
                                                                                                  # 016
                                                                                                  MPN: 160852
                                                                                                  THRUST BEARING COMPLETE
                                                                                                  - Valid till stock exhaustion
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  This part replaces part number 70000836
                                                                                                  # 016
                                                                                                  MPN: 177201
                                                                                                  THRUST BEARING
                                                                                                  (without seals)
                                                                                                  from £495.00
                                                                                                  from £495.00
                                                                                                  This part replaces part number 177202
                                                                                                  # 017
                                                                                                  MPN: 154511
                                                                                                  BUSH SUPPORTING FLANGE
                                                                                                  from £1,041.98
                                                                                                  from £1,041.98
                                                                                                  # 018
                                                                                                  MPN: 151693
                                                                                                  PLATE
                                                                                                  from £43.95
                                                                                                  from £43.95
                                                                                                  # 019
                                                                                                  MPN: 10977521
                                                                                                  SCREW
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 10977501 - and 1 more. Click to view details
                                                                                                  # 020
                                                                                                  MPN: 127493
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 106849 - and 1 more. Click to view details
                                                                                                  # 021
                                                                                                  MPN: 153708
                                                                                                  UNION
                                                                                                  from £56.57
                                                                                                  from £56.57
                                                                                                  # 022
                                                                                                  MPN: 153759
                                                                                                  OIL CONNECTION PIPE
                                                                                                  from £147.53
                                                                                                  from £147.53
                                                                                                  # 023
                                                                                                  MPN: 65928500
                                                                                                  PLUG
                                                                                                  from £24.36
                                                                                                  from £24.36
                                                                                                  This part replaces part number 10267550
                                                                                                  # 024
                                                                                                  MPN: 166432
                                                                                                  O.R. GASKET
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 121813
                                                                                                  # 025
                                                                                                  MPN: 121814
                                                                                                  SEALING RING
                                                                                                  from £7.83
                                                                                                  from £7.83
                                                                                                  # 026
                                                                                                  MPN: 138680
                                                                                                  SEALING RING
                                                                                                  from £35.49
                                                                                                  from £35.49
                                                                                                  This part replaces part number 125461 - and 1 more. Click to view details
                                                                                                  # 027
                                                                                                  MPN: 155207
                                                                                                  SPRING
                                                                                                  from £2.25
                                                                                                  from £2.25
                                                                                                  # 028
                                                                                                  MPN: 154508
                                                                                                  SEALING RING
                                                                                                  from £23.07
                                                                                                  from £23.07
                                                                                                  # 029
                                                                                                  MPN: 121699
                                                                                                  BLEEDER SCREW
                                                                                                  from £11.66
                                                                                                  from £11.66
                                                                                                  # 030
                                                                                                  MPN: 147973
                                                                                                  PIPE FROM 2 WAY UNION TO FLEXIBLE
                                                                                                  from £57.54
                                                                                                  from £57.54
                                                                                                  # 031
                                                                                                  MPN: 13904970
                                                                                                  PIN
                                                                                                  from £0.80
                                                                                                  from £0.80
                                                                                                  # 032
                                                                                                  MPN: 109789
                                                                                                  EXTENSION FOR BREATHER
                                                                                                  from £31.07
                                                                                                  from £31.07
                                                                                                  # 033
                                                                                                  MPN: 13414691
                                                                                                  BREATHER
                                                                                                  from £5.56
                                                                                                  from £5.56
                                                                                                  # 034
                                                                                                  MPN: 124840
                                                                                                  FLEXIBLE HOSE FOR CLUTCH HYDRAULIC CONTROL
                                                                                                  from £1,168.53
                                                                                                  from £1,168.53
                                                                                                  # 035
                                                                                                  MPN: 110810
                                                                                                  PIPE SECURING PLATE
                                                                                                  from £1.40
                                                                                                  from £1.40
                                                                                                  This part replaces part number 994922
                                                                                                  # 036
                                                                                                  MPN: 153701
                                                                                                  CLUTCH HOUSING
                                                                                                  - Not as spare parts - With assembly 153232
                                                                                                  Supersession
                                                                                                  Supersession
                                                                                                  # 037
                                                                                                  MPN: 13544324
                                                                                                  STUD
                                                                                                  from £7.83
                                                                                                  from £7.83
                                                                                                  This part replaces part number 13544321
                                                                                                  # 038
                                                                                                  MPN: 13544524
                                                                                                  STUD
                                                                                                  from £32.73
                                                                                                  from £32.73
                                                                                                  This part replaces part number 13544521
                                                                                                  # 039
                                                                                                  MPN: 13544024
                                                                                                  STUD
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 13544021
                                                                                                  # 040
                                                                                                  MPN: 13544224
                                                                                                  STUD
                                                                                                  from £4.68
                                                                                                  from £4.68
                                                                                                  This part replaces part number 13517821 - and 1 more. Click to view details
                                                                                                  # 041
                                                                                                  MPN: 102704
                                                                                                  DOWEL
                                                                                                  from £1.59
                                                                                                  from £1.59
                                                                                                  This part replaces part number 500805
                                                                                                  # 042
                                                                                                  MPN: 13516624
                                                                                                  STUD
                                                                                                  from £0.70
                                                                                                  from £0.70
                                                                                                  This part replaces part number 13516621 which we have in stock
                                                                                                  # 043
                                                                                                  MPN: 127496
                                                                                                  WASHER
                                                                                                  from £0.53
                                                                                                  from £0.53
                                                                                                  This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                  # 044
                                                                                                  MPN: 133989
                                                                                                  NUT
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  This part replaces part number 8 D 4-UNI 207
                                                                                                  # 045
                                                                                                  MPN: 13415400
                                                                                                  OIL DEFLECTOR DISC
                                                                                                  from £0.47
                                                                                                  from £0.47
                                                                                                  # 046
                                                                                                  MPN: 154507
                                                                                                  SEALING RING
                                                                                                  from £2.01
                                                                                                  from £2.01
                                                                                                  This part replaces part number 170419 - and 1 more. Click to view details
                                                                                                  # 047
                                                                                                  MPN: 154550
                                                                                                  SEALING RING
                                                                                                  from £12.51
                                                                                                  from £12.51
                                                                                                  This part replaces part number 144550
                                                                                                  # 048
                                                                                                  MPN: 154504
                                                                                                  SEALING RING
                                                                                                  from £3.63
                                                                                                  from £3.63
                                                                                                  # 049
                                                                                                  MPN: 154505
                                                                                                  SEALING RING
                                                                                                  from £6.89
                                                                                                  from £6.89
                                                                                                  # 050
                                                                                                  MPN: 154551
                                                                                                  SEALING RING
                                                                                                  from £16.42
                                                                                                  from £16.42
