031 - GEARBOX

Ferrari 512 M Gearbox Parts Diagram

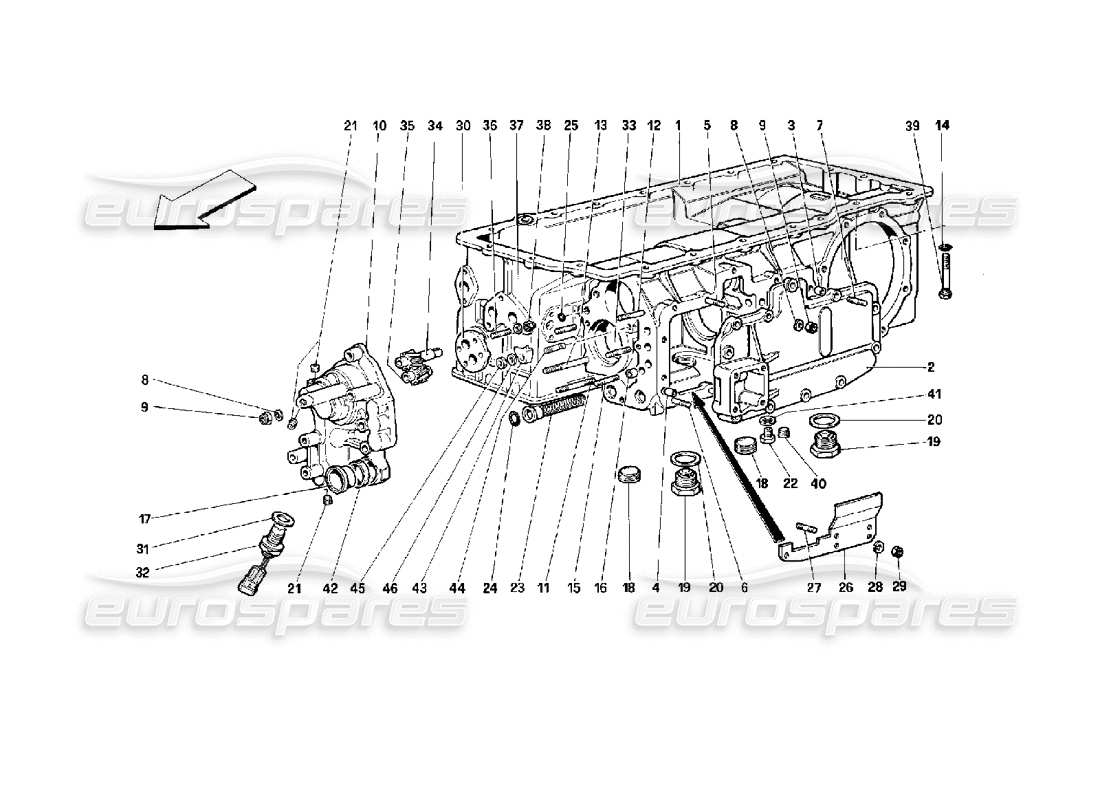

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                      #
                                                                                      Part number
                                                                                      Description
                                                                                      Price

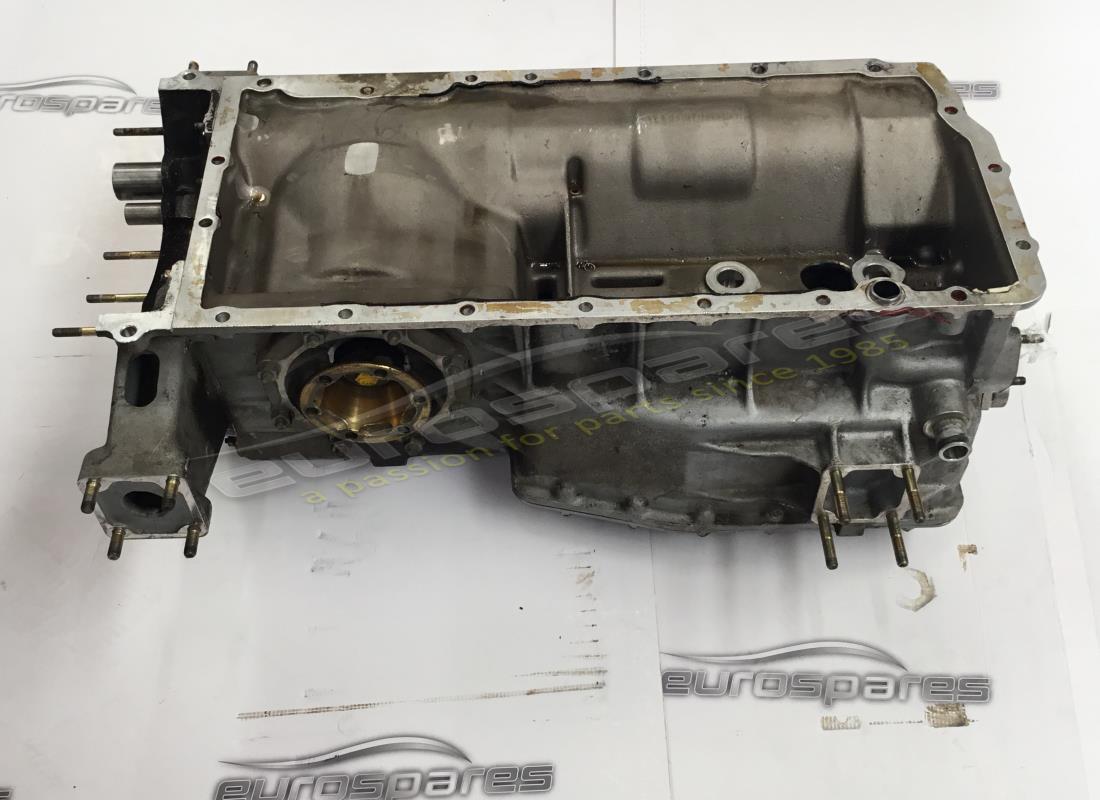

                                                                                      # 000
                                                                                      MPN: 123566
                                                                                      COMPLETE GEARBOX CASING SIDE COVER
                                                                                      from £138.31
                                                                                      from £138.31
                                                                                      This part replaces part number 107450 which we have in stock
                                                                                      # 001
                                                                                      MPN: 144572
                                                                                      GEARBOX ASSY
                                                                                      from £5,969.13
                                                                                      from £5,969.13
                                                                                      # 002
                                                                                      MPN: 107450
                                                                                      GEARBOX CASING SIDE COVER
                                                                                      - Not as spare parts - With complete side cover
                                                                                      from £56.70
                                                                                      from £56.70
                                                                                      # 003
                                                                                      MPN: 100041
                                                                                      DOWEL
                                                                                      from £3.82
                                                                                      from £3.82
                                                                                      # 004
                                                                                      MPN: 10839810
                                                                                      DOWEL
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      # 005
                                                                                      MPN: 13543524
                                                                                      LONG STUD
                                                                                      from £2.01
                                                                                      from £2.01
                                                                                      This part replaces part number 13543521
                                                                                      # 006
                                                                                      MPN: 13543324
                                                                                      SHORT STUD
                                                                                      from £0.83
                                                                                      from £0.83
                                                                                      This part replaces part number 13543321
                                                                                      # 007
                                                                                      MPN: 13543624
                                                                                      STUD ON DOWEL
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 13543621
                                                                                      # 008
                                                                                      MPN: 12601374
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 10615474 - and 6 more. Click to view details
                                                                                      # 009
                                                                                      MPN: 133989
                                                                                      NUT
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 8 D 4-UNI 207
                                                                                      # 010
                                                                                      MPN: 154399
                                                                                      FRONT COVER
                                                                                      USE 117790
                                                                                      from £188.01
                                                                                      from £188.01
                                                                                      This part replaces part number 117790 which we have in stock
                                                                                      # 011
                                                                                      MPN: 13544424
                                                                                      STUD
                                                                                      from £6.82
                                                                                      from £6.82
                                                                                      This part replaces part number 13544421
                                                                                      # 012
                                                                                      MPN: 13544224
                                                                                      STUD
                                                                                      from £4.68
                                                                                      from £4.68
                                                                                      This part replaces part number 13517821 - and 1 more. Click to view details
                                                                                      # 013
                                                                                      MPN: 13970524
                                                                                      STUD
                                                                                      from £4.00
                                                                                      from £4.00
                                                                                      This part replaces part number 13970521
                                                                                      # 014
                                                                                      MPN: 103039
                                                                                      SEAL RING
                                                                                      (minimum order quantity = 10)
                                                                                      from £1.62
                                                                                      from £1.62
                                                                                      This part replaces part number 95860041
                                                                                      # 015
                                                                                      MPN: 13543824
                                                                                      STUD ON DOWEL
                                                                                      from £1.66
                                                                                      from £1.66
                                                                                      This part replaces part number 13543821
                                                                                      # 016
                                                                                      MPN: 100041
                                                                                      DOWEL
                                                                                      from £3.82
                                                                                      from £3.82
                                                                                      # 017
                                                                                      MPN: 103188
                                                                                      BUSHING
                                                                                      from £1,253.50
                                                                                      from £1,253.50
                                                                                      # 018
                                                                                      MPN: 10270050
                                                                                      PLUG FOR HOLE
                                                                                      from £2.35
                                                                                      from £2.35
                                                                                      # 019
                                                                                      MPN: 100826
                                                                                      GEARBOX AND DIFFERENTIAL OIL DRAIN PLUG
                                                                                      from £57.02
                                                                                      from £57.02
                                                                                      This part replaces part number 522659 - and 1 more. Click to view details
                                                                                      # 020
                                                                                      MPN: 10265160
                                                                                      GASKET
                                                                                      from £0.94
                                                                                      from £0.94
                                                                                      # 021
                                                                                      MPN: 10269450
                                                                                      PLUG
                                                                                      from £16.22
                                                                                      from £16.22
                                                                                      # 022
                                                                                      MPN: 11903140
                                                                                      PLUG CLOSING HOLE FOR GEARBOX CONTROL RODS
                                                                                      from £1.83
                                                                                      from £1.83
                                                                                      # 023
                                                                                      MPN: 109726
                                                                                      OIL FILTER
                                                                                      from £137.44
                                                                                      from £137.44
                                                                                      # 024
                                                                                      MPN: 101033
                                                                                      SEAL RING
                                                                                      from £3.48
                                                                                      from £3.48
                                                                                      # 025
                                                                                      MPN: 101030
                                                                                      SEAL RING
                                                                                      from £1.31
                                                                                      from £1.31
                                                                                      # 026
                                                                                      MPN: 109781
                                                                                      OIL CONVEYOR FOR 4TH AND 5TH SPEEDS
                                                                                      from £8.09
                                                                                      from £8.09
                                                                                      # 027
                                                                                      MPN: 13540724
                                                                                      STUD
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 13540721
                                                                                      # 028
                                                                                      MPN: 127494
                                                                                      WASHER
                                                                                      (minimum order quantity = 20)
                                                                                      from £0.52
                                                                                      from £0.52
                                                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                      # 029
                                                                                      MPN: 134041
                                                                                      NUT
                                                                                      from £0.57
                                                                                      from £0.57
                                                                                      This part replaces part number 15896221
                                                                                      # 030
                                                                                      MPN: 109717
                                                                                      OIL PUMP COVER
                                                                                      - Valid till gearbox Nr. 396
                                                                                      from £157.28
                                                                                      from £157.28
                                                                                      # 030
                                                                                      MPN: 121962
                                                                                      OIL PUMP COVER
                                                                                      - Valid from gearbox Nr. 397
                                                                                      from £107.47
                                                                                      from £107.47
                                                                                      # 031
                                                                                      MPN: 10263460
                                                                                      GASKET
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 95119
                                                                                      # 032
                                                                                      MPN: 149095
                                                                                      SPEEDOMETER SENDING UNIT
                                                                                      from £348.68
                                                                                      from £348.68
                                                                                      # 033
                                                                                      MPN: 13543724
                                                                                      STUD
                                                                                      from £0.87
                                                                                      from £0.87
                                                                                      This part replaces part number 13543721
                                                                                      # 034
                                                                                      MPN: 109722
                                                                                      DRIVE GEAR
                                                                                      from £1,360.03
                                                                                      from £1,360.03
                                                                                      # 035
                                                                                      MPN: 109723
                                                                                      DRIVEN GEAR
                                                                                      from £29.75
                                                                                      from £29.75
                                                                                      # 036
                                                                                      MPN: 13540924
                                                                                      STUD
                                                                                      from £0.70
                                                                                      from £0.70
                                                                                      This part replaces part number 13540921
                                                                                      # 037
                                                                                      MPN: 12601274
                                                                                      WASHER
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                      # 038
                                                                                      MPN: 10725914
                                                                                      NUT
                                                                                      from £0.47
                                                                                      from £0.47
                                                                                      This part replaces part number 10725911 - and 1 more. Click to view details
                                                                                      # 039
                                                                                      MPN: 109997
                                                                                      SCREW SECURING GEARBOX CASING TO CRANKCASE
                                                                                      from £62.16
                                                                                      from £62.16
                                                                                      # 040
                                                                                      MPN: 14326050
                                                                                      PLUG CLOSING ROLLERS THROUG HOLE
                                                                                      from £1.00
                                                                                      from £1.00
                                                                                      # 041
                                                                                      MPN: 10260160
                                                                                      GASKET
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 10260170
                                                                                      # 042
                                                                                      MPN: 146306
                                                                                      GASKET
                                                                                      from £1.42
                                                                                      from £1.42
                                                                                      # 043
                                                                                      MPN: 153870
                                                                                      PLATE
                                                                                      from £24.47
                                                                                      from £24.47
                                                                                      # 044
                                                                                      MPN: 13543324
                                                                                      STUD
                                                                                      from £0.83
                                                                                      from £0.83
                                                                                      This part replaces part number 13543321
                                                                                      # 045
                                                                                      MPN: 16100824
                                                                                      NUT
                                                                                      from £0.53
                                                                                      from £0.53
                                                                                      This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                      # 046
                                                                                      MPN: 127496
                                                                                      WASHER
                                                                                      from £0.54
                                                                                      from £0.54
                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
