ferrari 512 m braking system parts diagram

038 - Braking system

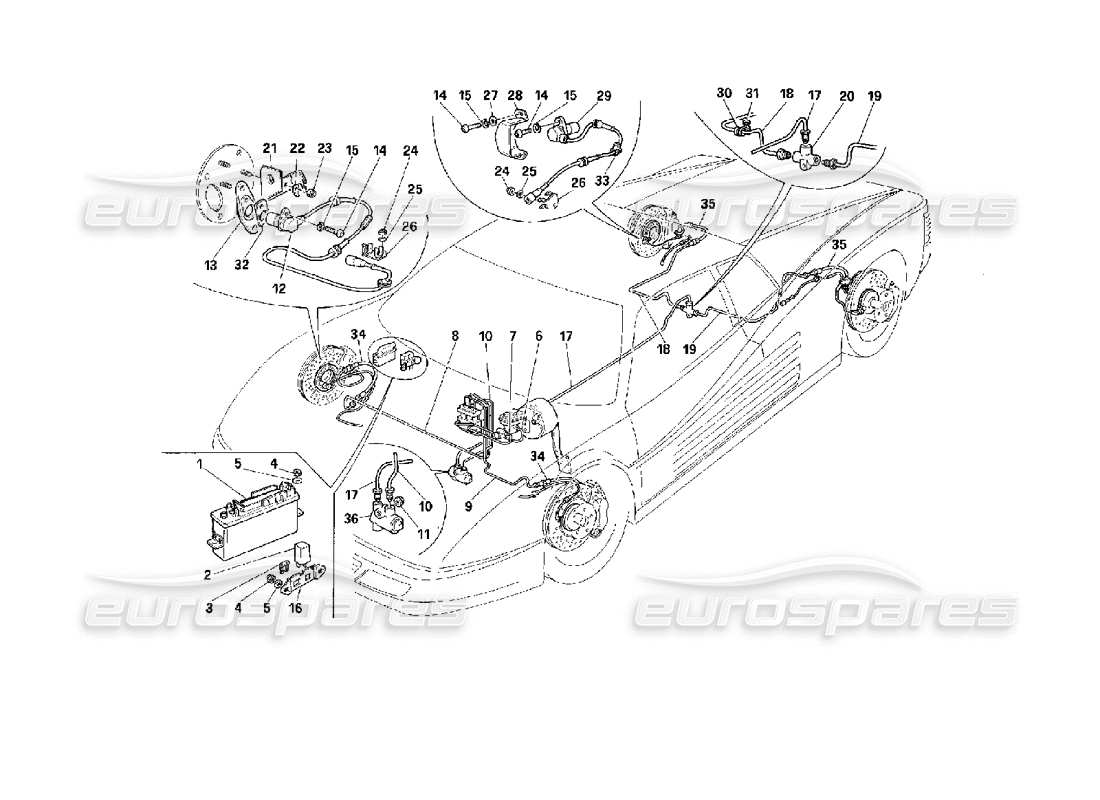

Ferrari 512 M Braking System Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 149054
                                                          ELECTRONIC CONTROL UNIT
                                                          from £2,775.71
                                                          from £2,775.71
                                                          # 002
                                                          MPN: 149053
                                                          PROTECTION RELAY
                                                          from £115.15
                                                          from £115.15
                                                          # 003
                                                          MPN: 125241
                                                          VALVE
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 11054990 - and 1 more. Click to view details
                                                          # 004
                                                          MPN: 102948
                                                          NUT
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 12574211 - and 3 more. Click to view details
                                                          # 005
                                                          MPN: 10519424
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 10519401 - and 3 more. Click to view details
                                                          # 006
                                                          MPN: 147966
                                                          PIPE FROM PUMP TO FRONT CIRCUIT CONTROL UNIT
                                                          - Not for GD
                                                          from £105.10
                                                          from £105.10
                                                          # 006
                                                          MPN: 150359
                                                          PIPE FROM PUMP TO FRONT CIRCUIT CONTROL UNIT
                                                          - Valid for GD
                                                          from £12.25
                                                          from £12.25
                                                          # 007
                                                          MPN: 147968
                                                          PIPE FROM PUMP TO REAR CIRCUIT CONTROL UNIT
                                                          - Not for GD
                                                          from £105.10
                                                          from £105.10
                                                          # 007
                                                          MPN: 150363
                                                          PIPE FROM PUMP TO REAR CIRCUIT CONTROL UNIT
                                                          - Valid for GD
                                                          from £12.49
                                                          from £12.49
                                                          # 008
                                                          MPN: 155923
                                                          BRAKE PIPE FROM CONTROL UNIT TO RH FRONT FLEXIBLE CABLE
                                                          - Not for GD
                                                          from £13.49
                                                          from £13.49
                                                          # 008
                                                          MPN: 155926
                                                          BRAKE PIPE FROM CONTROL UNIT TO RH FRONT FLEXIBLE CABLE
                                                          - Valid for GD
                                                          from £11.34
                                                          from £11.34
                                                          # 009
                                                          MPN: 155924
                                                          BRAKE PIPE FROM CONTROL UNIT TO LH FRONT FLEXIBLE CABLE
                                                          - Not for GD
                                                          from £6.23
                                                          from £6.23
                                                          # 009
                                                          MPN: 155927
                                                          BRAKE PIPE FROM CONTROL UNIT TO LH FRONT FLEXIBLE CABLE
                                                          - Valid for GD
                                                          from £6.28
                                                          from £6.28
                                                          # 010
                                                          MPN: 155925
                                                          BRAKE PIPE FROM CONTROL UNIT TO BRAKE PRESSURE REGULATOR
                                                          - Not for GD
                                                          from £12.01
                                                          from £12.01
                                                          # 010
                                                          MPN: 155928
                                                          BRAKE PIPE FROM CONTROL UNIT TO BRAKE PRESSURE REGULATOR
                                                          - Valid for GD
                                                          from £10.01
                                                          from £10.01
                                                          # 011
                                                          MPN: 14058511
                                                          NUT
                                                          from £0.47
                                                          from £0.47
                                                          # 012
                                                          MPN: 159266
                                                          FRONT SENSOR
                                                          from £98.94
                                                          from £98.94
                                                          # 013
                                                          MPN: 151330
                                                          SENSOR SUPPORT
                                                          from £140.76
                                                          from £140.76
                                                          # 014
                                                          MPN: 60909500
                                                          SCREW
                                                          from £1.06
                                                          from £1.06
                                                          # 015
                                                          MPN: 127494
                                                          WASHER
                                                          (minimum order quantity = 20)
                                                          from £0.52
                                                          from £0.52
                                                          This part replaces part number 10516470 - and 4 more. Click to view details
                                                          # 016
                                                          MPN: 137669
                                                          BRACKET
                                                          from £3.15
                                                          from £3.15
                                                          # 017
                                                          MPN: 104011
                                                          Brake pupe from brake pressure regulator to 3 way union
                                                          - Not for GD
                                                          from £9.62
                                                          from £9.62
                                                          This part replaces part number 14511 which we have in stock - and 2 more. Click to view details
                                                          # 017
                                                          MPN: 152644
                                                          Brake pupe from brake pressure regulator to 3 way union
                                                          - Valid for GD
                                                          from £7.67
                                                          from £7.67
                                                          # 018
                                                          MPN: 147980
                                                          BRAKE PIPE FROM 3 WAY UNION TO RH REAR FLEXIBLE CABLE
                                                          from £13.09
                                                          from £13.09
                                                          # 019
                                                          MPN: 147981
                                                          BRAKE PIPE FROM 3 WAY UNION TO LH REAR FLEXIBLE CABLE
                                                          from £12.70
                                                          from £12.70
                                                          # 020
                                                          MPN: 101394
                                                          3 WAY UNION
                                                          from £27.42
                                                          from £27.42
                                                          This part replaces part number 680980 - and 7 more. Click to view details
                                                          # 021
                                                          MPN: 151179
                                                          RH SUPPORT
                                                          from £51.51
                                                          from £51.51
                                                          # 021
                                                          MPN: 151180
                                                          LH SUPPORT
                                                          from £51.51
                                                          from £51.51
                                                          # 022
                                                          MPN: 143405
                                                          FASTON TANG
                                                          from £0.47
                                                          from £0.47
                                                          # 023
                                                          MPN: 12577811
                                                          NUT
                                                          Supersession
                                                          Supersession
                                                          # 024
                                                          MPN: 12574011
                                                          NUT
                                                          from £0.53
                                                          from £0.53
                                                          # 025
                                                          MPN: 10519201
                                                          WASHER
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 10519281
                                                          # 026
                                                          MPN: 128292
                                                          SPRING
                                                          from £1.36
                                                          from £1.36
                                                          # 027
                                                          MPN: 14496401
                                                          WASHER
                                                          Supersession
                                                          Supersession
                                                          # 028
                                                          MPN: 152422
                                                          REAR SENSOR PROTECTION
                                                          from £45.47
                                                          from £45.47
                                                          # 029
                                                          MPN: 159267
                                                          REAR SENSOR
                                                          from £297.08
                                                          from £297.08
                                                          # 030
                                                          MPN: 10440890
                                                          BRACKET
                                                          from £0.47
                                                          from £0.47
                                                          # 032
                                                          MPN: 154747
                                                          ADJUSTER SPACER
                                                          - Possible mounting
                                                          from £0.70
                                                          from £0.70
                                                          # 033
                                                          MPN: 10440990
                                                          BRACKET
                                                          from £0.77
                                                          from £0.77
                                                          # 034
                                                          MPN: 137313
                                                          RH AND LH FRONT FLEXIBLE PIPE
                                                          from £45.00
                                                          from £45.00
                                                          # 035
                                                          MPN: 137313
                                                          RH AND LH REAR FLEXIBLE PIPE
                                                          from £45.00
                                                          from £45.00
                                                          # 036
                                                          MPN: 146949
                                                          BRAKE PRESSURE REGULATOR
                                                          from £413.45
                                                          from £413.45
