ferrari 512 m hand - brake control parts diagram

042 - Hand - Brake Control

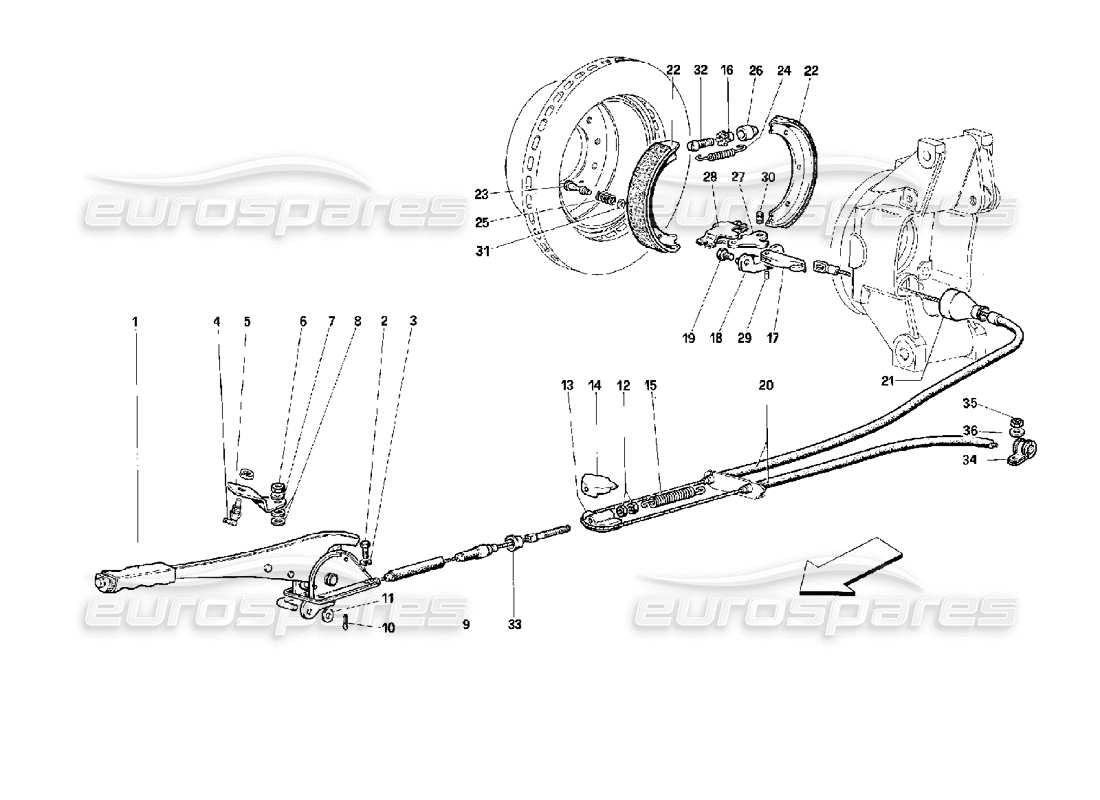

Ferrari 512 M Hand - Brake Control Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                  #
                                                                  Part number
                                                                  Description
                                                                  Price
                                                                  # 001
                                                                  MPN: 154093
                                                                  HAND BRAKE LEVER WITHOUT TRIM
                                                                  from £259.96
                                                                  from £259.96
                                                                  This part replaces part number 139351 which we have in stock - and 1 more. Click to view details
                                                                  # 001
                                                                  MPN: 636190..
                                                                  LEVER TRIM
                                                                  - For leather colors see table in draw. Colors code
                                                                  Supersession
                                                                  Supersession
                                                                  # 002
                                                                  MPN: 10902124
                                                                  SCREW
                                                                  from £0.51
                                                                  from £0.51
                                                                  This part replaces part number 10902111 - and 1 more. Click to view details
                                                                  # 003
                                                                  MPN: 127494
                                                                  WASHER
                                                                  (minimum order quantity = 20)
                                                                  from £0.53
                                                                  from £0.53
                                                                  This part replaces part number 10516470 - and 4 more. Click to view details
                                                                  # 004
                                                                  MPN: 114318
                                                                  SWITCH
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 114319
                                                                  # 005
                                                                  MPN: 114320
                                                                  BRACKET
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 114320 N/L/A
                                                                  # 006
                                                                  MPN: 15896470
                                                                  NUT
                                                                  (minimum order quantity = 20)
                                                                  from £0.78
                                                                  from £0.78
                                                                  This part replaces part number 15896415 which we have in stock - and 1 more. Click to view details
                                                                  # 007
                                                                  MPN: 12605270
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  # 008
                                                                  MPN: 10519377
                                                                  WASHER
                                                                  - Possible mounting
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 10519305 - and 1 more. Click to view details
                                                                  # 009
                                                                  MPN: 120960
                                                                  FRONT CABLE
                                                                  from £13.27
                                                                  from £13.27
                                                                  # 010
                                                                  MPN: 10796440
                                                                  COTTER PIN
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 264555
                                                                  # 011
                                                                  MPN: 10519624
                                                                  WASHER
                                                                  from £0.47
                                                                  from £0.47
                                                                  This part replaces part number 10519601 - and 3 more. Click to view details
                                                                  # 012
                                                                  MPN: 16102311
                                                                  NUT
                                                                  from £0.43
                                                                  from £0.43
                                                                  This part replaces part number 16102315
                                                                  # 013
                                                                  MPN: 118552
                                                                  ANCHORAGE FOR REAR CABLE
                                                                  from £1.10
                                                                  from £1.10
                                                                  # 014
                                                                  MPN: 118553
                                                                  CABLE RETAINING PLATE
                                                                  from £15.29
                                                                  from £15.29
                                                                  # 016
                                                                  MPN: 101286
                                                                  NUT FOR ADJUSTING SCREW
                                                                  from £21.90
                                                                  from £21.90
                                                                  This part replaces part number 680544 - and 6 more. Click to view details
                                                                  # 017
                                                                  MPN: 105270
                                                                  INNER LEVER CONTROL FORK
                                                                  from £14.89
                                                                  from £14.89
                                                                  # 018
                                                                  MPN: 142861
                                                                  BLOCK ON HUB HOLDER
                                                                  from £82.29
                                                                  from £82.29
                                                                  # 019
                                                                  MPN: 142856
                                                                  SCREW
                                                                  from £2.47
                                                                  from £2.47
                                                                  # 020
                                                                  MPN: 137475
                                                                  REAR CABLE
                                                                  from £109.39
                                                                  from £109.39
                                                                  # 021
                                                                  MPN: 143938
                                                                  STOP CABLE HOSE AND PROTECTION INNER LEVER
                                                                  from £16.37
                                                                  from £16.37
                                                                  # 022
                                                                  MPN: 170701
                                                                  COMPLETE BRAKE SHOE
                                                                  from £32.01
                                                                  from £32.01
                                                                  This part replaces part number 162820
                                                                  # 022
                                                                  MPN: 170701/A
                                                                  COMPLETE BRAKE SHOES
                                                                  from £92.40
                                                                  from £92.40
                                                                  This part replaces part number 178382
                                                                  # 023
                                                                  MPN: 156915
                                                                  SCREW L. 36 MM
                                                                  from £46.39
                                                                  from £46.39
                                                                  # 023
                                                                  MPN: 156916
                                                                  SCREW L. 29 MM
                                                                  from £31.73
                                                                  from £31.73
                                                                  # 024
                                                                  MPN: 101276
                                                                  RETURN SPRING FOR SHOE
                                                                  from £1.53
                                                                  from £1.53
                                                                  This part replaces part number 680516 - and 6 more. Click to view details
                                                                  # 025
                                                                  MPN: 101277
                                                                  SPRING
                                                                  from £1.31
                                                                  from £1.31
                                                                  This part replaces part number 680517 - and 2 more. Click to view details
                                                                  # 026
                                                                  MPN: 101279
                                                                  SEAT FOR ADJUSTING SCREW
                                                                  from £31.50
                                                                  from £31.50
                                                                  # 027
                                                                  MPN: 101280
                                                                  INNER CONTROL LEVER
                                                                  from £26.42
                                                                  from £26.42
                                                                  This part replaces part number 680538 - and 6 more. Click to view details
                                                                  # 028
                                                                  MPN: 101281
                                                                  OUTER CONTROL LEVER
                                                                  from £34.56
                                                                  from £34.56
                                                                  This part replaces part number 680539 - and 7 more. Click to view details
                                                                  # 029
                                                                  MPN: 101282
                                                                  PIN SECURING FORK TO INNER LEVER
                                                                  from £4.02
                                                                  from £4.02
                                                                  This part replaces part number 680540 - and 1 more. Click to view details
                                                                  # 030
                                                                  MPN: 101283
                                                                  PIN FOR JOINT
                                                                  from £8.70
                                                                  from £8.70
                                                                  This part replaces part number 680541 - and 3 more. Click to view details
                                                                  # 031
                                                                  MPN: 12625221
                                                                  WASHER
                                                                  from £0.53
                                                                  from £0.53
                                                                  # 032
                                                                  MPN: 101285
                                                                  SCREW
                                                                  from £18.13
                                                                  from £18.13
                                                                  This part replaces part number 680543 - and 8 more. Click to view details
                                                                  # 033
                                                                  MPN: 118554
                                                                  BUSHING
                                                                  from £9.17
                                                                  from £9.17
                                                                  # 034
                                                                  MPN: 10441290
                                                                  CLAMP
                                                                  from £0.47
                                                                  from £0.47
                                                                  # 036
                                                                  MPN: 12639701
                                                                  WASHER
                                                                  Supersession
                                                                  Supersession
                                                                  This part replaces part number 12639704
