ferrari 512 m steering column parts diagram

044 - Steering Column

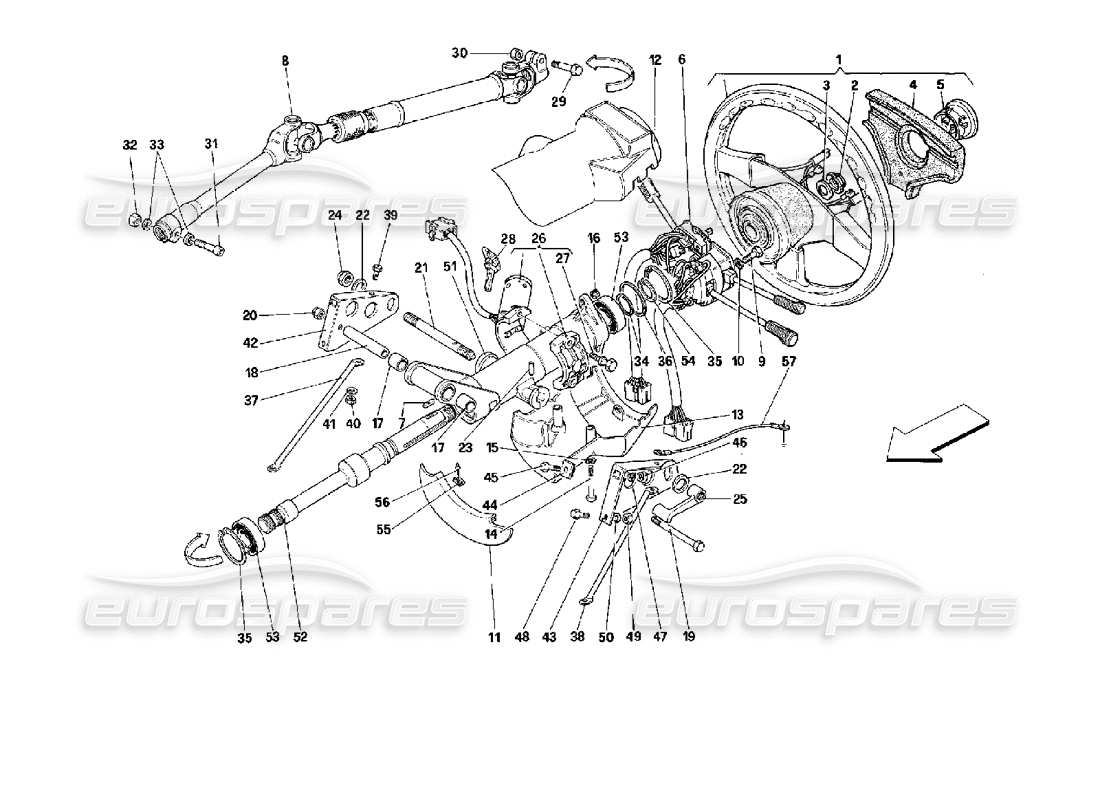

Ferrari 512 M Steering Column Parts Diagram

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                                                                      #
                                                                                                      Part number
                                                                                                      Description
                                                                                                      Price
                                                                                                      # 001
                                                                                                      MPN: 165946

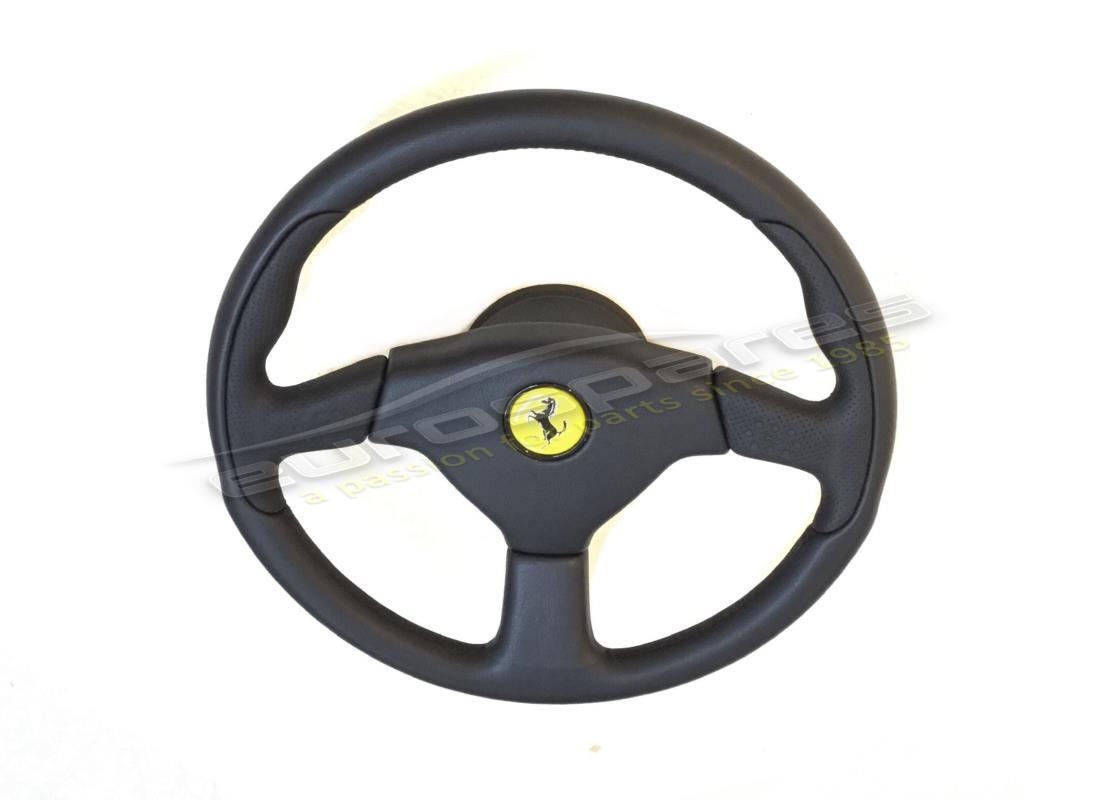

                                                                                                      STEERING WHEEL COMPLETE
                                                                                                      from £3,995.00
                                                                                                      from £3,995.00
                                                                                                      This part replaces part number 148457 - and 1 more. Click to view details
                                                                                                      # 002
                                                                                                      MPN: 101648
                                                                                                      RING NUT
                                                                                                      from £1.71
                                                                                                      from £1.71
                                                                                                      This part replaces part number 106082
                                                                                                      # 003
                                                                                                      MPN: 12601779
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 004
                                                                                                      MPN: 164255
                                                                                                      STEERING WHEEL COVER
                                                                                                      from £104.23
                                                                                                      from £104.23
                                                                                                      # 005
                                                                                                      MPN: 137819
                                                                                                      ELECTRIC HORN PUSH BUTTON
                                                                                                      - Valid for steering wheel 167566
                                                                                                      from £124.26
                                                                                                      from £124.26
                                                                                                      # 005
                                                                                                      MPN: 164256
                                                                                                      ELECTRIC HORN PUSH BUTTON
                                                                                                      - Valid for steering wheel 165946
                                                                                                      from £11.41
                                                                                                      from £11.41
                                                                                                      # 006
                                                                                                      MPN: 148656
                                                                                                      UNHOOK DEVIATION ASSEMBLY
                                                                                                      - Valid for USA and J
                                                                                                      from £206.15
                                                                                                      from £206.15
                                                                                                      # 006
                                                                                                      MPN: 150540
                                                                                                      UNHOOK DEVIATION ASSEMBLY
                                                                                                      - Not for USA and J
                                                                                                      from £2,564.10
                                                                                                      from £2,564.10
                                                                                                      # 007
                                                                                                      MPN: 101106
                                                                                                      TONGUE
                                                                                                      from £4.55
                                                                                                      from £4.55
                                                                                                      This part replaces part number 94628
                                                                                                      # 008
                                                                                                      MPN: 146374
                                                                                                      CARDANIC TRANSMISSION
                                                                                                      from £675.64
                                                                                                      from £675.64
                                                                                                      # 009
                                                                                                      MPN: 13274972
                                                                                                      SCREW
                                                                                                      from £1.15
                                                                                                      from £1.15
                                                                                                      This part replaces part number 13274911 - and 1 more. Click to view details
                                                                                                      # 010
                                                                                                      MPN: 12601179
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 12601171 - and 1 more. Click to view details
                                                                                                      # 011
                                                                                                      MPN: 63093800
                                                                                                      STEERING COLUMN RUBBER PROTECTION
                                                                                                      from £8.06
                                                                                                      from £8.06
                                                                                                      # 012
                                                                                                      MPN: 121580
                                                                                                      UPPER STEERING COLUMN COVER
                                                                                                      from £68.61
                                                                                                      from £68.61
                                                                                                      # 013
                                                                                                      MPN: 121581
                                                                                                      LOWER STEERING COLUMN COVER
                                                                                                      from £192.56
                                                                                                      from £192.56
                                                                                                      # 014
                                                                                                      MPN: 13275217
                                                                                                      SCREW
                                                                                                      from £1.18
                                                                                                      from £1.18
                                                                                                      This part replaces part number 14063014
                                                                                                      # 015
                                                                                                      MPN: 12601179
                                                                                                      WASHER
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 12601171 - and 1 more. Click to view details
                                                                                                      # 016
                                                                                                      MPN: 13525170
                                                                                                      HELI COIL
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 017
                                                                                                      MPN: 121588
                                                                                                      BUSH
                                                                                                      from £2.11
                                                                                                      from £2.11
                                                                                                      # 018
                                                                                                      MPN: 121589
                                                                                                      PIPE
                                                                                                      from £13.83
                                                                                                      from £13.83
                                                                                                      # 019
                                                                                                      MPN: 16045021
                                                                                                      SCREW
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      # 020
                                                                                                      MPN: 101139
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 16104425
                                                                                                      # 021
                                                                                                      MPN: 120988
                                                                                                      SHAFT
                                                                                                      from £6.23
                                                                                                      from £6.23
                                                                                                      # 022
                                                                                                      MPN: 114865
                                                                                                      WASHER
                                                                                                      from £0.83
                                                                                                      from £0.83
                                                                                                      This part replaces part number 112109
                                                                                                      # 023
                                                                                                      MPN: 14163870
                                                                                                      PIN
                                                                                                      from £1.18
                                                                                                      from £1.18
                                                                                                      # 024
                                                                                                      MPN: 102825
                                                                                                      NUT
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 95900617
                                                                                                      # 025
                                                                                                      MPN: 131487
                                                                                                      LEVER
                                                                                                      from £24.48
                                                                                                      from £24.48
                                                                                                      # 026
                                                                                                      MPN: 164282
                                                                                                      COMPLETE ANTI THEFT SYSTEM
                                                                                                      - Not for USA and CDN - Doors locks set included
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 61507000 which we have in stock - and 1 more. Click to view details
                                                                                                      # 026
                                                                                                      MPN: 164283
                                                                                                      LOCKS SET WITH KEY
                                                                                                      - Valid for USA and CDN - Doors locks set included
                                                                                                      from £640.34
                                                                                                      from £640.34
                                                                                                      This part replaces part number 164282 - and 3 more. Click to view details
                                                                                                      # 027
                                                                                                      MPN: 121611
                                                                                                      SCREW
                                                                                                      from £0.76
                                                                                                      from £0.76
                                                                                                      # 028
                                                                                                      MPN: 95401152
                                                                                                      BLANK KEY
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 61507100
                                                                                                      # 029
                                                                                                      MPN: 150427
                                                                                                      SCREW
                                                                                                      from £3.17
                                                                                                      from £3.17
                                                                                                      This part replaces part number 150428 which we have in stock
                                                                                                      # 030
                                                                                                      MPN: 150428
                                                                                                      NUT
                                                                                                      from £0.42
                                                                                                      from £0.42
                                                                                                      # 031
                                                                                                      MPN: 125518
                                                                                                      SCREW
                                                                                                      from £0.88
                                                                                                      from £0.88
                                                                                                      This part replaces part number 103371
                                                                                                      # 032
                                                                                                      MPN: 12574221
                                                                                                      NUT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 125519 which we have in stock - and 1 more. Click to view details
                                                                                                      # 033
                                                                                                      MPN: 12601274
                                                                                                      WASHER
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 12601221 - and 5 more. Click to view details
                                                                                                      # 034
                                                                                                      MPN: 134070
                                                                                                      WASHER THICK. 1 MM
                                                                                                      from £1.82
                                                                                                      from £1.82
                                                                                                      # 034
                                                                                                      MPN: 134071
                                                                                                      WASHER THICK. 1,1 MM
                                                                                                      - Possible mounting
                                                                                                      from £0.83
                                                                                                      from £0.83
                                                                                                      # 034
                                                                                                      MPN: 134072
                                                                                                      WASHER THICK. 1,2 MM
                                                                                                      - Possible mounting
                                                                                                      from £0.83
                                                                                                      from £0.83
                                                                                                      # 034
                                                                                                      MPN: 134073
                                                                                                      WASHER THICK. 1,3 MM
                                                                                                      - Possible mounting
                                                                                                      from £0.94
                                                                                                      from £0.94
                                                                                                      # 034
                                                                                                      MPN: 134074
                                                                                                      WASHER THICK. 1,4 MM
                                                                                                      - Possible mounting
                                                                                                      from £4.13
                                                                                                      from £4.13
                                                                                                      # 035
                                                                                                      MPN: 11060076
                                                                                                      SEEGER RING
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 036
                                                                                                      MPN: 134065
                                                                                                      WASHER THICK. 1 MM
                                                                                                      from £0.97
                                                                                                      from £0.97
                                                                                                      # 036
                                                                                                      MPN: 134066
                                                                                                      WASHER THICK. 1,1 MM
                                                                                                      - Possible mounting
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      # 036
                                                                                                      MPN: 134067
                                                                                                      WASHER THICK. 1,2 MM
                                                                                                      - Possible mounting
                                                                                                      from £0.83
                                                                                                      from £0.83
                                                                                                      # 036
                                                                                                      MPN: 134068
                                                                                                      WASHER THICK. 1,3 MM
                                                                                                      - Possible mounting
                                                                                                      from £0.76
                                                                                                      from £0.76
                                                                                                      # 036
                                                                                                      MPN: 134069
                                                                                                      WASHER THICK. 1,4 MM
                                                                                                      - Possible mounting
                                                                                                      from £1.21
                                                                                                      from £1.21
                                                                                                      # 037
                                                                                                      MPN: 123382
                                                                                                      RH TIE ROD
                                                                                                      from £16.79
                                                                                                      from £16.79
                                                                                                      # 038
                                                                                                      MPN: 123383
                                                                                                      LH TIE ROD
                                                                                                      from £137.54
                                                                                                      from £137.54
                                                                                                      # 039
                                                                                                      MPN: 10902124
                                                                                                      SCREW
                                                                                                      from £0.51
                                                                                                      from £0.51
                                                                                                      This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                      # 040
                                                                                                      MPN: 15896211
                                                                                                      NUT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 15896210
                                                                                                      # 041
                                                                                                      MPN: 127494
                                                                                                      WASHER
                                                                                                      (minimum order quantity = 20)
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                      # 042
                                                                                                      MPN: 120990
                                                                                                      RH BRACKET
                                                                                                      from £8.09
                                                                                                      from £8.09
                                                                                                      # 043
                                                                                                      MPN: 120991
                                                                                                      LH BRACKET
                                                                                                      from £8.09
                                                                                                      from £8.09
                                                                                                      # 044
                                                                                                      MPN: 124826
                                                                                                      PLATE
                                                                                                      from £14.47
                                                                                                      from £14.47
                                                                                                      # 045
                                                                                                      MPN: 10902124
                                                                                                      SCREW
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 10902111 - and 1 more. Click to view details
                                                                                                      # 046
                                                                                                      MPN: 15896211
                                                                                                      NUT
                                                                                                      Supersession
                                                                                                      Supersession
                                                                                                      This part replaces part number 15896210
                                                                                                      # 047
                                                                                                      MPN: 127494
                                                                                                      WASHER
                                                                                                      (minimum order quantity = 20)
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 10516470 - and 4 more. Click to view details
                                                                                                      # 048
                                                                                                      MPN: 16043221
                                                                                                      SCREW
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 13842414 - and 1 more. Click to view details
                                                                                                      # 049
                                                                                                      MPN: 16100824
                                                                                                      NUT
                                                                                                      from £0.53
                                                                                                      from £0.53
                                                                                                      This part replaces part number 16100814 - and 1 more. Click to view details
                                                                                                      # 050
                                                                                                      MPN: 127496
                                                                                                      WASHER
                                                                                                      from £0.54
                                                                                                      from £0.54
                                                                                                      This part replaces part number 10516671 - and 2 more. Click to view details
                                                                                                      # 051
                                                                                                      MPN: 136024

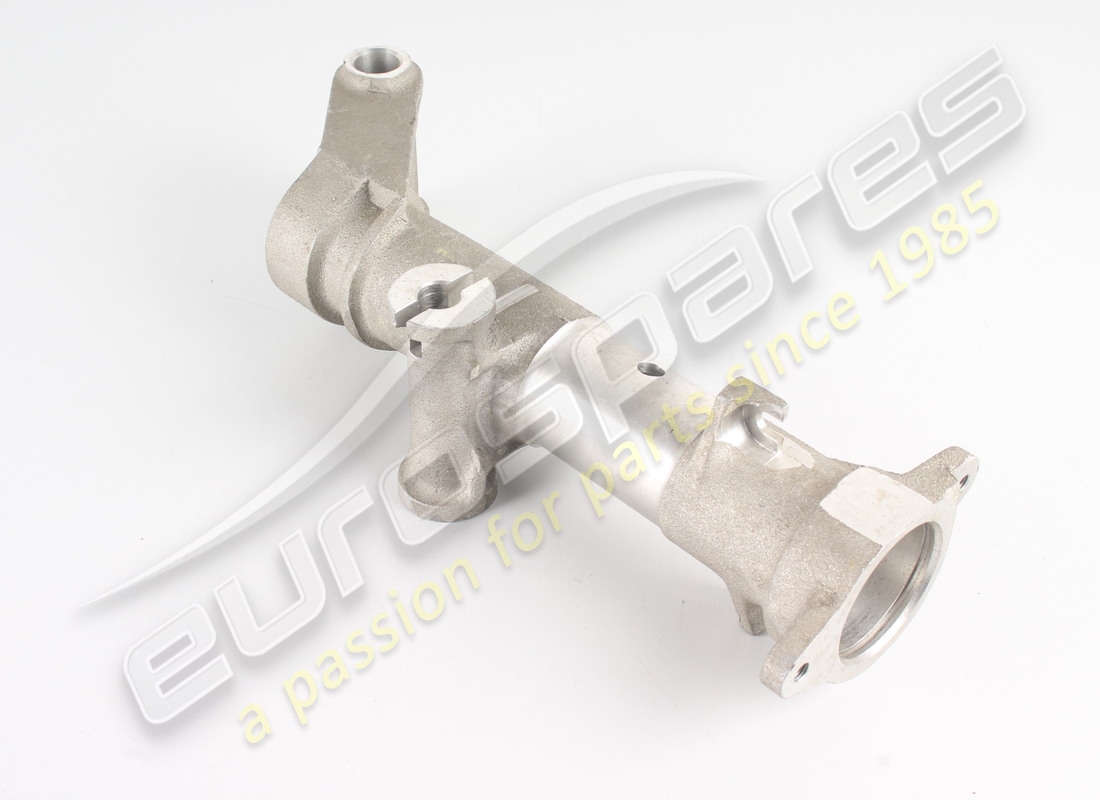

                                                                                                      STEERING COLUMN SUPPORT
                                                                                                      from £682.82
                                                                                                      from £682.82
                                                                                                      # 052
                                                                                                      MPN: 138710
                                                                                                      UPPER SHAFT
                                                                                                      from £389.58
                                                                                                      from £389.58
                                                                                                      # 053
                                                                                                      MPN: 134061
                                                                                                      BEARING
                                                                                                      from £6.90
                                                                                                      from £6.90
                                                                                                      This part replaces part number 119213
                                                                                                      # 054
                                                                                                      MPN: 11066876
                                                                                                      SEEGER RING
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      This part replaces part number 11066875
                                                                                                      # 055
                                                                                                      MPN: 62770100
                                                                                                      SPRING
                                                                                                      from £1.14
                                                                                                      from £1.14
                                                                                                      # 056
                                                                                                      MPN: 62772500
                                                                                                      RIVET
                                                                                                      from £0.47
                                                                                                      from £0.47
                                                                                                      # 057
                                                                                                      MPN: 125694
                                                                                                      GROUND CABLE
                                                                                                      from £0.90
                                                                                                      from £0.90
