045 - Front Suspension - Shock Absorber and Brake Disc

Ferrari 512 M Front Suspension - Shock Absorber and Brake Disc Parts Diagram

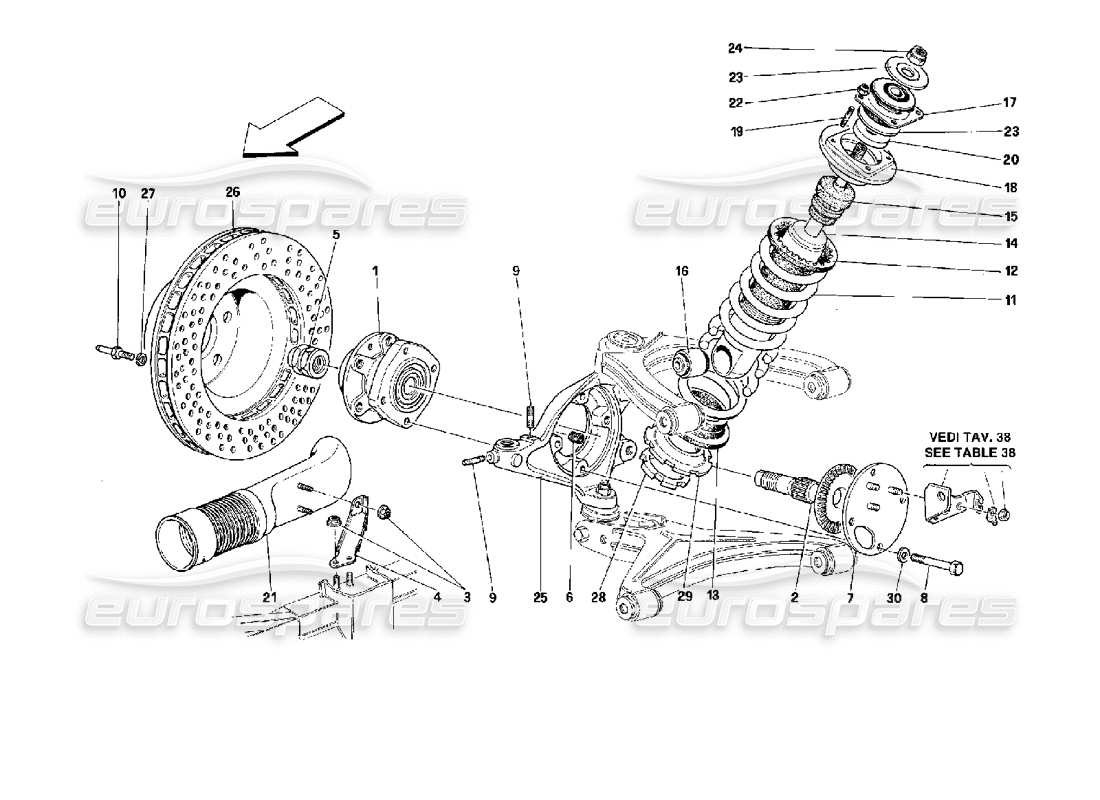

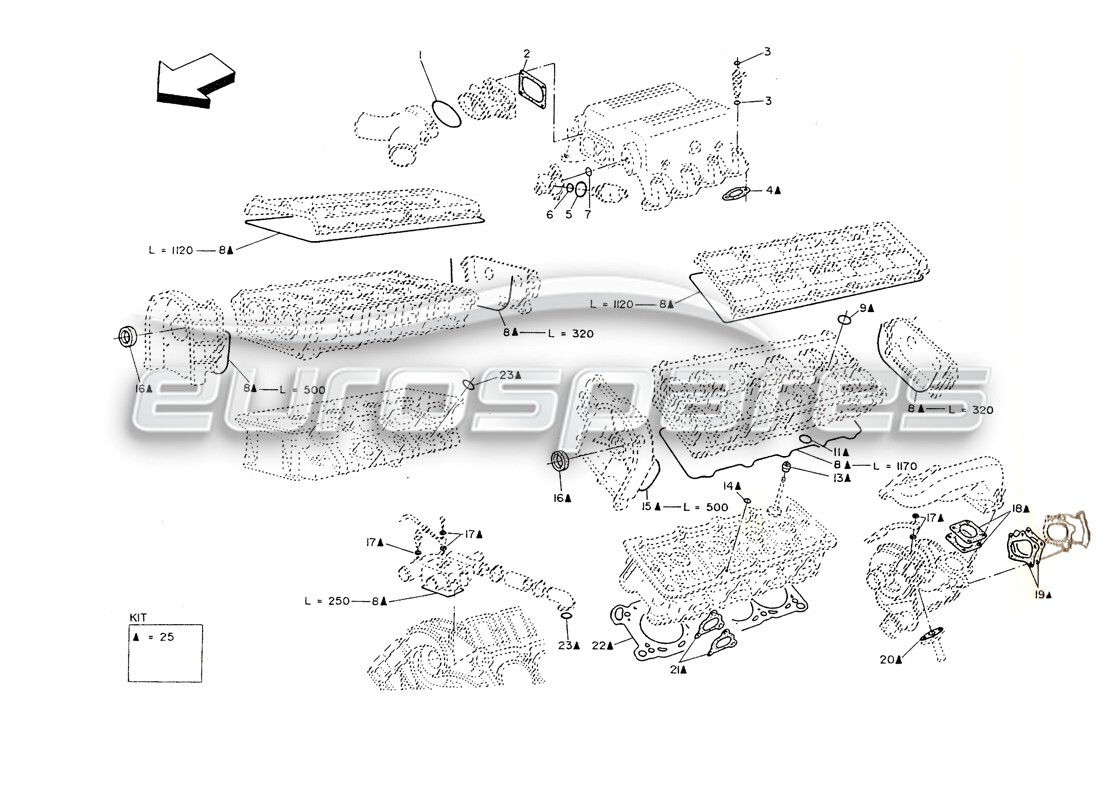

View the exploded parts diagram to find the part you are looking for
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using theandbuttons
  • You can reset the diagram using thebutton
View all the part pricing and availability information on the parts table to the rightbelow
  • You can click on a hotspot in the parts diagram to locate the part in the table
  • You can use the options filter, in the filter tab, to hide parts not relevant to your search
Switch between other part diagrams using theandbuttons, or use the diagram images below
We recommend viewing this page in landscape orientation for the best experience
Part Key
ST
Part in stock
PS
Available in a part set
SS
Part supersession in stock
PS
Available in a part set to order (subject to availability)
SO
Part available to order (subject to availability)
PK
Available in a part kit
                                                          #
                                                          Part number
                                                          Description
                                                          Price
                                                          # 001
                                                          MPN: 142882

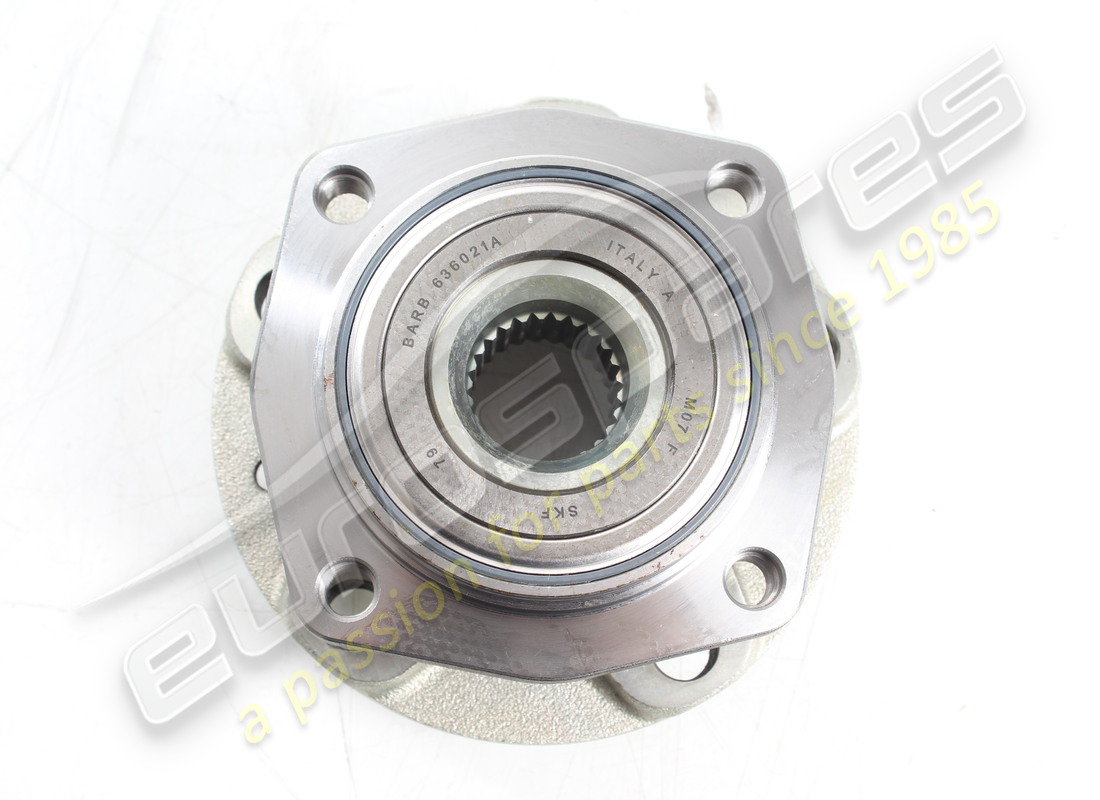

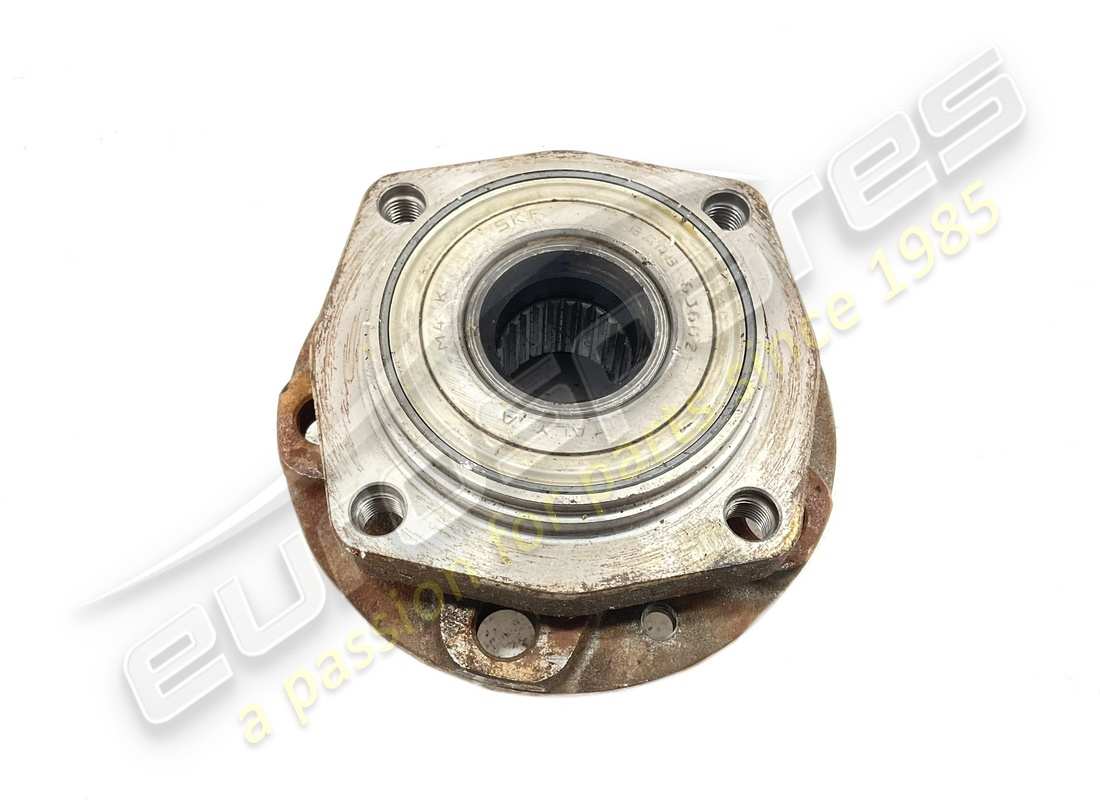

                                                          HUB COMPLETE BEARING
                                                          from chassis : 87990
                                                          from £569.63
                                                          from £569.63
                                                          # 002
                                                          MPN: 151173
                                                          PIN
                                                          from £175.35
                                                          from £175.35
                                                          # 003
                                                          MPN: 14058411
                                                          NUT
                                                          from £0.47
                                                          from £0.47
                                                          # 004
                                                          MPN: 149418
                                                          BRACKET
                                                          from £83.13
                                                          from £83.13
                                                          # 005
                                                          MPN: 209184
                                                          NUT
                                                          from £25.62
                                                          from £25.62
                                                          This part replaces part number 167259 - and 1 more. Click to view details
                                                          # 006
                                                          MPN: 133771
                                                          INSERT
                                                          from £1.90
                                                          from £1.90
                                                          # 007
                                                          MPN: 151181
                                                          RH COVER
                                                          from £25.21
                                                          from £25.21
                                                          # 007
                                                          MPN: 151182
                                                          LH COVER
                                                          from £12.65
                                                          from £12.65
                                                          # 008
                                                          MPN: 139973
                                                          SCREW
                                                          from £0.86
                                                          from £0.86
                                                          # 009
                                                          MPN: 11000924
                                                          STUD
                                                          from £0.78
                                                          from £0.78
                                                          This part replaces part number 11000921 which we have in stock
                                                          # 010
                                                          MPN: 104370
                                                          PIN
                                                          - Not as spare parts now - Replaced by 16043424
                                                          from £5.12
                                                          from £5.12
                                                          This part replaces part number 139981
                                                          # 010
                                                          MPN: 16043424
                                                          PIN
                                                          from £0.51
                                                          from £0.51
                                                          This part replaces part number 16043421
                                                          # 011
                                                          MPN: 151881

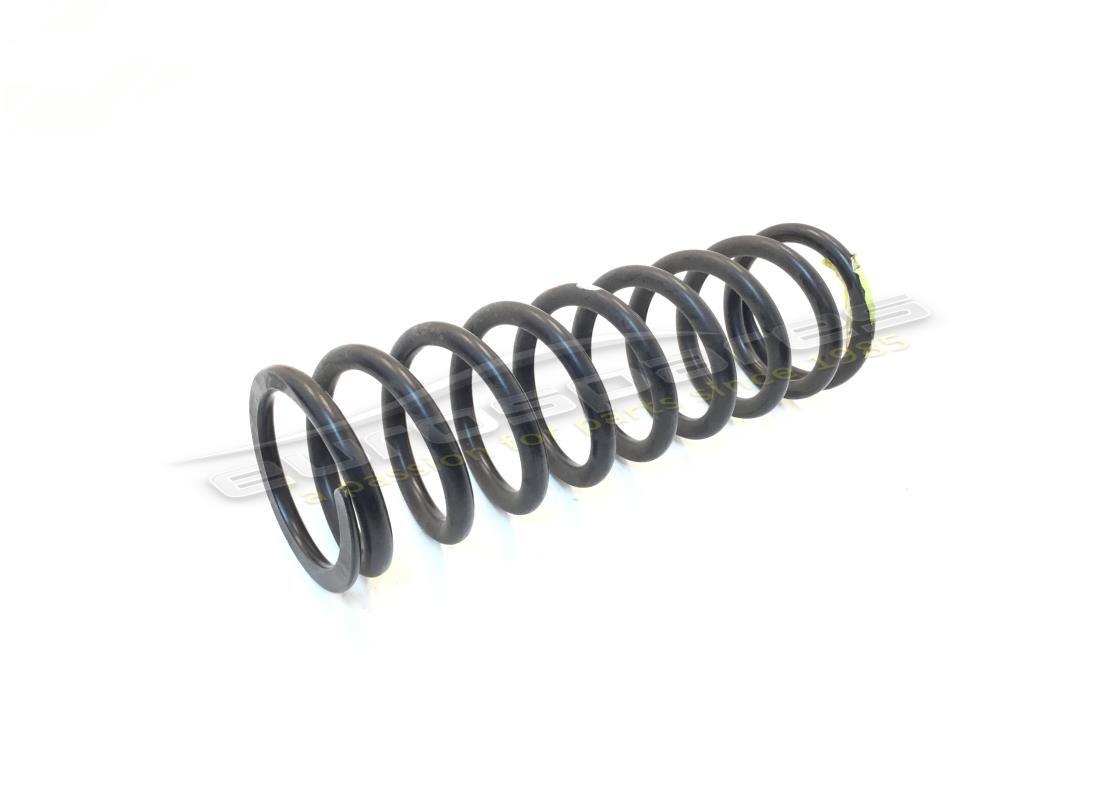

                                                          SUSPENSION SPRING
                                                          from £240.70
                                                          from £240.70
                                                          # 012
                                                          MPN: 150928
                                                          UPPER SPACER
                                                          from £9.43
                                                          from £9.43
                                                          # 013
                                                          MPN: 113581
                                                          LOWER SPACER
                                                          from £6.34
                                                          from £6.34
                                                          This part replaces part number 387000338 - and 2 more. Click to view details
                                                          # 014
                                                          MPN: 148529
                                                          SHOCK ABSORBER
                                                          from £1,696.58
                                                          from £1,696.58

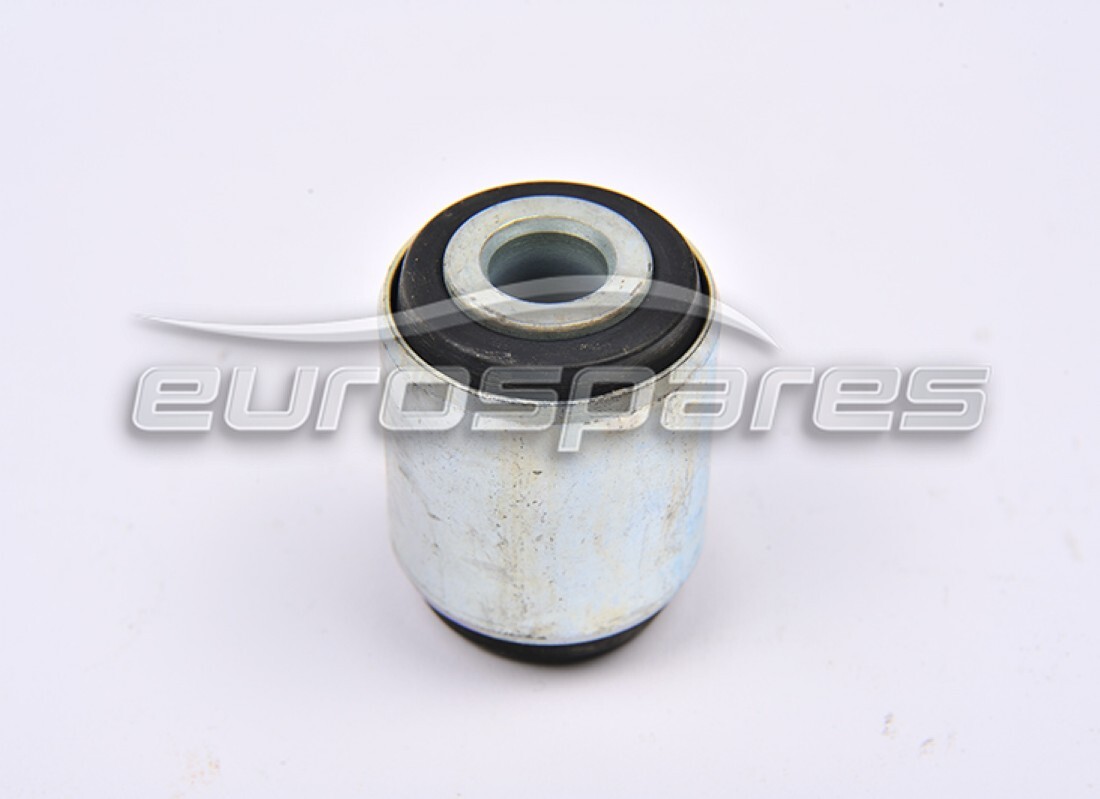

                                                          # 016
                                                          MPN: 130516
                                                          ESTENDBLOCK
                                                          from £28.17
                                                          from £28.17
                                                          # 017
                                                          MPN: 151548
                                                          HYPERBLOCK
                                                          from £226.55
                                                          from £226.55
                                                          # 018
                                                          MPN: 151547
                                                          CUP TO RET. SPRING
                                                          from £63.94
                                                          from £63.94
                                                          This part replaces part number 114809 - and 2 more. Click to view details
                                                          # 019
                                                          MPN: 13543324
                                                          STUD
                                                          from £0.83
                                                          from £0.83
                                                          This part replaces part number 13543321
                                                          # 020
                                                          MPN: 149858
                                                          SPACER
                                                          from £8.67
                                                          from £8.67
                                                          # 021
                                                          MPN: 149342
                                                          AIR CONVEYOR COMPLETE
                                                          from £38.54
                                                          from £38.54
                                                          This part replaces part number 139739 - and 1 more. Click to view details
                                                          # 022
                                                          MPN: 104030
                                                          NUT
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 16104125
                                                          # 023
                                                          MPN: 149718
                                                          WASHER
                                                          from £4.28
                                                          from £4.28
                                                          # 024
                                                          MPN: 102825
                                                          NUT
                                                          from £0.47
                                                          from £0.47
                                                          This part replaces part number 95900617
                                                          # 025
                                                          MPN: 149891

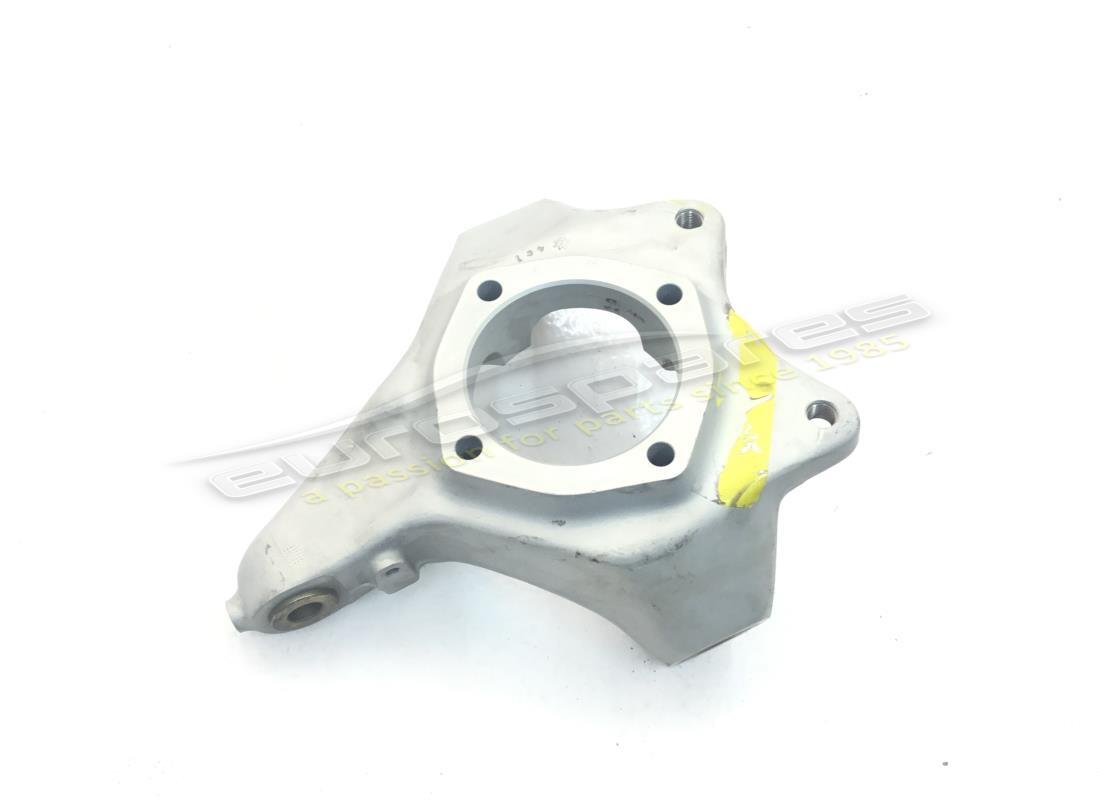

                                                          RH STUB AXLE, COMPLETE
                                                          from £979.79
                                                          from £979.79
                                                          # 025
                                                          MPN: 149892
                                                          LH STUB AXLE, COMPLETE
                                                          from £840.81
                                                          from £840.81
                                                          # 026
                                                          MPN: 153730

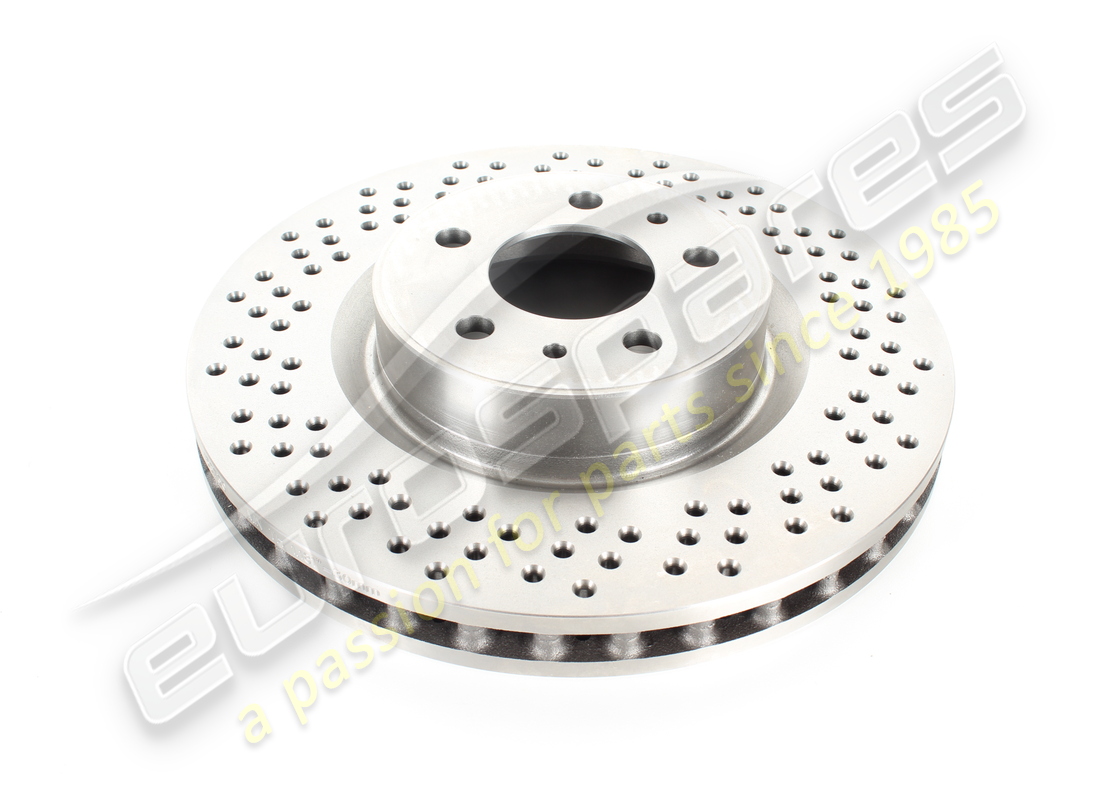

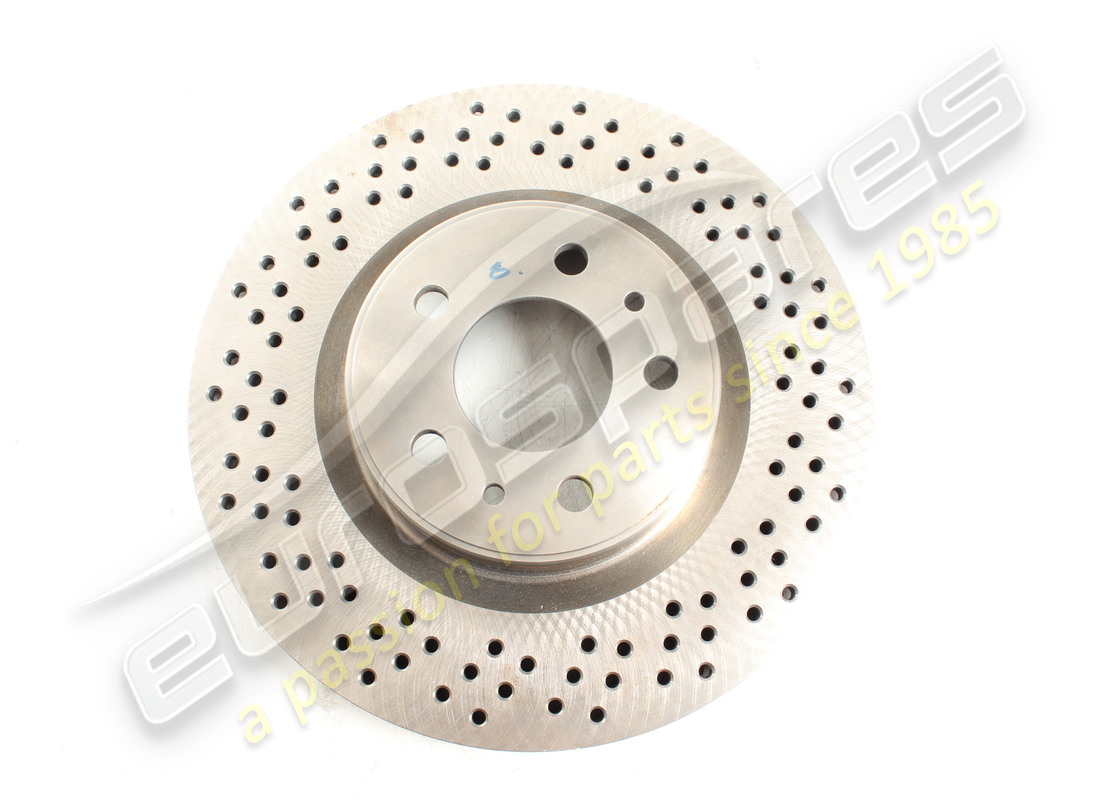

                                                          BRAKE DISC
                                                          from £1,412.81
                                                          from £1,412.81
                                                          This part replaces part number 146370
                                                          # 027
                                                          MPN: 127496
                                                          WASHER
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 10516671 - and 2 more. Click to view details
                                                          # 028
                                                          MPN: 141860
                                                          RING NUT
                                                          from £63.87
                                                          from £63.87
                                                          # 029
                                                          MPN: 155086
                                                          PLATE
                                                          from £24.79
                                                          from £24.79
                                                          # 030
                                                          MPN: 12601474
                                                          WASHER
                                                          from £0.53
                                                          from £0.53
                                                          This part replaces part number 12601471 which we have in stock - and 2 more. Click to view details
                                                          Translating Select View All Diagrams Search Most relevant Price descending Price ascending Translating 7 days days Stock Order Urgent Order
